JBL IVX-576126 Intellivox Series H-90 MKII 100 Watts RMS 6 x 4″ ADC Digital Directivity Column Speaker

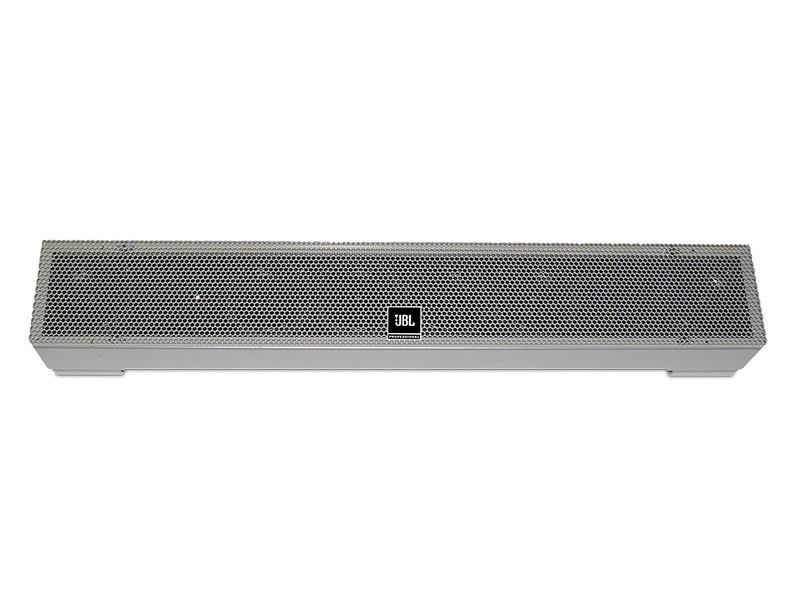

JBL Intellivox ADC-H90 Mark II horizontal column loudspeaker

The JBL Intellivox ADC-H90 Mark II is a precision-engineered horizontal column loudspeaker specifically designed for high-ceiling corridors, platforms, terminals, and large public spaces where controlled sound dispersion and minimal spill are essential. Developed to improve intelligibility and listening comfort, this system focuses acoustic energy directly on the listener area while significantly reducing unwanted sound radiation into surrounding spaces, making it ideal for open platform railway stations and similar environments.

The loudspeaker features a precisely defined dispersion pattern with a wide fixed vertical coverage of 130° and a tightly controlled horizontal beam. This design enables targeted audio delivery over distances of 10 to 15 meters, with the horizontal focus point optimized at 15 meters for consistent speech intelligibility and even sound distribution. The column is designed for horizontal mounting and can be mechanically aimed to match the desired throw and coverage geometry, allowing accurate alignment for complex architectural layouts.

Built with six 4-inch full-range drivers and a steel powder-coated enclosure, the ADC-H90 Mark II provides reliable acoustic performance combined with long-term structural durability. The integrated transformer system supports 100V line operation with selectable power taps at 100 W, 50 W, and 25 W, enabling flexible system design for distributed audio installations. Control switches allow selection of high-pass filtering and correction EQ for optimized tonal balance in different acoustic environments.

The system includes pilot tone detection with front-panel LED indication, supporting continuous monitoring for life safety applications. Fully compliant with EN 54-24 standards and certified for outdoor Type B environments, the JBL Intellivox ADC-H90 Mark II is engineered for dependable performance in critical communication systems, transportation infrastructure, hospitality venues, and large public facilities requiring controlled coverage, high intelligibility, and regulatory compliance.

Features of ADC-H90 Mark II

• Horizontal column loudspeaker design

• Controlled directional sound projection

• Spill-reduction acoustic dispersion

• Fixed 130° vertical coverage

• Focused horizontal beam control

• Optimized 10–15 m throw distance

• Mechanical aiming capability

• Six 4-inch full-range drivers

• 100V distributed line operation

• Selectable 100 W / 50 W / 25 W taps

• Integrated transformer system

• High-pass filter control

• Correction EQ control

• Pilot tone detection system

• Front LED monitoring indicator

• EN 54-24 life safety compliance

• Outdoor Type B certification

• Steel powder-coated enclosure

• Horizontal mounting configuration

• Multiple mounting point support

• Designed for public address systems

• Optimized for transport and terminal use

• Low spill sound coverage design

• Professional installation architecture

Specifications of ADC-H90 Mark II
