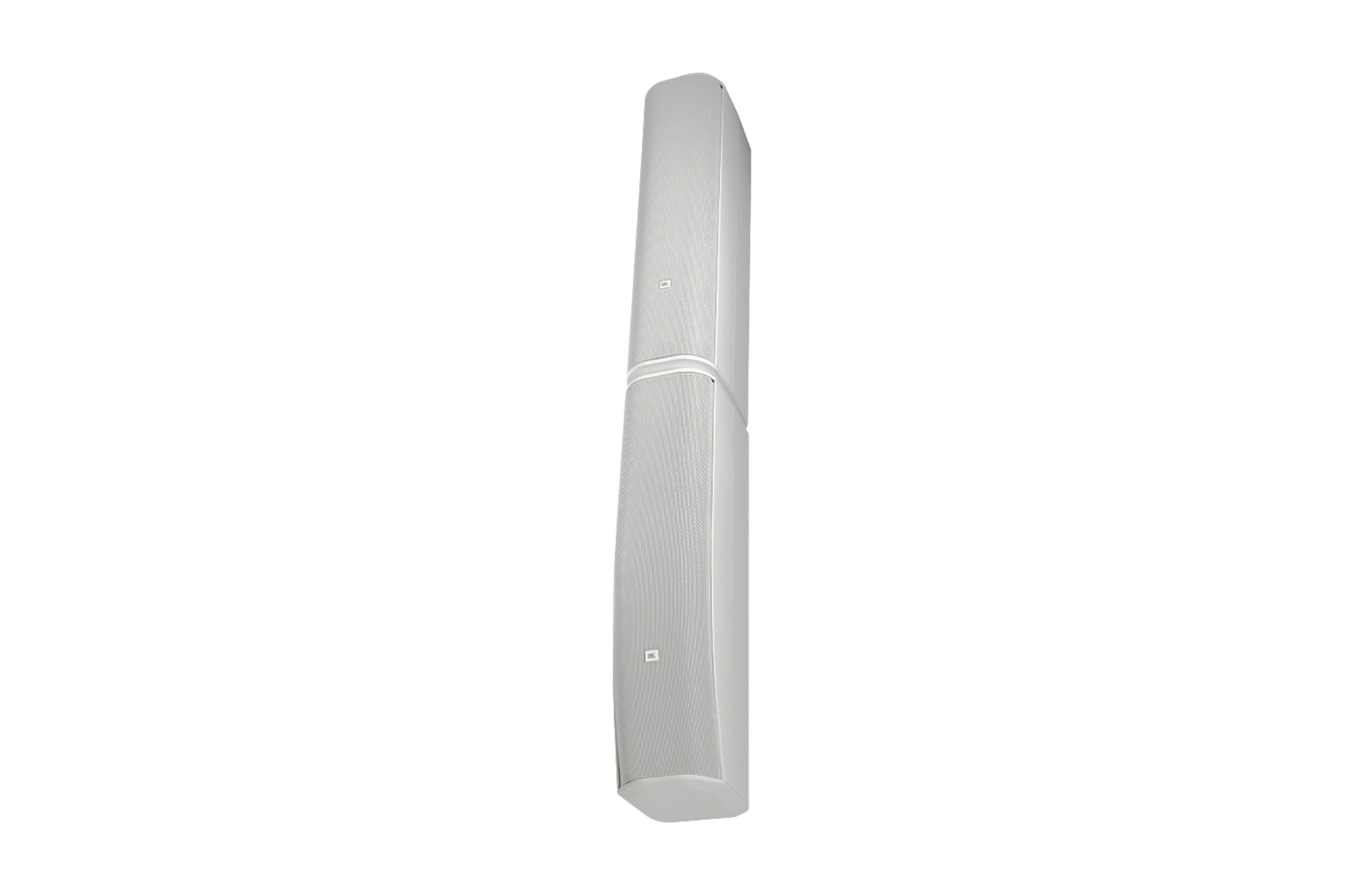

JBL CBT 70J-1 + 70JE-1-WH System Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker – White

JBL CBT 70JE-1 white extension

The JBL CBT 70JE-1 white extension is specially designed to complement the CBT 70J-1 line array column speaker, providing enhanced low-frequency response, greater output levels, and improved vertical pattern control. When paired with the CBT 70J-1, the system utilizes Constant Beamwidth Technology™, ensuring consistent vertical coverage while avoiding the narrow vertical beaming and out-of-coverage lobing common in passive column speakers.

This extension features eight 130 mm (5 in) high-power low-frequency drivers and sixteen 25 mm (1 in) soft dome high-frequency drivers, arranged for optimal dispersion and pattern control. The vertical coverage is switchable between 25° for long-throw and 45° for medium-throw applications, delivering consistent sound from front to back. Switchable voicing allows either flat response for music or a mid-range boost for speech.

The unit includes a built-in crossover network specifically designed for integration with the CBT 70J-1, and a coupler plate secures the extension to the main column. Constructed from fiberglass-reinforced ABS with a painted aluminum grille, the CBT 70JE-1 white extension is IP55-rated with the optional MTC-PC2 panel cover, making it suitable for professional indoor and outdoor installations. Mounting is flexible using the included coupler plate, the swivel (pan)/tilt wall bracket from the CBT 70J-1, or additional M6 threaded insert points for suspension or third-party brackets.

Ideal for large conference halls, auditoriums, transit spaces, and professional venues, the CBT 70JE-1 white extension ensures extended bass performance while maintaining consistent coverage across listening areas when paired with the CBT 70J-1 speaker.

Features of CBT 70JE-1

• Purpose-designed extension for CBT 70J-1 line array column

• Eight 5 in LF drivers and sixteen 1 in HF drivers

• Extended bass response down to 45 Hz

• Higher output and extended vertical pattern control

• Switchable vertical pattern: 25° long-throw, 45° medium-throw

• Switchable voicing: flat music or mid-range speech mode

• Built-in purpose-designed crossover network for CBT 70J-1 integration

• Coupler plate included for secure joining with CBT 70J-1

• Constant Beamwidth Technology™ for consistent vertical coverage

• Fiberglass-reinforced ABS cabinet with painted aluminum grille

• IP55-rated with optional MTC-PC2 terminal panel cover

• Swivel (pan)/tilt wall bracket included (from CBT 70J-1)

• Twenty M6 threaded insert points for mounting or suspension

• Suitable for large halls, auditoriums, and professional audio applications

• Optional accessories: flush-mount, stand-mount, or terminal panel cover

• Origin of Country: China

Specifications of CBT 70JE-1
