JBL IVX-587021/230 Intellivox Series DS180 8 x 40 Watts RMS 12 x 4″ Full Range Beam Shaping Active Column Loudspeaker

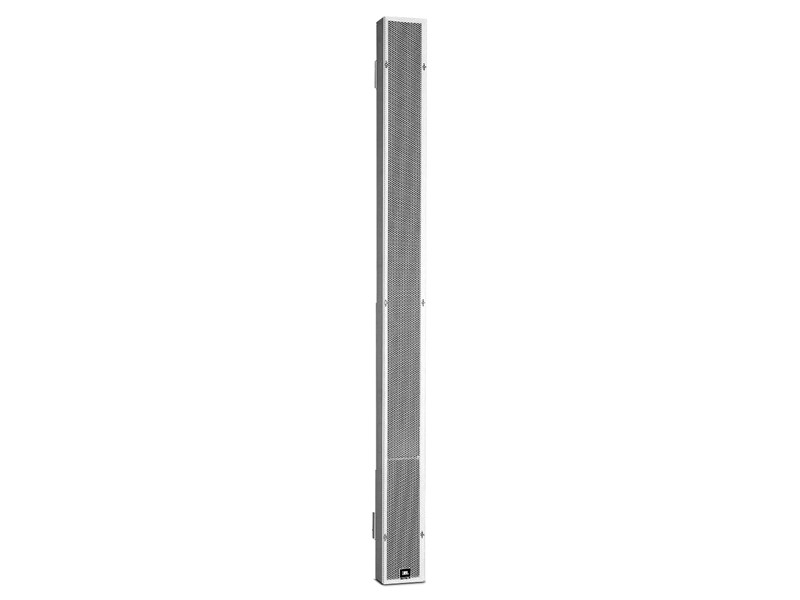

JBL Intellivox DS180 Active Column Loudspeaker

The JBL Intellivox DS180 Active Column Loudspeaker is designed for smaller, less reverberant spaces where improved speech intelligibility is essential. It can also function as a fill or delay system in larger Intellivox installations, providing coverage in shadowed zones. A single DS180 covers areas up to 25 meters while maintaining consistent sound pressure across the audience. The system features twelve custom 4-inch full-range loudspeakers driven by an eight-channel class-D amplifier with a sophisticated switched-mode power supply, ensuring reliable long-term performance.

The DS180 incorporates comprehensive surveillance functions to meet stringent Voice Alarm (life safety) requirements. Control is available through JBL’s proprietary WinControl software, offering user-friendly management of beam steering parameters, audio processing, and surveillance functions. Its modest array length allows for unobtrusive installation in architecturally sensitive spaces. Low-frequency performance can be extended using a JBL subwoofer system, enabling full-range operation when required.

Equipped with vertical beam shaping via DDS Technology, wide horizontal dispersion, and 32-bit floating point DSP, the DS180 delivers precise sound coverage and superior intelligibility. Additional features include dual line inputs, volume control, delay, eight-band parametric EQ, user-definable presets, automatic volume control via a built-in ambient microphone, network readiness, firmware upgradeability, and simulation compatibility with DDA, Catt-Acoustic, Odeon, and EASE4.3. The Intellivox DS180 is suitable for applications including boardrooms, conference facilities, lecture halls, theatres, AV presentation rooms, atriums, and other professional AV environments.

Features of Intellivox DS180

• Superb speech intelligibility

• Slim, unobtrusive design

• Extended frequency response

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic Volume Control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox DS180
