JBL IVX-587121/230 Intellivox Series DS430 16 x 40 Watts RMS 17 x 4″ Full Range Beam Shaping Active Column Loudspeaker

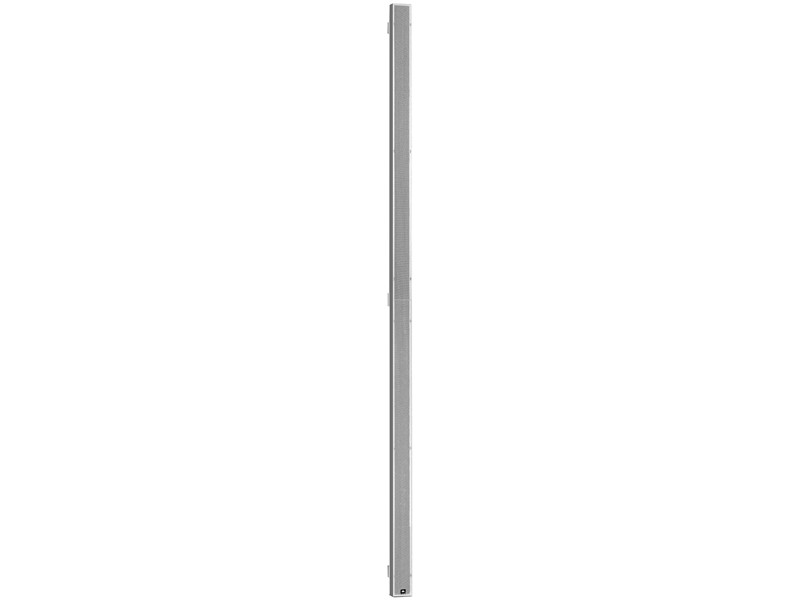

JBL Intellivox DS430 Active Column Loudspeaker

The JBL Intellivox DS430 Active Column Loudspeaker is the second tallest in Duran Audio’s fully integrated digitally controlled loudspeaker arrays. It is capable of maintaining an even sound pressure level over distances up to 50 meters, with array length providing long-throw capability and enhanced low-frequency control for highly reverberant spaces. The system features seventeen custom-designed 4-inch loudspeakers, driven by a sixteen-channel class-D amplifier with a sophisticated switched-mode power supply, all arranged according to JBL’s patented algorithm to ensure consistent and reliable performance.

Designed to meet the stringent requirements of Voice Alarm (life safety) applications, the DS430 integrates extensive surveillance functions. Users can control beam steering parameters, audio processing, presets, and surveillance features through JBL’s proprietary WinControl software. The array’s increased low-frequency control and compact length allow easy and unobtrusive installation even in architecturally sensitive environments. The system’s low-frequency response can also be extended with a JBL subwoofer for full-range performance.

The DS430 features vertical beam shaping via DDS Technology, wide horizontal dispersion, 32-bit floating point DSP, dual line inputs, volume control, delay, eight-band parametric EQ, and eight user-definable password-protected presets. Additional features include automatic volume control via a built-in ambient microphone, network readiness, upgradeable firmware, and simulation compatibility with DDA, Catt-Acoustic, Odeon, and EASE4.3. It is suitable for transport hubs, large places of worship, lecture halls, theatres, large conference facilities, atriums, and museums where long-throw performance and clarity are essential.

Features of Intellivox DS430

• Superb speech intelligibility

• Slim, unobtrusive design

• Extended frequency response

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic Volume Control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox DS430
