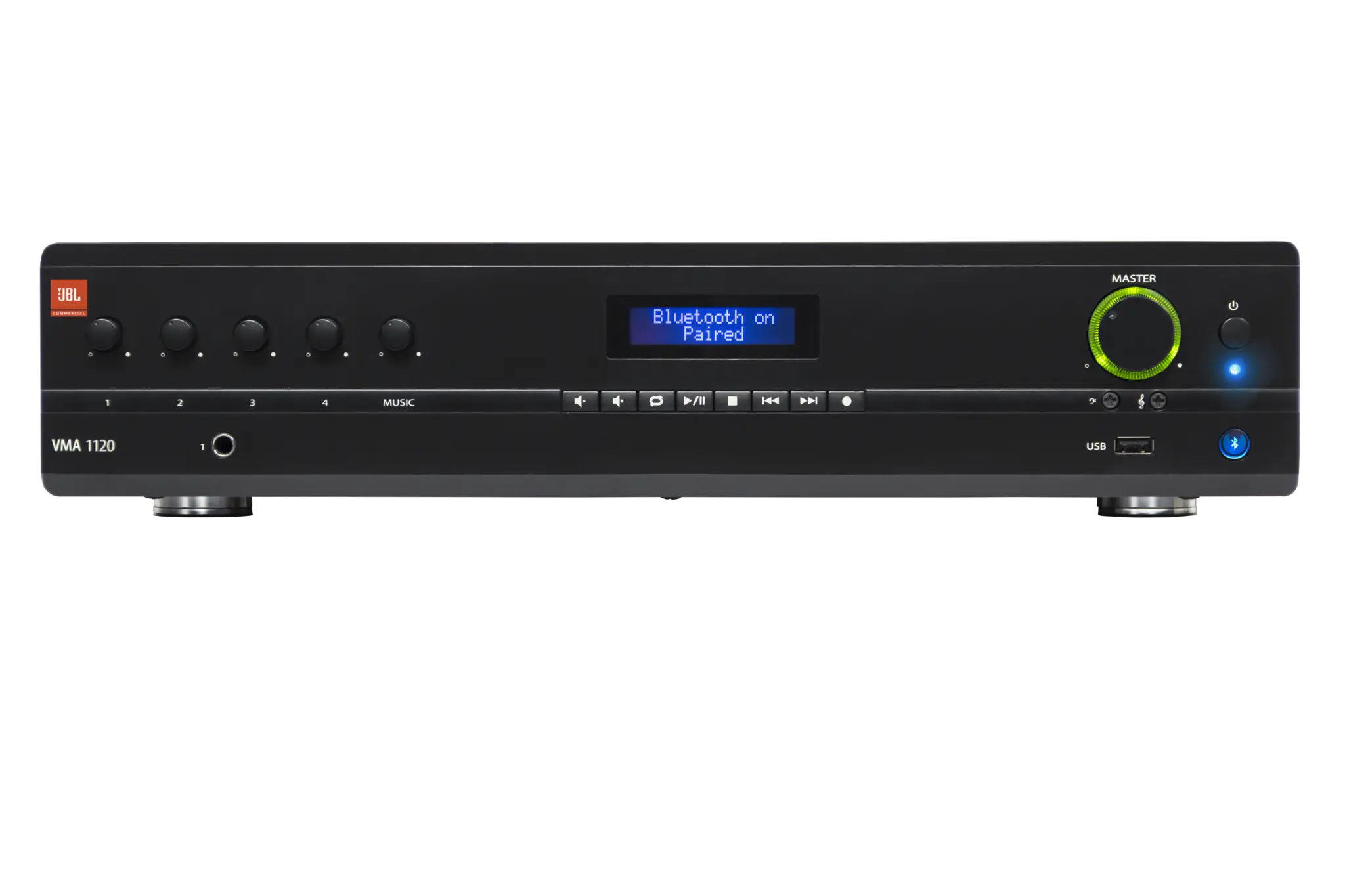

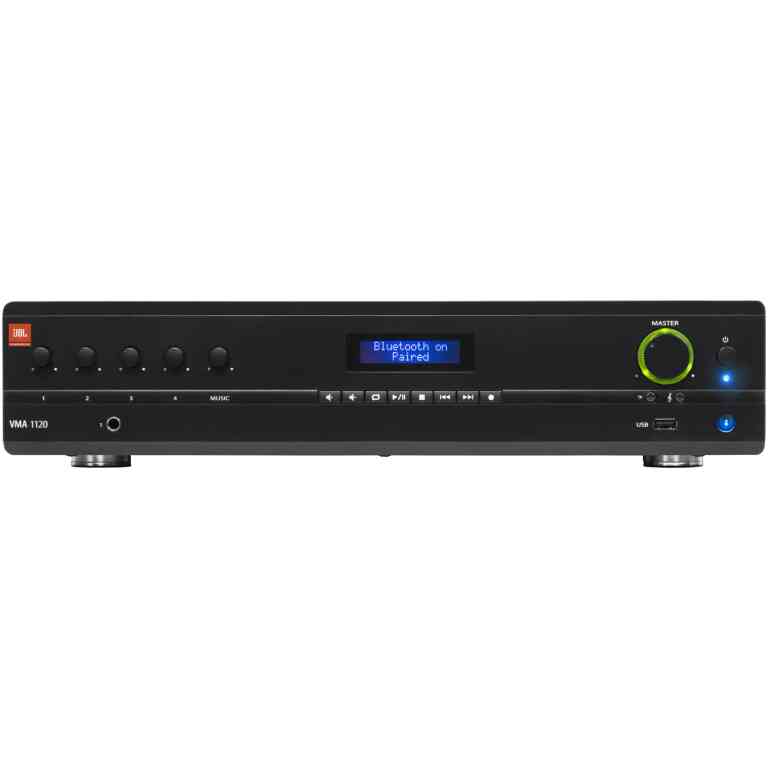

JBL NVMA1120-34-EU 5 input x 60/120/240W output Mixer/Amplifiers

JBL VMA Series Mixer-Amplifier

The JBL VMA Series Mixer-Amplifiers are cost-effective, versatile audio solutions designed for commercial sound applications and emerging markets worldwide. These units support low-impedance speaker loads (4Ω, 8Ω) as well as high-impedance 70V and 100V distributed audio systems, offering flexible deployment options for offices, retail locations, educational facilities, and other professional spaces.

The VMA Series includes models delivering 60W, 120W, and 240W per channel, with five inputs and one output. Each channel features independent bass and treble controls, allowing precise tonal adjustment to suit different acoustic environments. The units also include paging chime functionality, priority muting, and compatibility with JBL CSR-V wall-mounted controllers for remote volume management.

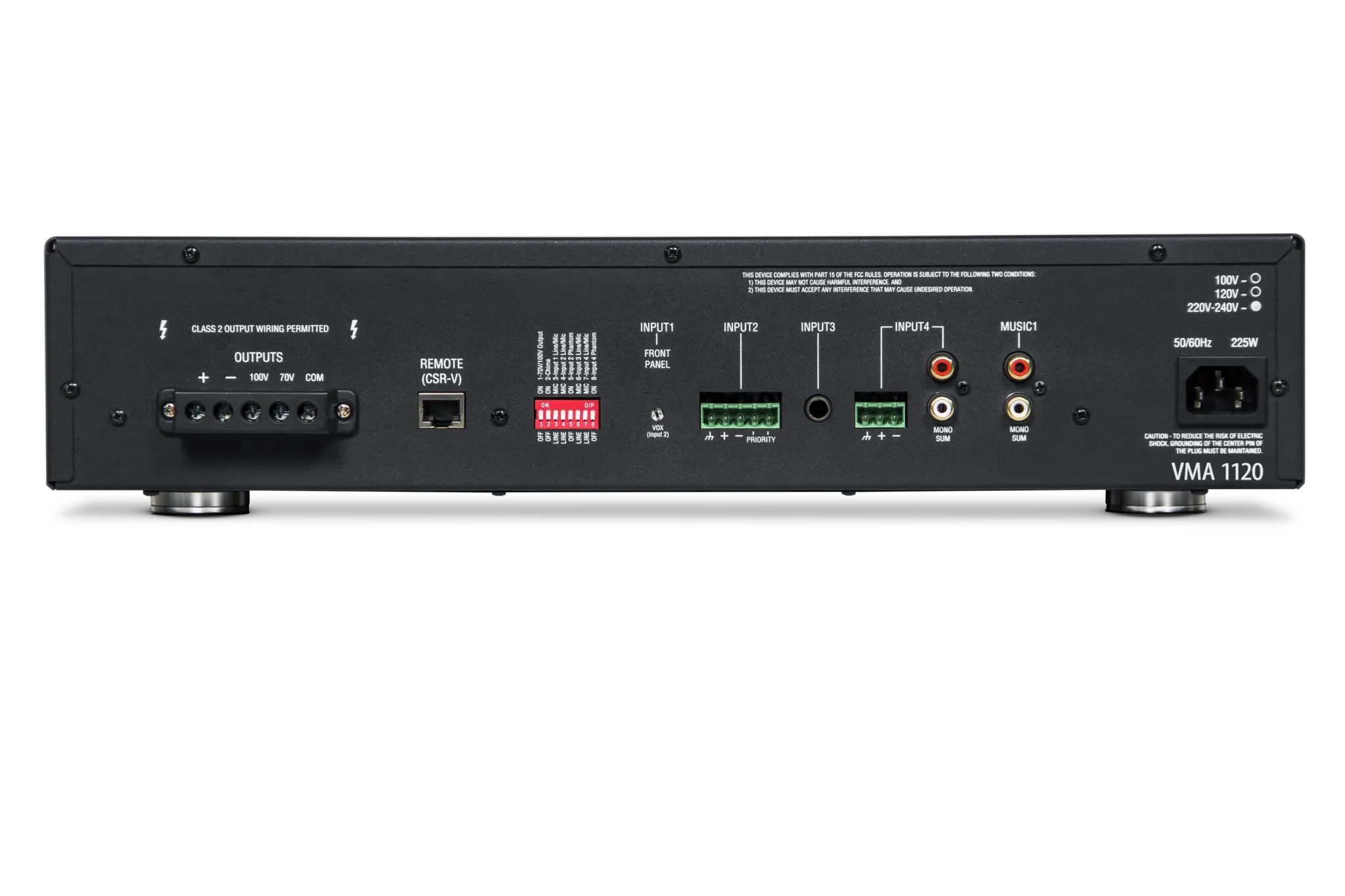

Connectivity is comprehensive, including balanced mic/line inputs and unbalanced RCA inputs, making it suitable for a wide range of audio sources. The front panel controls are user-friendly, and the included rack-mount hardware allows secure installation in standard audio racks. Designed for reliable performance, the VMA Series provides low distortion (<0.5% THD), wide frequency response (20 Hz–20 kHz for low-impedance output), and high signal-to-noise ratio (>76 dB).

Built for professional commercial use, the JBL VMA Series Mixer-Amplifiers combine high-quality sound, operational flexibility, and durable construction. The units are engineered to perform efficiently in varying voltage conditions (100V–240V, 50/60 Hz) and operate safely under standard temperature and humidity ranges, making them a practical, reliable choice for commercial audio integration.

Features of VMA Series Mixer-Amplifier

• 5 inputs and 1 output with 60W, 120W, or 240W power

• Low-impedance (4Ω/8Ω) and high-impedance (70V/100V) outputs

• Independent bass and treble controls per channel

• Paging chime and priority muting

• Compatible with JBL CSR-V wall controllers

• Balanced mic/line inputs and unbalanced RCA inputs

• Rack mounting hardware included

• Wide frequency response and low distortion

• High signal-to-noise ratio

• Flexible voltage operation (100–240V AC)

• Durable commercial-grade construction

Specifications of VMA Series Mixer-Amplifier
