JBL PD564 15-inch Horn-Loaded Full-Range Loudspeaker – Black

JBL PD564-WRX 15-inch Horn-Loaded Full-Range Loudspeaker

The JBL PD564-WRX is a professional 15-inch horn-loaded loudspeaker engineered for applications that require high output with precise pattern control. It is suitable for music or speech systems where frequency extension to 80 Hz is sufficient or can be paired with subwoofers to achieve extended full-range performance.

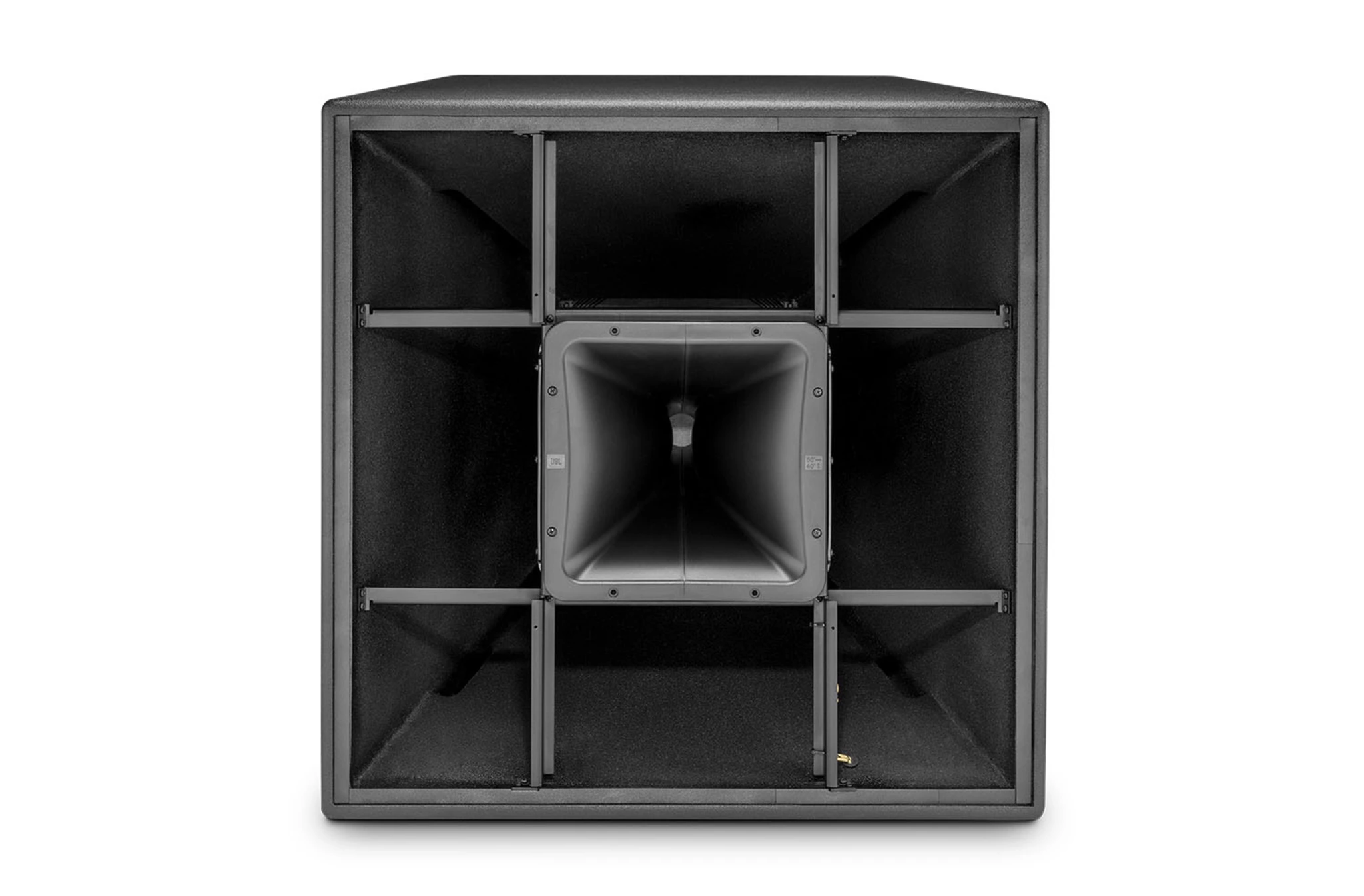

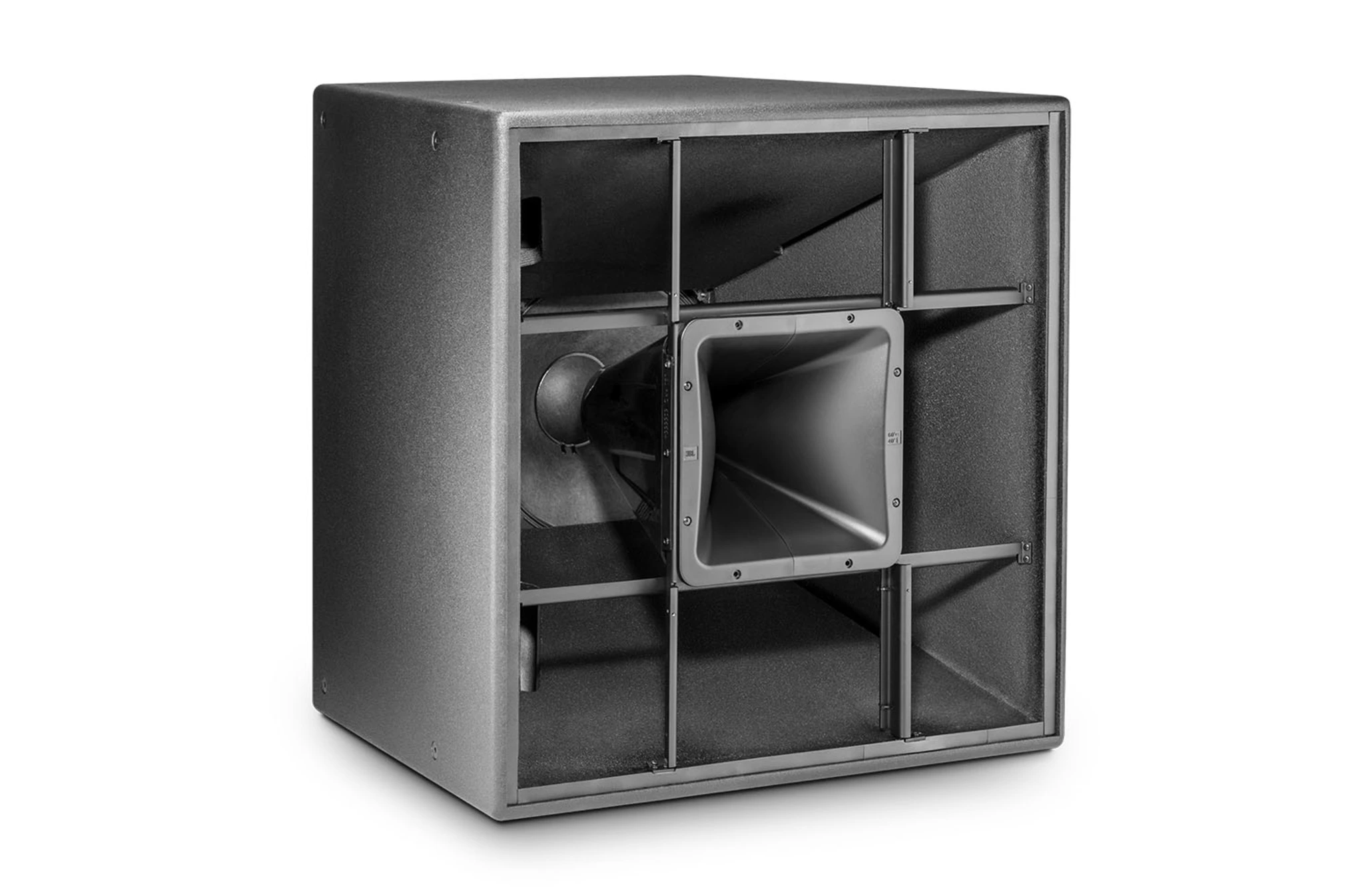

This loudspeaker features a 380 mm (15 in) horn-loaded low-frequency driver and a 1.5-inch neodymium compression driver for high-frequency reproduction. Large PT™ Progressive Transition waveguides provide consistent 60° x 40° coverage, low distortion at high SPL levels, and smooth frequency response. The rotatable waveguide allows either horizontal or vertical cabinet orientation, offering installation flexibility for a wide variety of environments.

The PD564-WRX incorporates a sophisticated, steep-slope passive crossover network with switchable bi-amp or passive modes to optimize audio fidelity. The trapezoidal cabinet is constructed of 18 mm exterior grade birch plywood with a DuraFlex™ finish for professional durability. Powder-coated perforated steel grille with acoustically transparent weather-resistant cloth protects internal components. Optional WRC and WRX versions provide enhanced weather resistance for outdoor and extreme environment applications.

Ideal for sports facilities, performance spaces, auditoriums, and worship venues, the PD564-WRX delivers consistent, high-quality sound with professional reliability.

Features of PD564-WRX

• 15-inch horn-loaded low-frequency driver

• 1.5-inch neodymium compression driver

• Large PT™ Progressive Transition waveguides for 60° x 40° coverage

• Rotatable waveguide for horizontal or vertical orientation

• Switchable bi-amp / passive crossover modes

• Low distortion at high SPL levels

• Rugged trapezoidal birch plywood enclosure with DuraFlex™ finish

• Powder-coated steel grille with weather-resistant cloth backing

• Optional WRC/WRX weather-resistant versions

• Outdoor-ready installation

• Compliant with MIL-STD-810 and IEC 529/IPX3

• M10 threaded suspension points for safe rigging

Specifications of PD564-WRX
