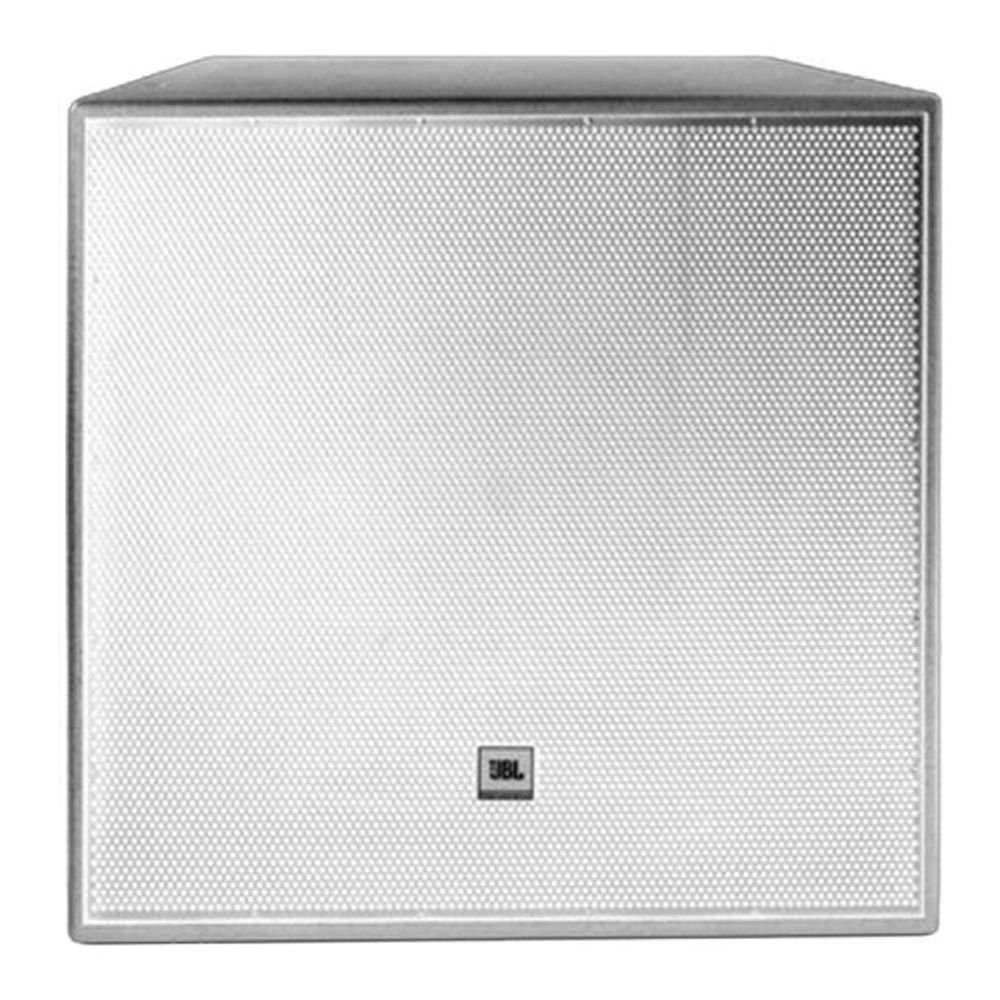

JBL PD544-WH 15″ Horn-Loaded Full-Range Loudspeaker System – White

JBL PD544 15-inch Precision Directivity™ Horn-Loaded Full-Range Loudspeaker

The JBL PD544 is a professional-grade 15-inch horn-loaded full-range loudspeaker designed for high-output applications that require accurate coverage and consistent performance. It features a 380 mm (15 in) low-frequency horn driver alongside a 38 mm (1.5 in) exit compression driver, producing clear, high-fidelity audio across speech and music applications. Its Progressive Transition™ (PT™) waveguides provide a 40° x 40° coverage pattern with minimal distortion, even at elevated SPL levels.

The trapezoidal enclosure is constructed from durable 18 mm Finnish birch plywood with a protective DuraFlex™ finish, ensuring long-term reliability. The rotatable waveguide allows for both horizontal and vertical cabinet orientation. The speaker also incorporates a steep-slope passive crossover network with switchable bi-amp or passive modes for flexible system integration.

The PD544 is ideal for sports arenas, auditoriums, performance venues, and worship facilities. It can operate alone for full-range sound or paired with subwoofers to extend low-frequency response below 80 Hz. Optional weather-resistant configurations, WRC for sheltered outdoor use or WRX for extreme exposure, make it suitable for demanding environments. The trapezoidal design, integrated suspension points, and robust construction guarantee reliable performance in any professional setup.

Features of PD544

• 15-inch horn-loaded low-frequency driver

• 38 mm exit compression driver with 75 mm voice coil

• Progressive Transition™ waveguides for 40° x 40° coverage

• Rotatable waveguide for horizontal or vertical orientation

• Bi-amp / passive switchable crossover modes

• Low distortion, high SPL capability

• Rugged trapezoidal enclosure with 10° side angles

• DuraFlex™ protective finish, black; white optional

• Weather-resistant options: WRC / WRX

• Powder-coated 14-gauge perforated steel grille with acoustic cloth backing

• 20 M10 threaded suspension points for rigging

• Suitable for professional PA, music, and speech applications

• Constructed from high-quality Finnish birch plywood

Specifications of PD544
