JBL PRX ONE Powered Column PA

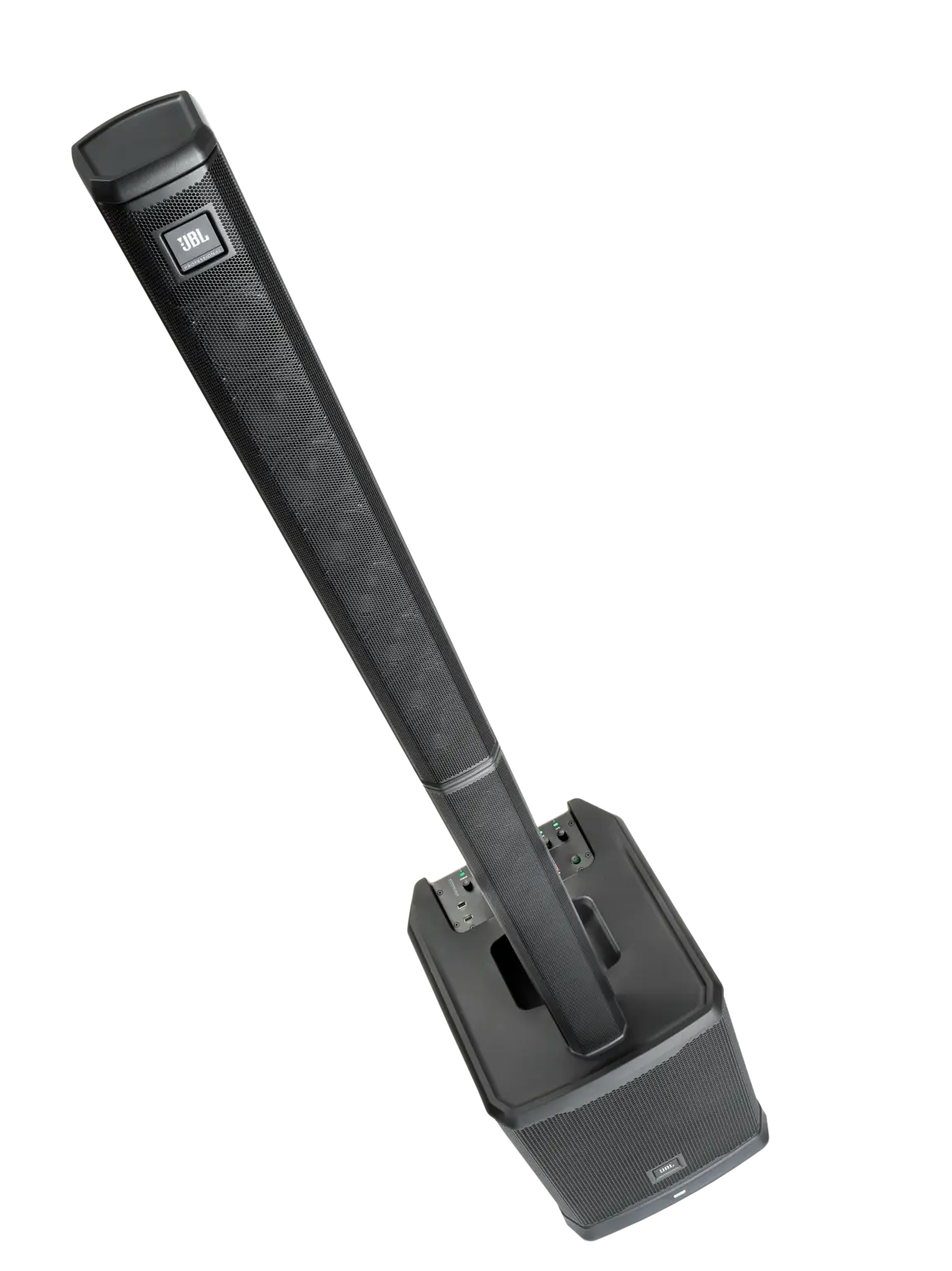

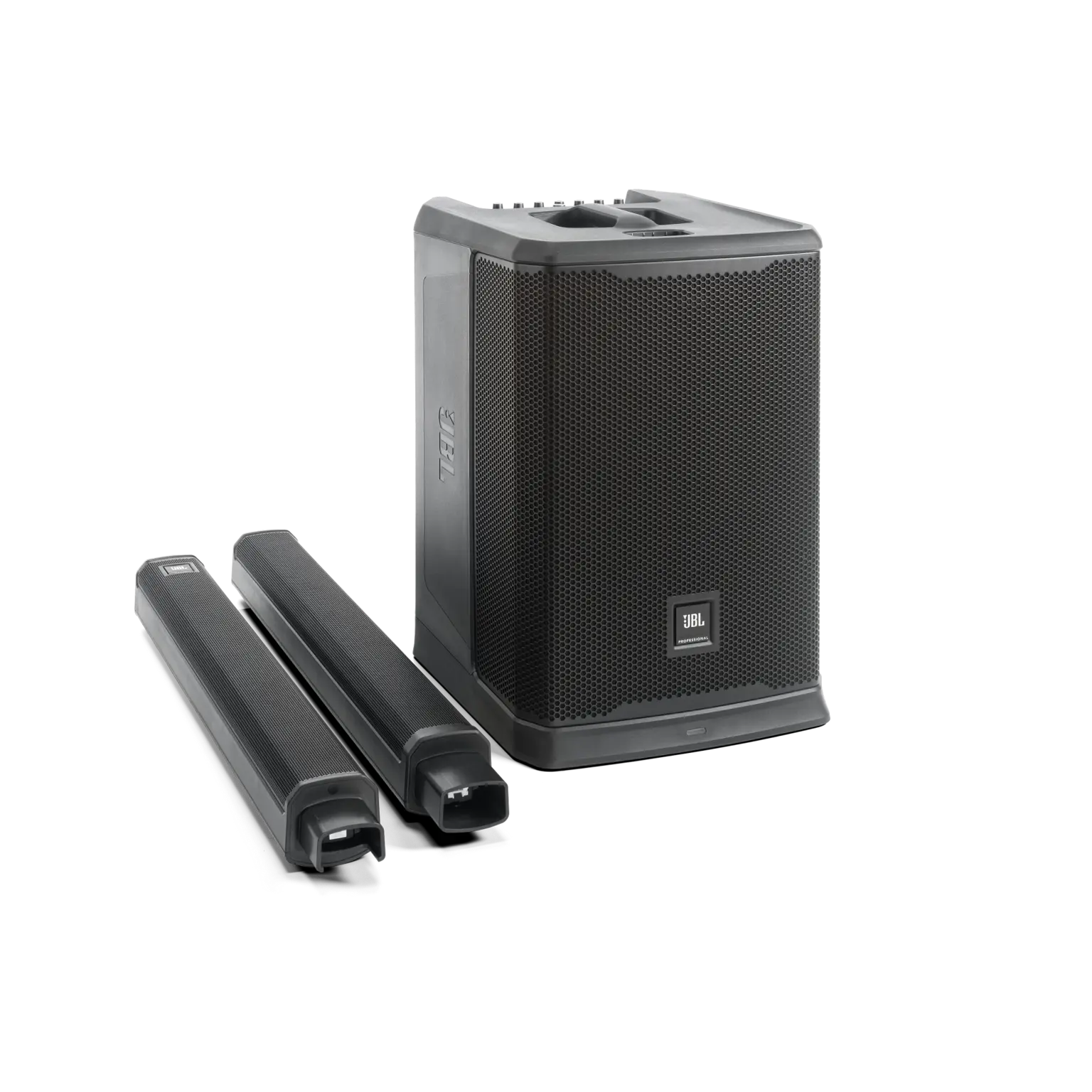

The JBL PRX ONE is a professional all-in-one powered column PA designed for high-impact, consistent sound reinforcement in both portable and installed applications. Its acoustically optimized 12-tweeter column array, combined with a 12-inch bass-reflex woofer and 2,000-watt peak Class D amplifier, delivers up to 130 dB SPL with uniform front-to-back coverage. The system integrates JBL AIM (Array Inumbration Mechanics) technology to ensure precise, even high-frequency distribution across the audience area.

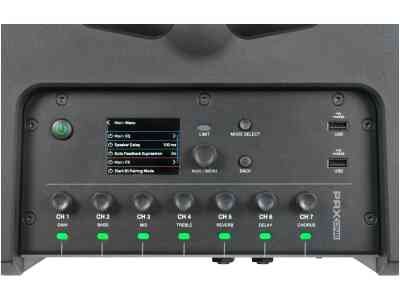

PRX ONE features a full 7-channel Soundcraft-designed digital mixer, offering dual operating modes for general mixing or individual channel-strip control. Professional DSP tools, including Lexicon and dbx effects, provide reverb, delay, compression, chorus, and automatic feedback suppression (AFS Pro), allowing users to dial in high-quality sound without external processors. Connectivity options include 4 XLR combo inputs, 2 Hi-Z jacks, 1/8-inch auxiliary input, XLR pass-through, USB 2.0 ports, and Bluetooth 5.0, enabling control of up to 10 units via the JBL Pro Connect app.

Its rugged enclosure and ergonomic ComfortGrip handle ensure durability and easy transport, while optional brackets allow wall or truss mounting independent of the subwoofer. PRX ONE is ideal for musicians, DJs, presenters, corporate events, houses of worship, and rental companies, offering class-leading acoustic performance, simplified setup, and creative control in a stylish, compact form factor.

Features of JBL PRX ONE

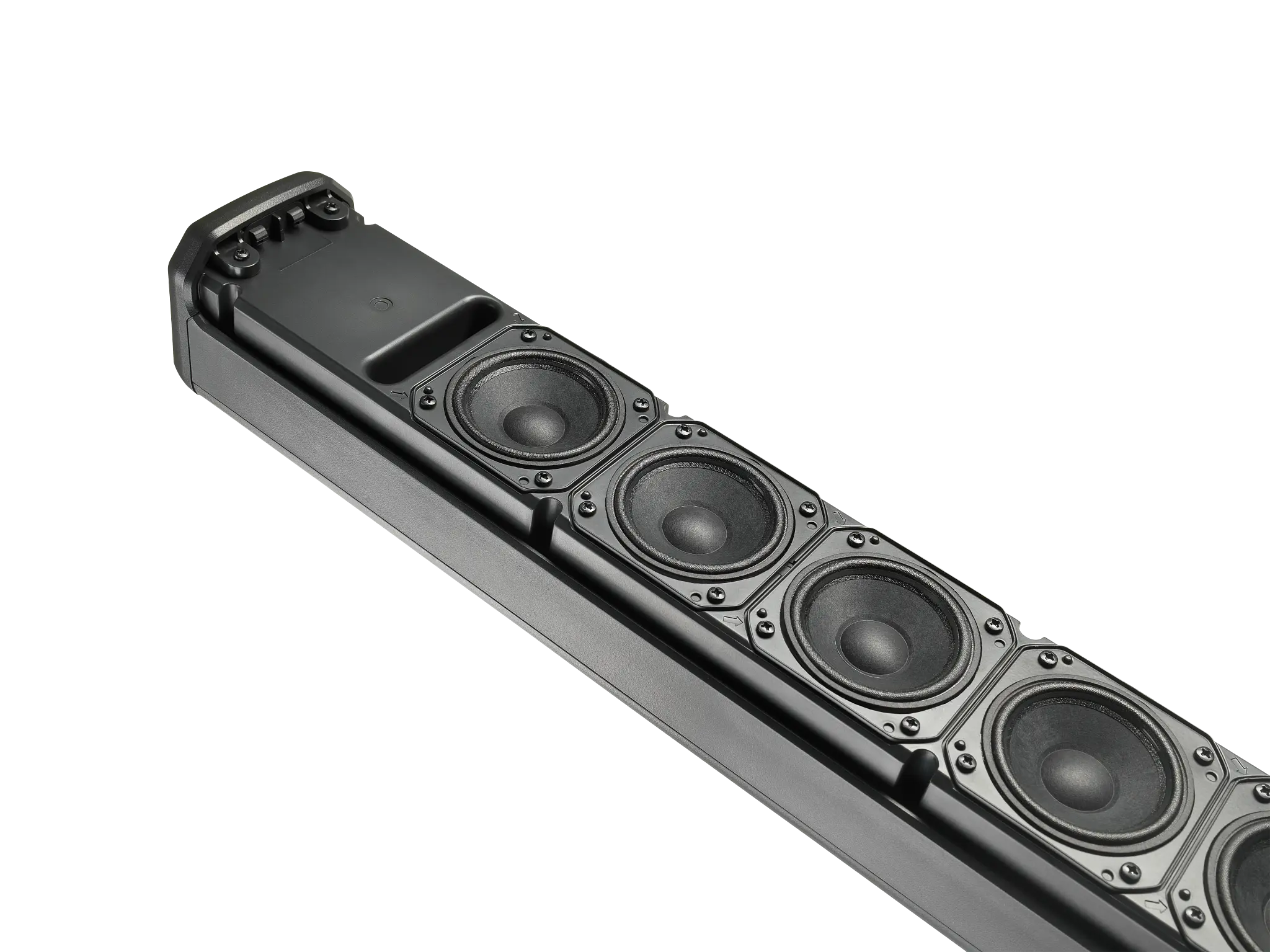

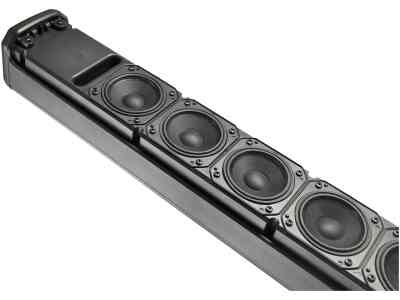

• 12 x 2.5-inch HF drivers with copper-capped pole pieces

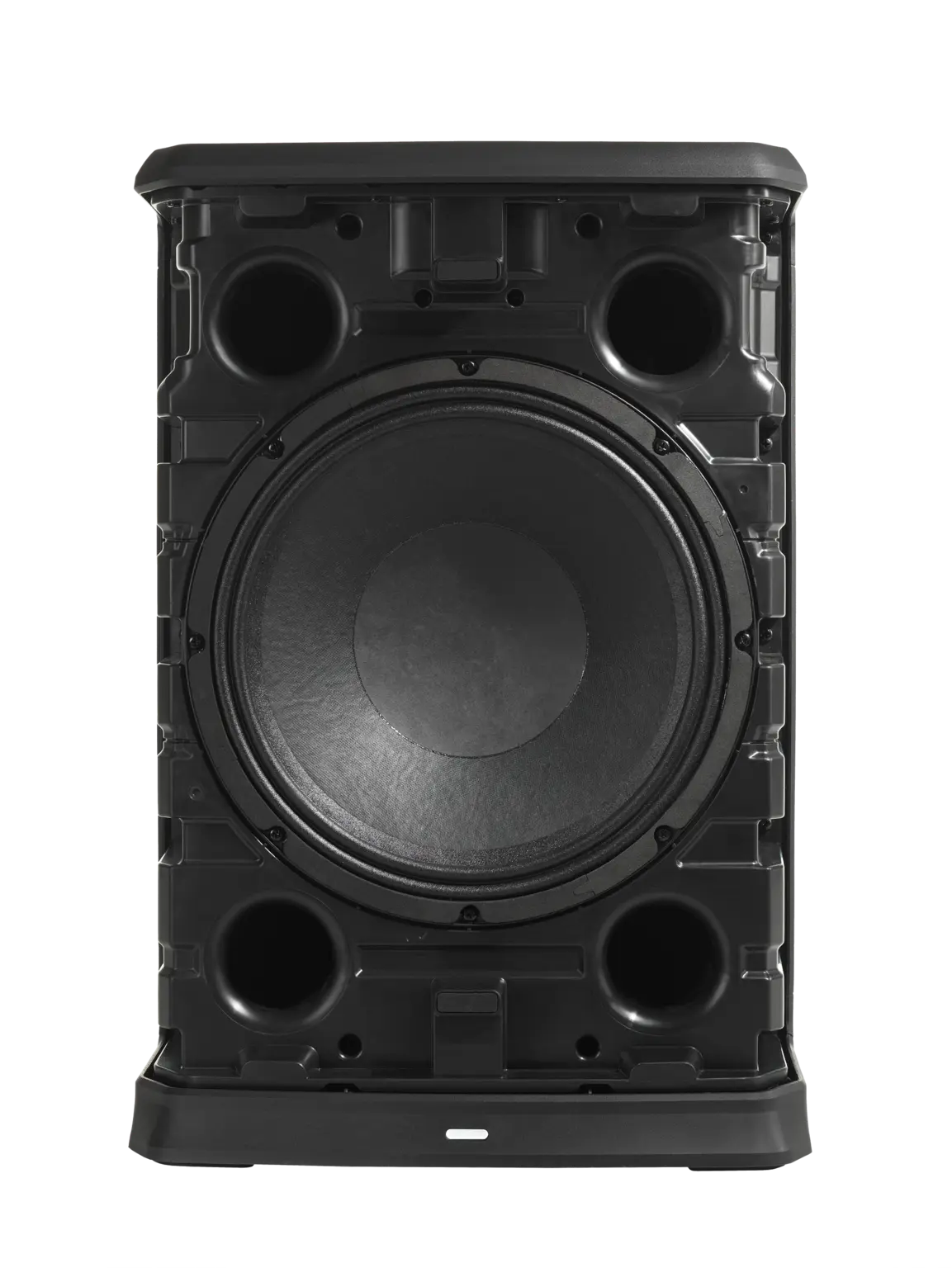

• 12-inch bass-reflex woofer extends low-end to 35 Hz

• 130° H x 30° V coverage pattern

• JBL AIM technology ensures consistent front-to-back throw

• 2,000-watt peak Class D amplifier with PFC and low THD

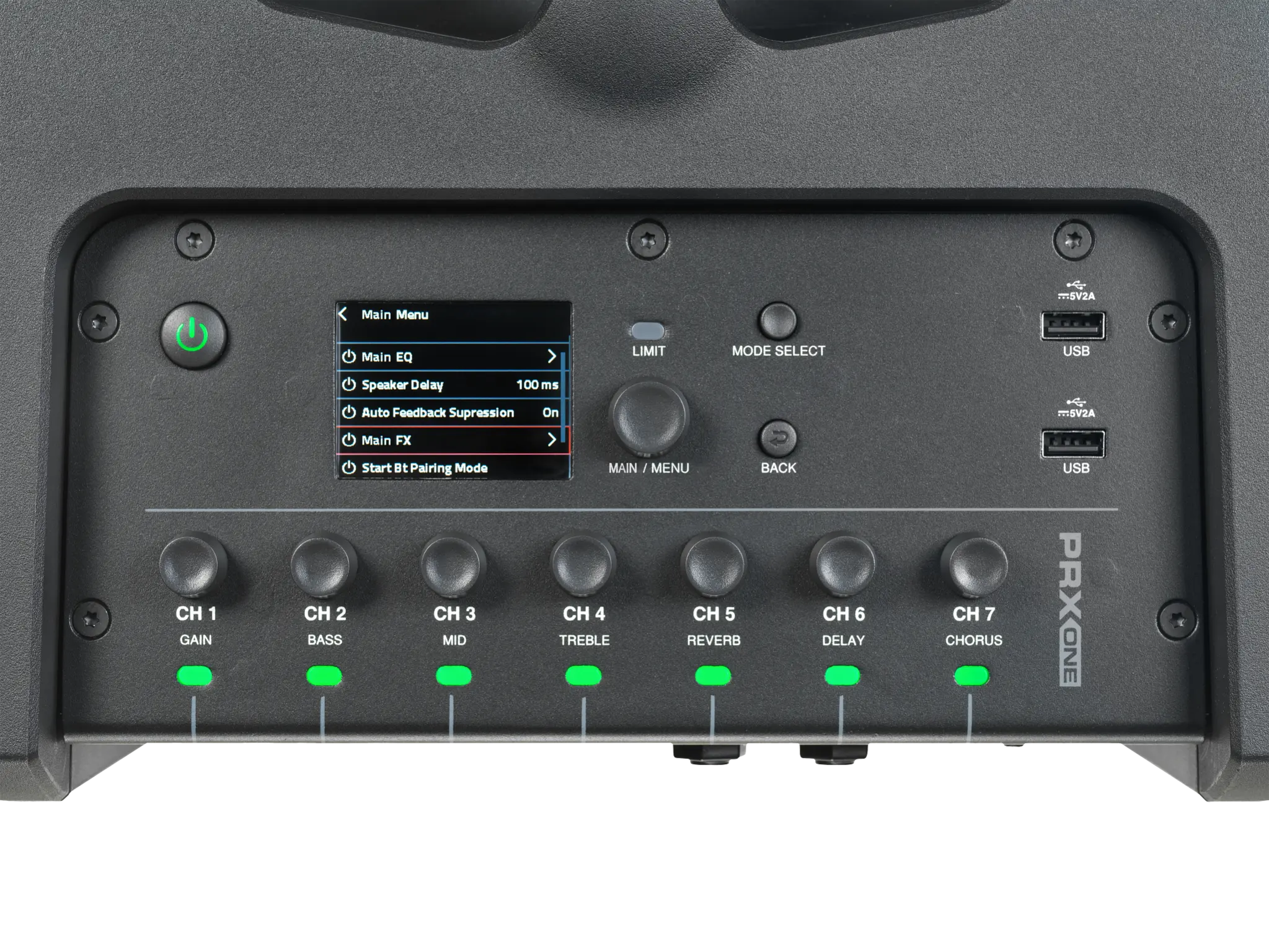

• Integrated 7-channel Soundcraft digital mixer with dual-mode operation

• Lexicon effects: reverb, delay, chorus, echo, sub synth

• dbx DriveRack Inside: AFS, 8-band EQ, system limiter, gates, compressors

• One-touch ducking for speech clarity

• Triple-tier DSP control for beginner to advanced users

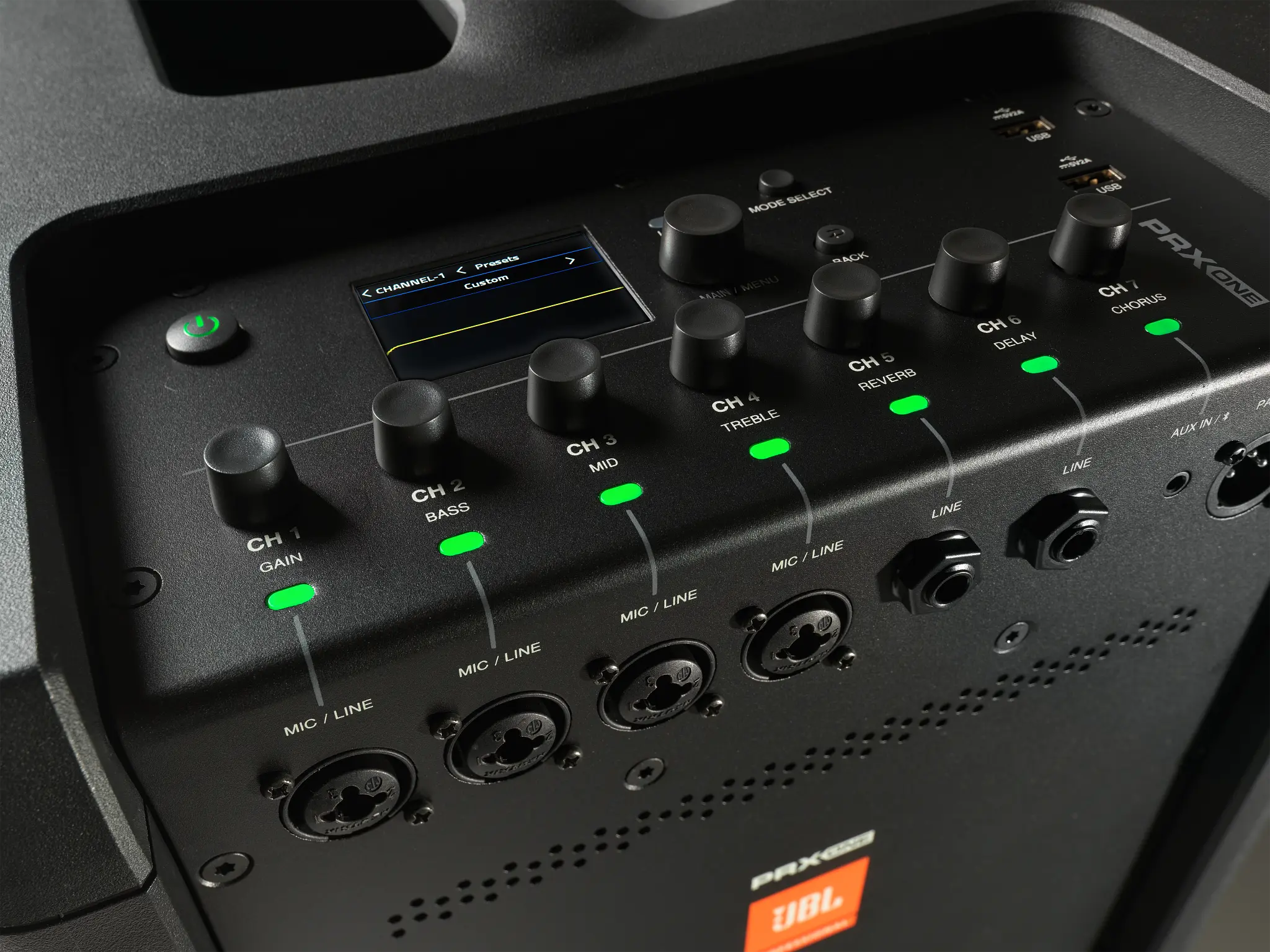

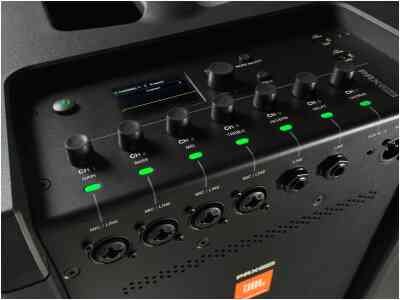

• 4 XLR combo inputs, 2 Hi-Z, 1/8-inch/BT audio, XLR pass-through

• 2 USB 2.0 ports for device charging and wireless system power

• True +48V phantom power on two channels

• Bluetooth 5.0 for audio streaming and multi-unit control

• Optional wall or truss mounting bracket

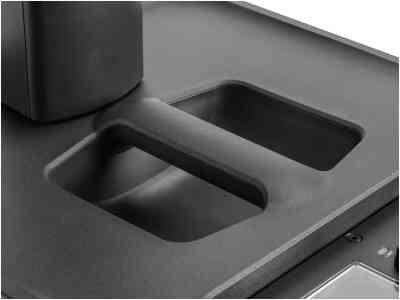

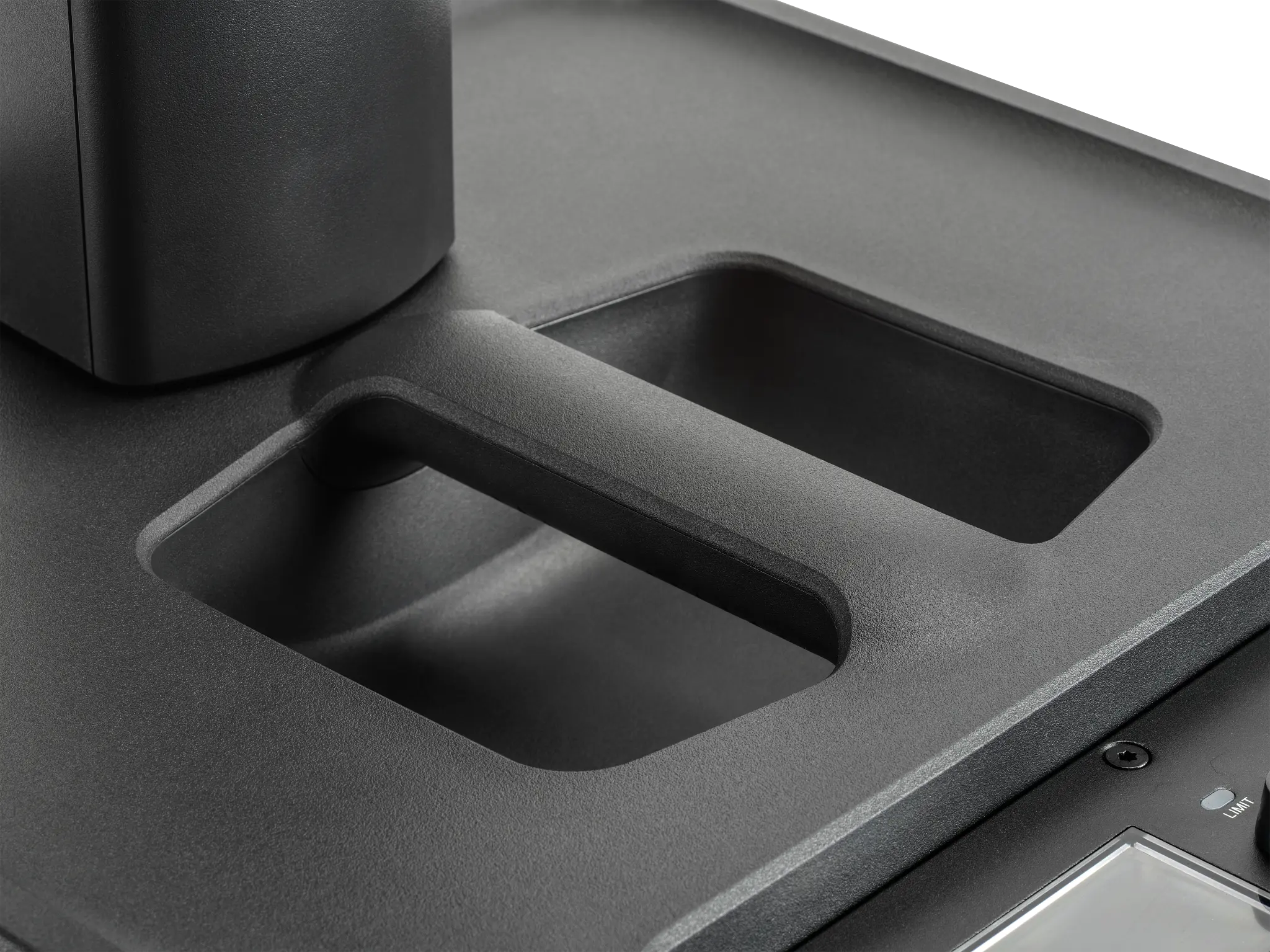

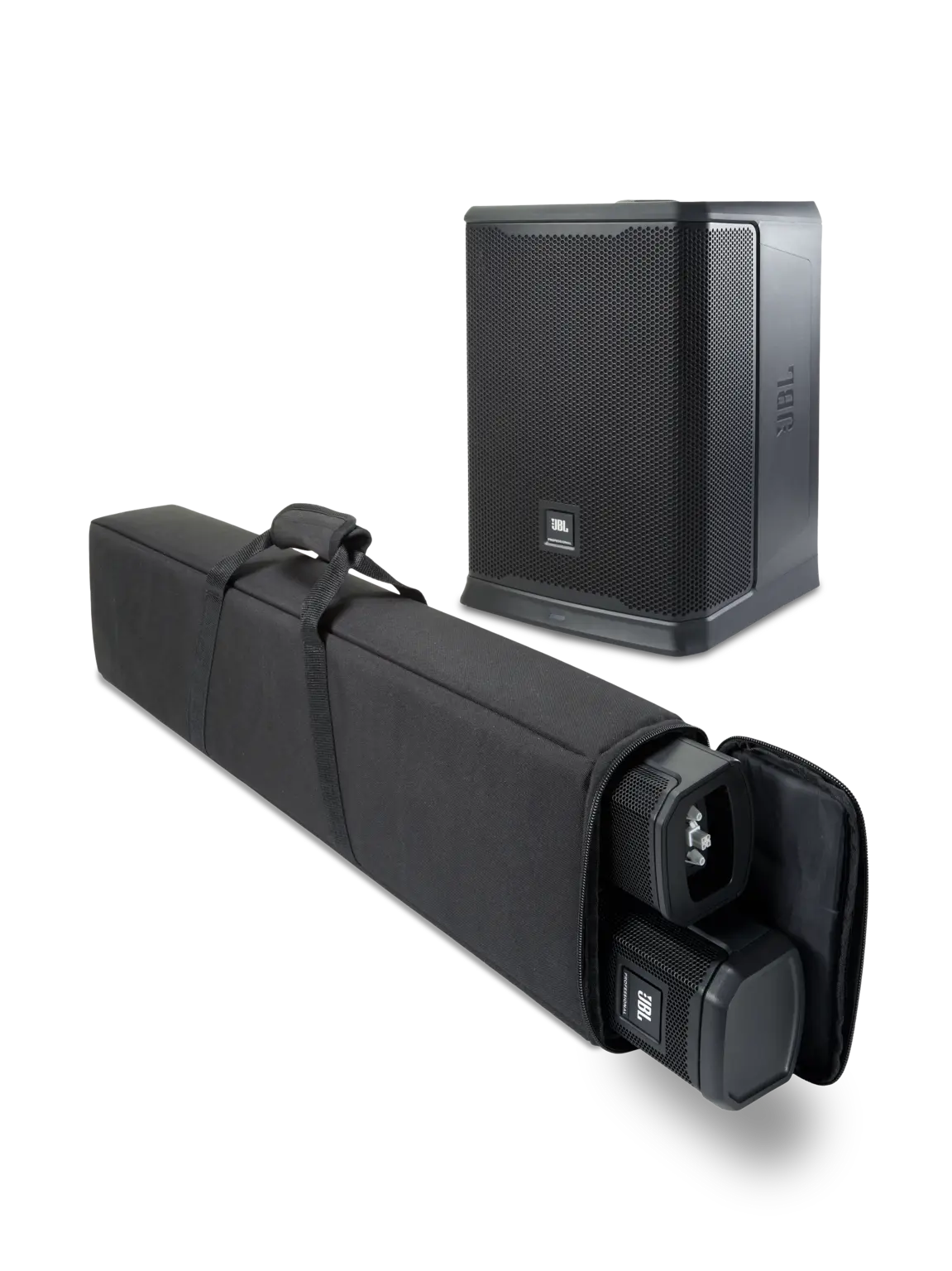

• Integrated ComfortGrip handle and included nylon carrying bag

• Rugged, road-tested enclosure
