JBL PD764i-215 Dual 15-inch 3-Way Horn-Loaded Loudspeaker

PD764i-215 Dual 15-inch 3-Way High Output Full Range Horn-Loaded Speaker

The PD764i-215 Dual 15-inch 3-Way High Output Full Range Horn-Loaded Speaker is a Precision Directivity™ loudspeaker engineered to provide high-impact sound reinforcement beyond the reach of conventional single-driver designs. A single module delivers over 104 dB SPL (continuous) at distances up to 50 meters (165 ft), making it ideal for standalone use or clustering with other PD family modules for distributed systems.

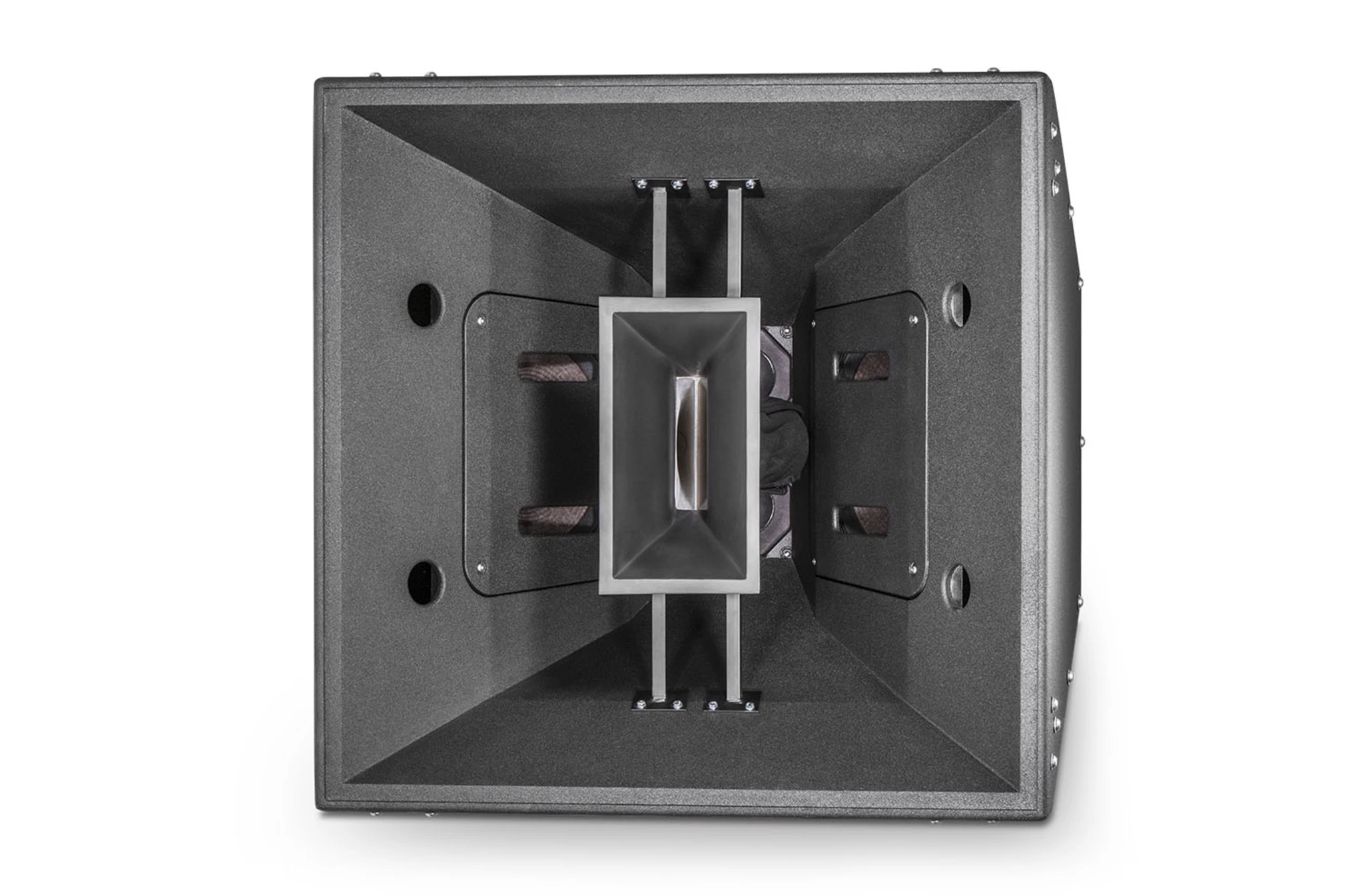

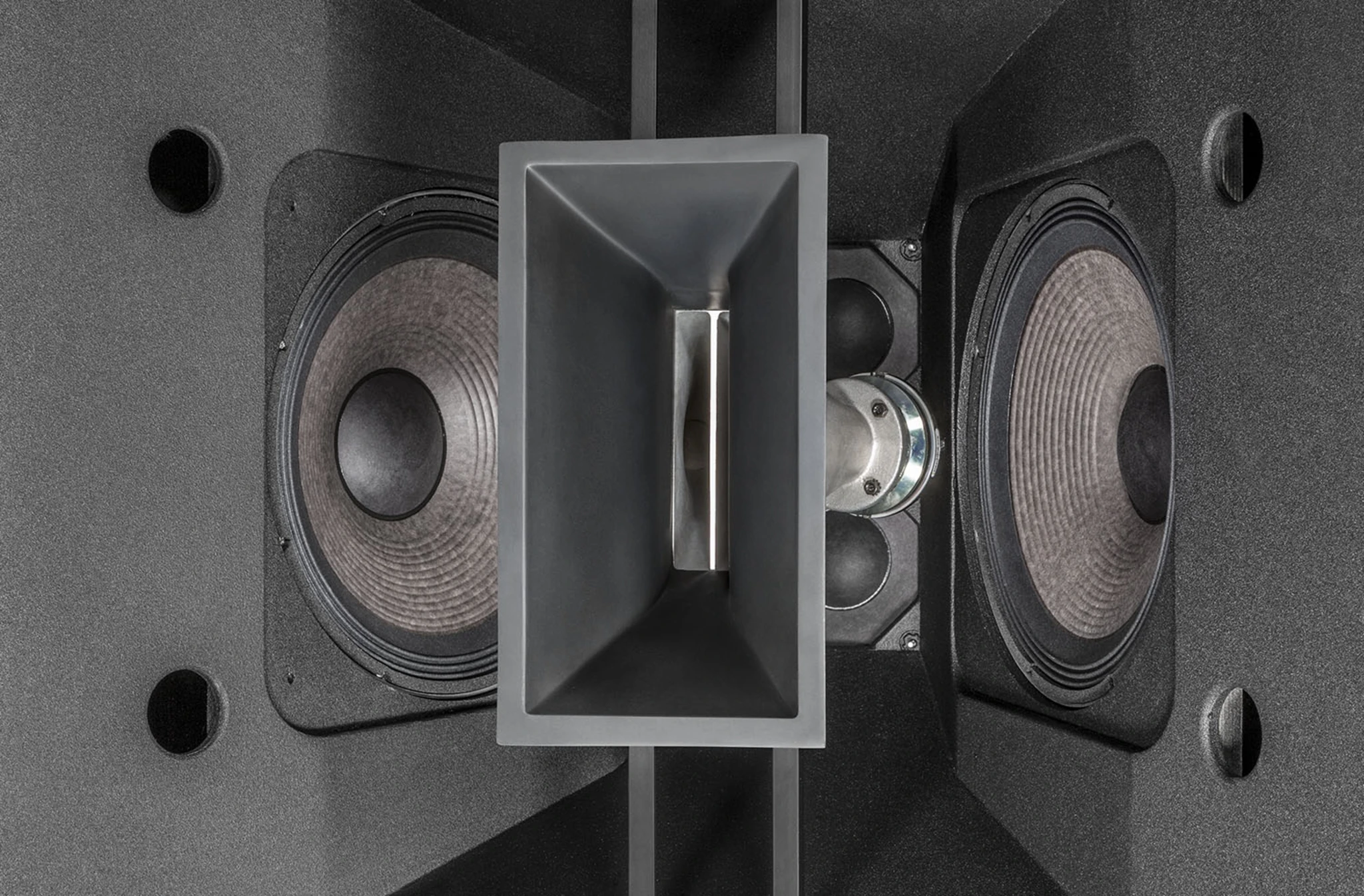

This speaker incorporates dual 15-inch low-frequency Differential Drive® woofers with dual voice coils and magnetic gaps, dual 8-inch CMCD horn-loaded midrange drivers, and dual 2432H 3-inch compression drivers for high-frequency clarity. The IFS™ Interference Free Summation module ensures destructive interference is eliminated and output is increased by 6 dB. Its 60° x 40° symmetrical coverage pattern allows for horizontal or vertical orientation, with pattern control maintained down to 400 Hz. The co-axial mid/high-frequency layout improves arrayability while minimizing enclosure size.

Constructed from 16 mm and 18 mm exterior-grade birch plywood in a trapezoidal and rectangular design, the PD764i-215 is durable and acoustically optimized. Optional WRC/WRX weather-resistant versions include fiberglassed enclosures with stainless steel hardware for extreme or outdoor environments. Integrated rigging simplifies array setup, while NL4 or NL8 input connectors allow bi-amp or optional tri-amp operation.

Features of PD764i-215

• Dual 15-inch Differential Drive® LF woofers, dual voice coil

• Dual 8-inch CMCD horn-loaded midrange drivers

• Dual 2432H 3-inch compression HF drivers

• IFS™ Interference Free Summation HF module

• 60° x 40° symmetrical coverage pattern

• Pattern control maintained below 400 Hz

• Co-axial mid/high-frequency module layout

• High-impact output: >104 dB SPL at 50 m

• Integrated rigging system for array construction

• Bi-amp with passive mid/high crossover (Tri-amp optional)

• Crossover frequencies: 220 Hz, 1.2 kHz

• DSP compatible with Crown ITHD and IT4x3500HD amplifiers

• Trapezoidal birch plywood enclosure

• Optional WRC/WRX weather-resistant versions

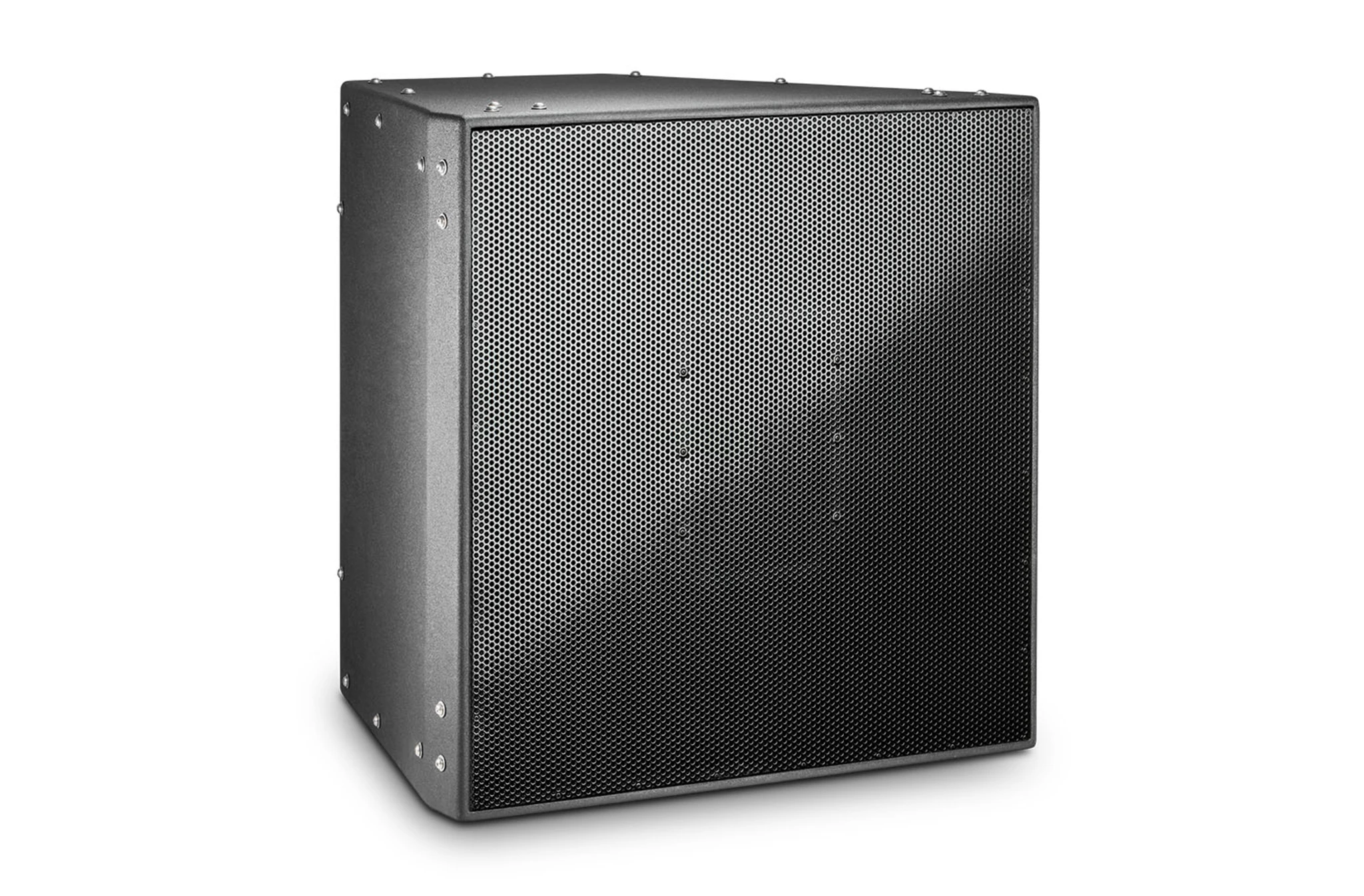

• Three-layer grille assembly on WRC/WRX version

• NL4/NL8 input connectors for flexible amplifier configuration

• Suspension attachment: 52 points, M10 hardware

Specifications of PD764i-215
