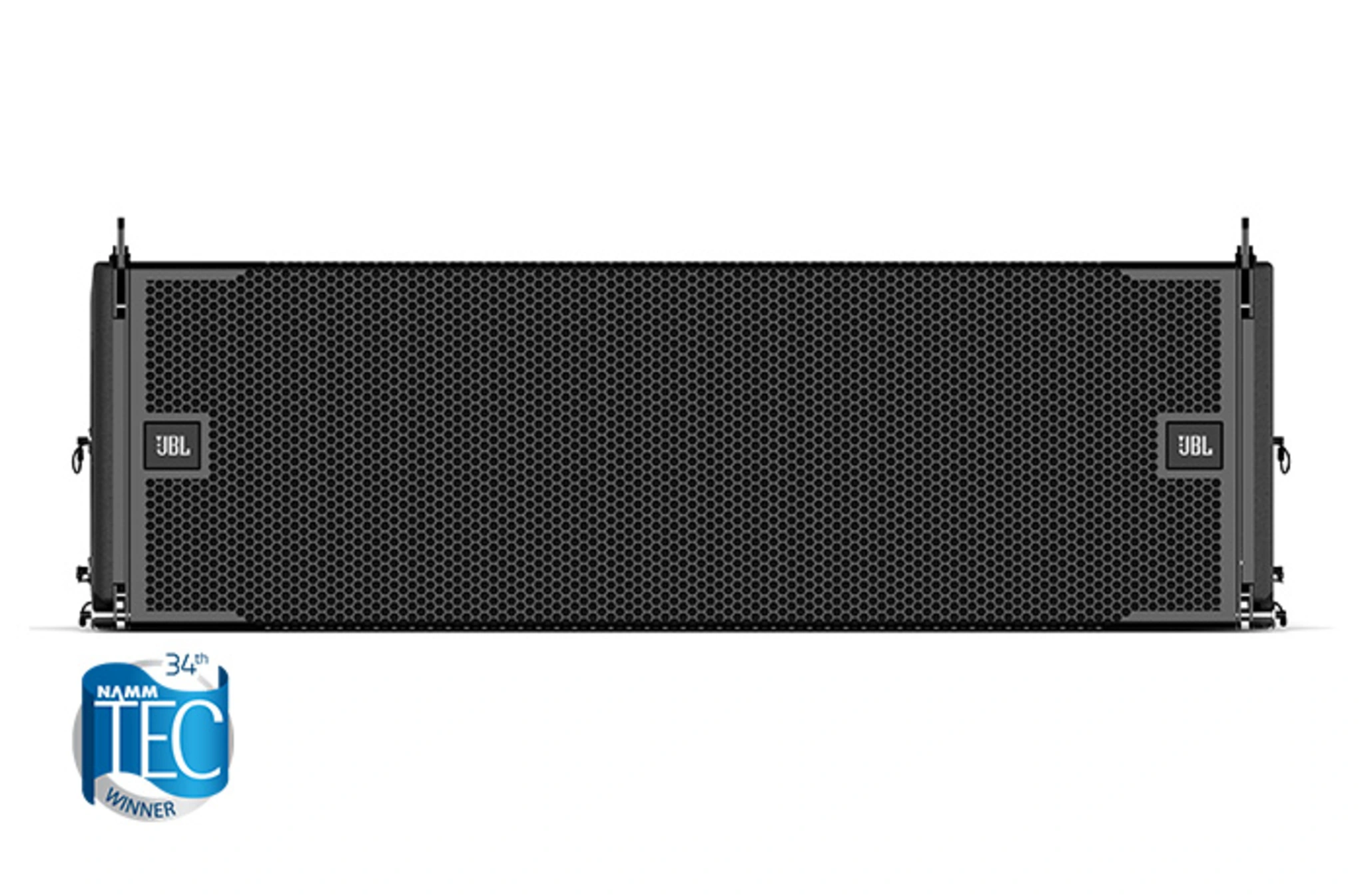

JBL VTX A12W Dual 12 in. Line Array Loudspeaker with 120-degree Dispersion

The JBL VTX A12W Dual 12 in. Line Array Loudspeaker with 120-degree Dispersion is a high-performance solution designed for mid- to large-scale touring applications and premium fixed installations. Building on the renowned VTX A12, the A12W incorporates a wider horizontal coverage pattern of 120°, making it ideal for venues and events requiring extensive sound distribution without compromising clarity or output.

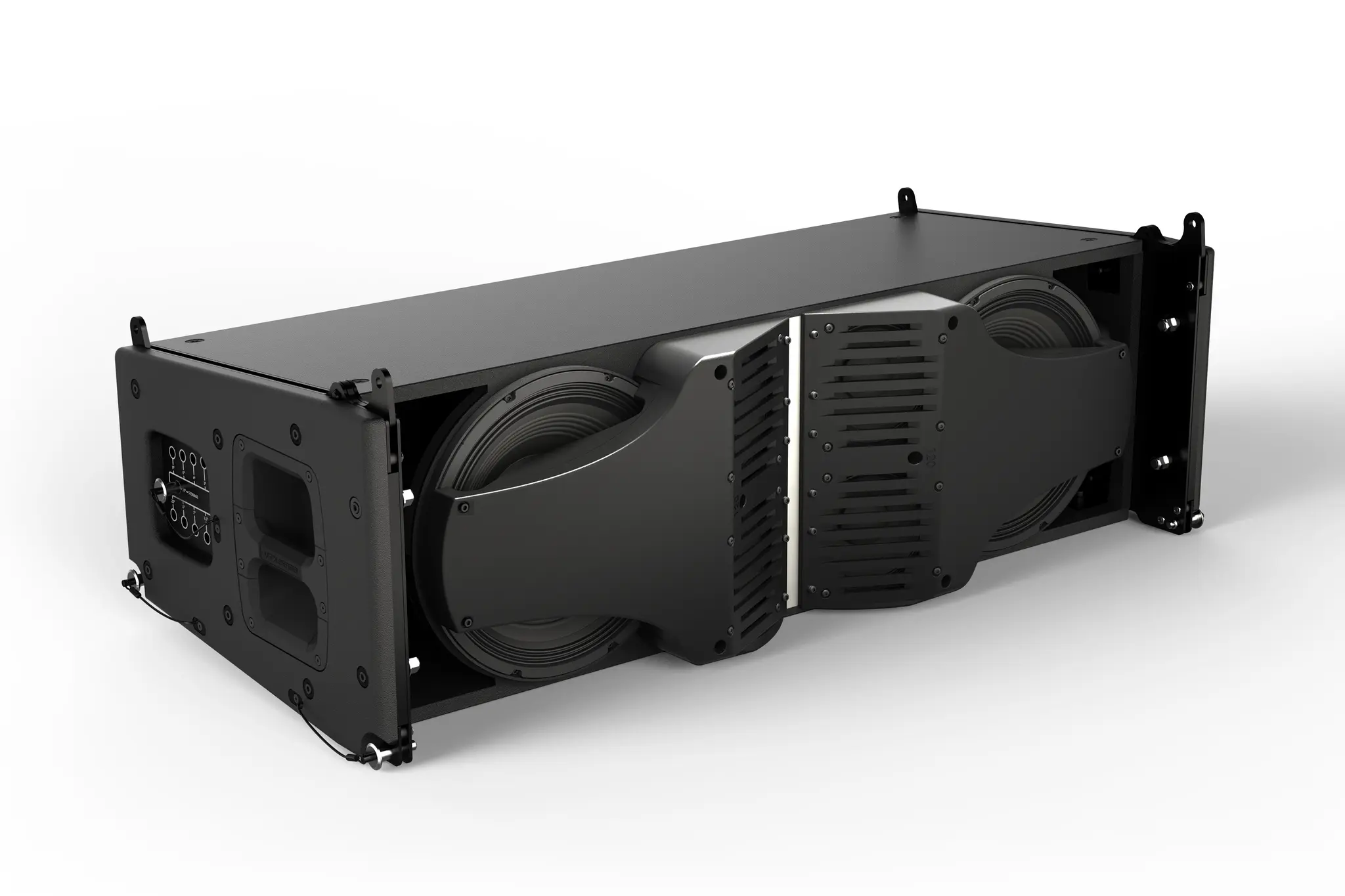

Equipped with dual 12-inch JBL 2264H Neodymium Differential Drive® woofers and four 5.5-inch JBL 2165H Differential Drive® mid-frequency drivers, the VTX A12W delivers powerful low- and mid-frequency performance. The high-frequency section features three 2-inch JBL 2423K annular diaphragm compression drivers mounted on an advanced waveguide for precise and consistent output. The redesigned Radiation Boundary Integrator® (RBI) minimizes horn diffraction, extends low-frequency coverage down to 250 Hz, and ensures linearity and clarity across all outputs.

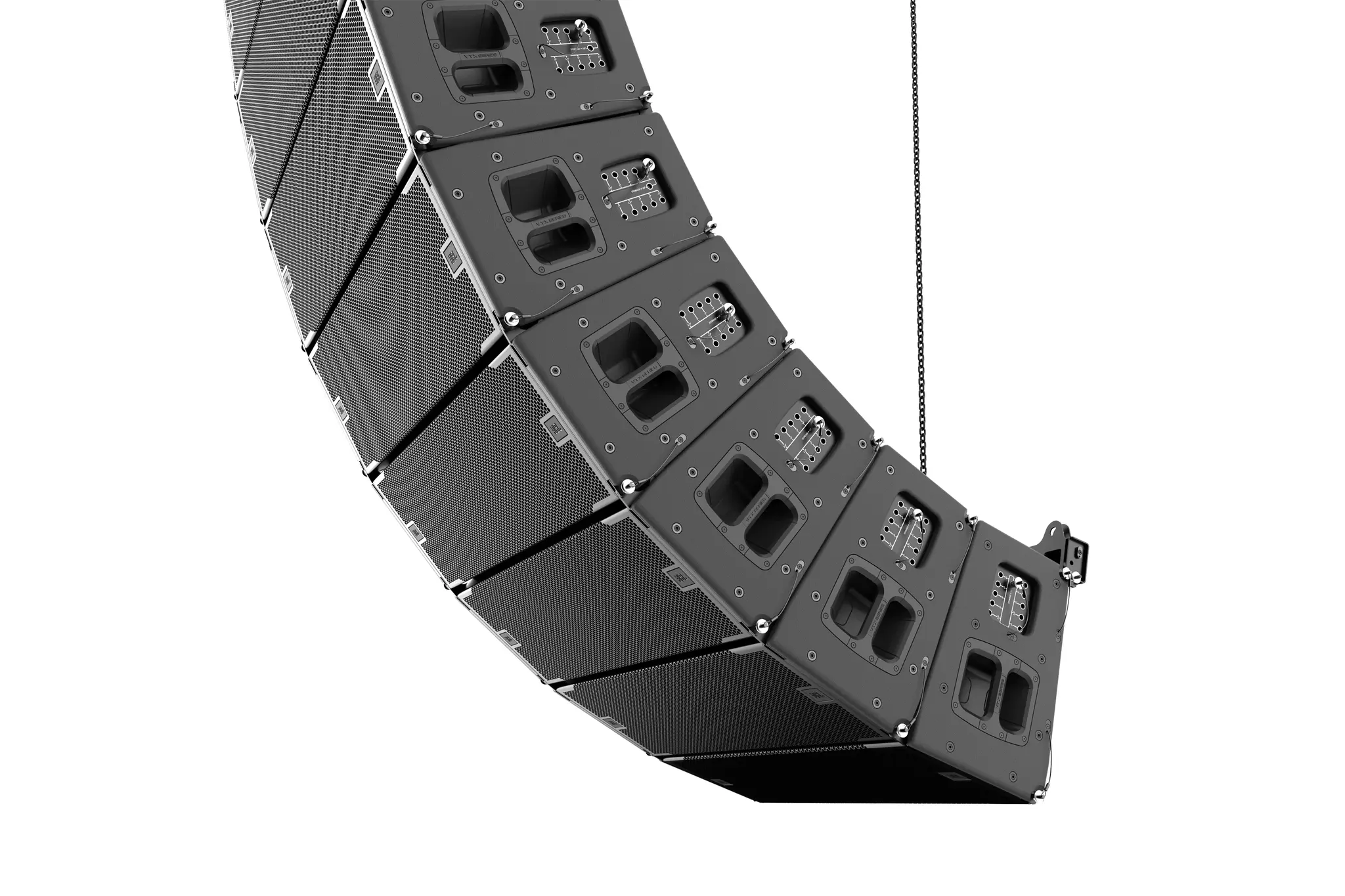

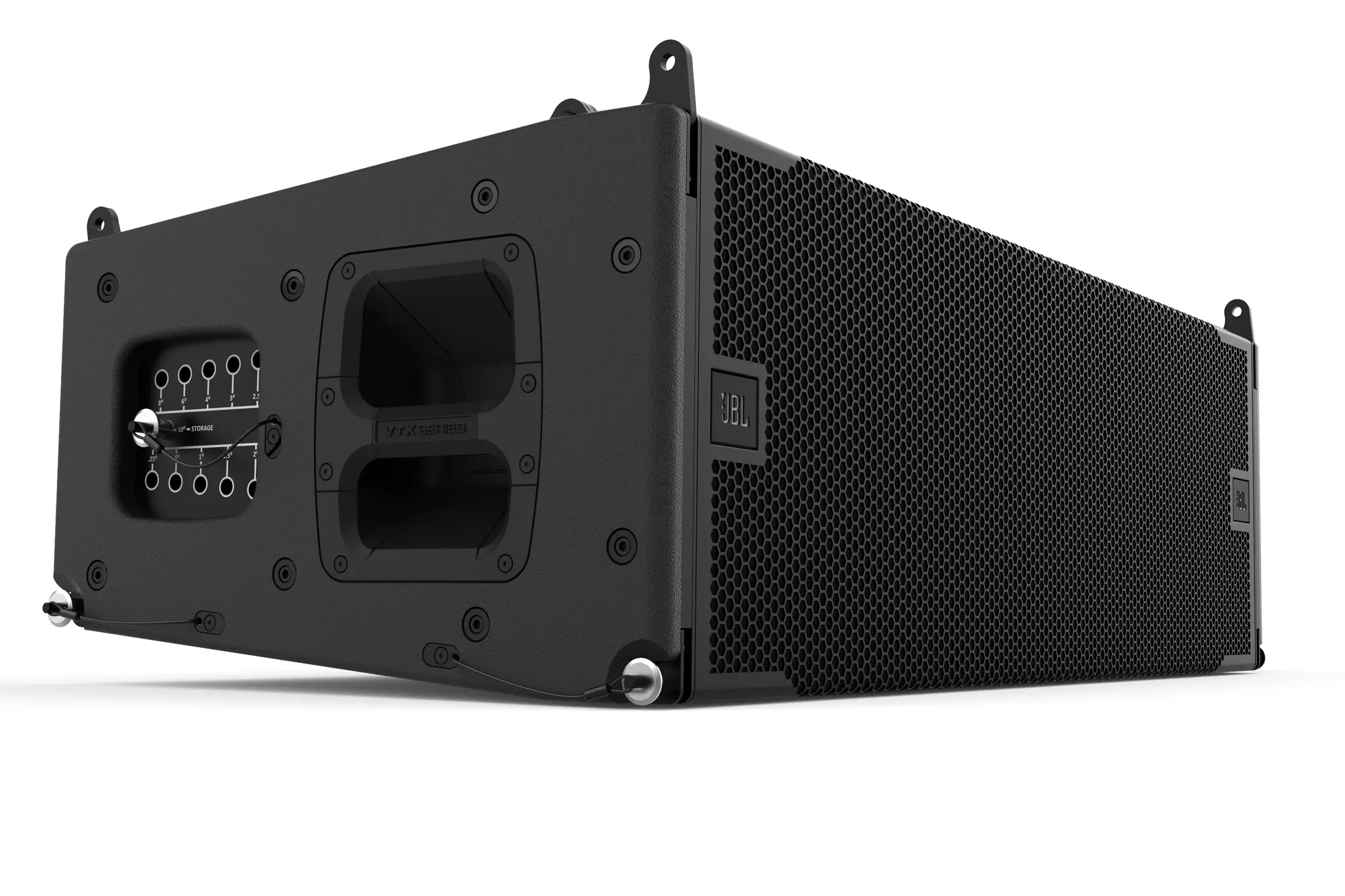

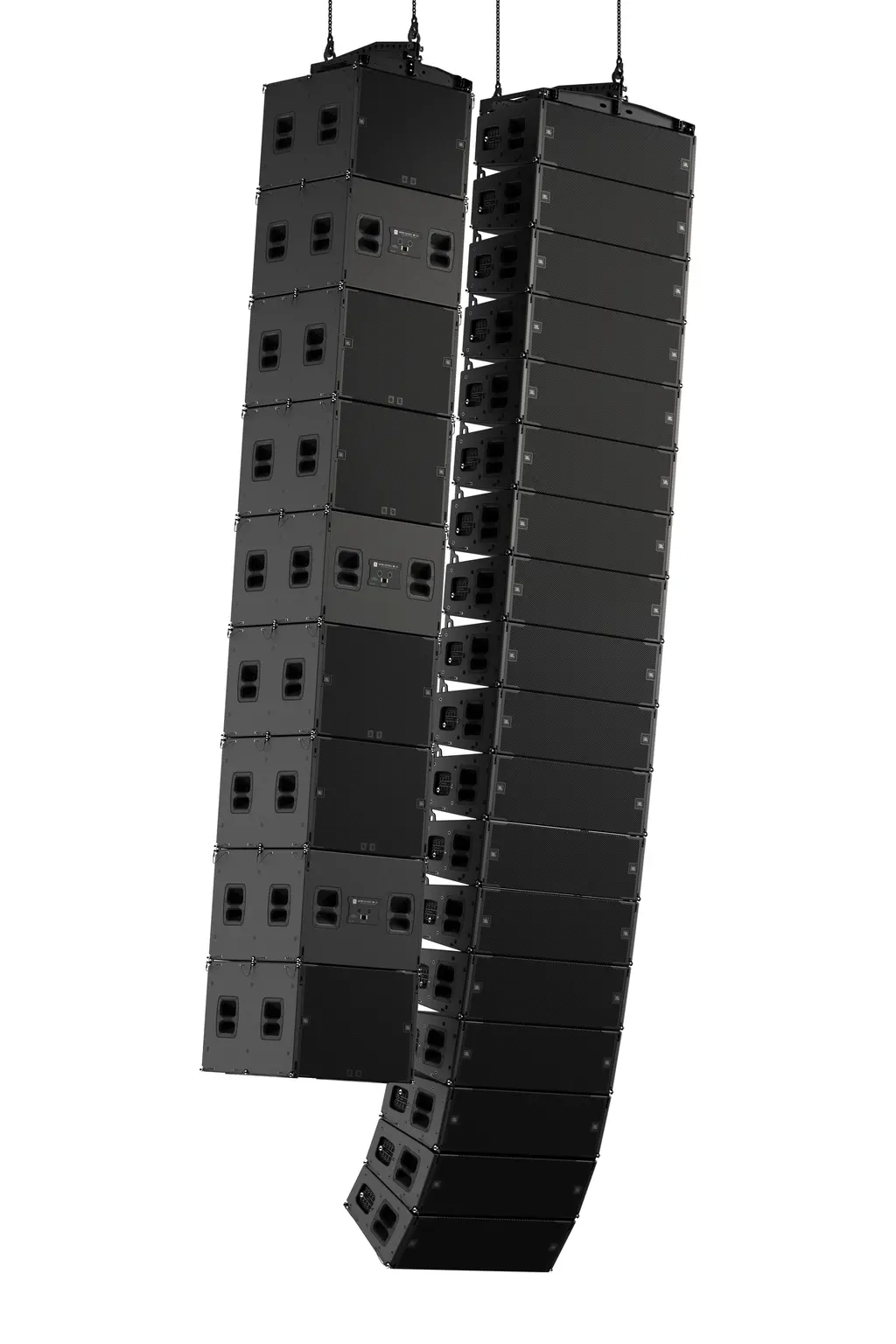

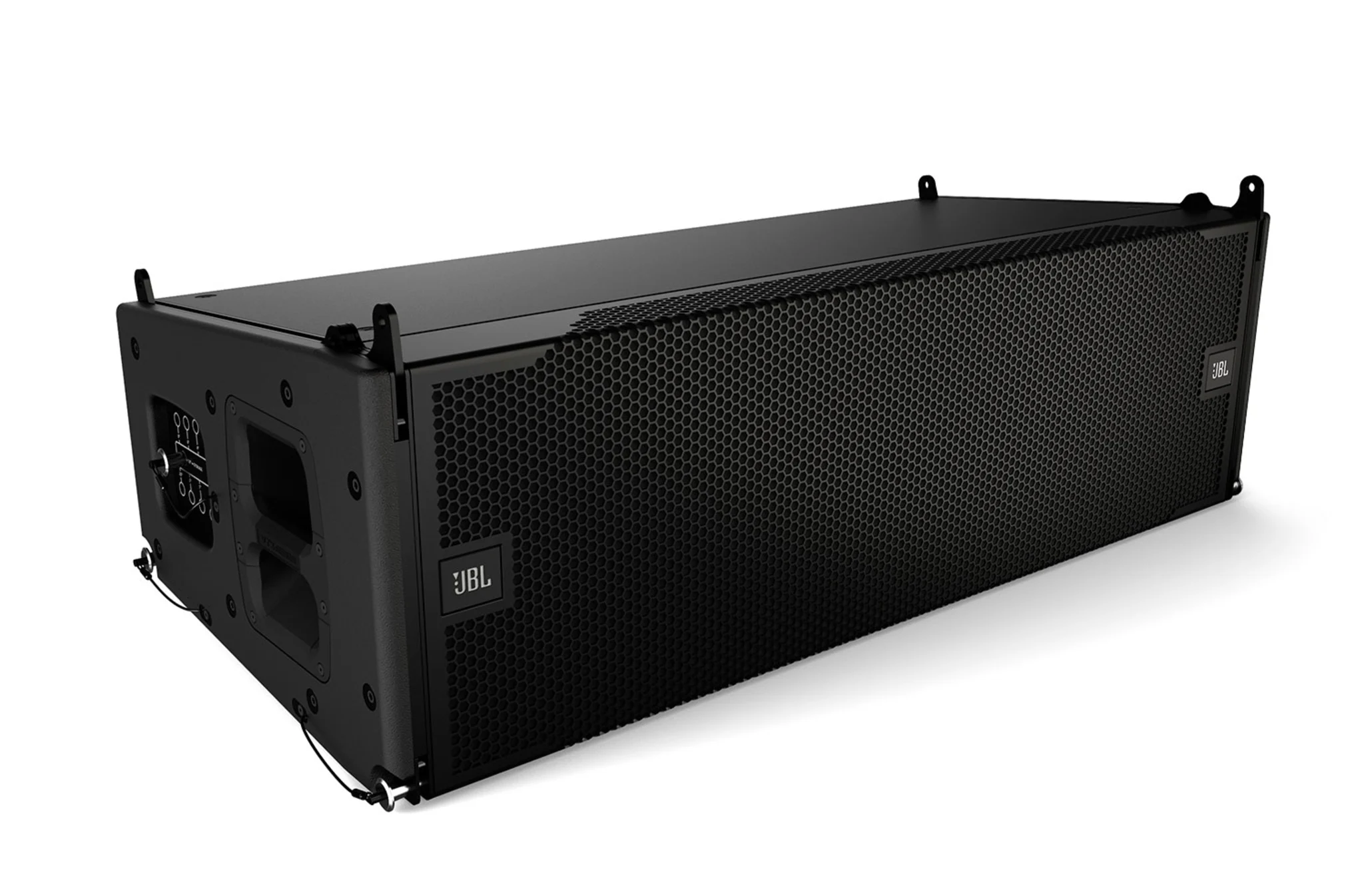

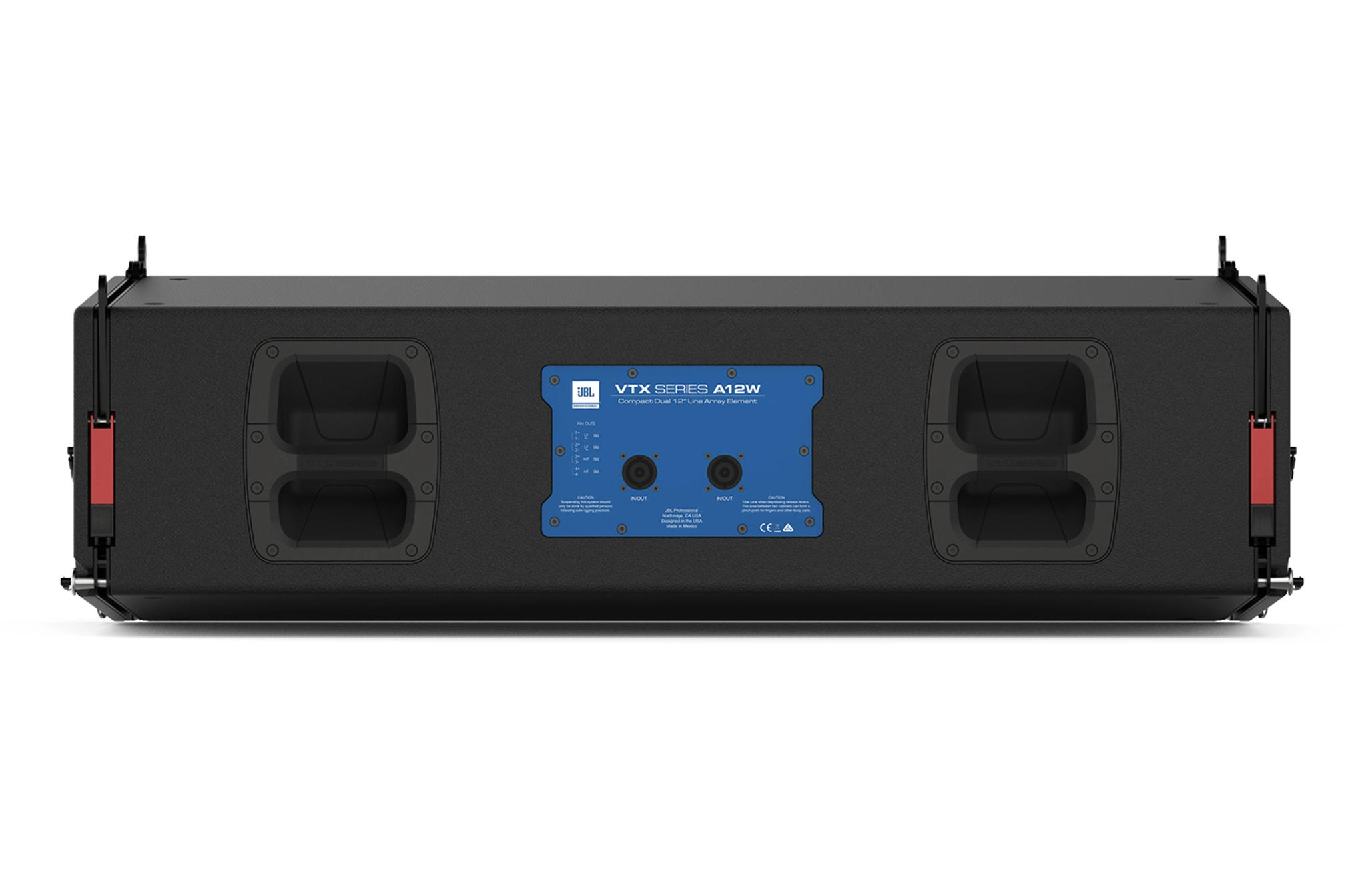

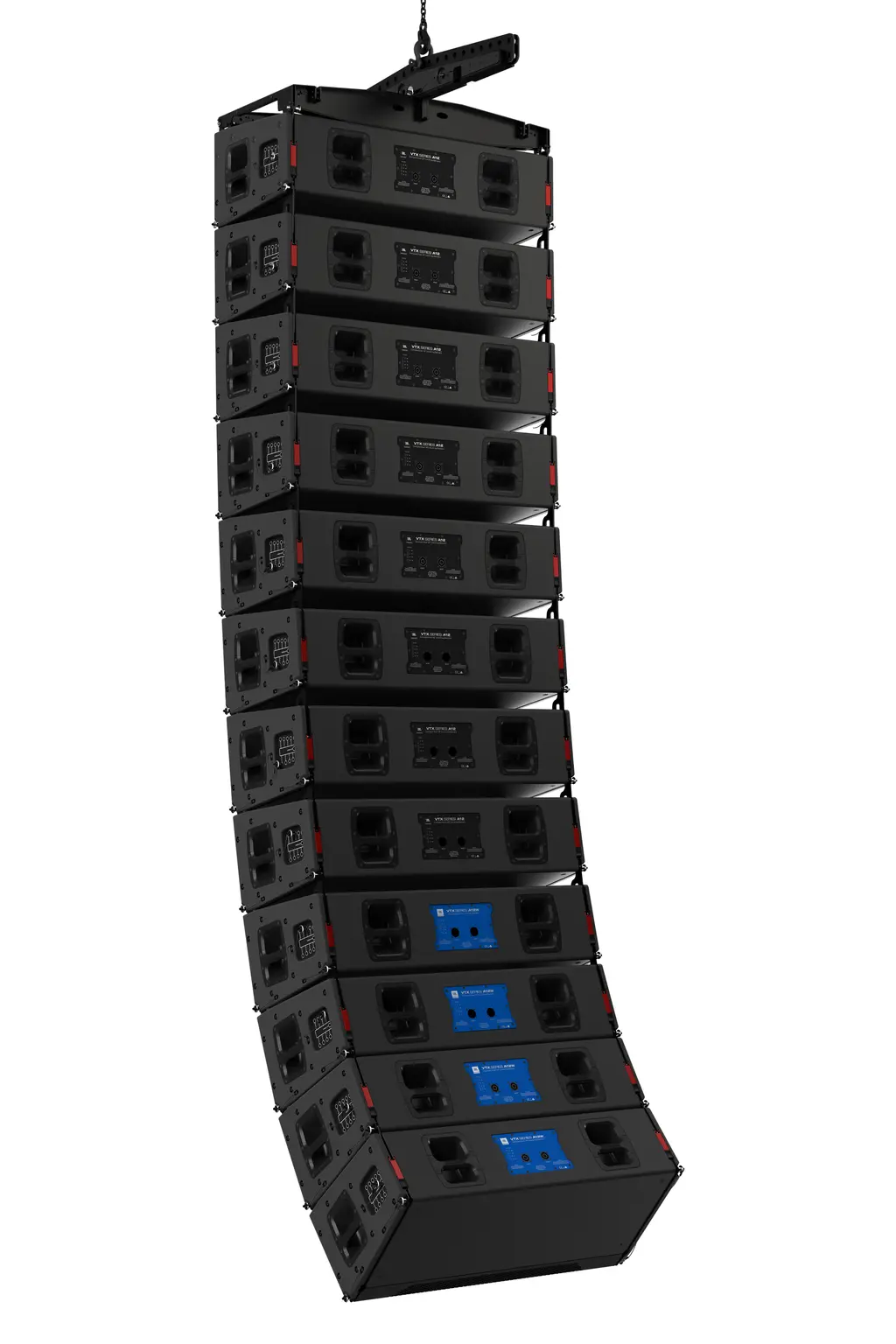

The enclosure, constructed from Finnish birch plywood with a Black DuraFlex™ finish, includes integral recessed handles and is built for durability. High-grade steel suspension plates with anti-corrosion coating, captive pins, and an auto-locking mechanism simplify deployment and angle adjustments. Compact and lightweight, the VTX A12W can be flown independently or combined with VTX A12 units in mixed arrays. Full integration with JBL system control and prediction software allows precise system optimization, while its robust design ensures consistent performance in demanding touring and installation environments.

Features of VTX A12W

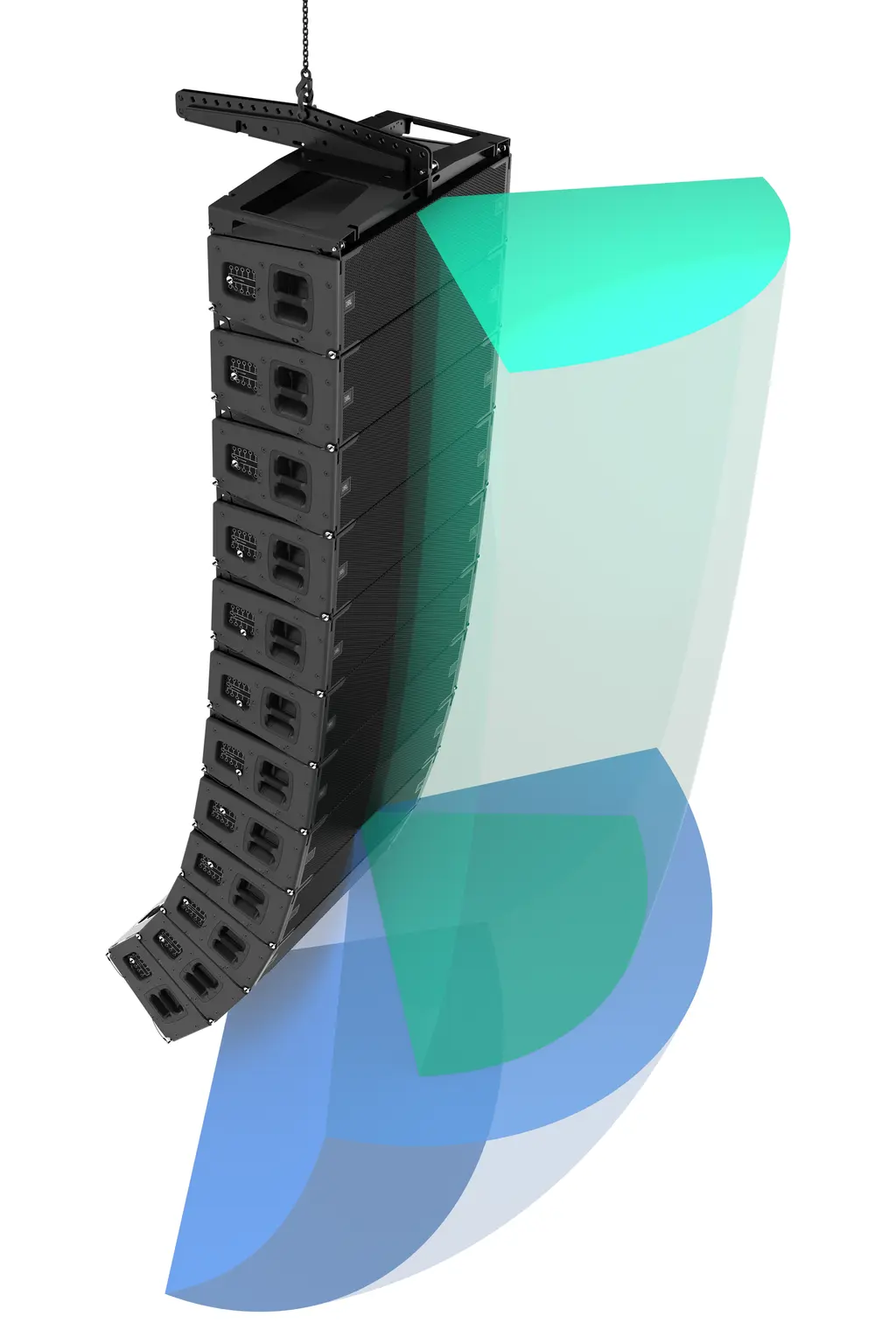

• 120° horizontal coverage for wide venue coverage

• Dual 12-inch JBL 2264H Differential Drive® woofers

• Four 5.5-inch JBL 2165H Differential Drive® mid-frequency drivers

• Three 2-inch JBL 2423K HF annular diaphragm compression drivers

• Redesigned Radiation Boundary Integrator® (RBI) for low distortion and extended LF coverage

• Integrated HF waveguide with phasing plug for high sensitivity

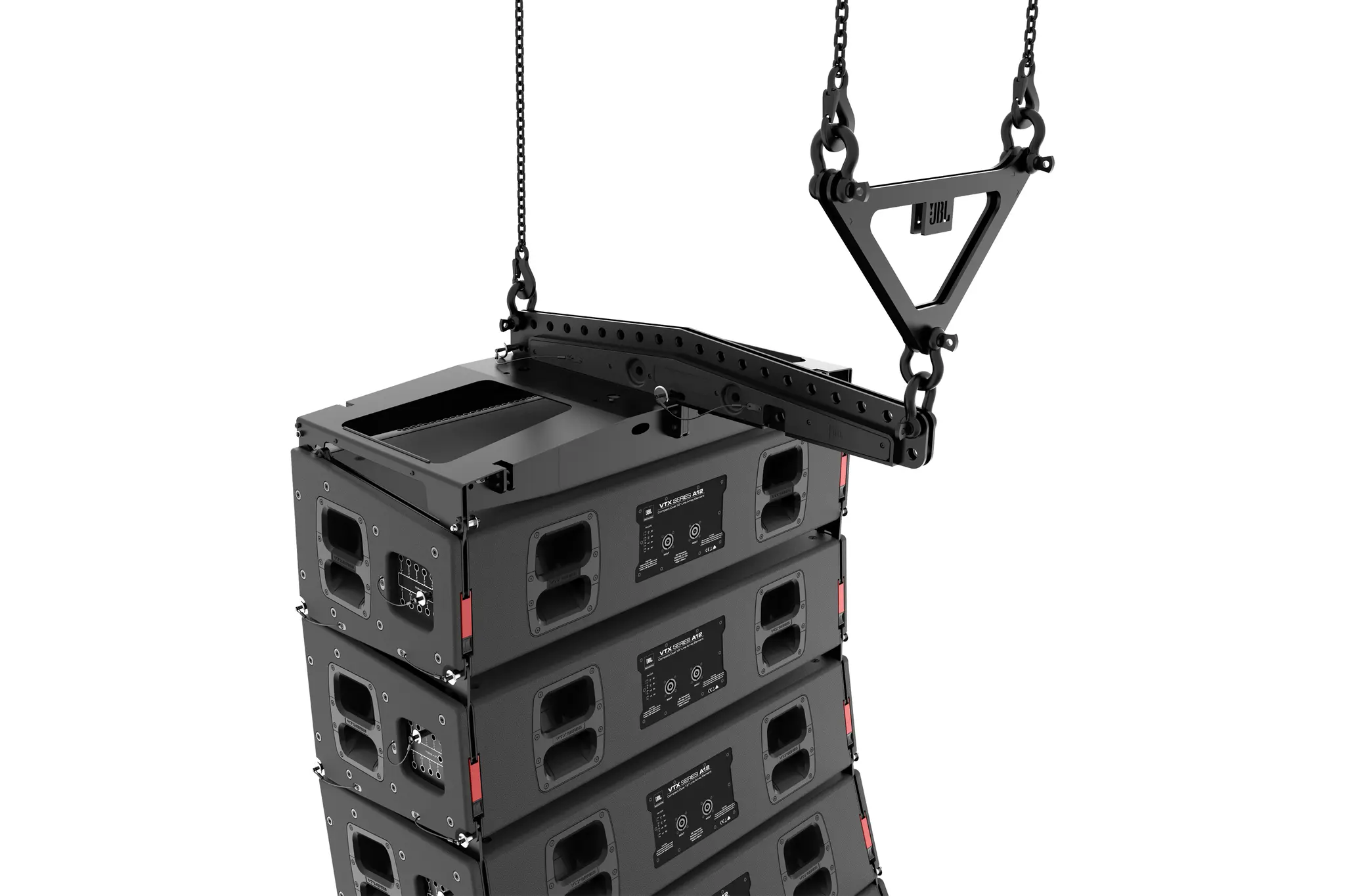

• Best-in-class rigging with captive pins, quick-release mechanism, and auto-locking suspension plates

• Full-face grill for weather resistance and aesthetic design

• Transport cart and frame for simplified setup and deployment

• Space-efficient, lightweight, and tour-ready

• Full compatibility with JBL VTX A12 arrays

• IP55 rated for protection against dust and water
