JBL VTX F12 12-inch Bi-Amplified 2-Way System
High-performance 12-inch bi-amplified two-way loudspeaker designed for versatile professional sound reinforcement. Ideal for FOH, stage monitoring, and satellite subwoofer configurations. Origin of country mexico.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 11,049.62 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
The JBL VTX F12 Bi-Amplified 2-Way Loudspeaker is a premium multi-purpose sound reinforcement solution engineered for professional audio applications. Designed to deliver exceptional clarity, power, and flexibility, the JBL VTX F12 Bi-Amplified 2-Way Loudspeaker is ideal for front-of-house systems, stage monitoring, and satellite configurations when paired with the companion VTX F18S subwoofer. Origin of country mexico.

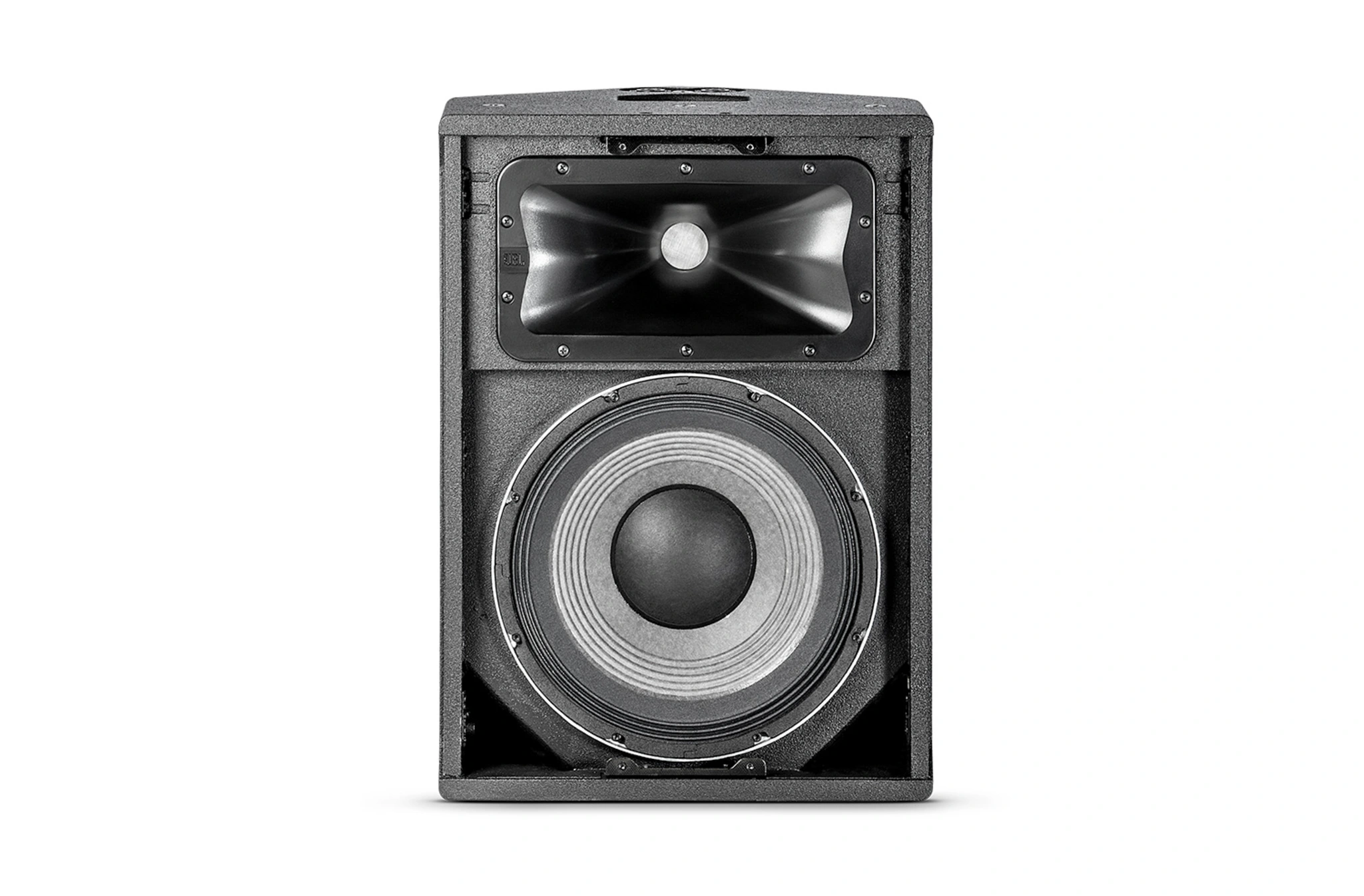

This system features a powerful 12-inch 2262H Differential Drive® woofer with dual 3-inch voice coils and Direct Cooled™ technology, ensuring high output with reduced power compression. The advanced D2430K D2 dual diaphragm, dual voice coil compression driver provides outstanding high-frequency detail and extended clarity.
Equipped with a Progressive Transition Waveguide offering 90° x 50° coverage, the speaker delivers smooth and consistent dispersion across venues. Integrated BSS Audio OmniDriveHD V5 processing ensures optimal tuning and performance when used with Crown ITechHD amplifiers and Crown VRack systems, while JBL HiQnet Performance Manager Control™ enables advanced system management.
The rugged 18 mm Baltic birch plywood enclosure with black DuraFlex™ finish ensures durability for touring and fixed installations. With flexible mounting options, including pole mount sockets and multiple M10 suspension points, the JBL VTX F12 Bi-Amplified 2-Way Loudspeaker adapts seamlessly to a variety of professional setups. Origin of country mexico.
Features of JBL VTX F12 Bi-Amplified 2-Way Loudspeaker
12-inch Differential Drive® woofer with dual 3-inch voice coils
D2430K D2 dual diaphragm compression driver
Progressive Transition Waveguide (90° x 50° coverage)
Bi-amplified 2-way premium system design
BSS Audio OmniDriveHD V5 processing compatibility
Designed for Crown ITechHD and VRack systems
JBL HiQnet Performance Manager Control™ integration

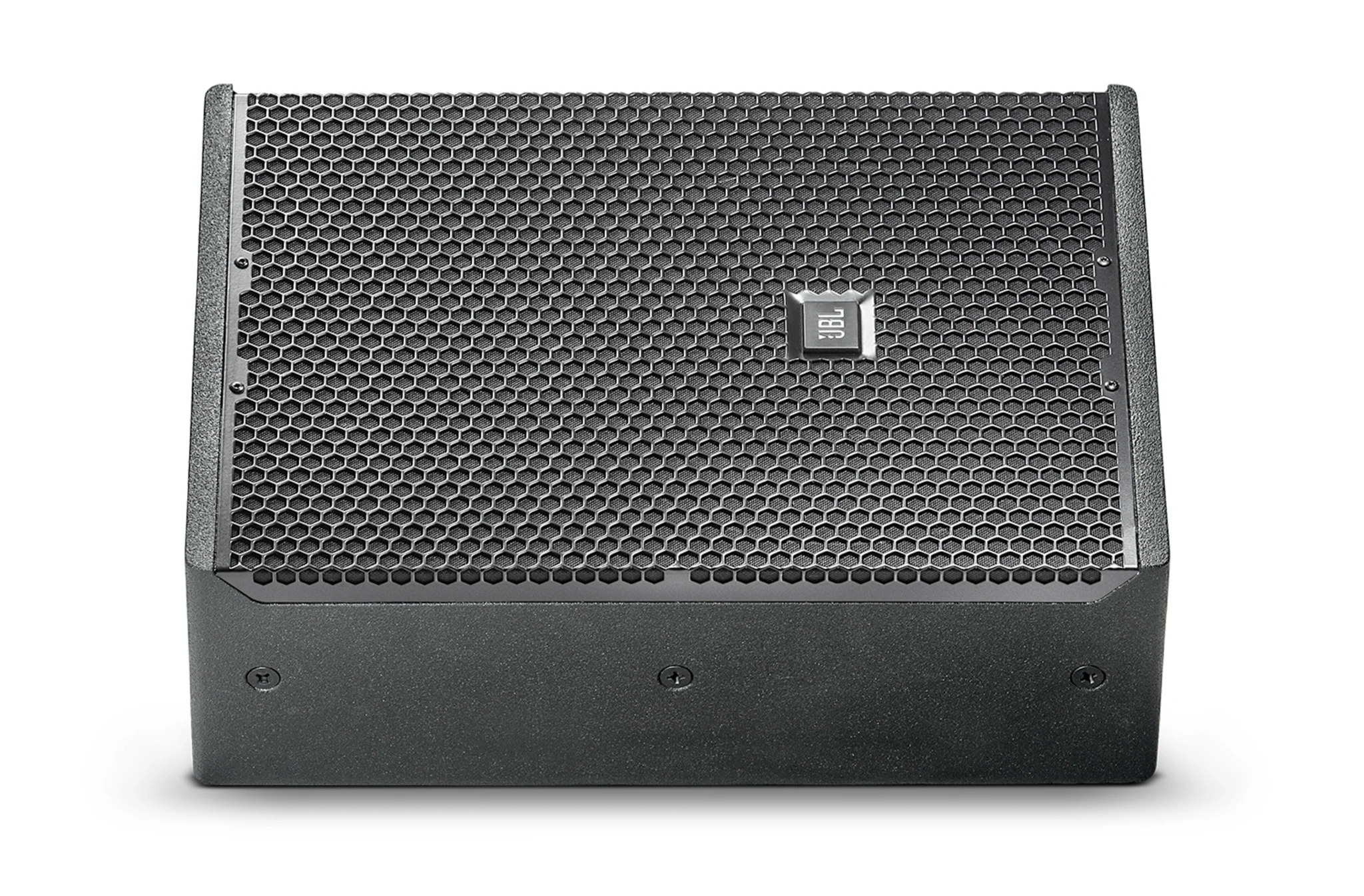

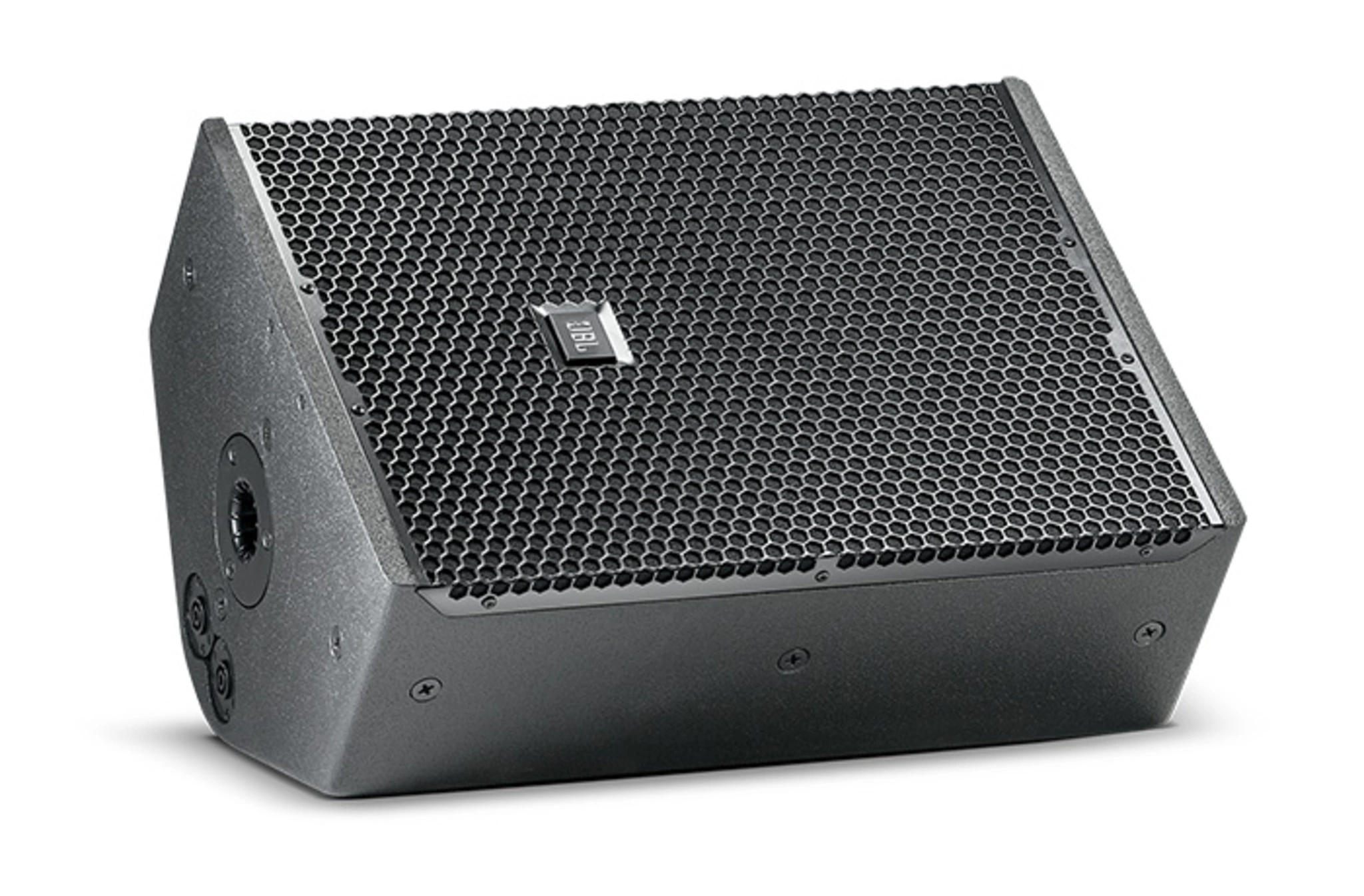

Symmetrical 53° stage monitor enclosure
Durable 18 mm Baltic birch plywood cabinet
Multiple M10 suspension points for flexible mounting
Specifications of JBL VTX F12 Bi-Amplified 2-Way Loudspeaker
| System Type | 2-Way Premium Multi-Purpose Loudspeaker |
| LF Driver | 1 x 12″ 2262H Dual 3″ Voice Coil, Neodymium Differential Drive®, Direct Cooled™ |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Coverage Pattern | 90° x 50° |
| Frequency Range (-10 dB) | 51 Hz – 21.5 kHz (Short Throw) / 44 Hz – 21.5 kHz (Monitor Mode) |
| Frequency Response (±3 dB) | 69 Hz – 20 kHz (Short Throw) / 58 Hz – 20 kHz (Monitor Mode) |
| Sensitivity | 96 dB LF / 108 dB HF |
| Power Rating (AES 2 hr) | 1000W LF / 200W HF Continuous |
| Peak Power | 4000W LF / 800W HF Peak |
| Maximum Peak Output | 132 dB |
| Nominal Impedance | LF: 8 ohms / HF: 20 ohms |
| Dimensions (H x W x D) | 548.6 x 396.2 x 304.8 mm |
| Net Weight | 19.1 kg (42 lbs) |
| Enclosure | 18 mm Baltic birch plywood, DuraFlex™ finish |
| Mounting Options | 35 mm pole mount socket, 16 x M10 mount points |
| Optional Accessories | M10 Eyebolt Kit (M10 x 35 mm forged shoulder steel) |
| Origin of Country | Mexico |
