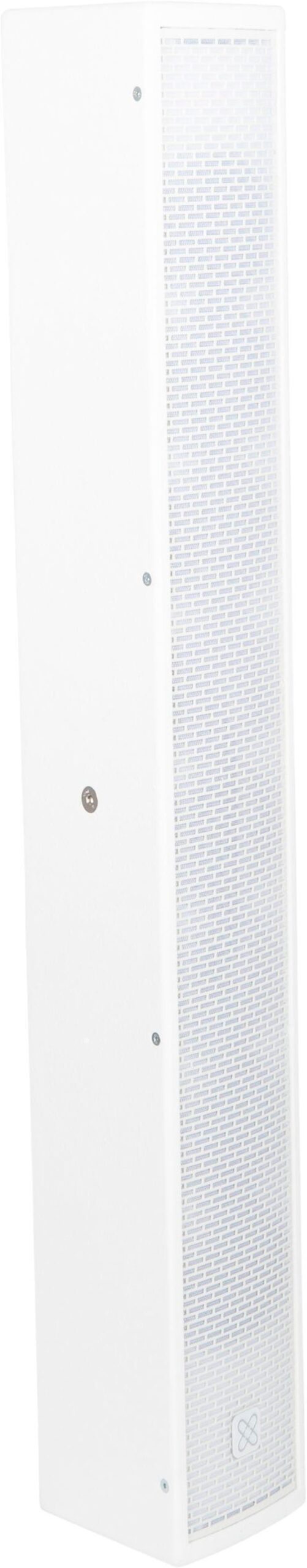

Peavey CPL 8L+ Passive Column Array Loudspeaker – White

Crest Audio CPL 8L+ column array loudspeaker

The Crest Audio CPL 8L+ column array loudspeaker is engineered for applications requiring high-quality sound reproduction with minimal space usage and controlled dispersion characteristics. This passive loudspeaker is suitable for both fixed installations and portable audio setups, making it an effective solution for speech delivery, background music, and live reinforcement in environments such as houses of worship, hospitality venues, retail locations, and corporate or educational spaces.

Equipped with eight 3-inch full-range neodymium drivers featuring 0.75-inch voice coils, the system delivers consistent and intelligible audio performance. The column configuration ensures a dispersion pattern of 90 degrees horizontally and 20 degrees vertically, allowing wide audience coverage while maintaining focused vertical control. This design helps reduce unwanted reflections and enhances clarity, especially in acoustically reflective environments.

With a nominal impedance of 4 ohms and continuous power handling of 240 watts, the CPL 8L+ supports reliable operation across various sound reinforcement scenarios. It includes dual 4-pin twist-lock connectors with loop-through functionality and an additional 4-pin Euroblock connector, offering flexible system integration.

The enclosure is constructed from premium 12 mm plywood, providing structural strength and reduced resonance. A heavy-duty steel grille with acoustic foam backing ensures protection of internal components without affecting sound quality. Seven M8 mounting points allow versatile installation options. Finished with a textured polyurea coating, the Crest Audio CPL 8L+ column array loudspeaker is built for durability and consistent performance.

Features of CPL 8L+

• Passive column loudspeaker configuration
• Eight 3-inch full-range drivers
• Neodymium magnet structure
• 0.75-inch voice coil design
• 240W continuous power capacity
• 4-ohm impedance rating
• 90° horizontal dispersion coverage
• 20° vertical dispersion control
• Dual 4-pin twist-lock connectors
• 4-pin Euroblock input option
• Loop-through signal connectivity
• Sealed enclosure architecture
• 12 mm plywood cabinet build
• Steel grille with foam backing
• Seven M8 mounting points
• Multiple installation configurations
• Durable polyurea surface coating
• Available in black and white finishes

Specifications of CPL 8L+
