Peavey CPL 8L+ Passive Column Array Speaker – Black

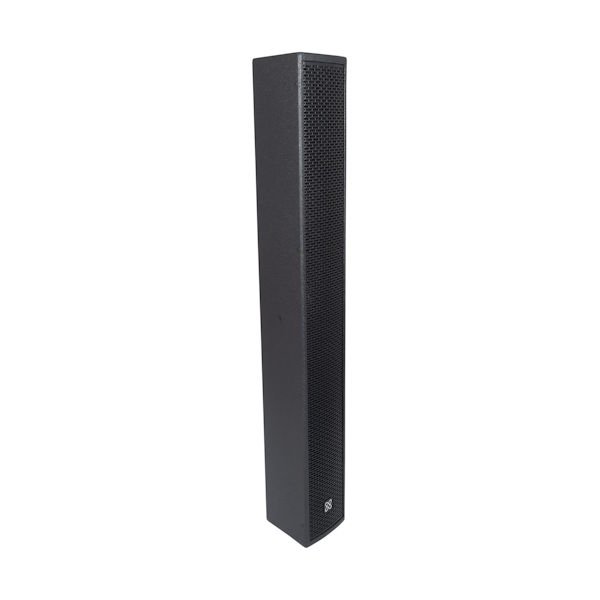

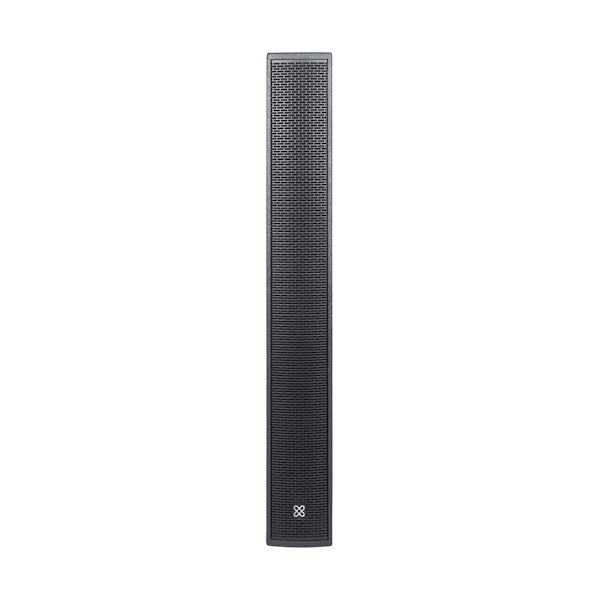

Crest Audio CPL 8L+ column array loudspeaker

The Crest Audio CPL 8L+ column array loudspeaker is designed to provide high-quality audio performance in applications where space efficiency and controlled sound dispersion are essential. Built for both permanent installations and portable use, this passive loudspeaker is ideal for speech reinforcement, background music, and live sound environments such as houses of worship, retail spaces, restaurants, corporate venues, and educational facilities.

The system features eight 3-inch full-range neodymium drivers with 0.75-inch voice coils, delivering clear and balanced audio across the frequency spectrum. Its column array design ensures a controlled dispersion pattern of 90 degrees horizontally and 20 degrees vertically, allowing for wide coverage while maintaining focused sound projection. This makes it particularly effective in minimizing unwanted reflections and improving intelligibility in acoustically challenging environments.

With a nominal impedance of 4 ohms and a continuous power handling of 240 watts, the CPL 8L+ is capable of consistent performance in various sound reinforcement setups. Connectivity options include dual 4-pin twist-lock connectors with loop-through capability and a 4-pin Euroblock connector, ensuring flexible integration into professional audio systems.

Constructed from high-quality 12 mm plywood, the enclosure offers excellent durability and low resonance characteristics. A robust steel grille with acoustic foam backing protects internal components while maintaining acoustic transparency. The loudspeaker includes seven M8 suspension points, enabling versatile mounting configurations. Finished in textured polyurea coating, the Crest Audio CPL 8L+ column array loudspeaker is built for reliable, long-term operation in demanding environments.

Features of CPL 8L+

• Passive column array speaker design
• Eight 3-inch full-range neodymium drivers
• 0.75-inch voice coil configuration
• 240W continuous power handling
• 4-ohm nominal impedance
• 90° horizontal sound dispersion
• 20° vertical controlled coverage
• Dual 4-pin twist-lock connectors
• 4-pin Euroblock connectivity
• Loop-through signal capability
• Sealed enclosure design
• 12 mm plywood cabinet construction
• Steel grille with acoustic foam
• Seven M8 suspension mounting points
• Multiple installation configurations
• Textured polyurea protective finish
• Available in black and white

Specifications of CPL 8L+
