The RCF AM 2160 is a 160 W digital mixer amplifier with four universal microphone-line inputs and auxiliary source facilities. Its paging connections, priority controls and per-channel filtering support the balance between announcements and background programme material.

The specified frequency response is 50 Hz – 14 Hz. The stated output power is 1 x 160 W @ 4 ohm. The total number of audio inputs is 8. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 88 mm, width 442 mm, depth 230 mm, weight 5.4 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of AM 2160

• Full digital technology Mixer Amplifier 160 W RMS
• 100 V – 70 V and 4 Ohm outputs
• 4 universal inputs with phantom facility on screw terminal connections
• Presence Control and per-channel High-Pass filters

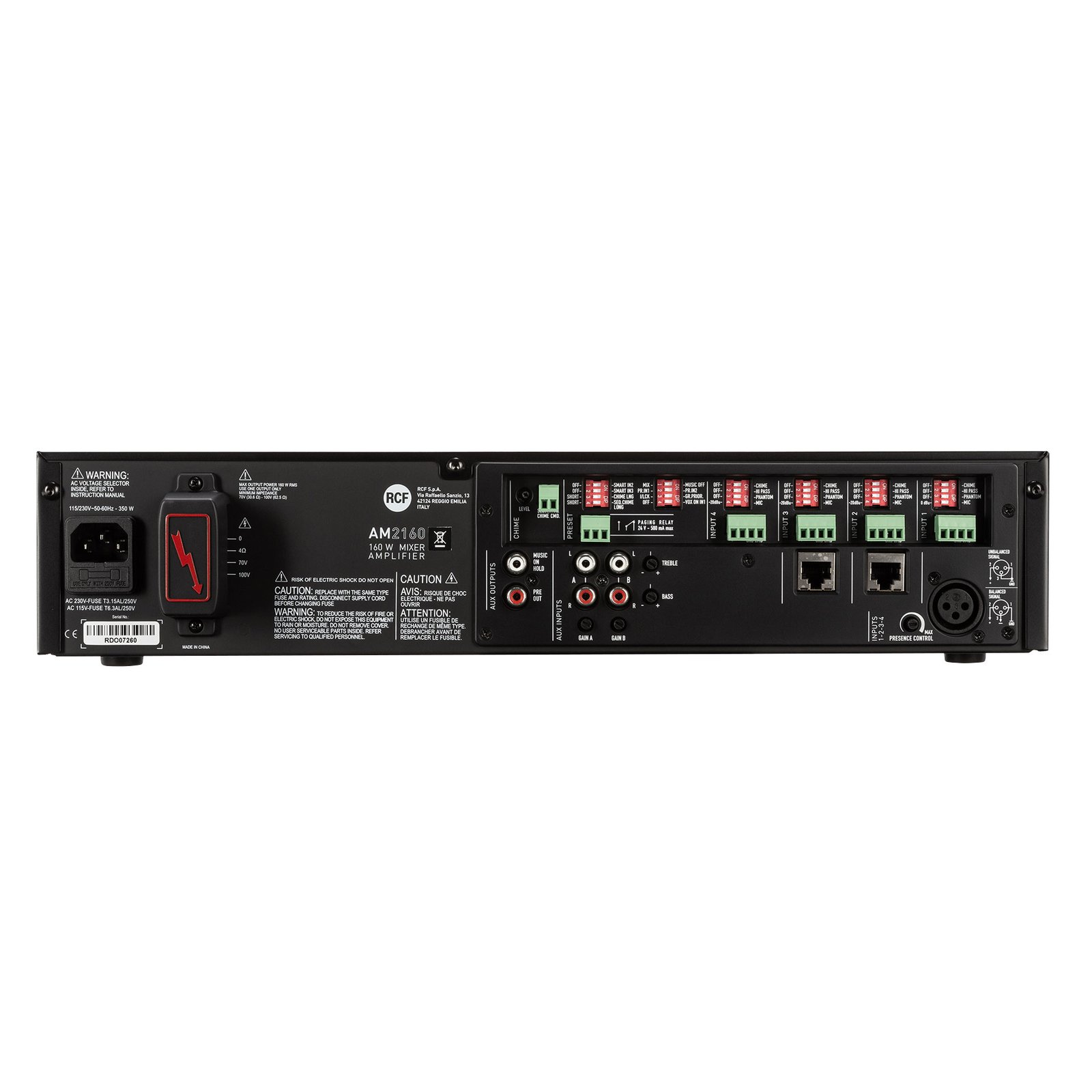

• XLR connector on input 1
• RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
• Configurable Priority settings, VOX facility on input 1
• Selectable aux inputs with two keys on the front panel for music source
• Aux inputs with volume and tone controls
• Music On Hold and PRE outputs
