RCF C3110-96 Two-Way Passive Speaker System

RCF C3110-96 Two-Way Installation Loudspeaker System

The RCF C3110-96 is a versatile low-profile two-way loudspeaker engineered for professional near-field and fixed installation applications. It is designed to provide high output, accurate sound reproduction, and wide coverage while maintaining a compact form factor suitable for discreet mounting in venues such as conference rooms, retail spaces, hospitality environments, and small performance areas.

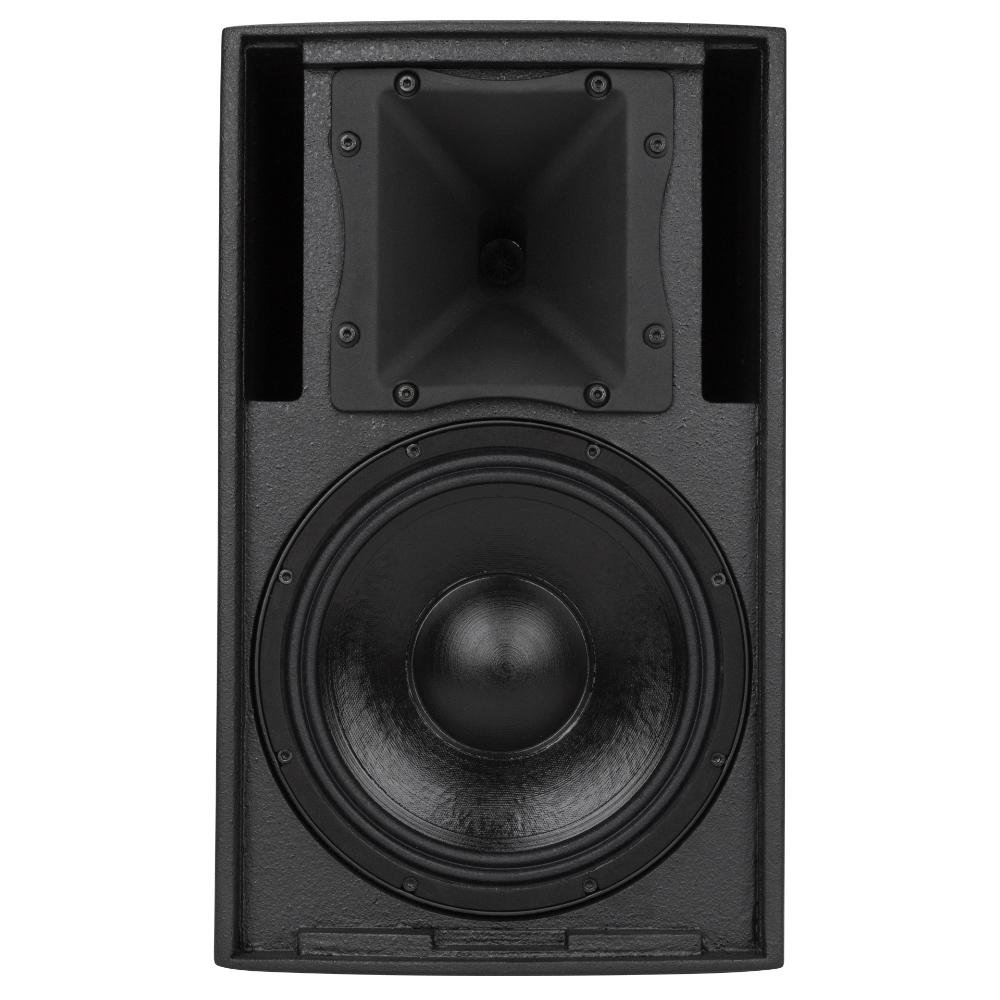

The system integrates a 10-inch high-power woofer that delivers strong and controlled low-frequency response, paired with a 1-inch compression driver featuring a 1.5-inch voice coil for smooth and detailed high-frequency performance. This combination ensures full-range audio clarity with a frequency response spanning 67 Hz to 20 kHz, making it suitable for both speech and music applications requiring high intelligibility.

A constant directivity horn provides a controlled dispersion pattern of 90° horizontal and 60° vertical, ensuring even sound distribution and consistent coverage across the listening area. This makes the system highly effective for environments where uniform sound projection is essential.

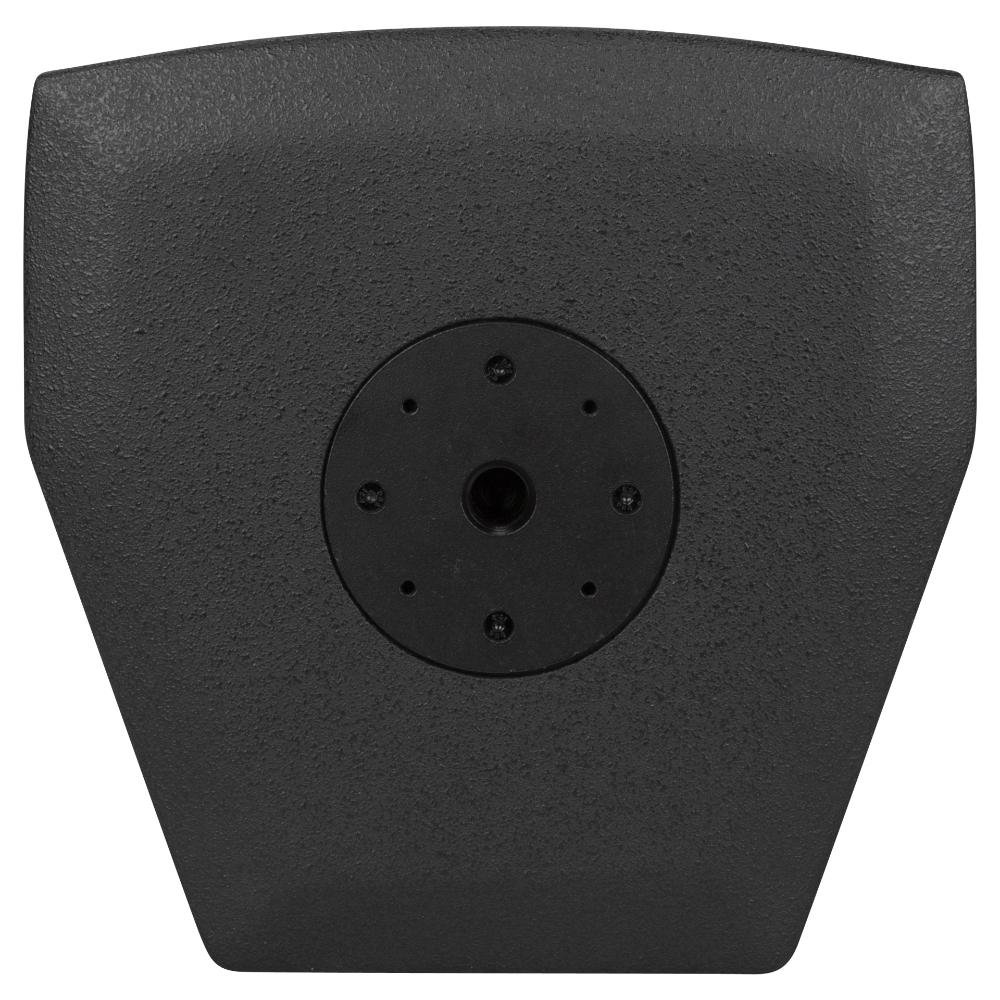

The enclosure is built from high-quality Baltic birch plywood, offering excellent acoustic rigidity and long-term durability. A steel front grille with dual-layer polyester protection safeguards internal components while maintaining acoustic transparency. Multiple installation points on the rear, top, and bottom panels allow flexible mounting options in different orientations. The Speakon NL4 connectors provide secure input and parallel link output for easy integration into professional audio systems. The C3110-96 is designed to combine compact design with powerful and precise audio performance.

Features of C3110-96

• 300W RMS power handling capacity
• Maximum SPL output up to 128 dB
• Frequency response from 67 Hz to 20 kHz
• 90° horizontal coverage angle
• 60° vertical controlled dispersion
• 10-inch high-power woofer
• 1-inch compression driver with 1.5-inch voice coil
• Constant directivity horn design
• Wide dispersion sound coverage
• Baltic birch plywood cabinet construction
• Steel grille with dual mesh polyester protection
• Compact low-profile enclosure design
• Multiple installation mounting points
• Speakon NL4 input and parallel output
• Suitable for near-field and installation use

Specifications of C3110-96
