RCF COMPACT M 05 Passive 2-Way Loudspeaker – Black
A compact yet powerful full-range speaker delivering clear, balanced audio with strong output. Designed for versatile installations, it ensures excellent coverage, high intelligibility, and reliable performance in both indoor environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,304.10 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

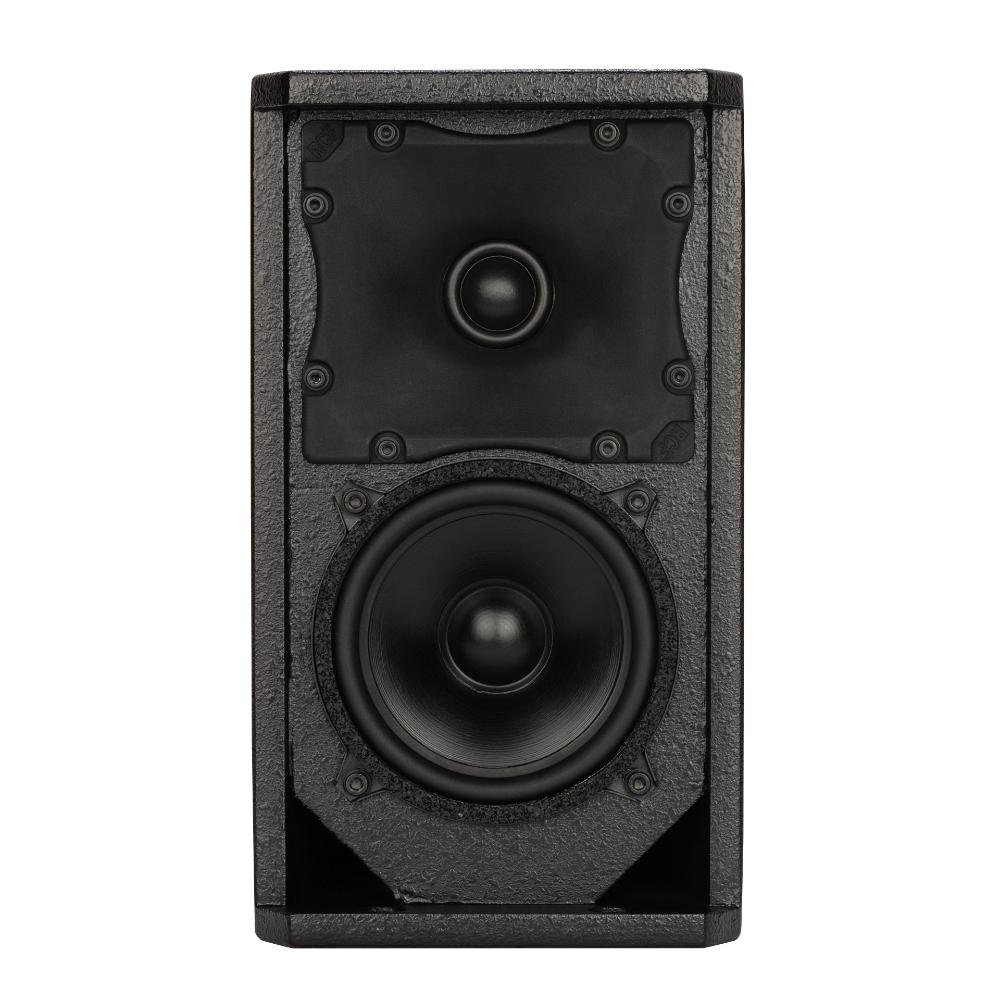

The RCF COMPACT M 05 is a versatile two-way full-range speaker engineered to deliver high-quality sound in a compact and elegant form. Designed for a wide range of applications, it is particularly effective in near-field environments where speech clarity and balanced audio performance are essential. The system combines a 5-inch high-power woofer with a 1-inch neodymium dome tweeter, ensuring smooth frequency response and accurate sound reproduction across the entire listening range.
With an 80 W RMS power handling capacity and the ability to reach up to 115 dB SPL, the speaker produces strong, distortion-free output despite its small footprint. The integrated waveguide enhances sound dispersion, providing consistent 120° x 80° coverage for even audio distribution across the listening area. High sensitivity, achieved through the use of oversized magnets, further improves efficiency and overall performance.
The cabinet is constructed from high-quality plywood, offering durability along with refined aesthetics that blend seamlessly into various environments. Its compact design makes it suitable for installations in restaurants, retail outlets, corporate spaces, and other venues where both performance and appearance matter. Flexible mounting options allow installation on walls or ceilings using compatible accessories.
The EUROBLOCK connector system ensures secure and convenient audio connections, with support for parallel linking. The RCF COMPACT M 05 stands out as a reliable solution for delivering clear, powerful, and immersive sound in compact installations.
Features of COMPACT M 05
- 80 W RMS power handling for consistent performance
- Maximum SPL up to 115 dB for strong output
- Wide frequency response from 70 Hz to 20 kHz
- 120° x 80° constant directivity for uniform coverage
- 5-inch high-power woofer for solid low frequencies
- 1-inch neodymium dome tweeter for clear highs
- Durable plywood cabinet for long-term use
- Steel grille with fabric protection for added durability
- Multiple installation points for flexible mounting

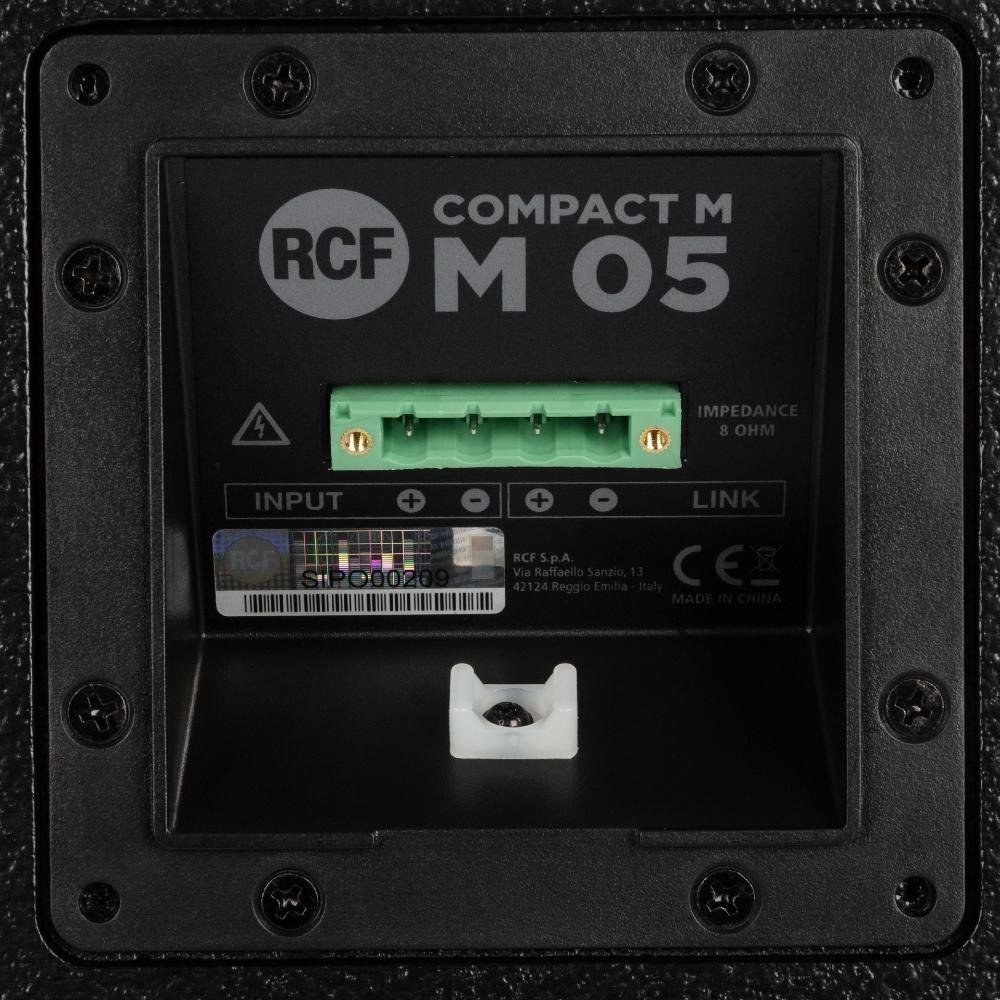

- EUROBLOCK connector with parallel link capability
Specifications of COMPACT M 05
| Frequency Response | 70 Hz – 20000 Hz |
| Max SPL | 115 dB |
| Coverage Angle | 120° x 80° |
| Sensitivity | 89 dB |
| Power Handling | 80 W RMS |
| Peak Power | 320 W |
| Nominal Impedance | 8 ohm |
| Crossover Frequency | 2200 Hz |
| Woofer | 5″ (1.2″ voice coil) |
| Tweeter | 1.3″ neodymium dome (1.0″ voice coil) |
| Input/Output | EUROBLOCK |
| Cabinet Material | Plywood |
| Grille | Steel with fabric |
| Color | Black / White |
| Height | 303 mm |
| Width | 172 mm |
| Depth | 191 mm |
| Weight | 4.2 kg |
