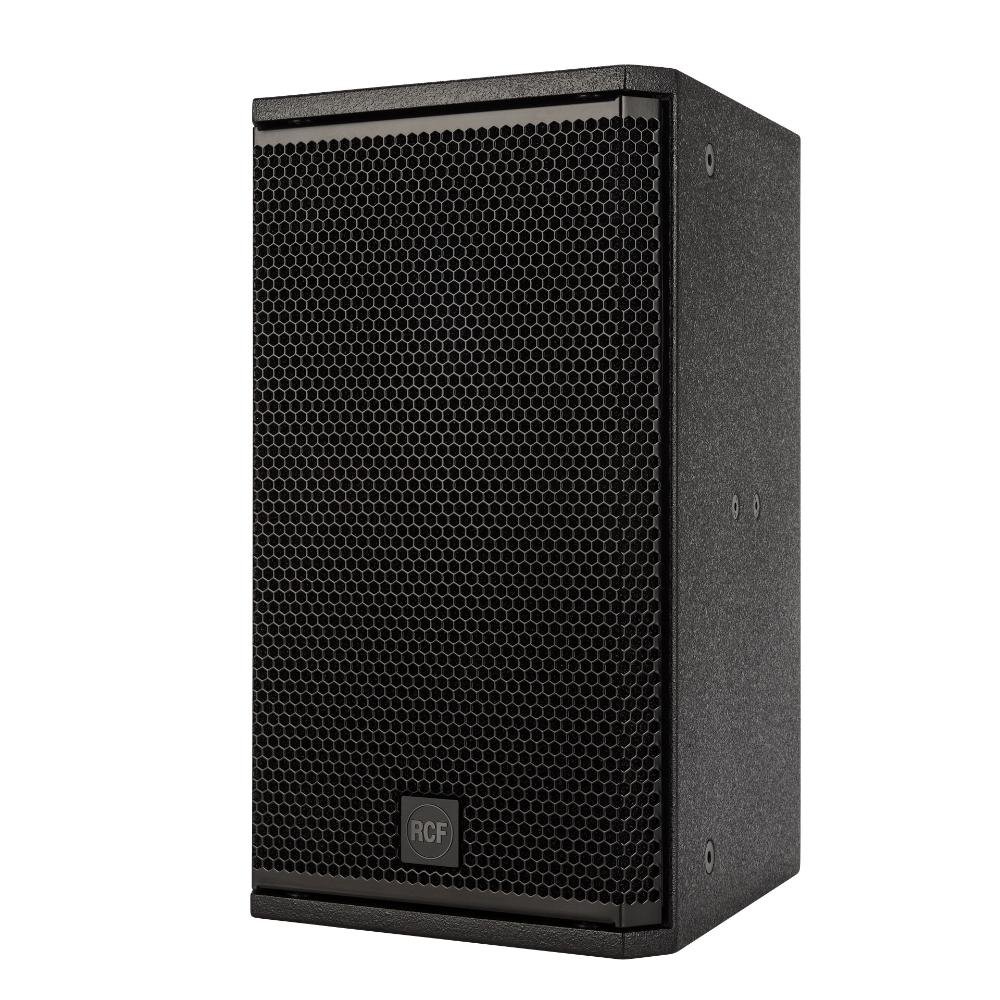

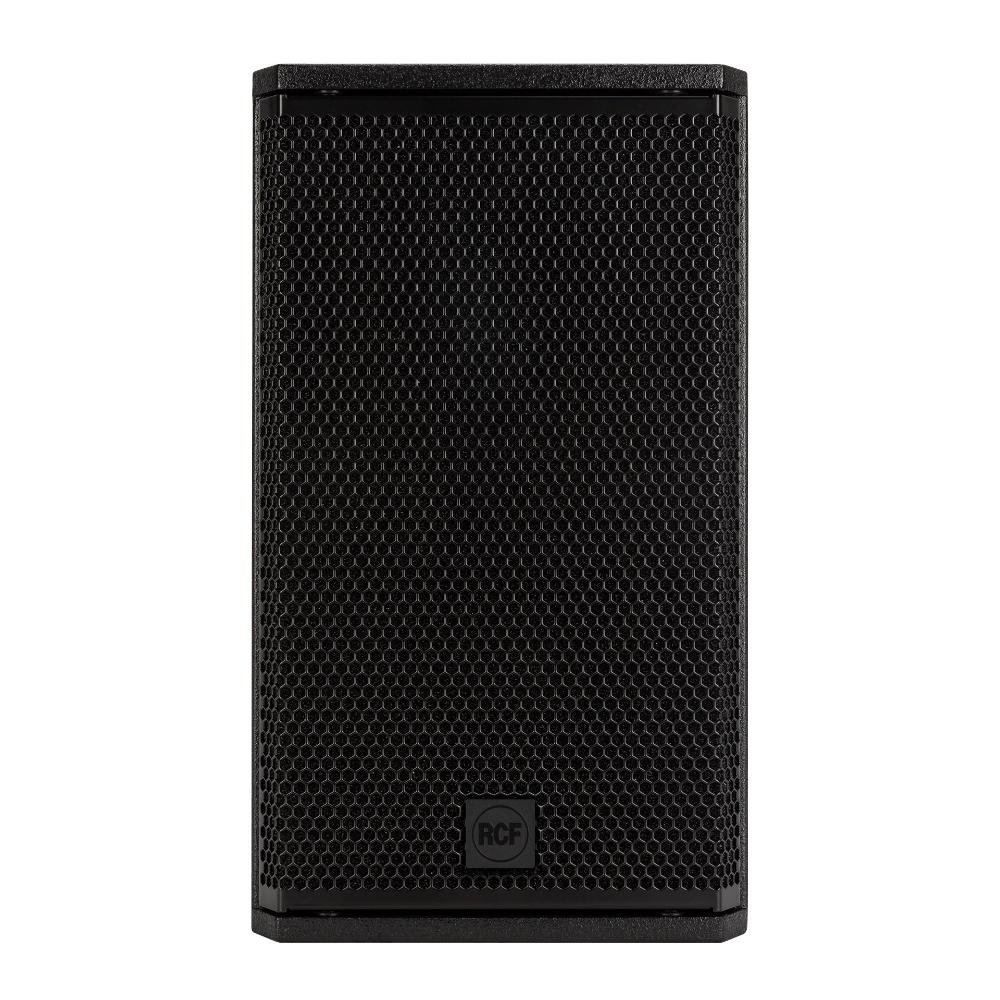

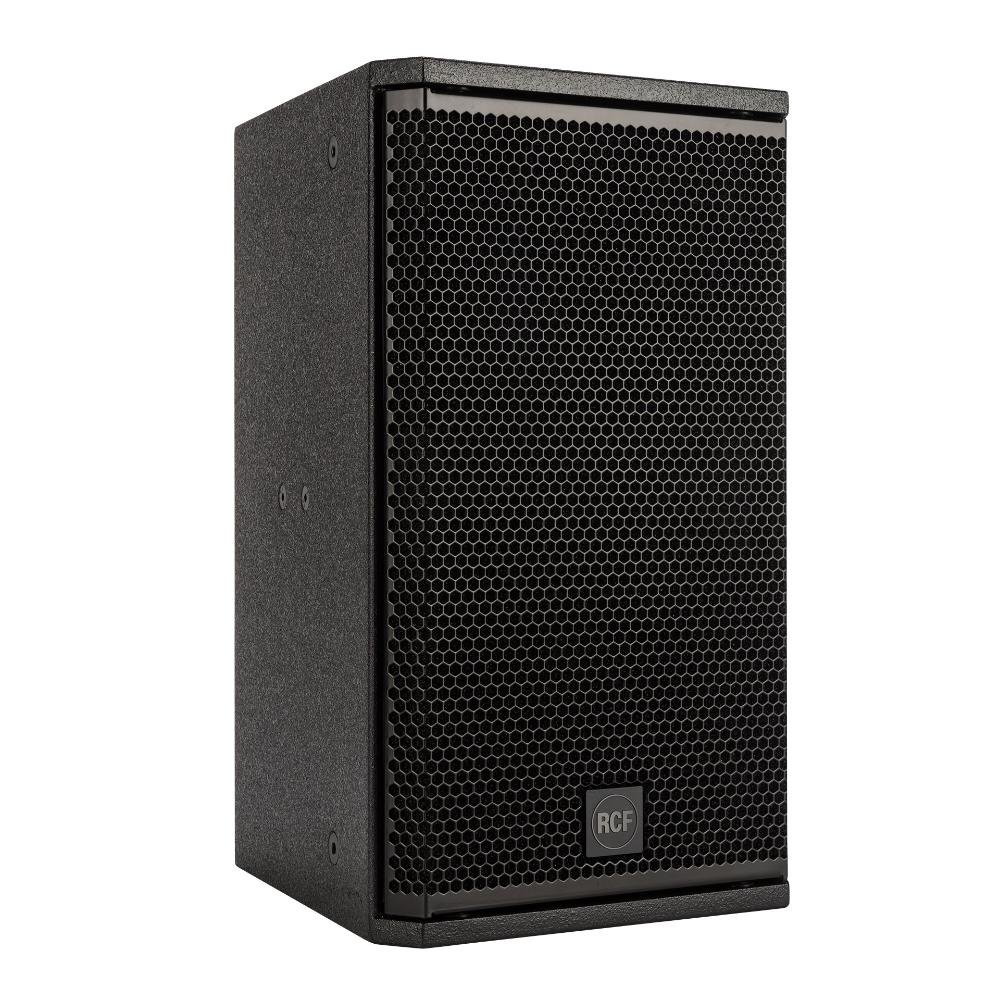

COMPACT M 10

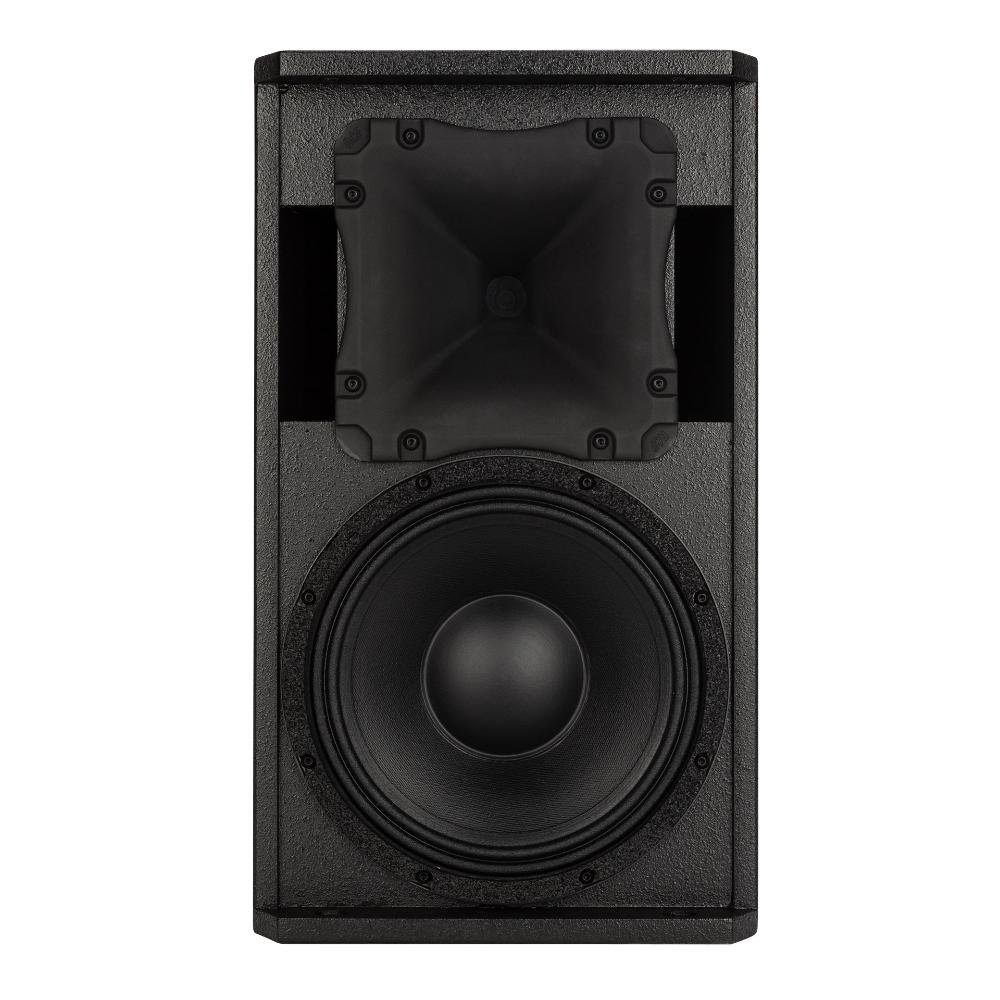

The RCF COMPACT M 10 is a versatile two-way full-range speaker designed to deliver professional-grade audio performance across a wide variety of applications. It is particularly effective in near-field environments where clarity and speech intelligibility are essential. The system combines a 10-inch high-power woofer with a 1.4-inch compression driver, ensuring accurate sound reproduction with a smooth and extended frequency response.
With a power handling capacity of 300 W RMS and a maximum SPL of 128 dB, the COMPACT M 10 delivers strong, distortion-free output suitable for both music and voice applications. Its waveguide-loaded compression driver provides consistent coverage with a 90° x 70° dispersion pattern, ensuring even sound distribution across the listening area. The horn is rotatable, allowing flexible horizontal or vertical installation.
The cabinet is constructed from high-quality plywood, offering durability along with a refined and professional appearance. Its compact design allows seamless integration into various environments such as retail spaces, restaurants, corporate venues, and performance areas. Multiple mounting points on the rear, top, and bottom provide flexible installation options using dedicated accessories.
Equipped with a 4-pole EUROBLOCK connector, the system supports secure signal input along with parallel link output for easy system expansion. The RCF COMPACT M 10 is a reliable solution for delivering powerful, clear, and consistent sound in compact and medium-sized installations.
Features of COMPACT M 10
- 300 W RMS power handling for strong performance
- Maximum SPL up to 128 dB for high output capability
- Frequency range from 60 Hz to 20 kHz for full-range audio
- 90° x 70° rotatable constant directivity for flexible coverage
- 10-inch high-power woofer for strong low-frequency response
- 1.4-inch compression driver for clear high frequencies
- Durable plywood cabinet construction
- Steel grille with protective fabric layer

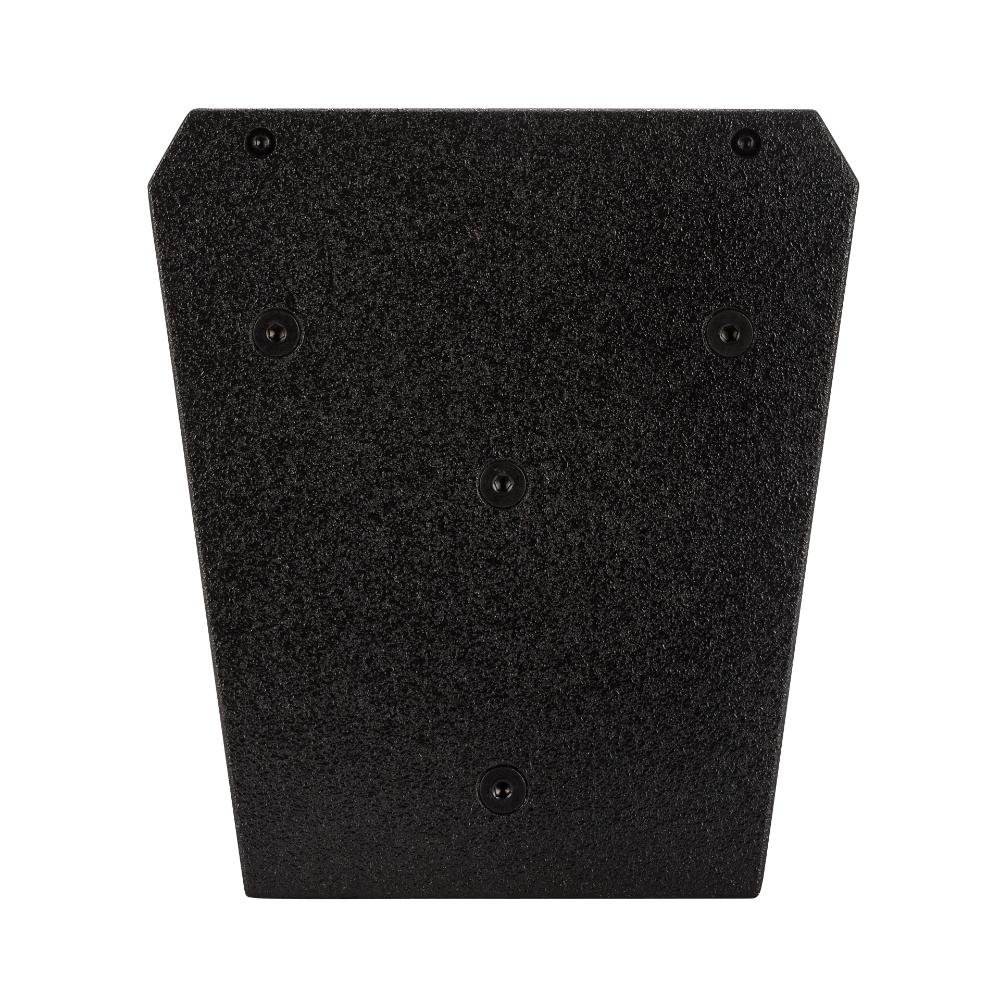

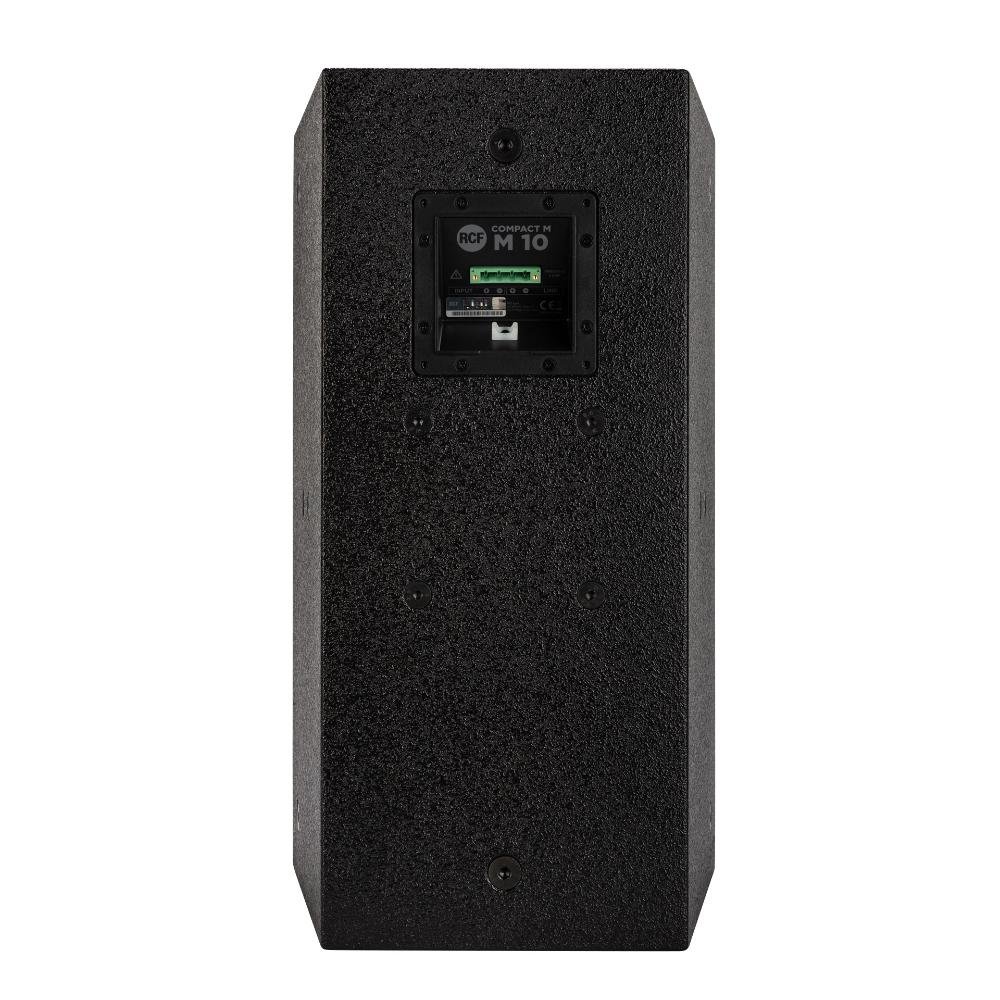

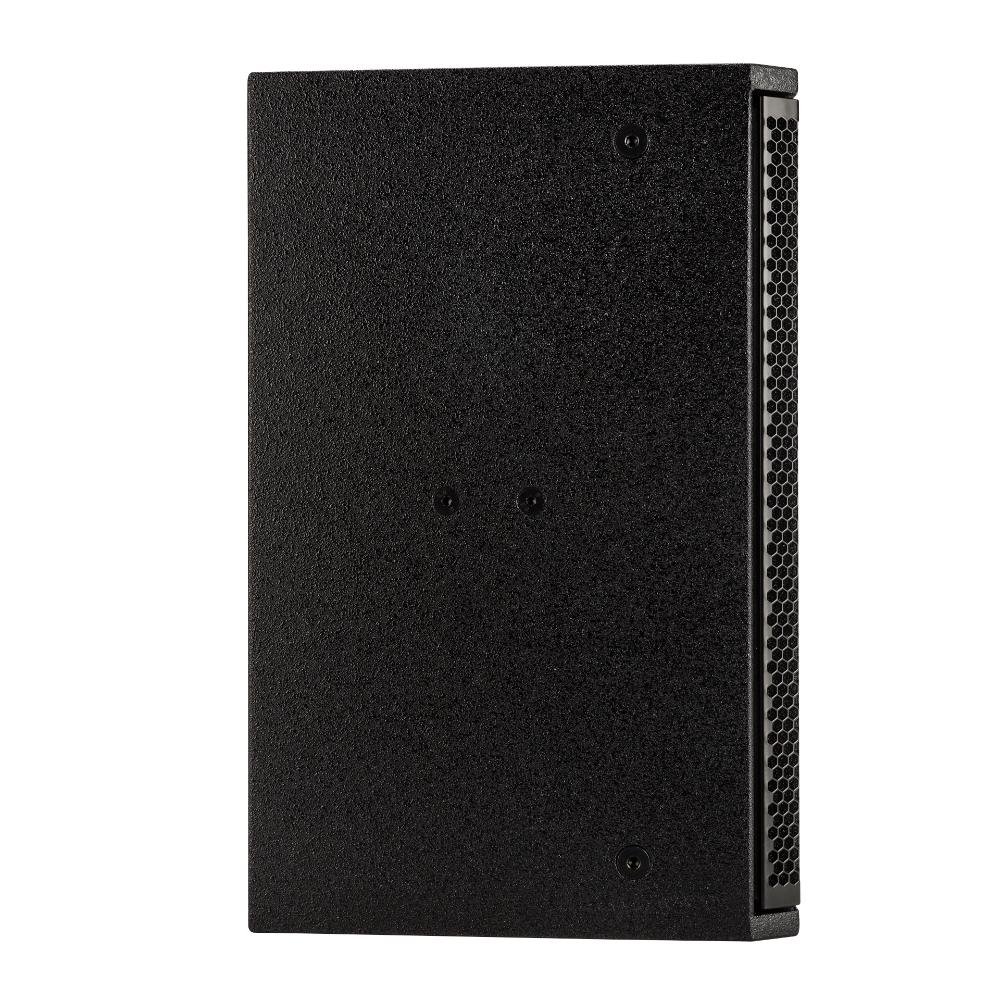

- Multiple mounting points for flexible installation

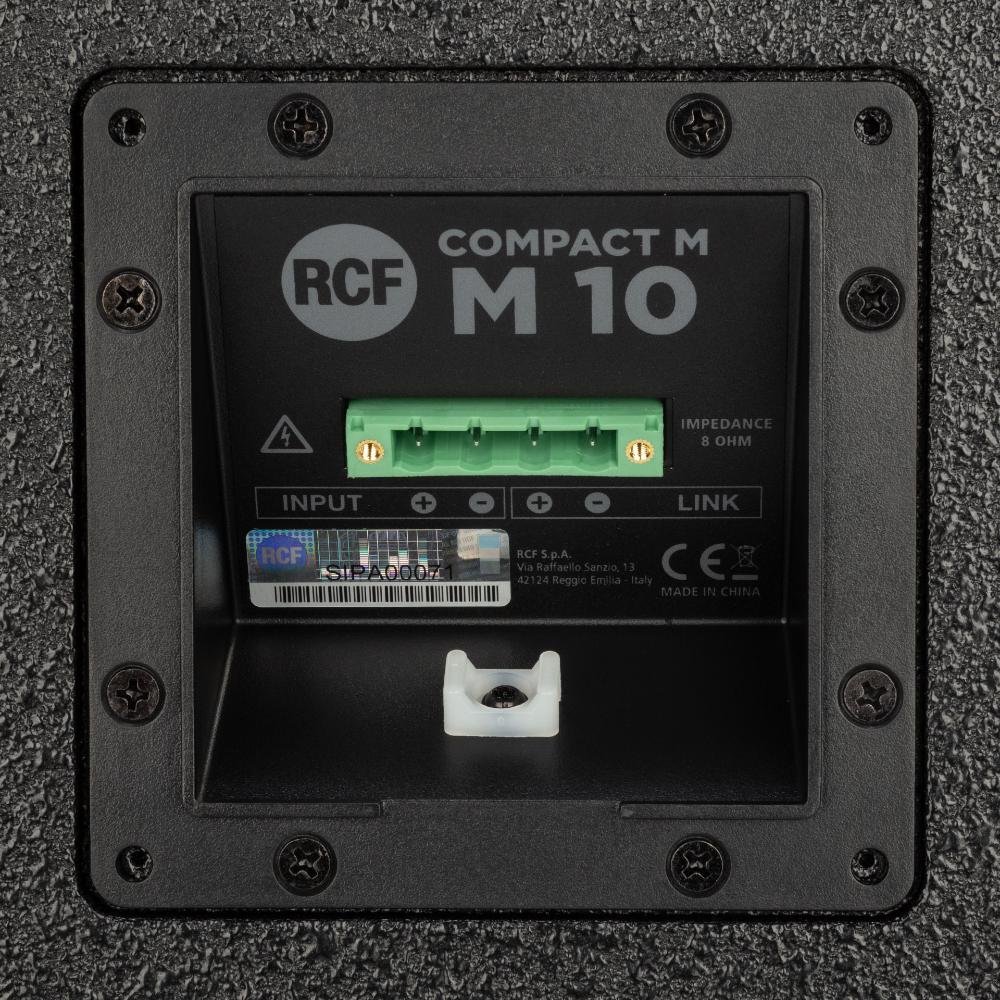

- 4-pole EUROBLOCK connector with parallel link support
Specifications of COMPACT M 10
| Frequency Response | 60 Hz – 20000 Hz |
| Max SPL | 128 dB |
| Coverage Angle | 90° x 70° |
| Sensitivity | 98 dB |
| Power Handling | 300 W RMS |
| Peak Power | 1200 W |
| Nominal Impedance | 8 ohm |
| Crossover Frequency | 1800 Hz |
| Woofer | 10″ (2.5″ voice coil) |
| Compression Driver | 1.4″ (1.0″ voice coil) |
| Input/Output | EUROBLOCK |
| Cabinet Material | Plywood |
| Grille | Steel with fabric |
| Color | Black / White |
| Height | 510 mm |
| Width | 295 mm |
| Depth | 325 mm |
| Weight | 17 kg |
