RCF COMPACT M 12 Passive 2-Way Loudspeaker – Black

RCF COMPACT M 12 two-way full-range speaker system

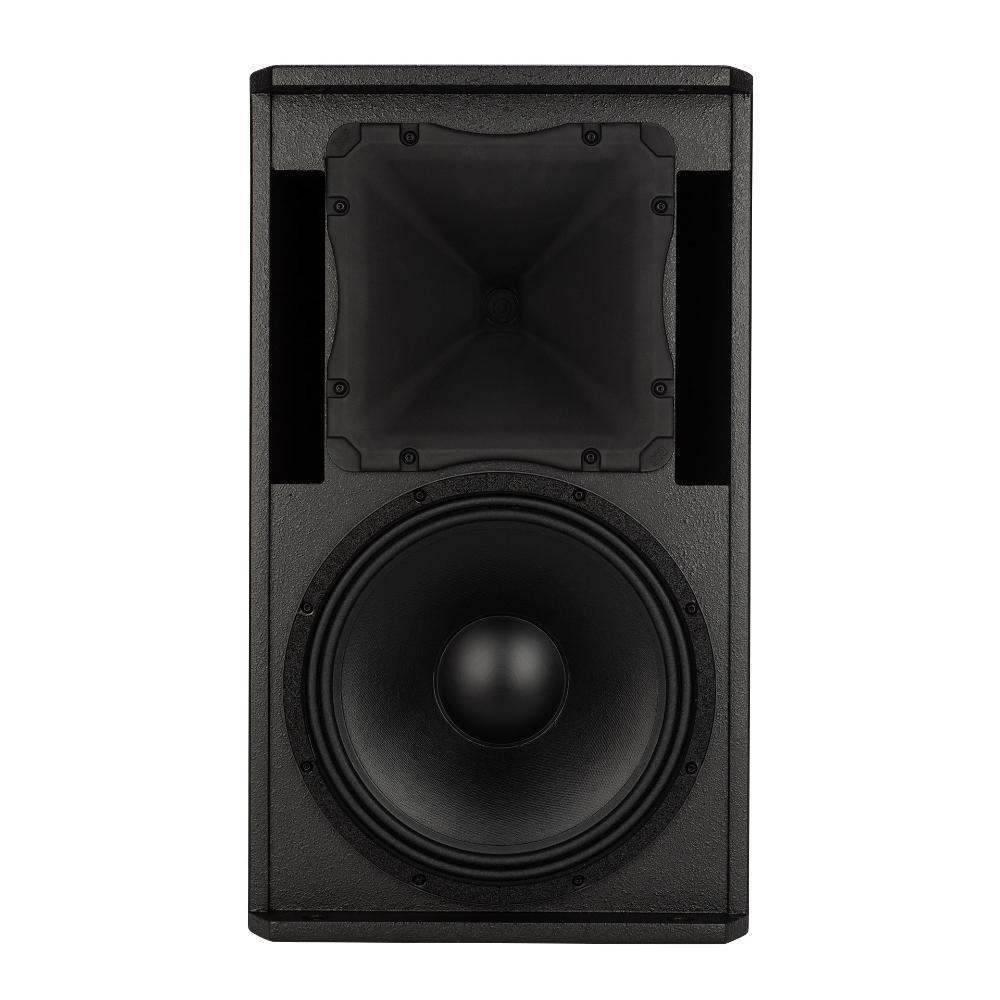

The RCF COMPACT M 12 is a professional-grade two-way passive loudspeaker designed for high-output sound reinforcement in both fixed installation and portable applications. Built around a 12-inch high-power woofer and a 1.4-inch voice coil compression driver, it delivers a strong, balanced audio performance with excellent clarity and impact across the full frequency spectrum.

Engineered for demanding environments, the COMPACT M 12 provides a frequency response from 55 Hz to 20,000 Hz, ensuring deep low-frequency extension along with detailed high-frequency reproduction. With a maximum sound pressure level of up to 129 dB, it is capable of delivering powerful, low-distortion sound suitable for clubs, live events, auditoriums, houses of worship, and commercial venues.

The speaker features a constant directivity horn with a 90° x 70° coverage pattern, which can be rotated to suit horizontal or vertical mounting positions. This flexibility ensures consistent sound dispersion and optimized audience coverage in different installation scenarios. Its high sensitivity design allows efficient performance even at lower amplifier power levels.

Constructed from high-quality plywood, the cabinet offers durability and acoustic stability, while the steel front grille with internal cloth protection enhances both safety and aesthetics. Multiple rear, top, and bottom mounting points allow flexible installation options, including wall and ceiling setups with compatible accessories.

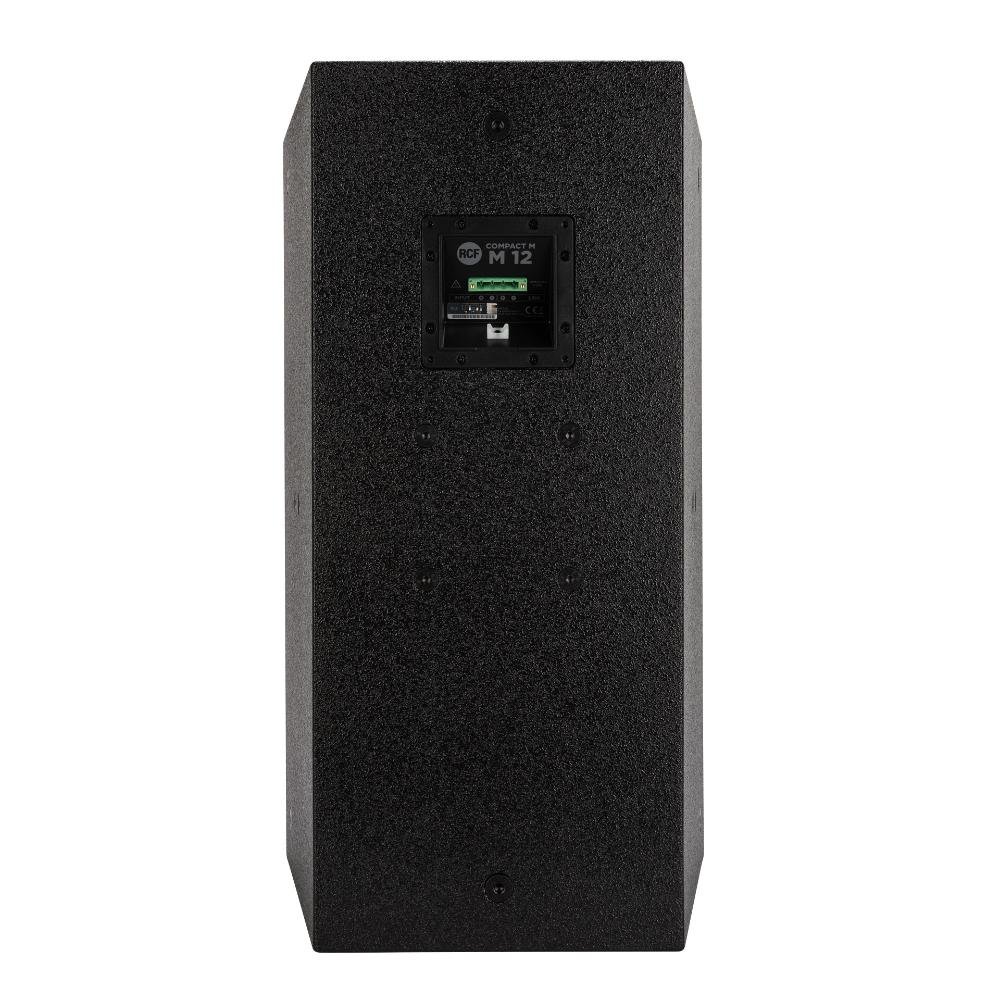

The EUROBLOCK connector system supports secure audio input and parallel output linking, making system integration simple and reliable. With its combination of high power handling, precise acoustic control, and installation versatility, the RCF COMPACT M 12 is designed to meet the needs of professional audio environments requiring both performance and reliability.

Features of Compact M 12

• 300 W RMS power handling for high-output performance
• 129 dB maximum SPL for powerful sound reinforcement
• 55 Hz – 20 kHz wide frequency response range
• 90° x 70° rotatable constant directivity horn
• 12-inch high-power low-frequency woofer
• 1.4-inch voice coil compression driver for clarity
• High-sensitivity design for efficient amplifier use
• Plywood cabinet for acoustic strength and durability

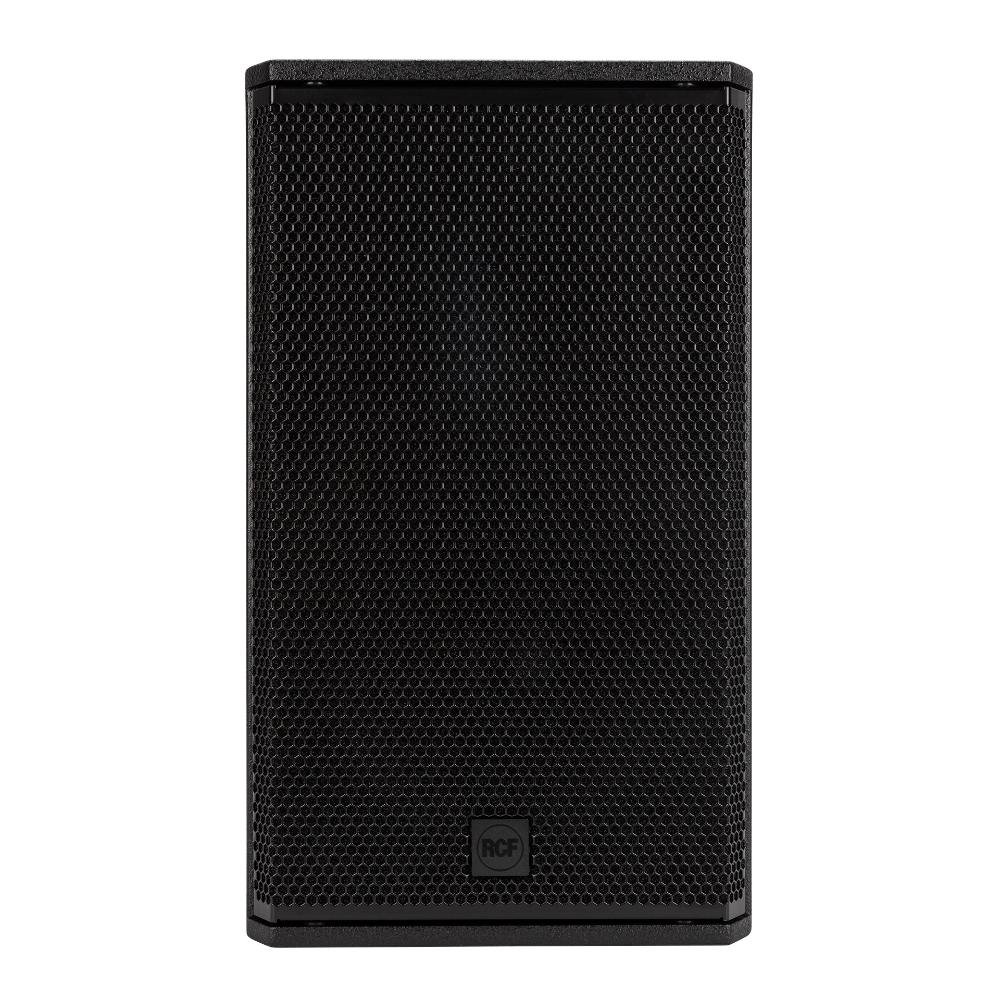

• Steel grille with protective internal cloth layer
• Multiple rigging points for flexible installation
• Rear, top, and bottom mounting support options
• EUROBLOCK connector for input and link output

Specifications of Compact M 12
