RCF COMPACT M 06 Passive 2-Way Loudspeaker – Black
A compact and efficient full-range speaker delivering clear, balanced sound with strong output. Designed for versatile installations, it ensures wide coverage, high intelligibility, and reliable performance in various environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,777.65 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

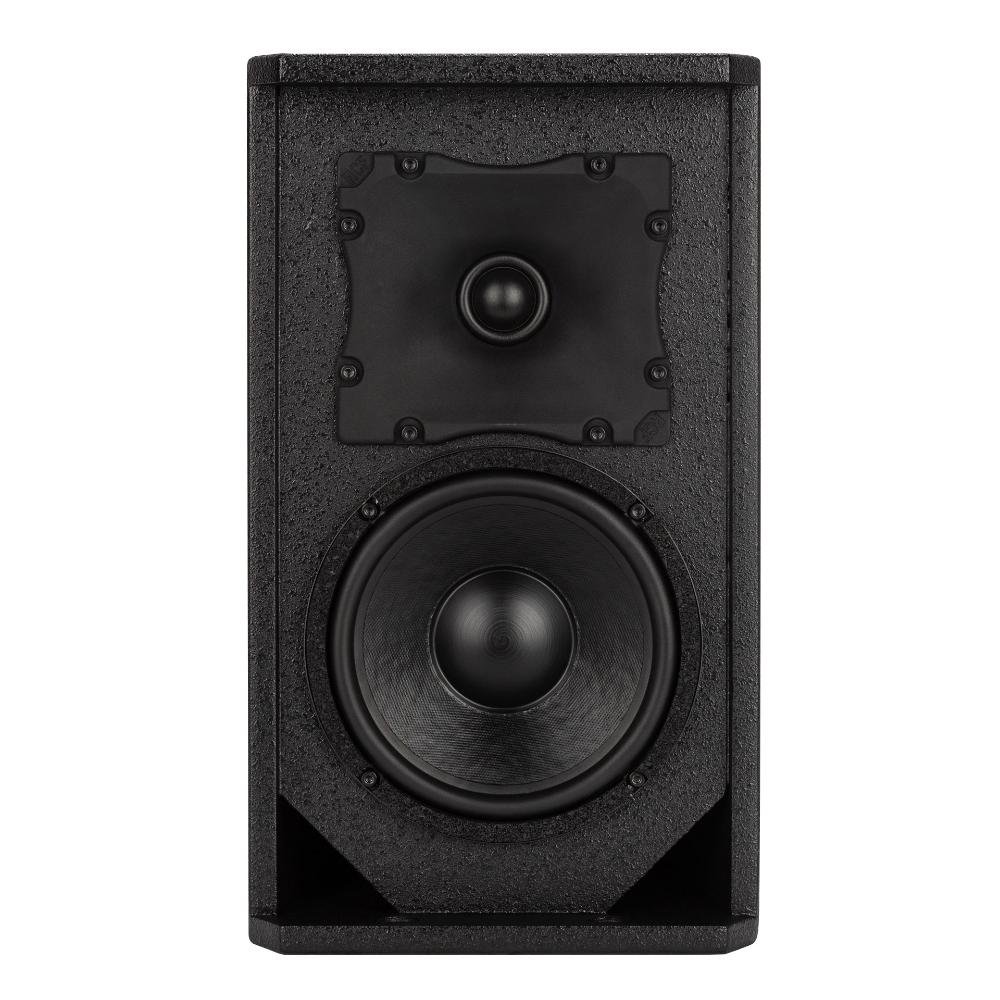

The RCF COMPACT M 06 is a compact two-way full-range speaker engineered to provide high-quality audio across a wide range of professional applications. It is particularly well-suited for near-field use, where clarity and speech intelligibility are essential. The system combines a 6-inch high-power woofer with a 1-inch neodymium dome tweeter, delivering a smooth and balanced frequency response for both music and voice reproduction.
With a power handling of 100 W RMS and a maximum sound pressure level of 116 dB, the speaker produces powerful, distortion-free output despite its compact size. The integrated waveguide ensures consistent sound distribution with a 120° x 80° coverage pattern, allowing even audio dispersion throughout the listening area. High sensitivity, achieved through the use of oversized magnets, enhances efficiency and overall performance.
Constructed from high-quality plywood, the cabinet offers durability along with a clean and refined appearance that fits seamlessly into various environments such as retail stores, restaurants, and corporate spaces. Its compact form factor makes it ideal for installations where space is limited without compromising sound quality. Multiple mounting points allow flexible installation on walls or ceilings using optional accessories.

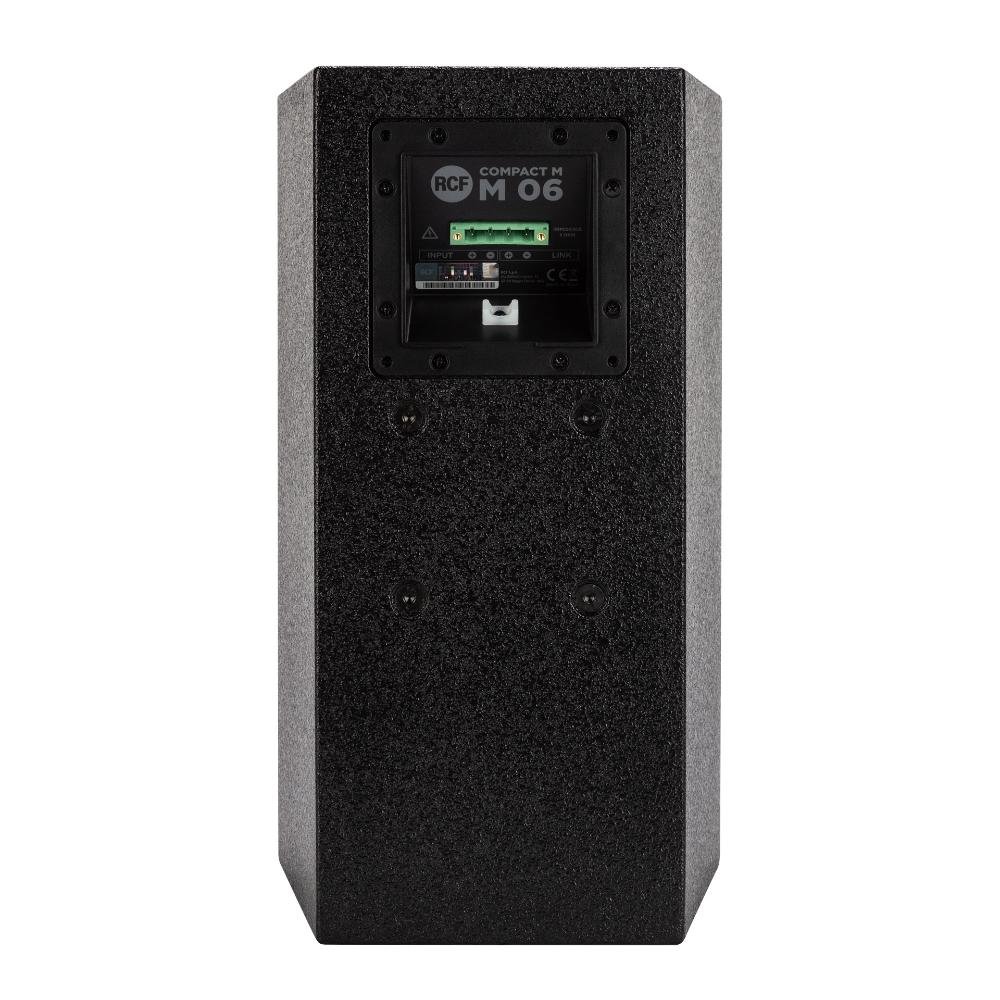

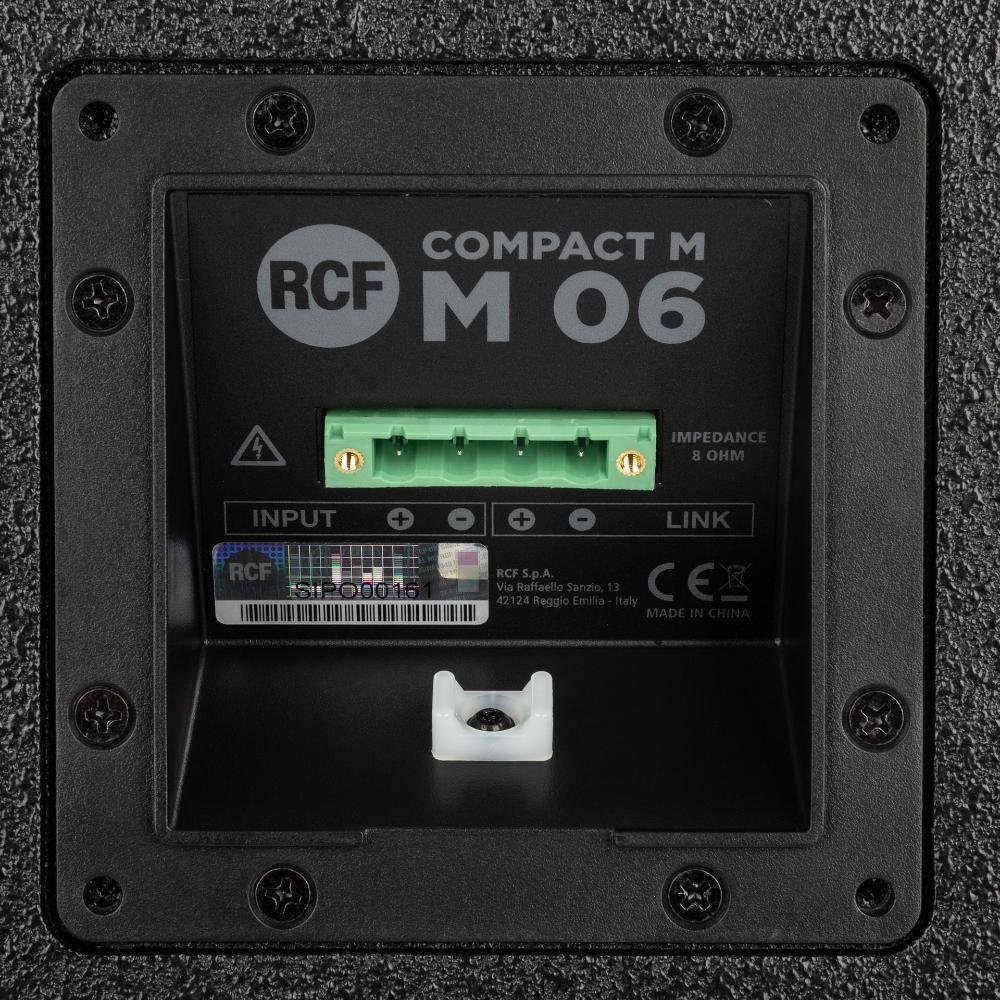

The speaker features a 4-pole EUROBLOCK connector for secure audio input and parallel linking, making it suitable for extended system configurations. The RCF COMPACT M 06 provides a dependable solution for delivering clear, powerful, and well-balanced sound in compact installations.
Features of COMPACT M 06
- 100 W RMS power handling for consistent performance
- Maximum SPL up to 116 dB for strong output
- Frequency response from 60 Hz to 20 kHz
- 120° x 80° constant directivity for even coverage
- 6-inch high-power woofer for enhanced low frequencies
- 1-inch neodymium dome tweeter for clear high frequencies
- Durable plywood cabinet construction
- Steel front grille with protective fabric
- Multiple mounting points for flexible installation
- 4-pole EUROBLOCK connector with parallel link support
Specifications of COMPACT M 06
| Frequency Response | 60 Hz – 20000 Hz |
| Max SPL | 116 dB |
| Coverage Angle | 120° x 80° |
| Sensitivity | 90 dB |
| Power Handling | 100 W RMS |
| Peak Power | 400 W |
| Nominal Impedance | 8 ohm |
| Crossover Frequency | 2200 Hz |
| Woofer | 6″ (1.5″ voice coil) |
| Tweeter | 1.3″ neodymium dome (1.0″ voice coil) |
| Input/Output | EUROBLOCK |
| Cabinet Material | Plywood |
| Grille | Steel with fabric |
| Color | Black / White |
| Height | 365 mm |
| Width | 211 mm |
| Depth | 232 mm |
| Weight | 5.5 kg |
