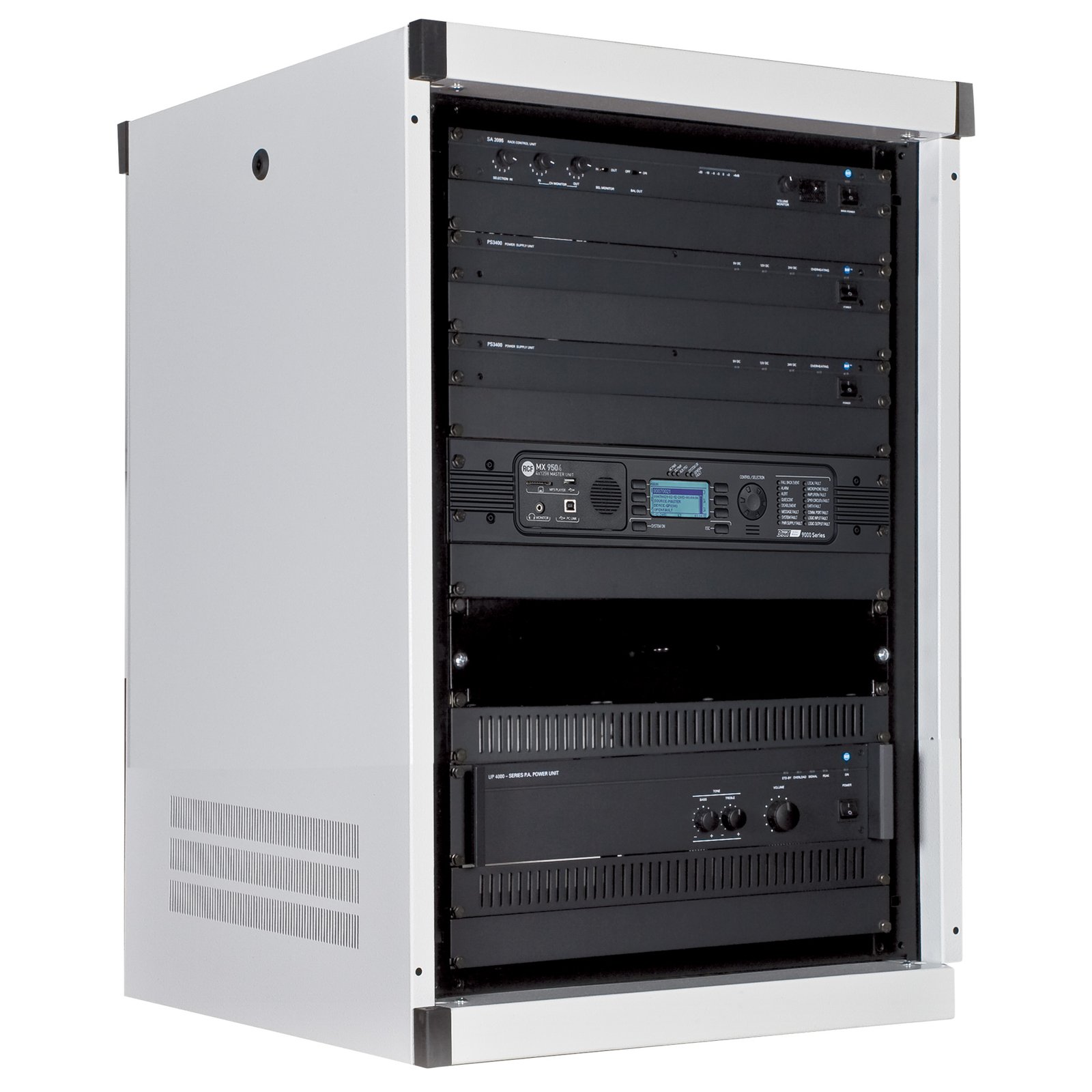

RCF CR 2615FV 15U Ventilated Rack Cabinet
RCF CR 2615FV is a fifteen-unit rack cabinet with a steel structure for compatible nineteen-inch equipment. It provides the specified format for a carefully planned professional audio installation and the associated system connection arrangement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 6,358.80 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
RCF CR 2615FV 15U Ventilated Rack Cabinet
The RCF CR 2615FV is a fifteen-unit rack cabinet with a steel structure for compatible nineteen-inch equipment. Thermostat-controlled ventilation supports the intended enclosure arrangement, while an optional matching front door can complete the rack installation.
A specified feature is: IEC 297-2 dimensional standard compliant. A specified feature is: Steel made structure grey RAL 7035. A specified feature is: Protection grade IP 30. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.
The physical specification lists height 770 mm, width 600 mm, depth 600 mm, weight 30 kg. The enclosure material is Metal. The specified finish is Grey – RAL 7035. The productÂ’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.
The rack arrangement should be planned around the dimensions of the supported equipment and the space required for connections. Physical access, cable routes and the position of the installed components need to be considered together. This keeps the enclosure or accessory matched to the intended equipment layout and its specified mounting arrangement.
Use the instructions for the exact cabinet and accessory combination when establishing the final assembly. Confirm the relevant attachment points and allow access to the equipment connections before completing the installation. Keeping the selected rack components matched to their stated application supports a consistent mechanical layout when equipment is installed, adjusted or serviced. The final arrangement should follow the documented product configuration and remain matched to the intended system components.
Features of CR 2615FV
- IEC 297-2 dimensional standard compliant
- Steel made structure grey RAL 7035
- Protection grade IP 30
- Three thermostat driven fans
- Optional ventilated door: AK 2615V
Specifications of CR 2615FV
| Product Type | 15U Ventilated Rack Cabinet |
| Brand | RCF |
| Model | CR 2615FV |
| Manufacturer Part Number | 17170129 |
| Type | 15U |
| Max load (kg) | 105.00 Kg |
| Ventilation | Yes |
| Thermal dissipation 25° C (W) | 3130 |
| Thermal dissipation 35° C | 2070 W |
| Wheels included | Yes |
| IP protection grade | IP 30 |
| Cabinet/Case Material | Metal |
| Color | Grey – RAL 7035 |
| Rack mounting | 15U |
| Height | 770 mm / 30.31 inches |
| Width | 600 mm / 23.62 inches |
| Depth | 600 mm / 23.62 inches |
| Weight | 30 kg / 66.14 lbs |
