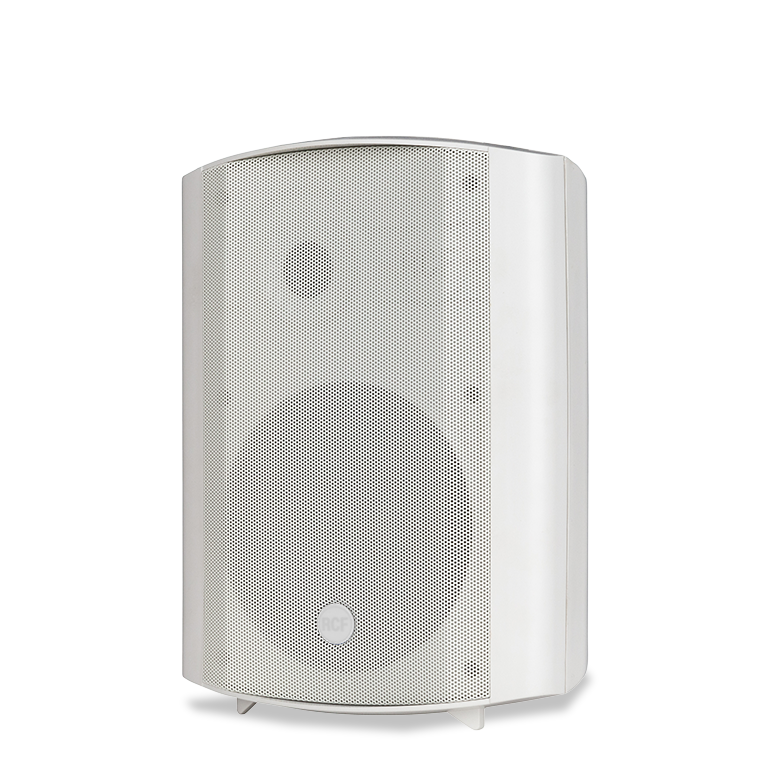

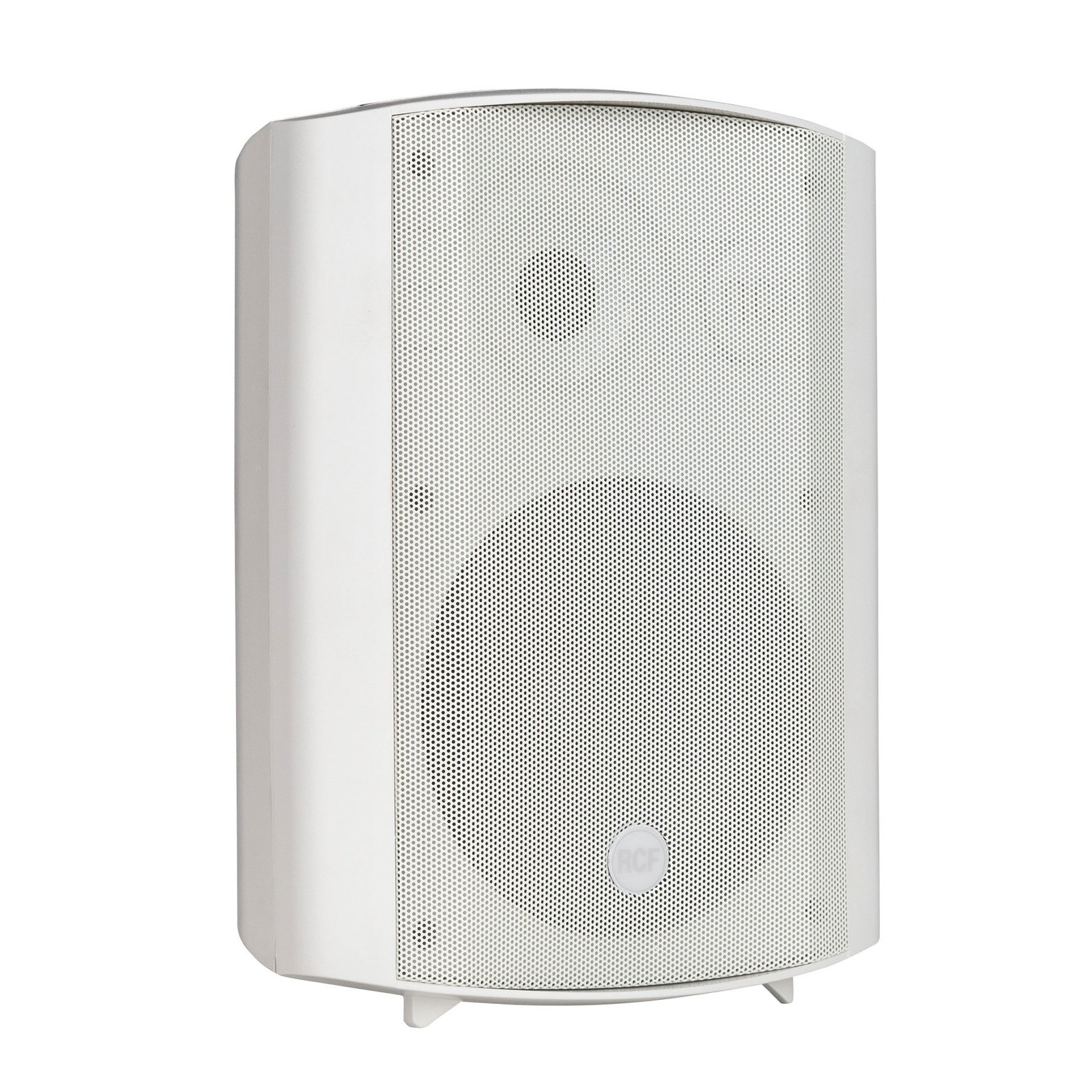

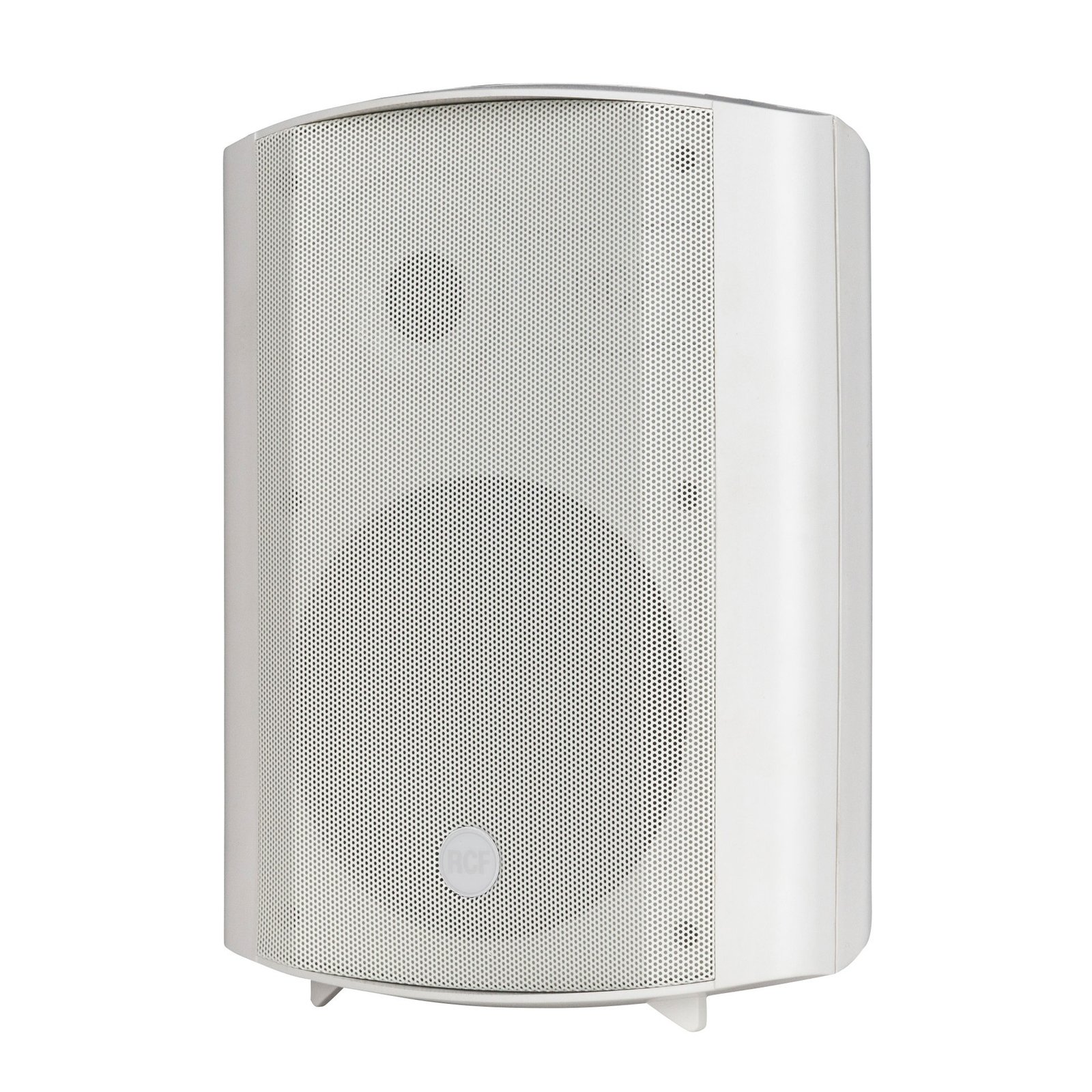

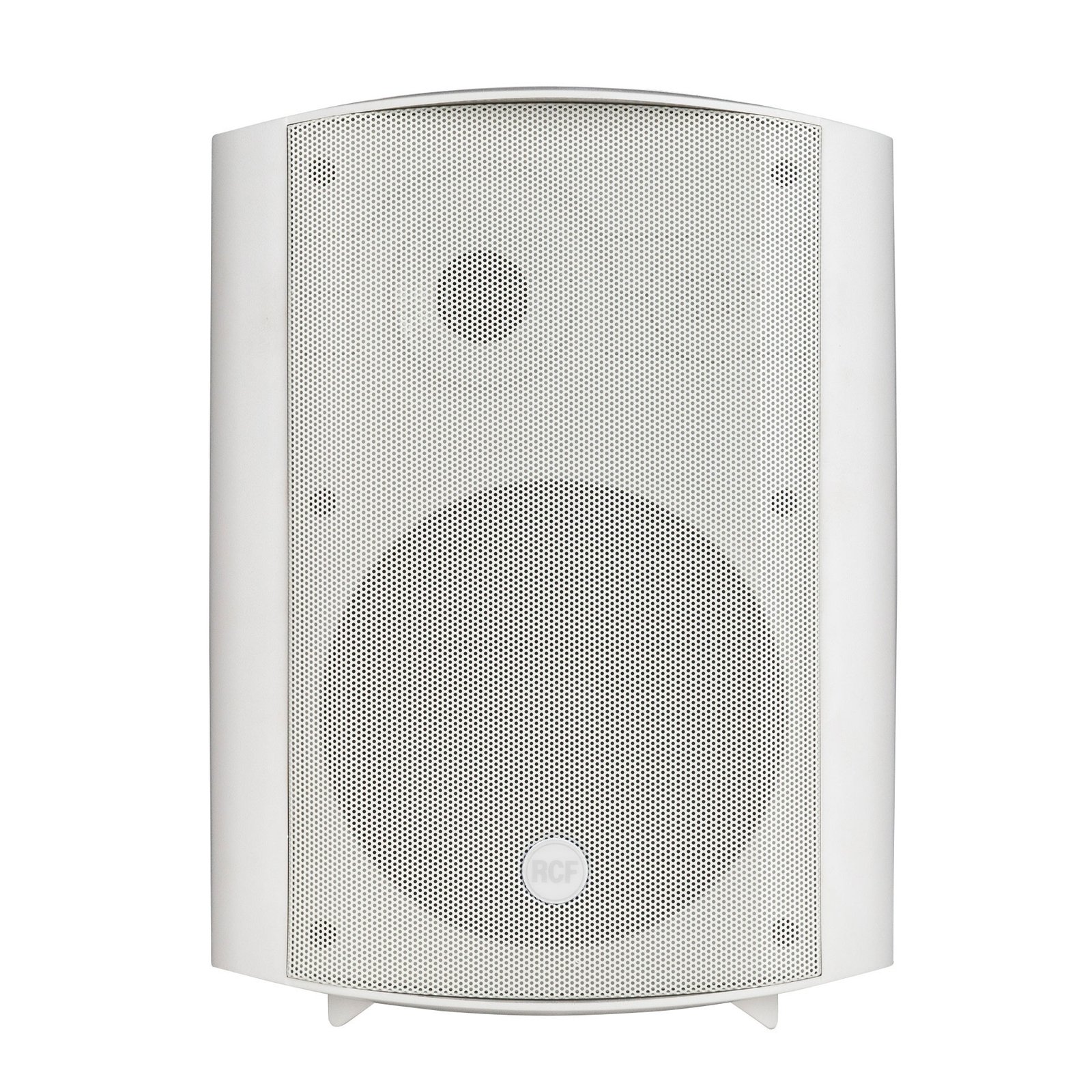

RCF DM 61 Two-Way Compact Speaker – White
RCF DM 61 is a white compact two-way loudspeaker with a six-inch woofer and dome tweeter. It provides the specified format for a carefully planned professional audio installation and the associated system connection arrangement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 829.50 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
RCF DM 61 Two-Way Compact Speaker – White
The RCF DM 61 is a white compact two-way loudspeaker with a six-inch woofer and dome tweeter. It is intended for installed background music, combining a protected enclosure, line-transformer settings and a dedicated wall-mounting arrangement.
The specified frequency response is 70 Hz – 20000 Hz. Rated power handling is 25 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 106 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.
The physical specification lists height 289 mm, width 216 mm, depth 177 mm, weight 3.98 kg. The enclosure material is Plastic. The specified finish is White – RAL 9002. The productÂ’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.
Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeakerÂ’s specified connection method and load should be matched to the selected amplification system before the final layout is established.
For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.
Features of DM 61
- 6″ woofer with 1” dome tweeter

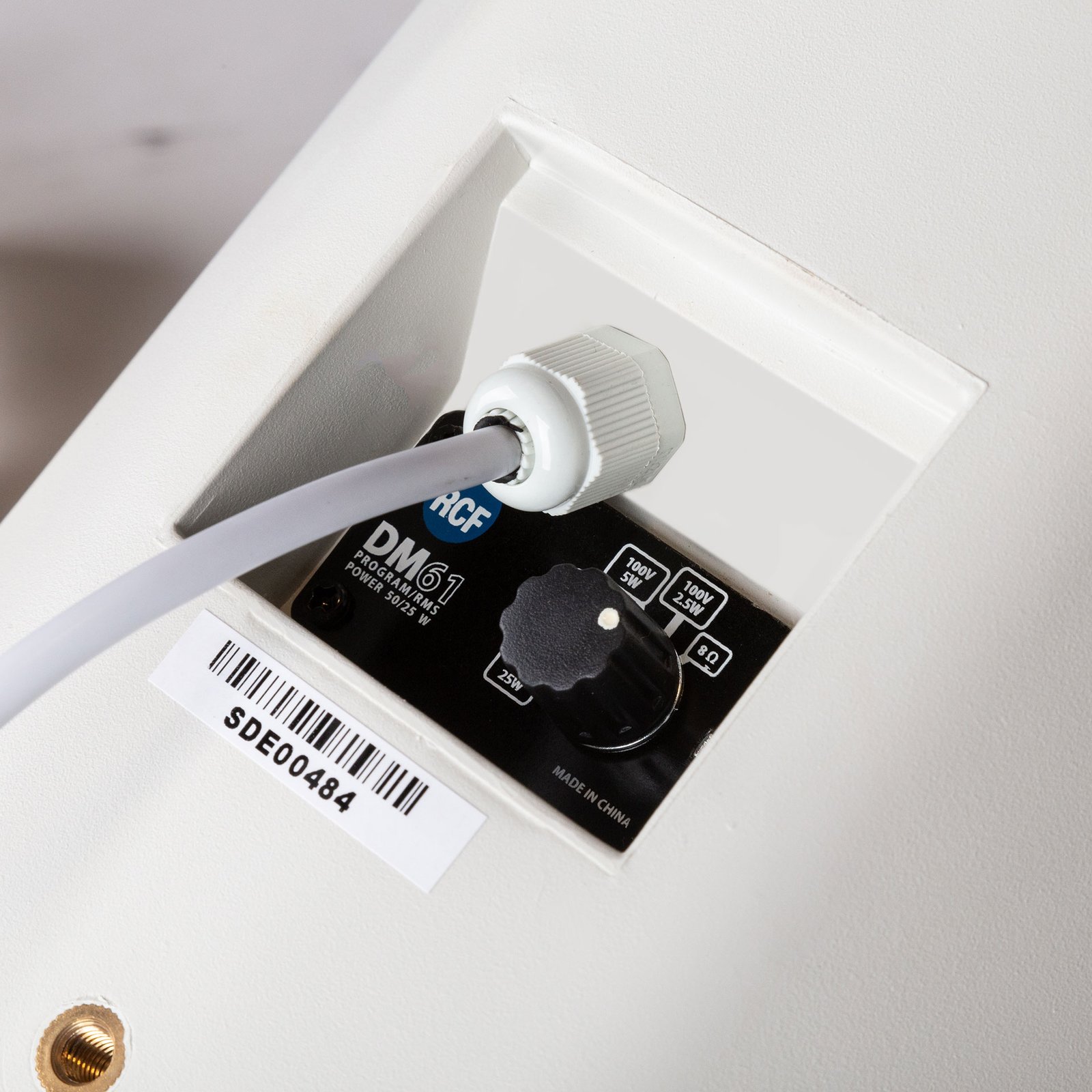

- Power selectable (100 V): 25 W – 12.5 W – 7.5 W – 5 W – 2.5 W
- 89 dB sensitivity
- Colour White – RAL 9002
- Plastic body UL 94 V0
- Protection grade IP 55
Specifications of DM 61
| Product Type | Two-Way Compact Speaker |
| Brand | RCF |
| Model | DM 61 |
| Manufacturer Part Number | 13000050 |
| Frequency Response (-10dB) | 70 Hz – 20000 Hz |
| Max SPL @ 1m | 106 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 140° |
| System Sensitivity | 89 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 25 W |
| Peak Power Handling | 100 W PEAK |
| Dome Tweeter | 1 x 1.0” |
| Woofer | 1 x 6.0” |
| Input connectors | Cable |
| Output connectors | Cable |
| Constant Voltage Transformer | 100 V |
| Power selection 1 | 25 W – 400 ohm |
| Power selection 2 | 12.5 W – 800 ohm |
| Power selection 3 | 7.5 W – 1333 ohm |
| Power selection 4 | 5 W – 2000 ohm |
| Power selection 5 | 2.5 W – 4000 ohm |
| IP protection grade | IP 55 |
| Cabinet/Case Material | Plastic |

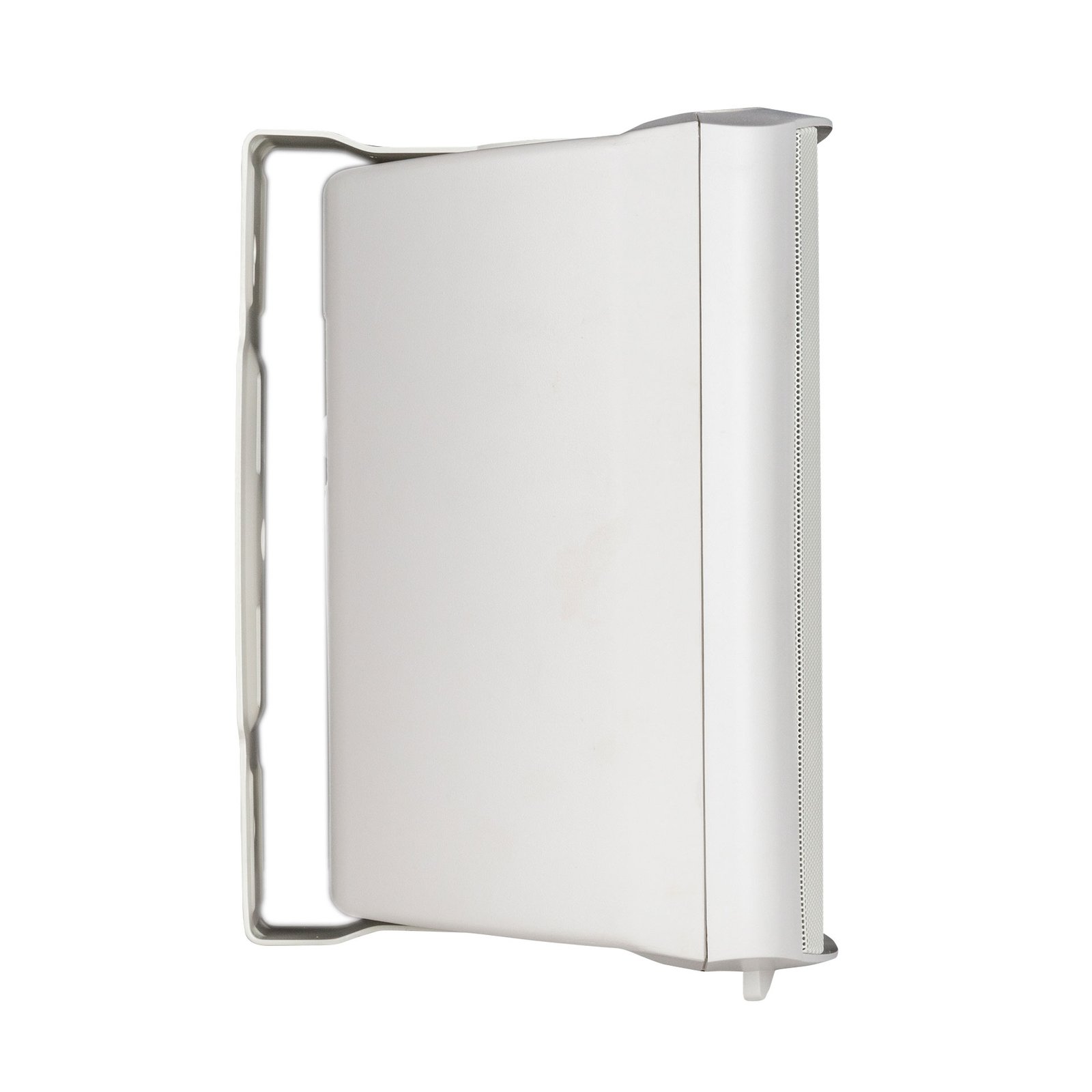

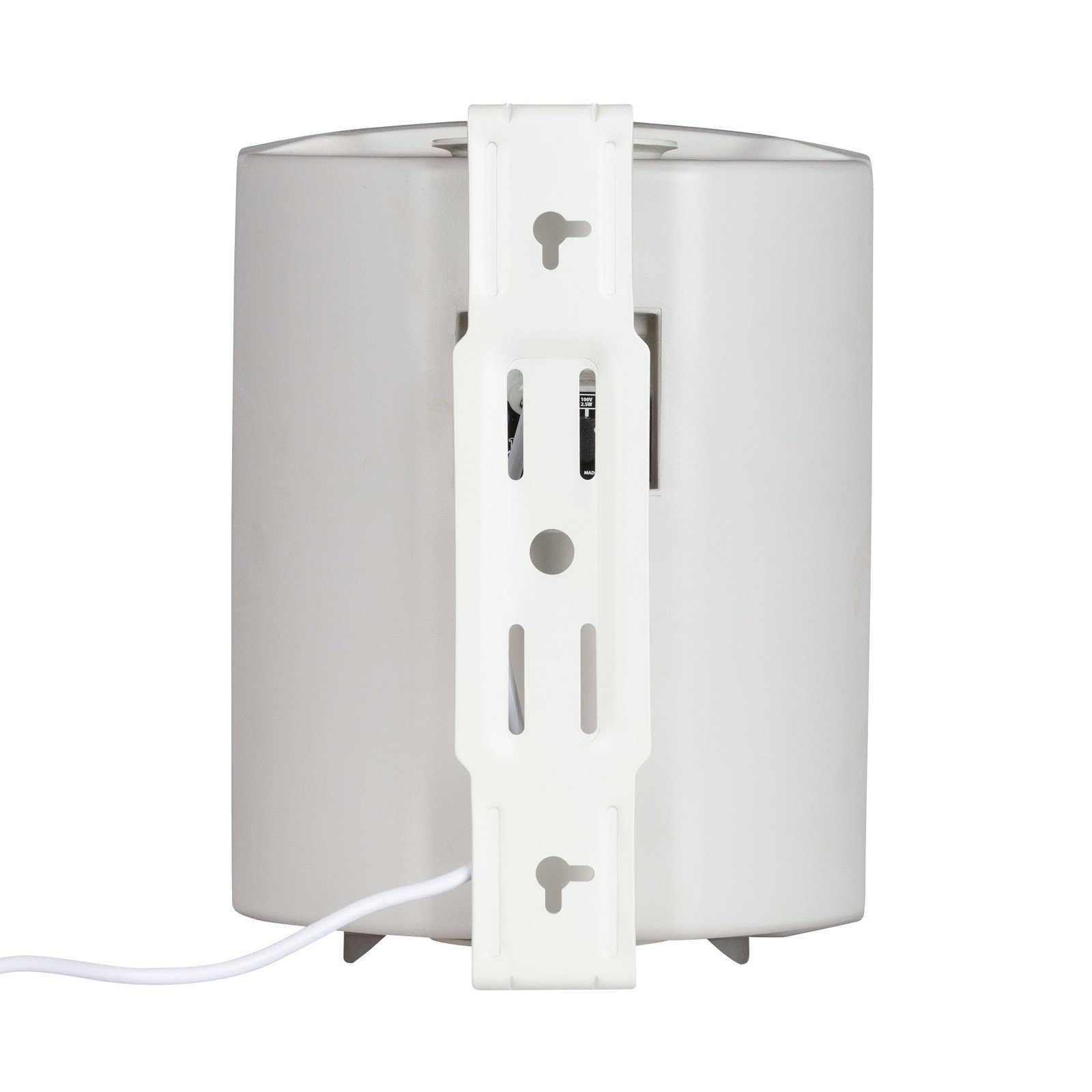

| Hardware | Aluminium U bracket |
| Color | White – RAL 9002 |
| Height | 289 mm / 11.38 inches |
| Width | 216 mm / 8.5 inches |
| Depth | 177 mm / 6.97 inches |
| Weight | 3.98 kg / 8.77 lbs |
