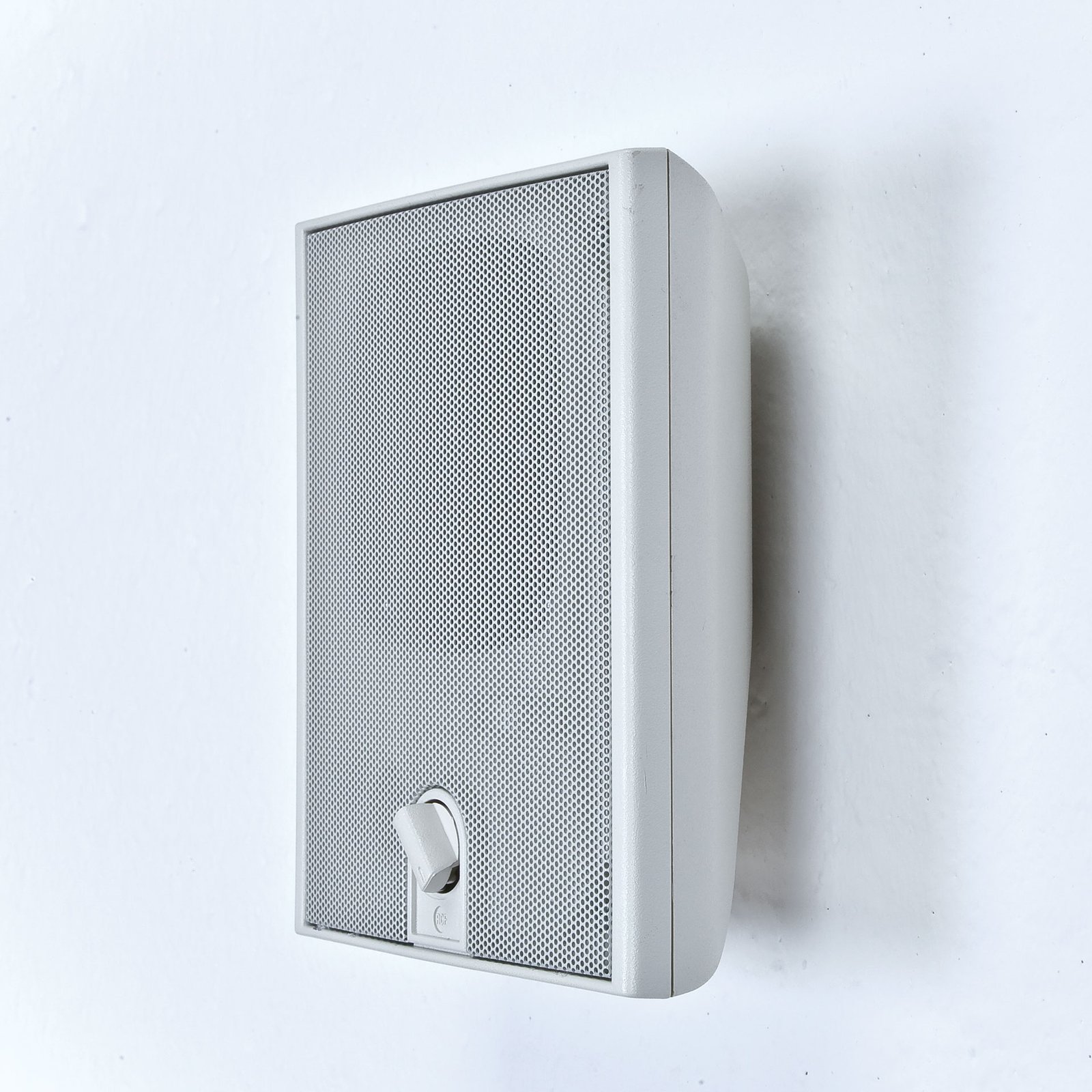

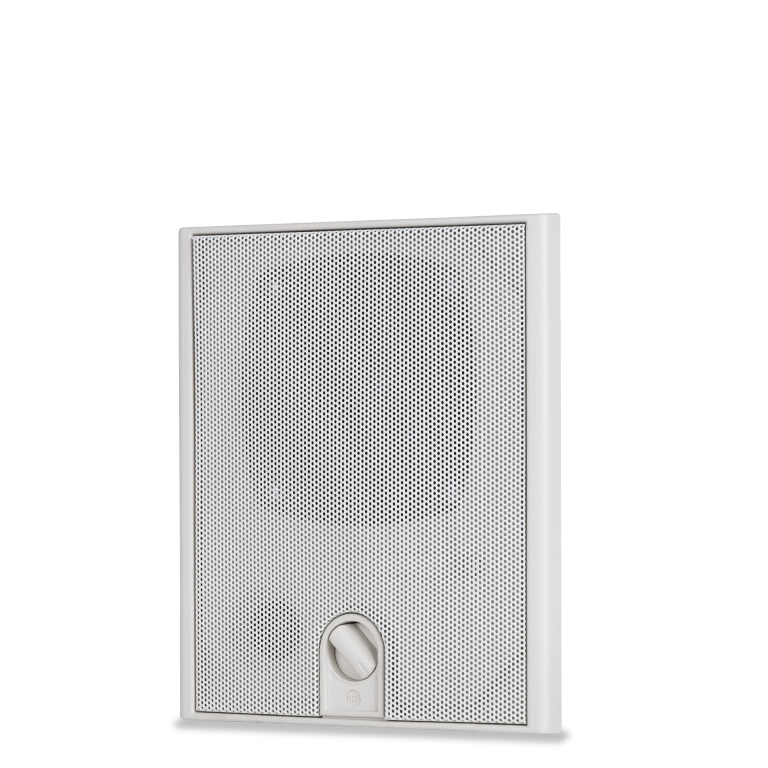

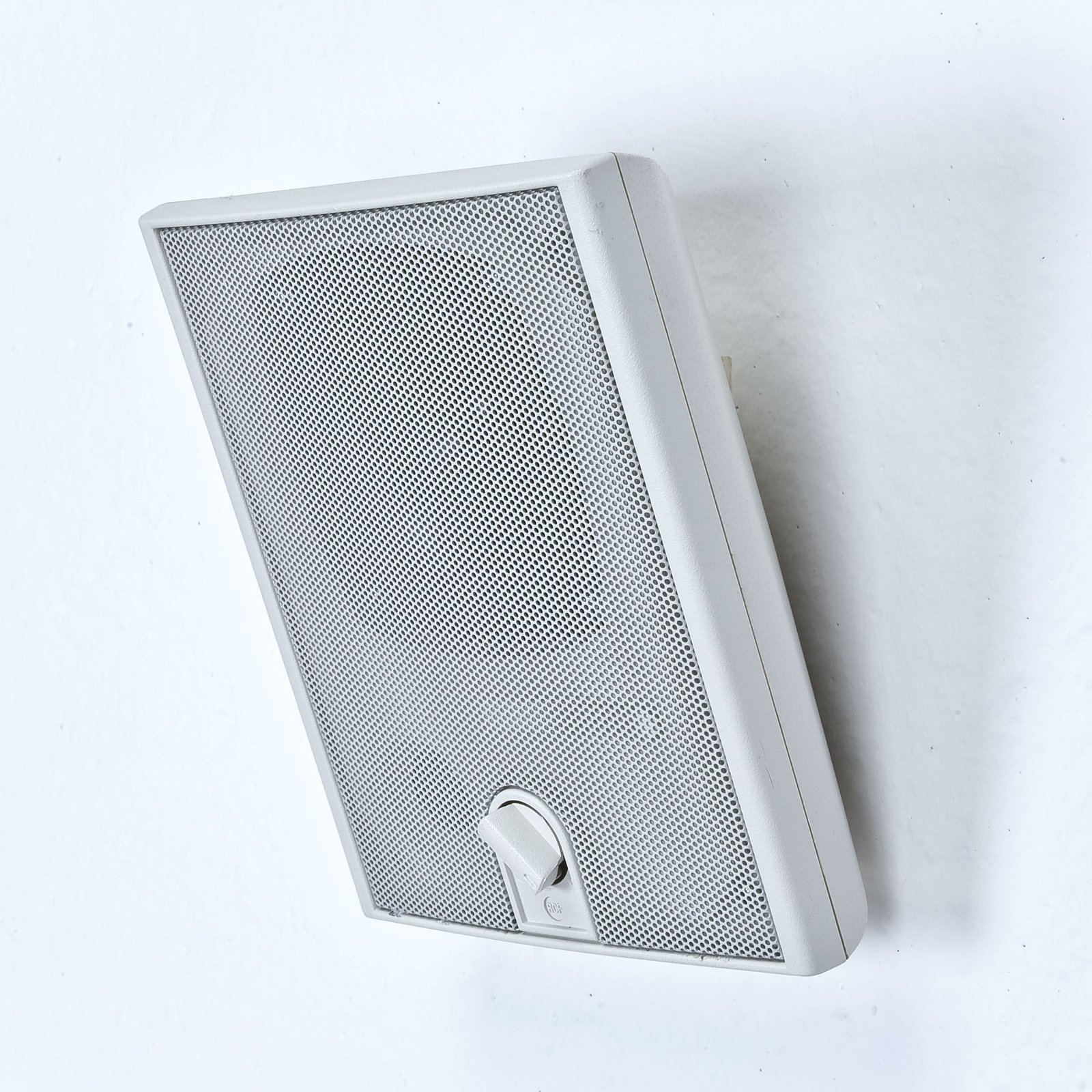

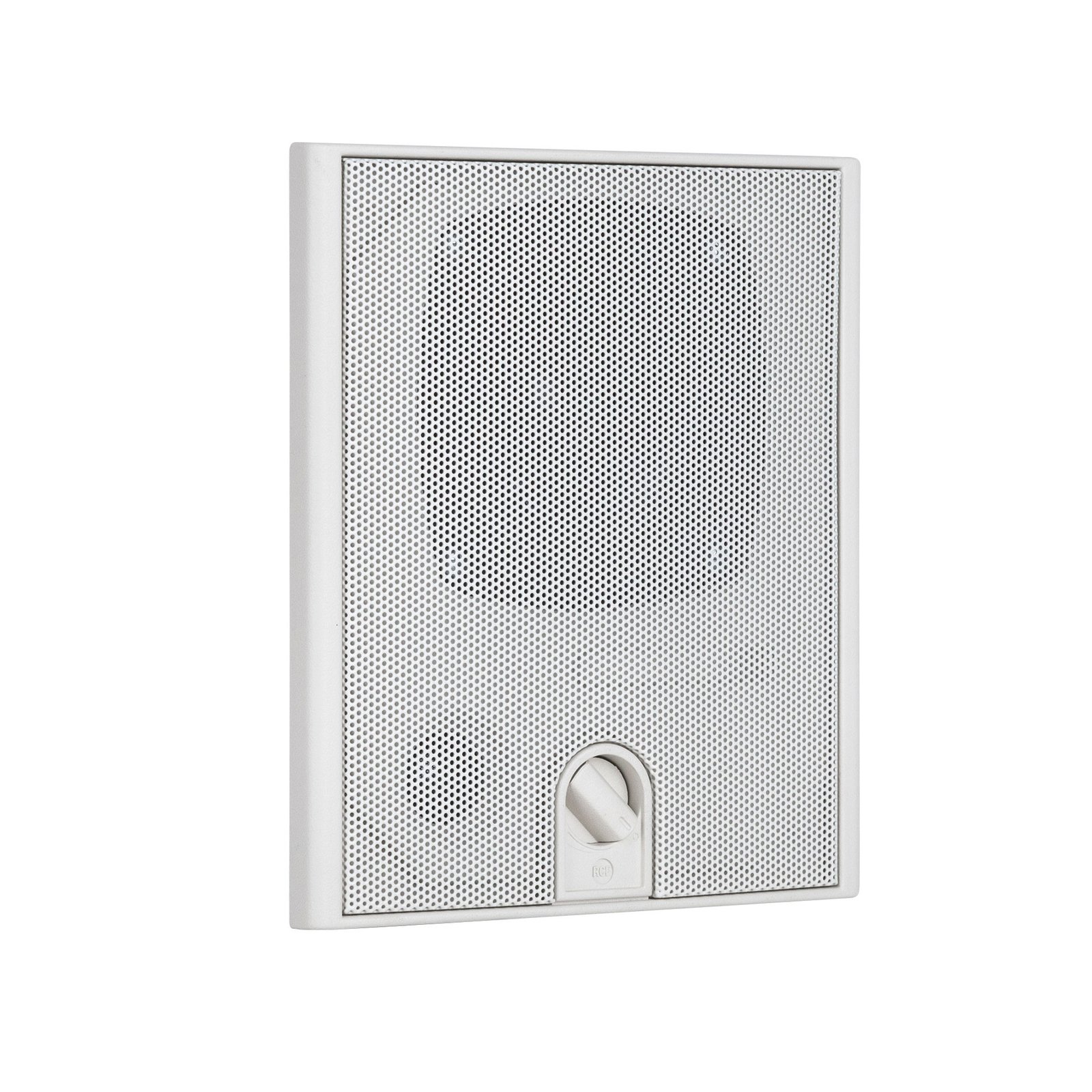

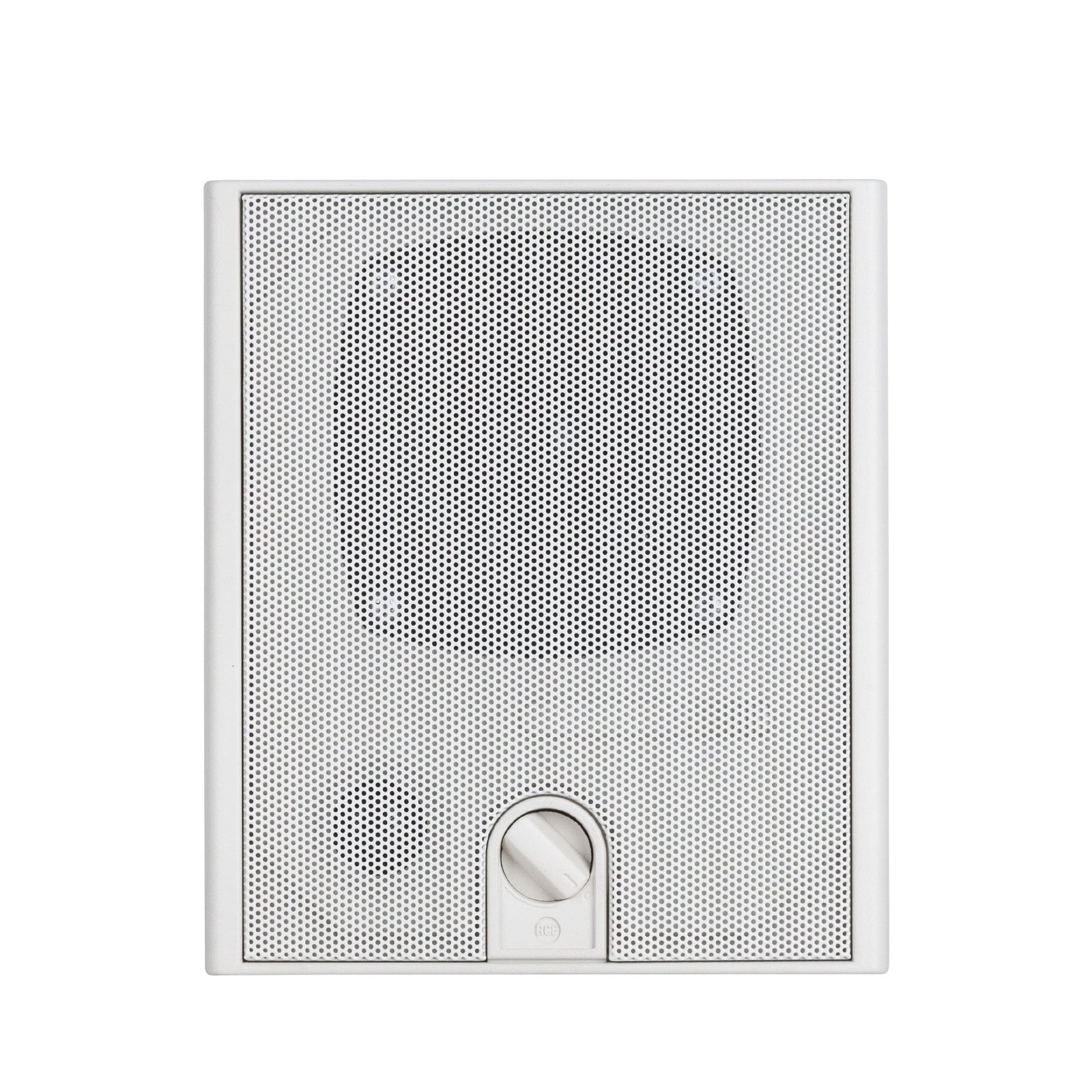

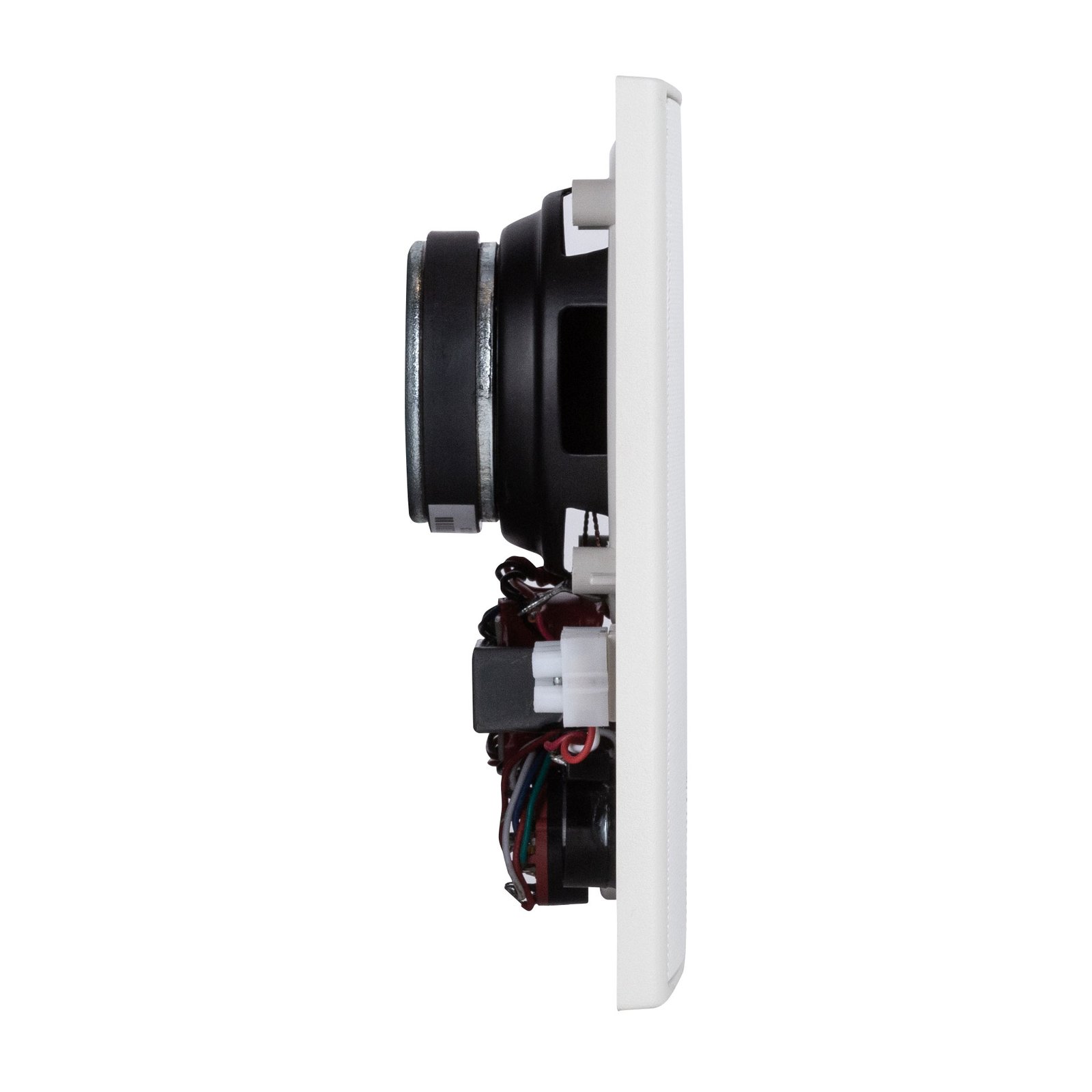

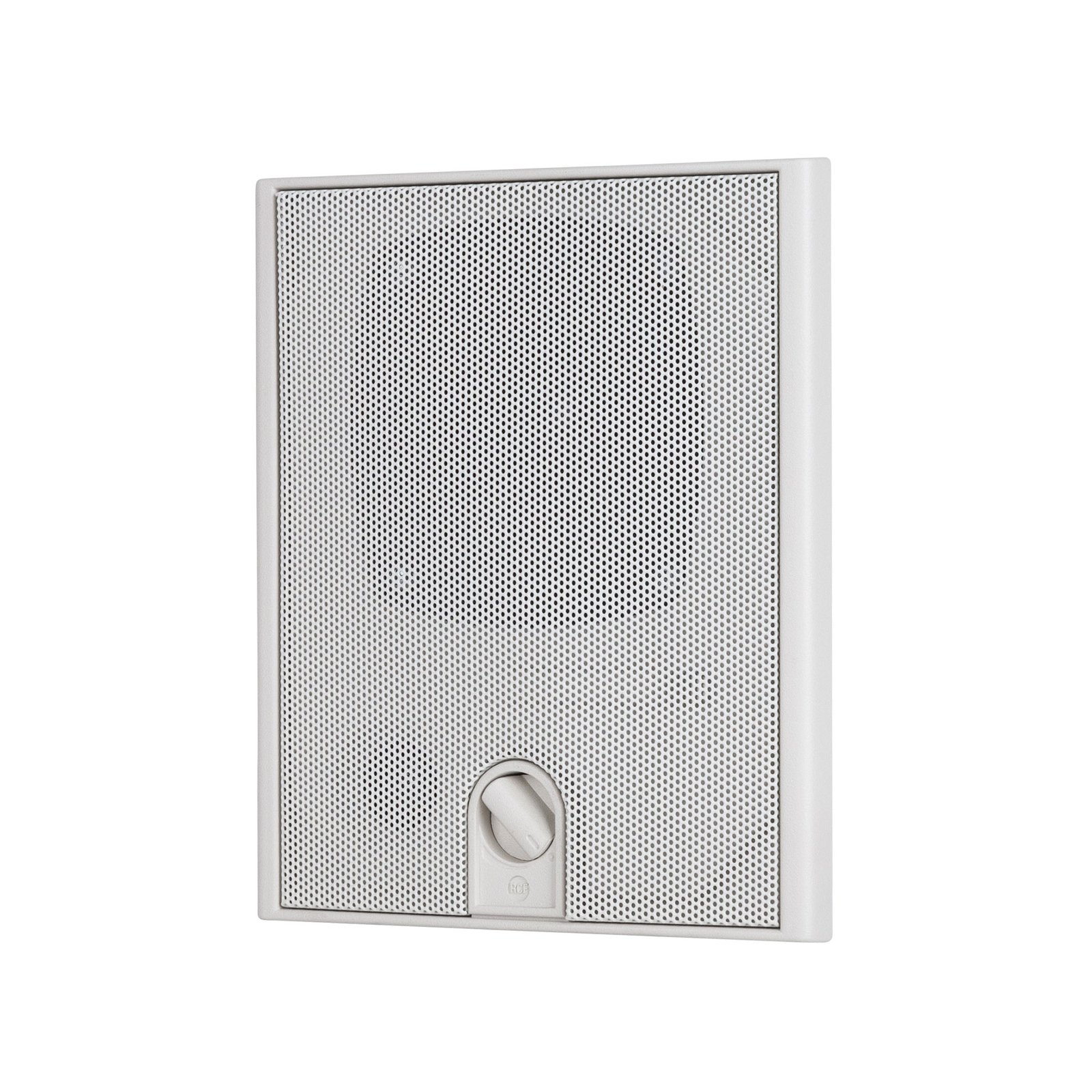

RCF DU 31AT Flush Wall Speaker with Power Selector

RCF DU 31AT Flush Wall Speaker with Power Selector

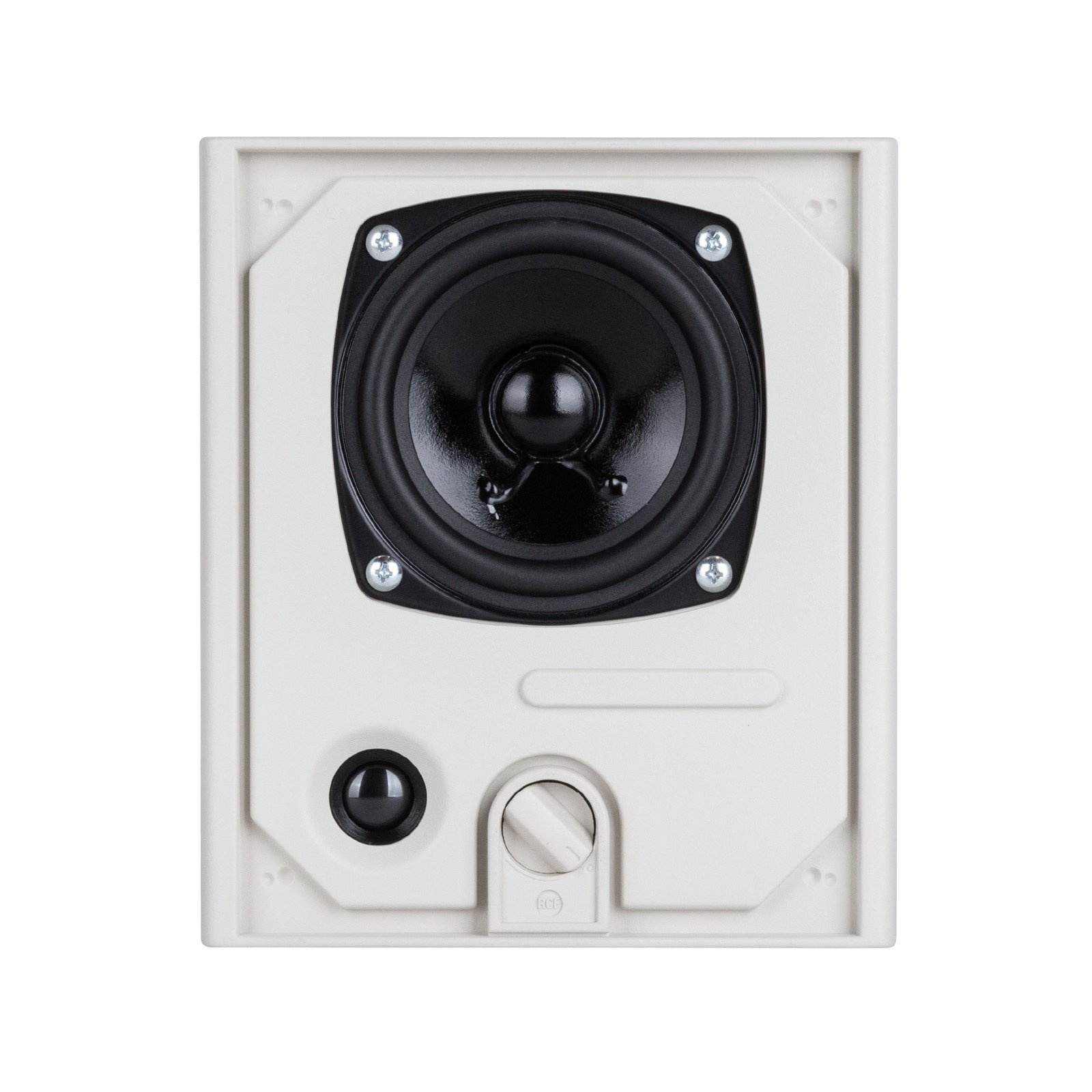

The RCF DU 31AT is a two-way wall loudspeaker for paging and background music. A front rotary selector adjusts the chosen power setting, while the four-inch woofer and dome tweeter provide the driver arrangement within a compact white plastic enclosure.

The specified frequency response is 100 Hz – 17000 Hz. Rated power handling is 8 W. Maximum sound pressure level at one metre is 91 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 175 mm, width 151 mm, depth 56 mm, weight 0.6 kg. The enclosure material is Plastic. The specified finish is White – RAL 9002. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of DU 31AT

• Power 8-4-2-1-0.5 W (100 V) / 8 W (25 V)
• Constant voltage: 100 V, 70 V, 25 V
• Frequency response 100 – 17000 Hz
• 180° angle of coverage
• Body in plastic, RAL 9002 white ivory

Specifications of DU 31AT
