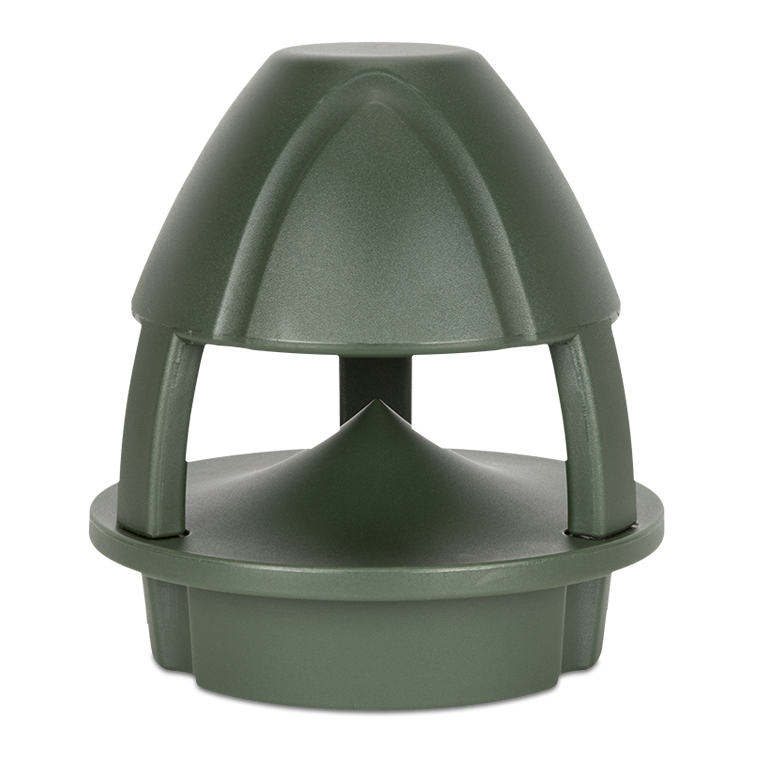

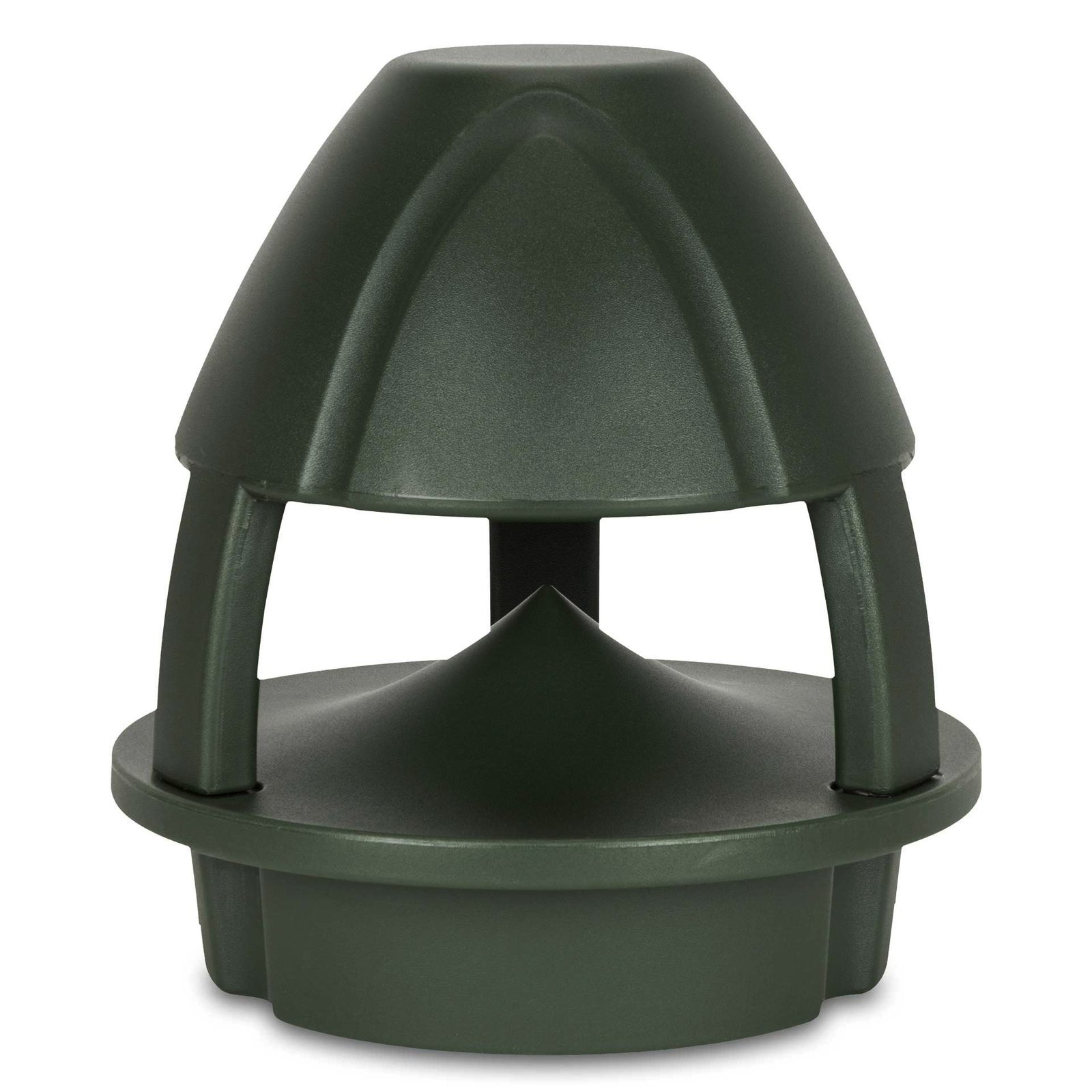

RCF GS 60 Outdoor Garden Speaker

RCF GS 60 Outdoor Garden Speaker

The RCF GS 60 is an outdoor garden loudspeaker with a coaxial driver arrangement and a low-density polyethylene body. It can be positioned on suitable ground, wood or concrete surfaces and supports constant-voltage lines or an eight-ohm connection.

The specified frequency response is 60 Hz – 20000 Hz. Rated power handling is 60 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 111 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 409 mm, diameter 365 mm. The enclosure material is PE Low Density. The specified finish is Green. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of GS 60

• Body made of linear low-density polyethylene
• Coaxial loudspeaker configuration
• Suitable for installation on different surfaces
• Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)
• Protection grade IP56
