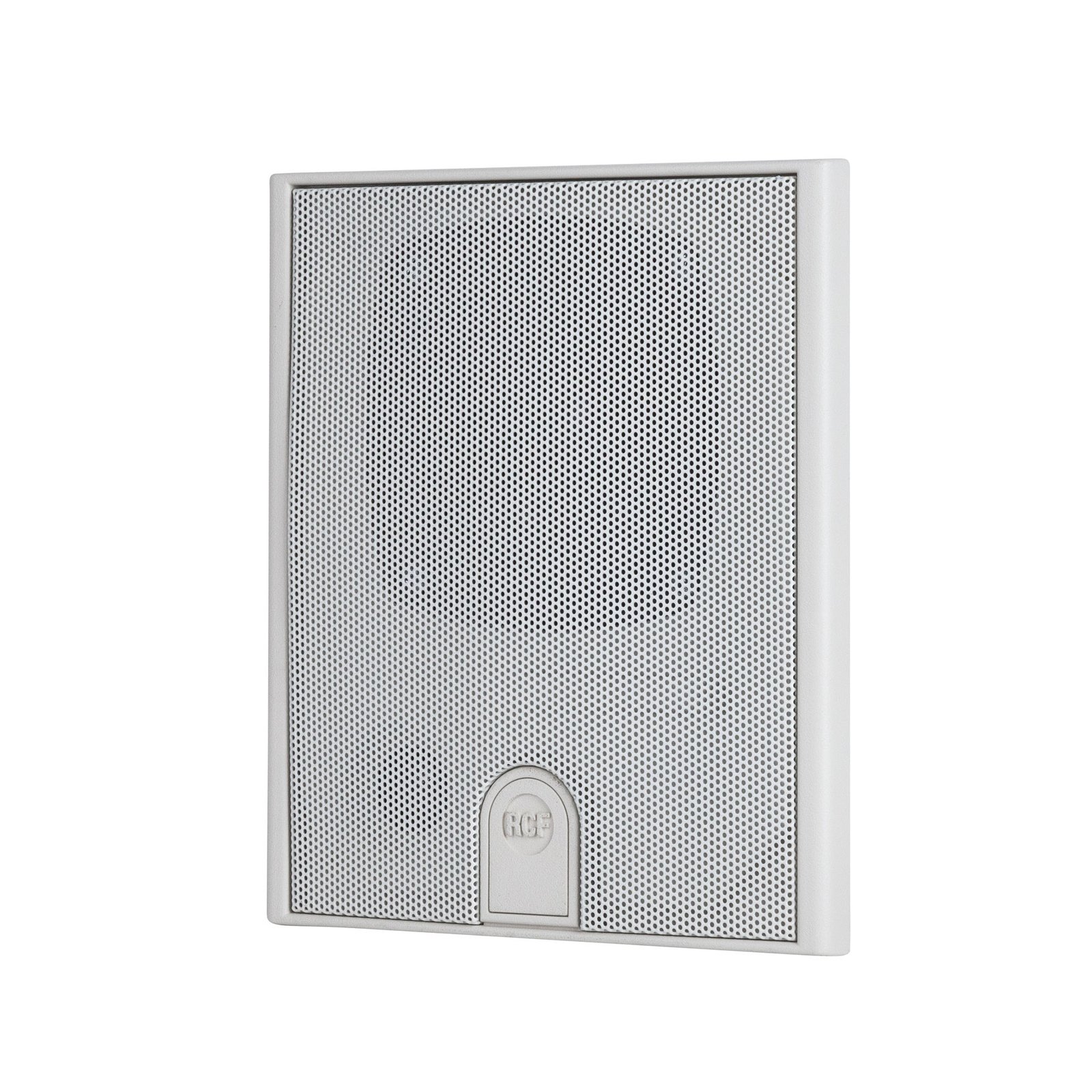

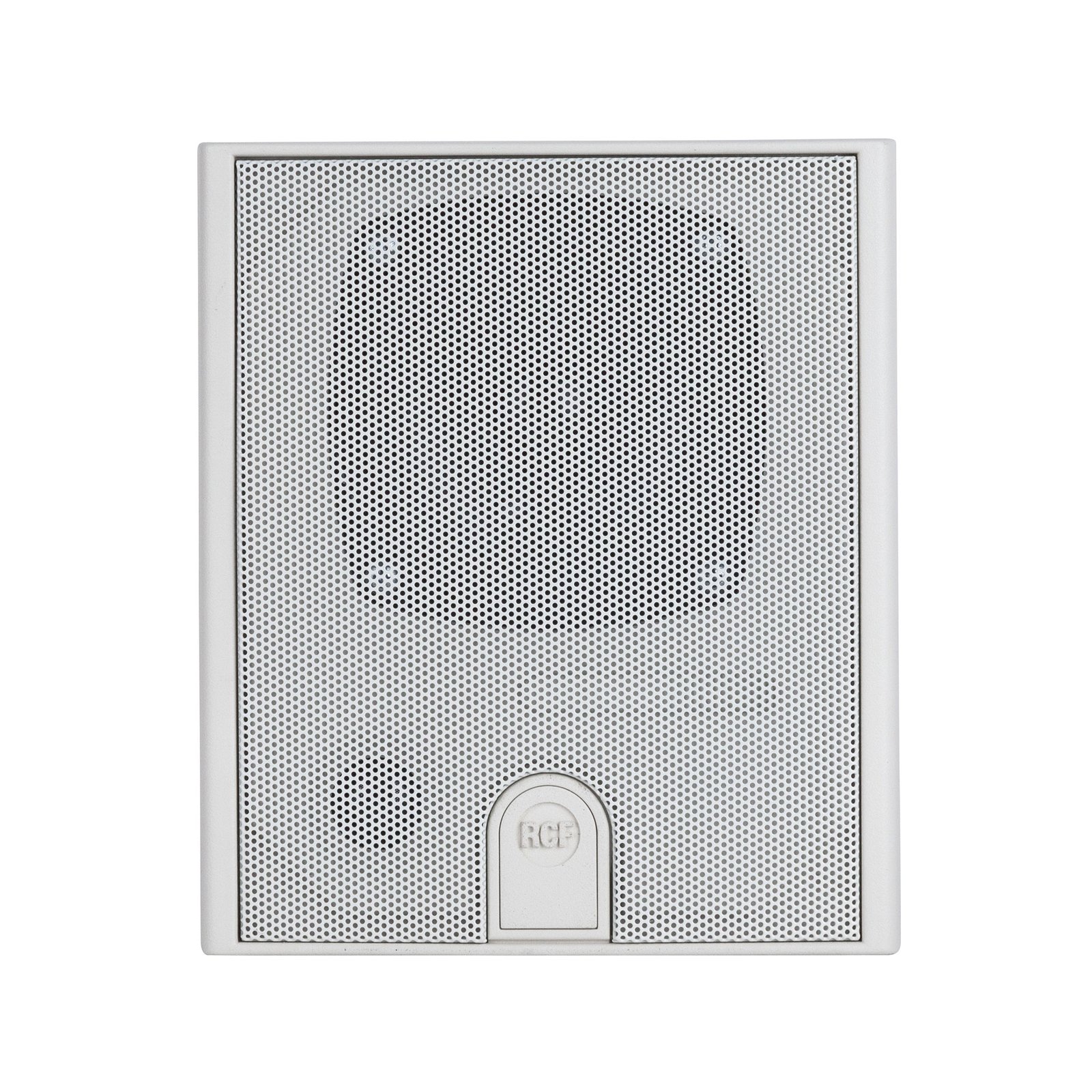

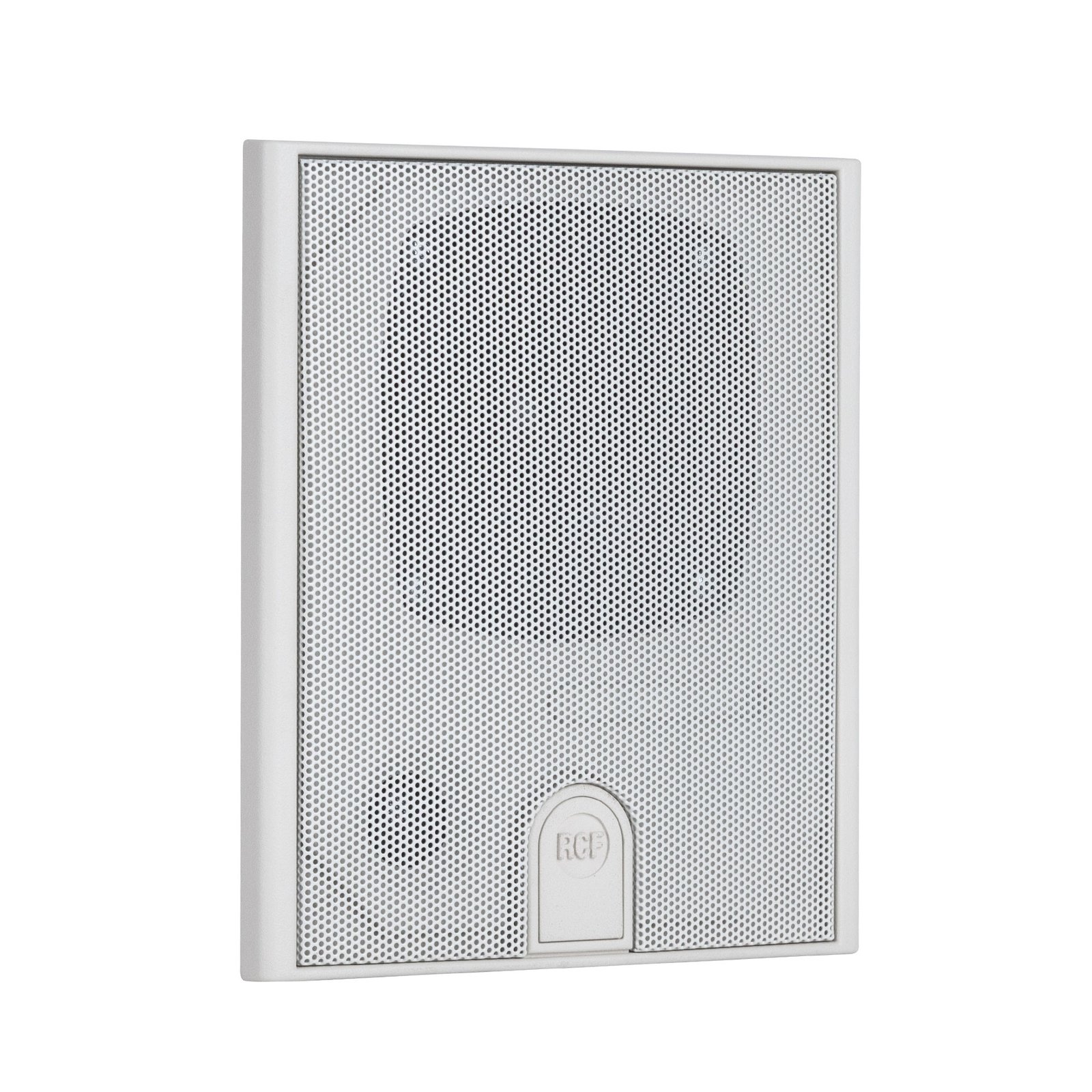

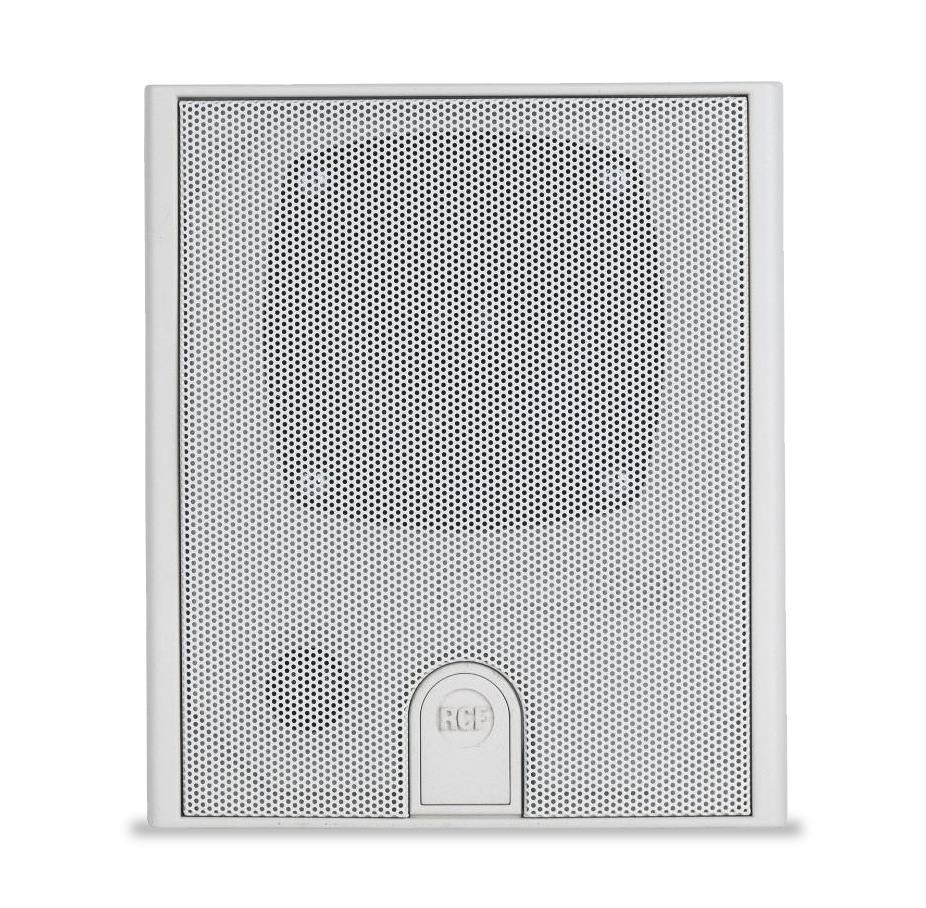

RCF DU 31EN Two-Way Flush and Wall-Mount Speaker

RCF DU 31EN Two-Way Flush and Wall-Mount Speaker

The RCF DU 31EN is a two-way loudspeaker for flush or surface wall installation, designed for paging and background music. The four-inch woofer and dome tweeter provide a compact driver arrangement within a flameproof plastic enclosure.

The specified frequency response is 100 Hz – 17000 Hz. Rated power handling is 8 W. Maximum sound pressure level at one metre is 91 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 175 mm, width 151 mm, depth 56 mm, weight 0.6 kg. The enclosure material is Plastic. The specified finish is White – RAL 9002. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of DU 31EN

• 4″ woofer and 1″ dome tweeter.
• Power selectable (100 V): 8 W – 4 W – 2 W.
• 82 dB sensitivity.
• Colour White – RAL 9002
• Flameproof plastic body, steel grille.
• In/out ceramic terminal block.
• Thermal fuse protection.

Specifications of DU 31EN
