RCF PL 82EN 8-Inch Two-Way Ceiling Speaker

RCF PL 82EN 8-Inch Two-Way Ceiling Speaker

The RCF PL 82EN is a two-way recessed ceiling loudspeaker combining an eight-inch coaxial woofer and dome tweeter. Its steel back can and protected connection arrangement support the specified voice alarm application.

The specified frequency response is 130 Hz – 20000 Hz. Rated power handling is 20 W. Maximum sound pressure level at one metre is 106 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists depth 152 mm, diameter 272 mm, weight 3.42 kg. The enclosure material is Metal. The specified finish is White – RAL 9016. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of PL 82EN

• 8″ coaxial woofer with 0.75″ dome tweeter.
• Power selectable (100 V): 20 W – 10 W – 5 W.
• 94 dB sensitivity.
• Colour White – RAL 9016
• Steel frame, grille and back can.

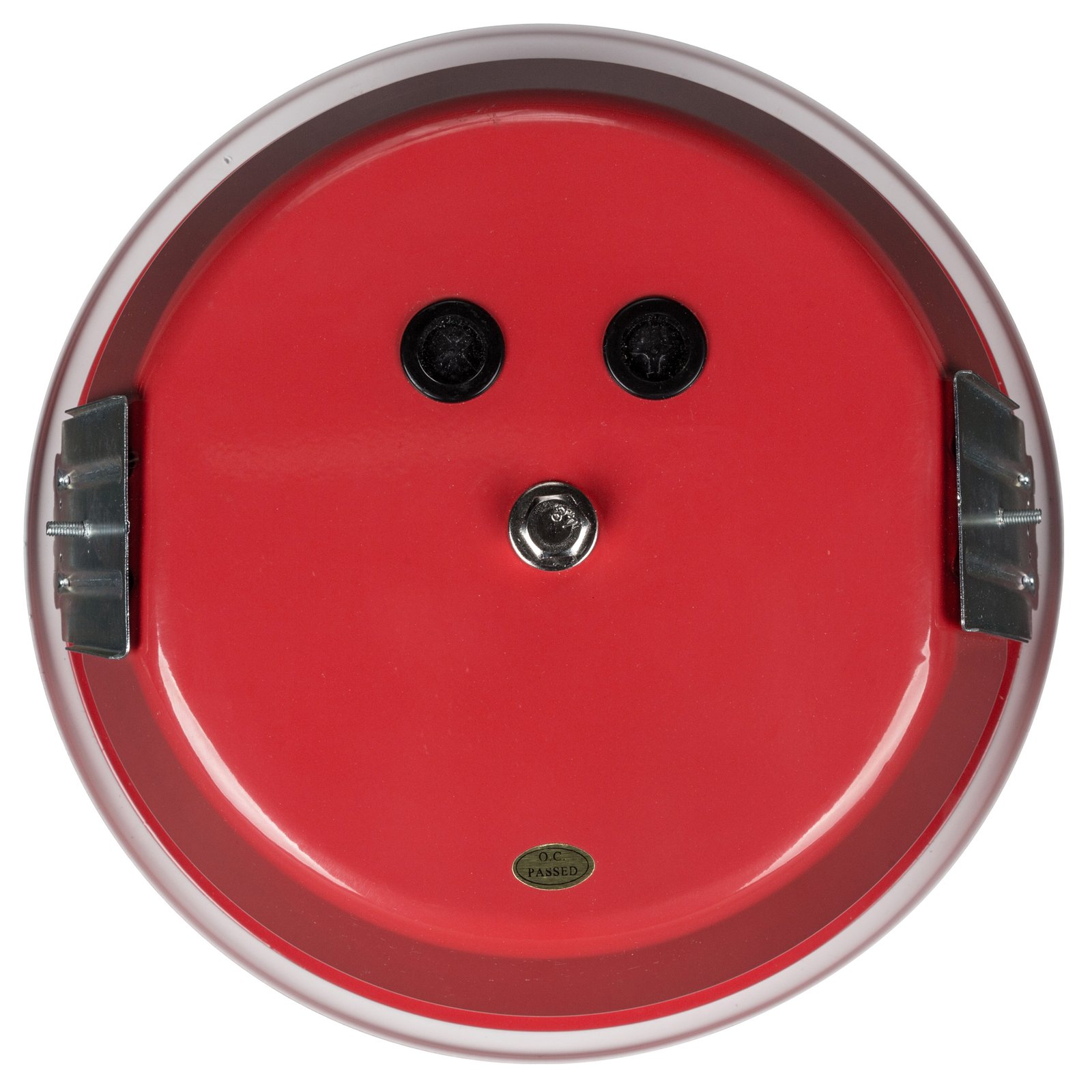

• In/out ceramic terminal block.
• Thermal fuse protection.

Specifications of PL 82EN
