RCF H1315 WP Three-Way Indoor/Outdoor Horn-Loaded Speaker System

RCF H 1315 WP Three-Way Horn-Loaded System

The RCF H 1315 WP is a professional three-way full-range loudspeaker system engineered for long-throw applications that demand high output, accuracy, and controlled directivity. It is designed for large venues, outdoor installations, and professional sound reinforcement systems where speech intelligibility and musical clarity must be maintained over long distances.

The system incorporates a 15-inch neodymium woofer for deep low-frequency reproduction, a 10-inch neodymium midrange driver for detailed vocal clarity, and a 1.4-inch exit titanium diaphragm compression driver for high-frequency precision. This three-way configuration ensures a balanced and highly articulate sound across the entire frequency spectrum, ranging from 50 Hz to 20 kHz.

With a maximum SPL of 136 dB, the H 1315 WP delivers strong output performance while maintaining low distortion and high intelligibility. Its fully horn-loaded design with 60° x 40° constant directivity ensures controlled sound dispersion, making it suitable for both focused long-throw applications and wider coverage setups.

The enclosure is constructed from rugged multi-ply Baltic birch plywood with internal reinforcement for structural strength and acoustic stability. The multi-trapezoidal cabinet design allows flexible array configurations and optimized coupling. The system is bi-amp driven and includes internal passive filtering between mid and high sections for improved system efficiency. Weather-resistant construction, IP-rated connectivity, and a durable protective grille make it suitable for demanding professional environments. The H 1315 WP is a reliable solution for high-performance installed and touring sound systems requiring precision and power.

Features of H 1315 WP

• 1300W RMS power handling capacity
• Maximum SPL output up to 136 dB
• 50 Hz – 20 kHz wide frequency response
• Fully horn-loaded three-way design
• 60° x 40° constant directivity coverage
• 15-inch neodymium woofer for low frequencies
• 10-inch neodymium midrange driver
• 3.0-inch voice coil compression driver
• Rotatable HF horn for flexible coverage
• Baltic birch plywood reinforced cabinet
• Internal structural bracing for rigidity

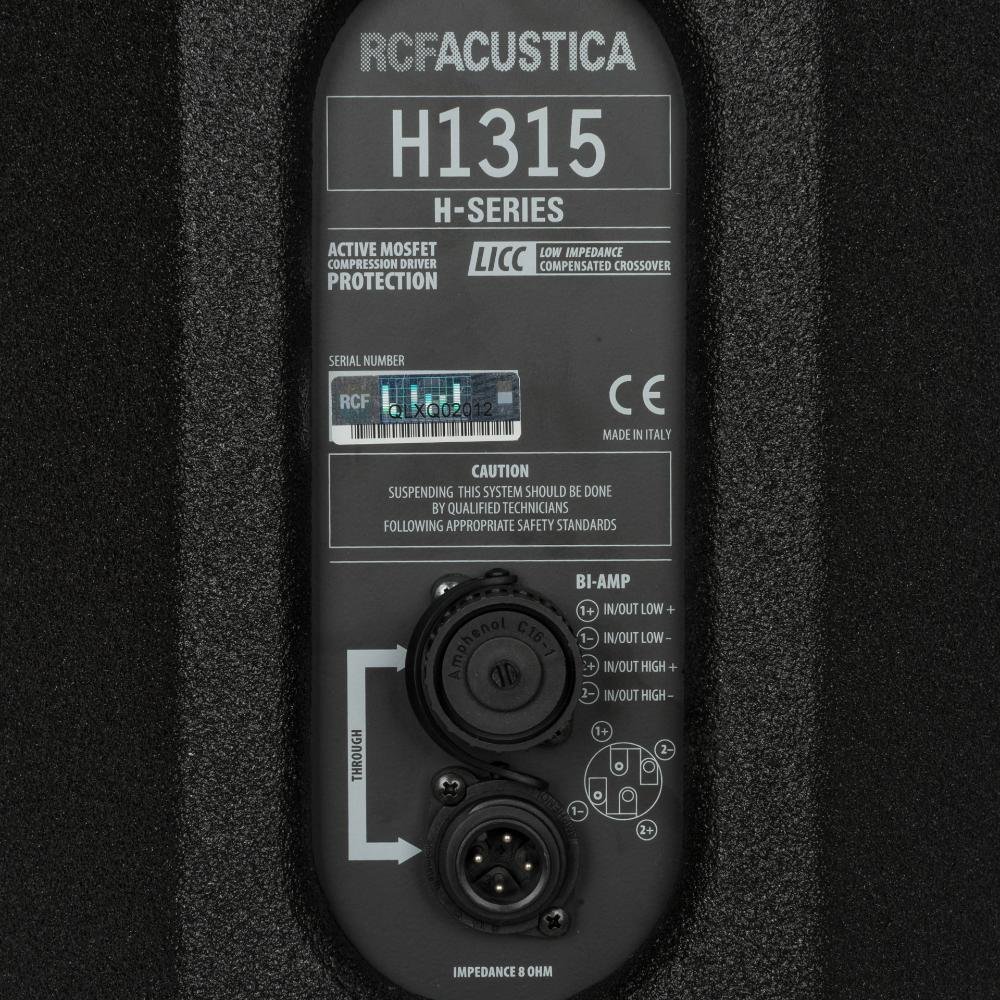

• Bi-amp operation capability
• Active MOSFET compression driver protection
• IP67 Amphenol sealed connectors
• Steel protective front grille with acoustic backing

Specifications of H 1315 WP
