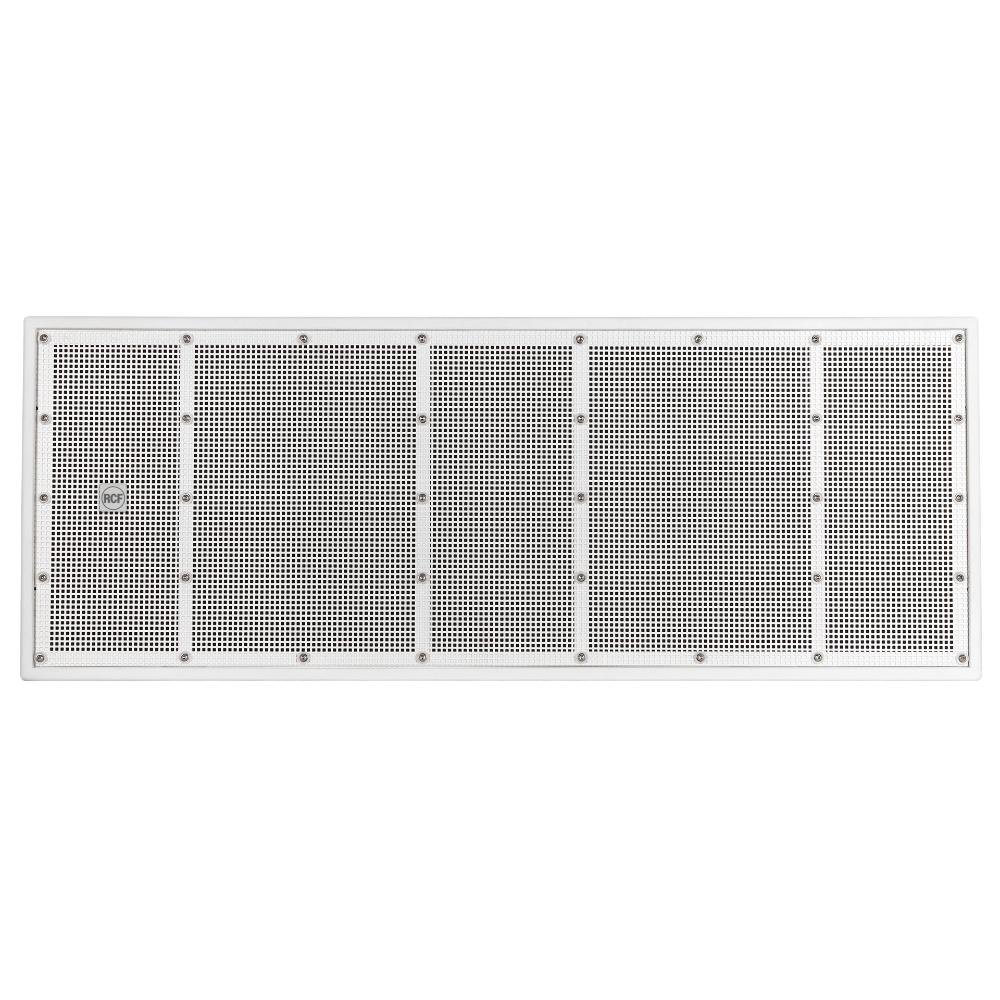

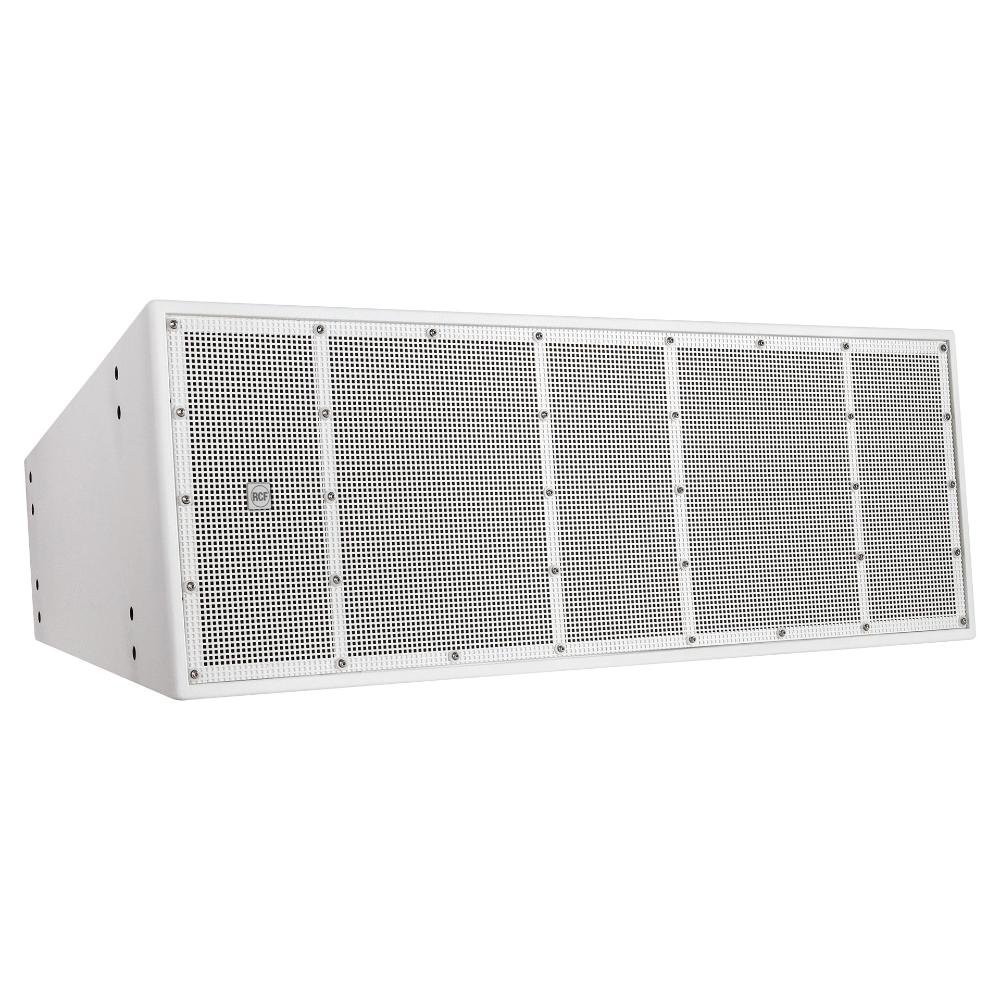

RCF HVL 15-P Three-Way Horn-Loaded Loudspeaker System – White

RCF HVL 15-P Three-Way Horn-Loaded System

The RCF HVL 15-P is a professional three-way bi-amplified loudspeaker system engineered for large-scale long-throw sound reinforcement in stadiums, arenas, and outdoor events. It is designed to deliver extremely high sound pressure levels, exceptional clarity, and controlled coverage across vast listening areas while maintaining vocal intelligibility and musical accuracy.

The system incorporates dual 15-inch high-power woofers for deep and impactful low-frequency reproduction, dual 10-inch neodymium midrange drivers for detailed vocal presence, and dual 4.0-inch voice coil titanium compression drivers for high-frequency precision. This advanced three-way configuration ensures full-range performance with outstanding balance and projection, covering a frequency range from 43 Hz to 18 kHz.

With an exceptional maximum SPL of up to 148 dB, the HVL 15-P is built for high-output professional environments where power and clarity are critical. Its horn-loaded symmetric design with 45° x 15° constant directivity ensures focused long-throw coverage with excellent control and even sound distribution across large audience areas.

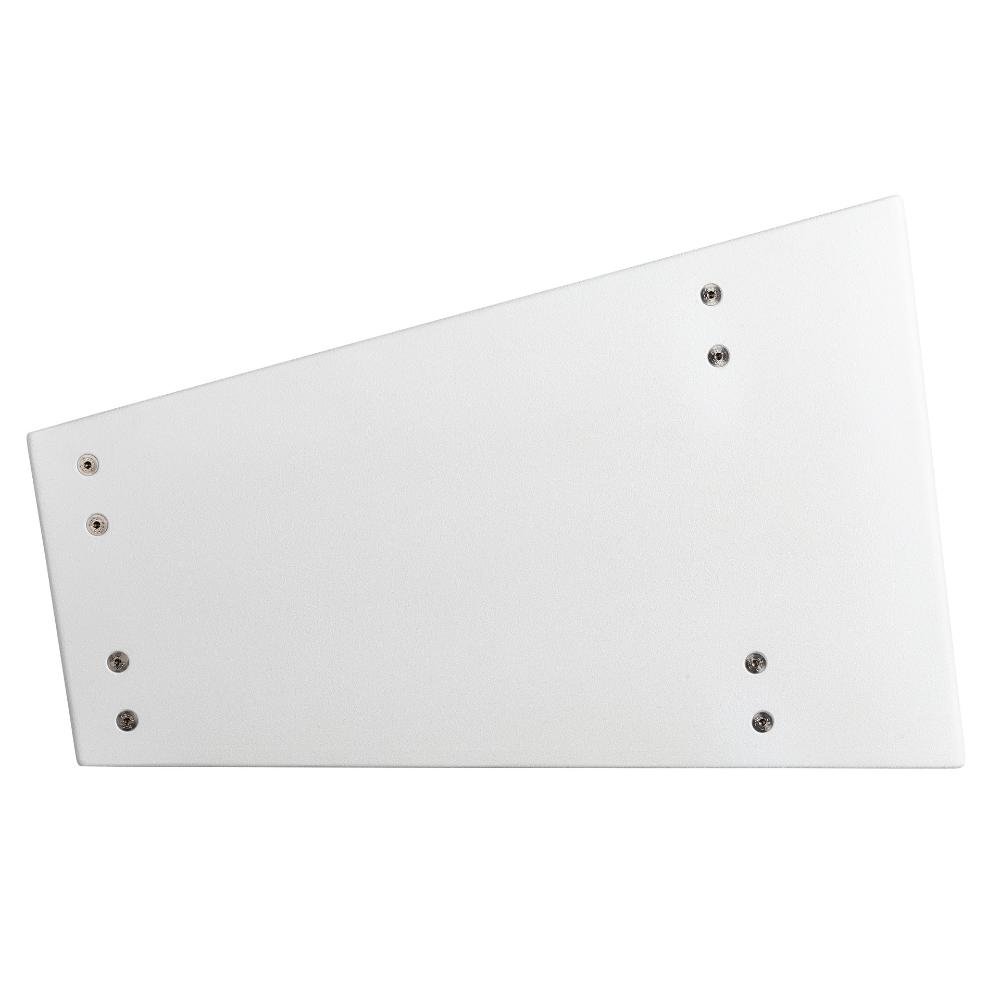

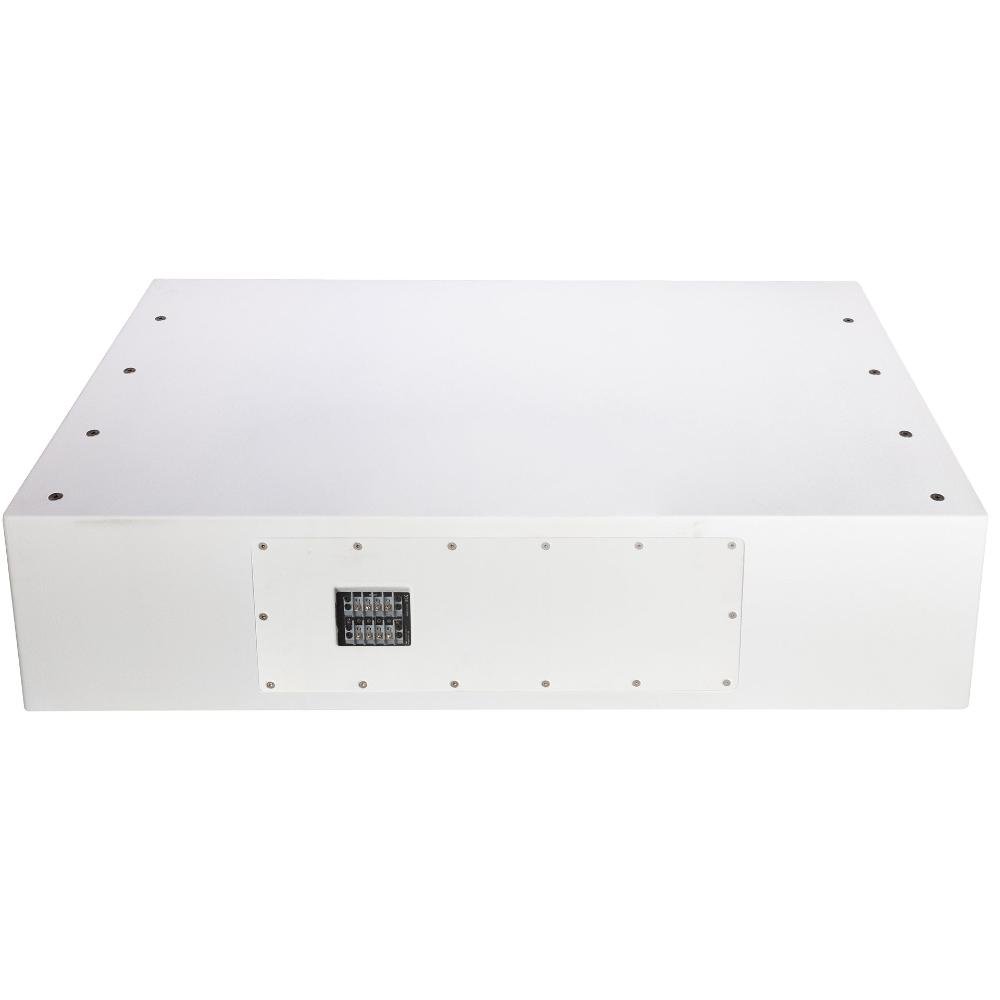

The enclosure is constructed from rugged Baltic birch plywood with a durable weather-resistant polyurea coating, ensuring reliability in harsh outdoor conditions. Internal structural reinforcement and a heavy-duty steel grille with acoustic protection enhance durability and acoustic performance. The system supports bi-amp operation with internal passive filtering between mid and high sections for optimized response. IP-rated weather resistance and robust connection hardware make it suitable for permanent installations in demanding environments. The HVL 15-P is a flagship solution for high-performance professional sound reinforcement.

Features of HVL 15-P

• 1000W LF and 900W MF+HF power handling
• Extremely high output up to 148 dB SPL
• Wide frequency range from 43 Hz to 18 kHz
• 45° x 15° horn-loaded constant directivity
• Three-way bi-amped system design
• Dual 15-inch neodymium woofers
• Dual 10-inch neodymium midrange drivers
• Dual 4.0-inch titanium compression drivers
• Integrated passive MF-HF crossover network
• Baltic birch plywood rugged cabinet
• Weatherproof polyurea protective coating
• Heavy-duty steel grille with acoustic backing
• Neodymium transducer technology throughout
• Optimized for stadium and arena coverage
• Designed for long-throw professional applications

Specifications of HVL 15-P
