RCF HD 310T Aluminium Paging Horn Speaker

RCF HD 310T Aluminium Paging Horn Speaker

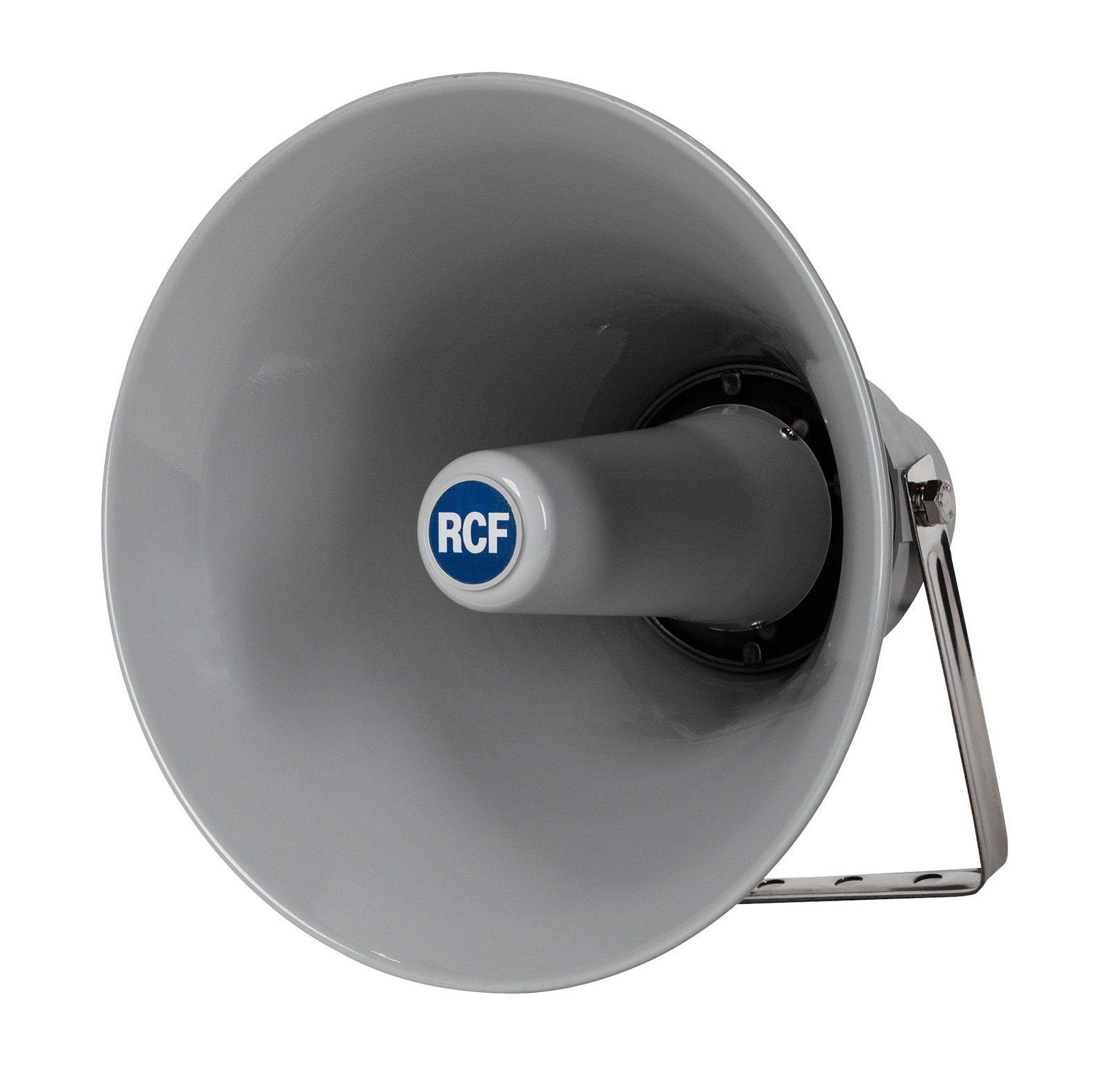

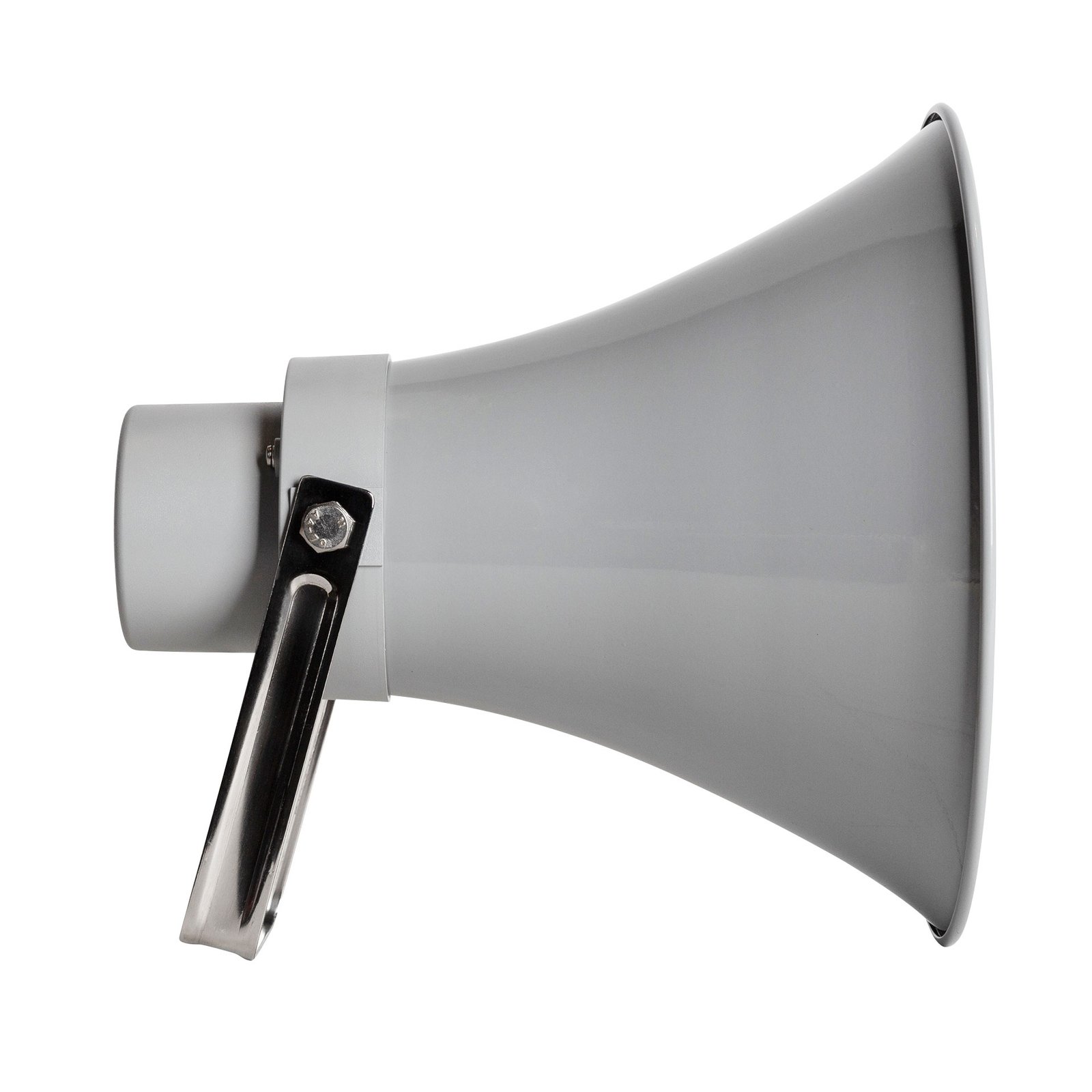

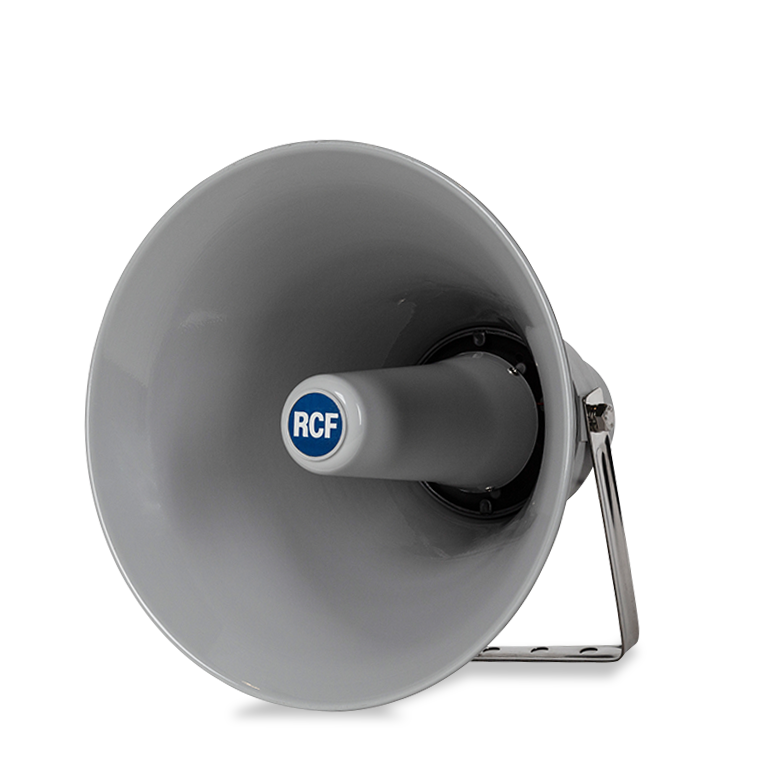

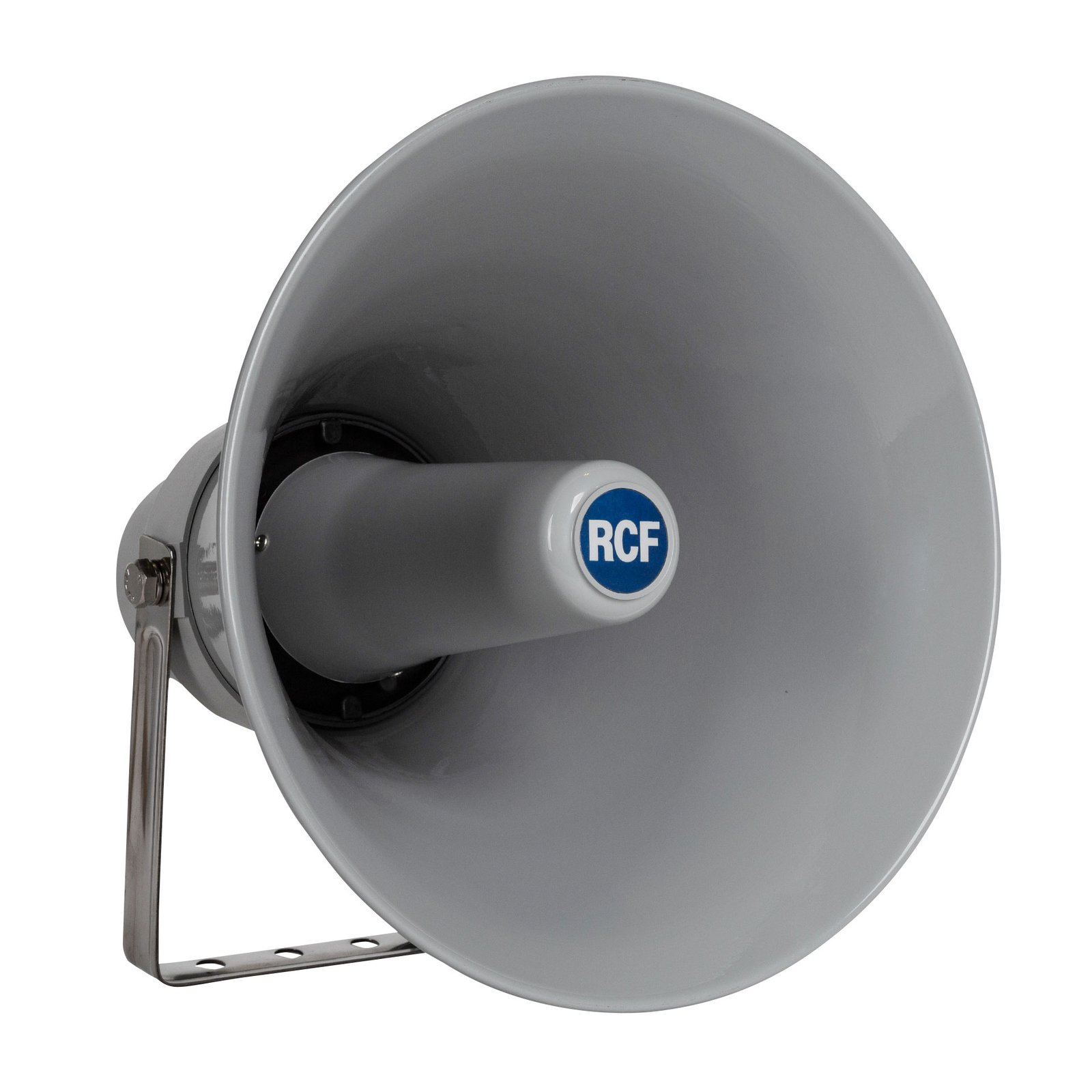

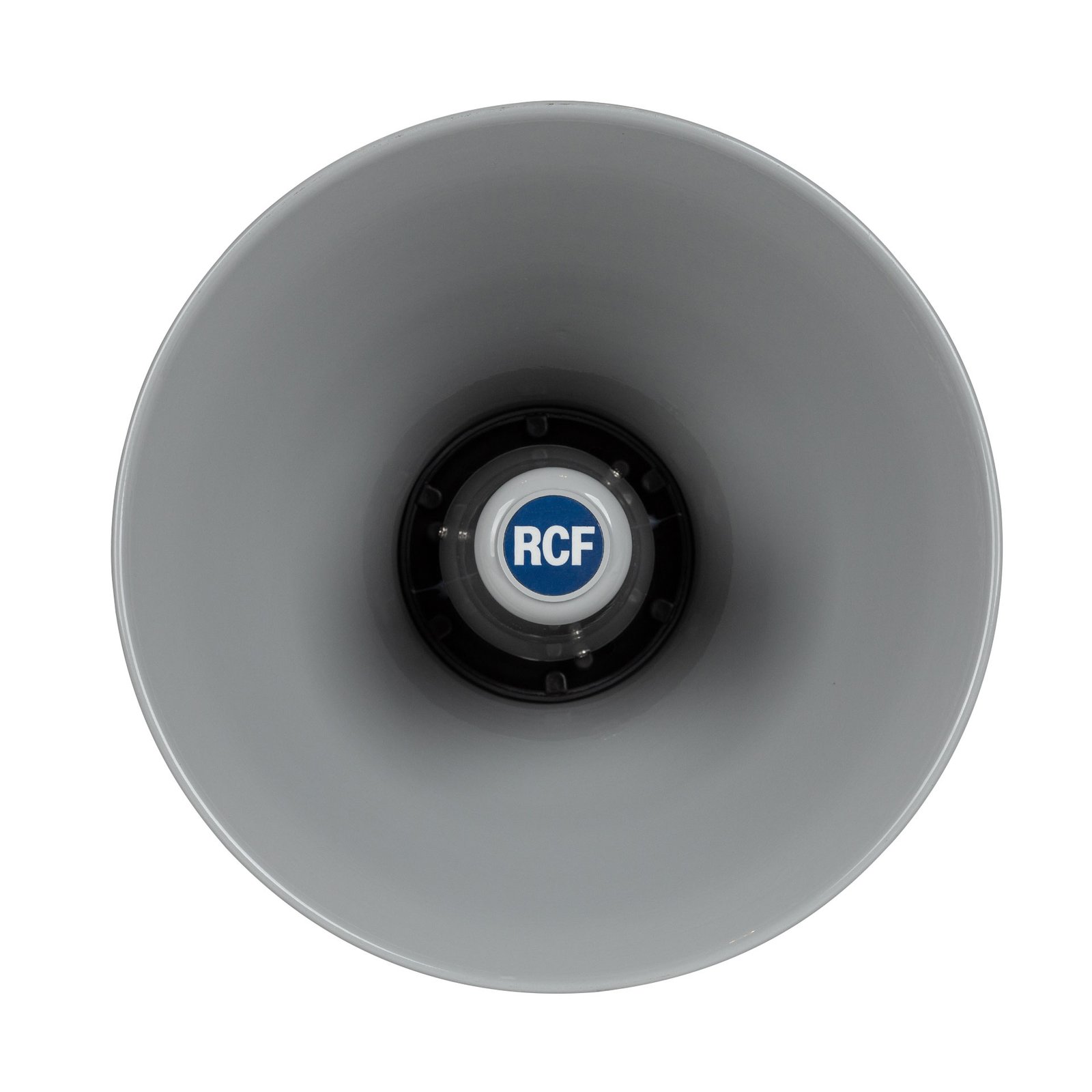

The RCF HD 310T is a compact aluminium horn loudspeaker with a built-in line transformer. The protected horn assembly supports intelligible announcement reproduction, with a rear rotary selector for setting the connection to a compatible distributed speaker line.

The specified frequency response is 240 Hz – 10000 Hz. Rated power handling is 30 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 123 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists depth 315 mm, diameter 310 mm, weight 1.9 kg. The enclosure material is Aluminum. The specified finish is Grey – RAL 7035. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of HD 310T

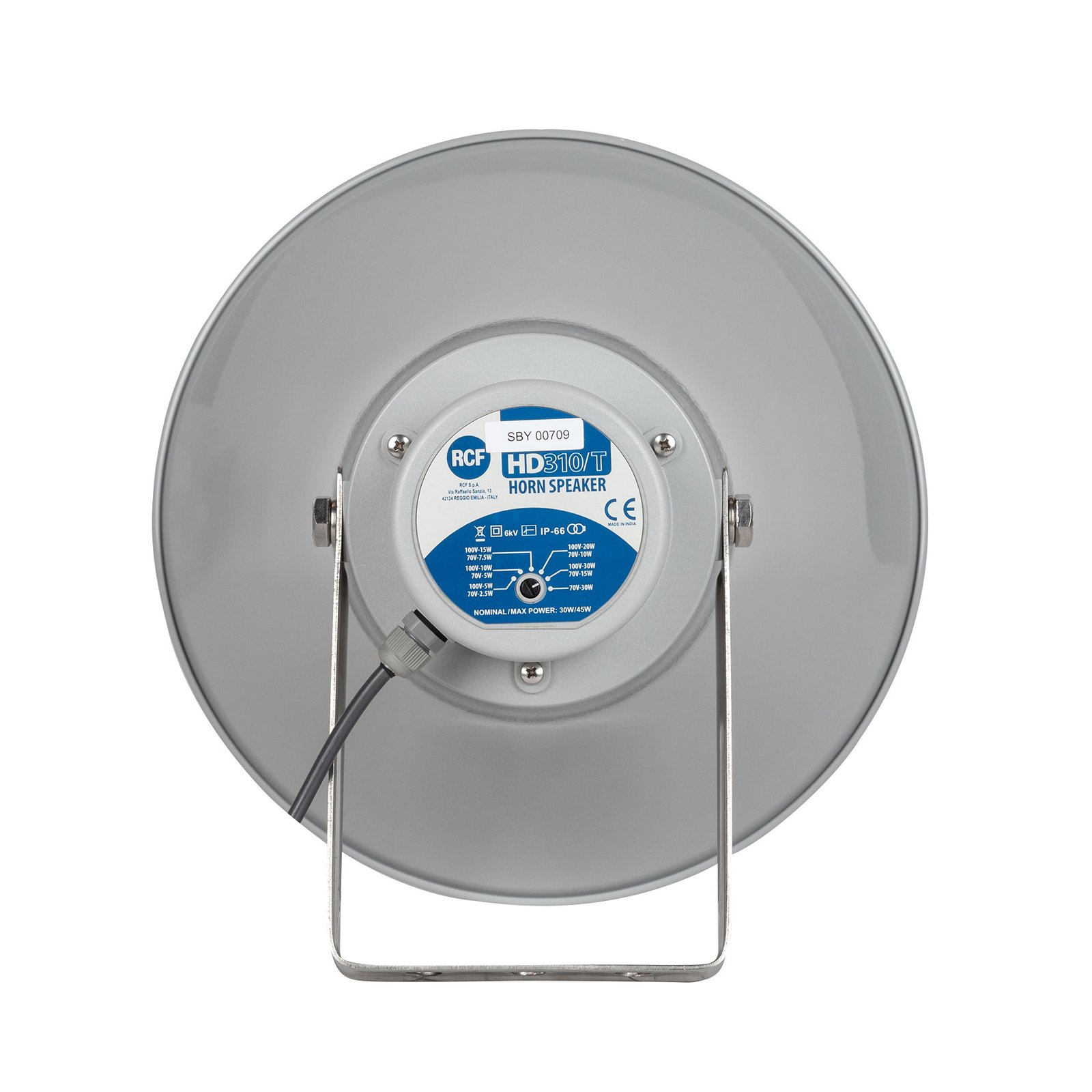

• Built-in line transformer with multitap power selector on rear cover
• Hi-pass filter for protecting driver against out-of-range low-freq
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
• Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover

Specifications of HD 310T
