RCF HD 410T Aluminium Paging Horn Speaker

RCF HD 410T Aluminium Paging Horn Speaker

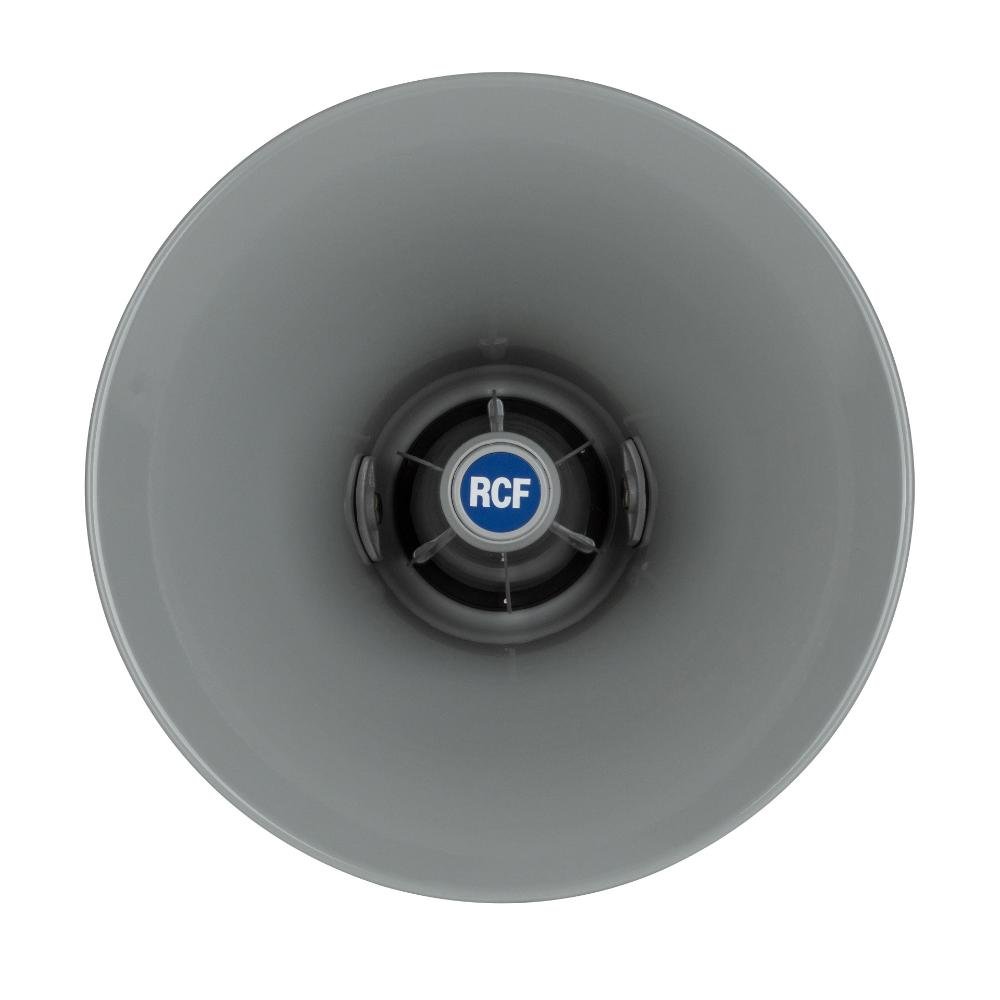

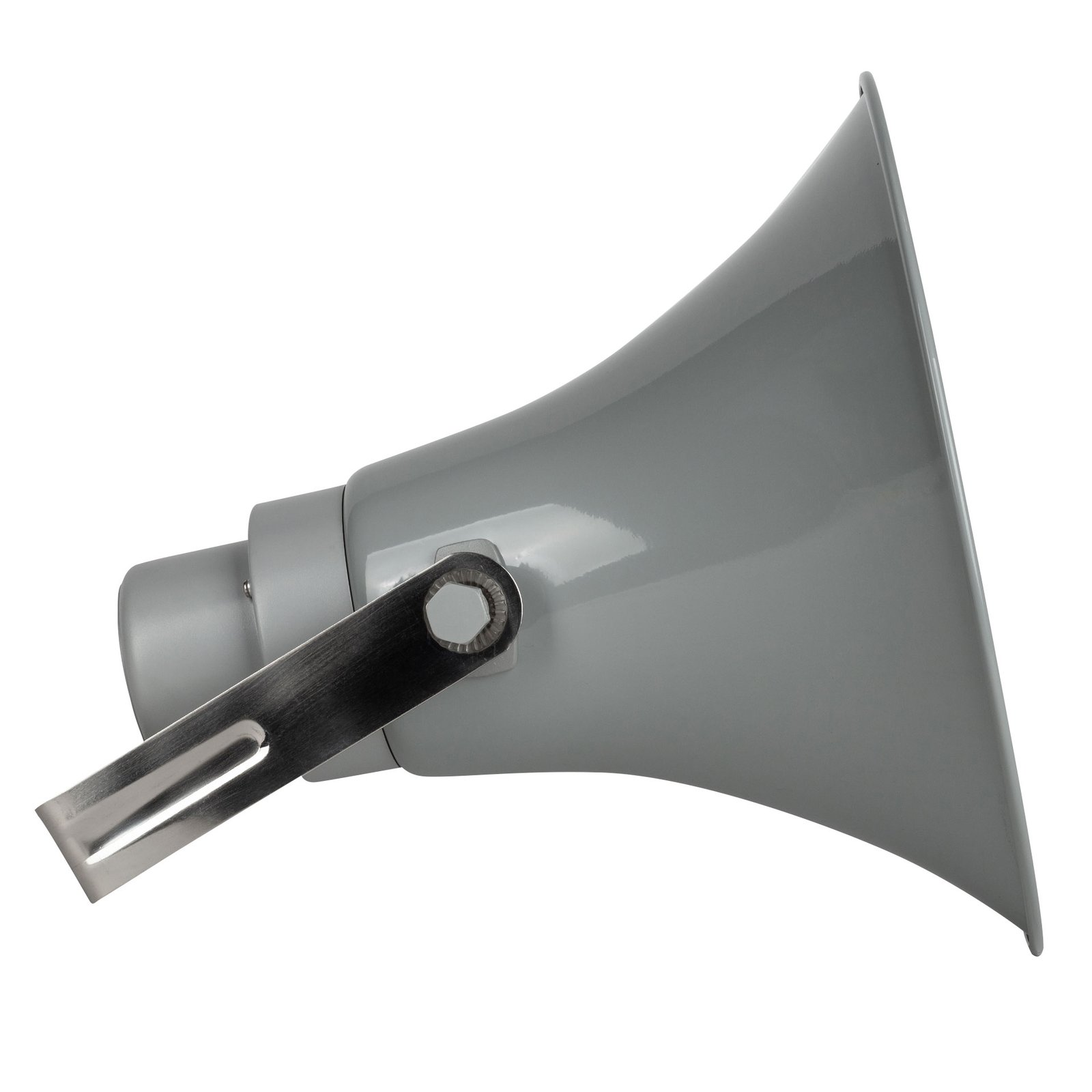

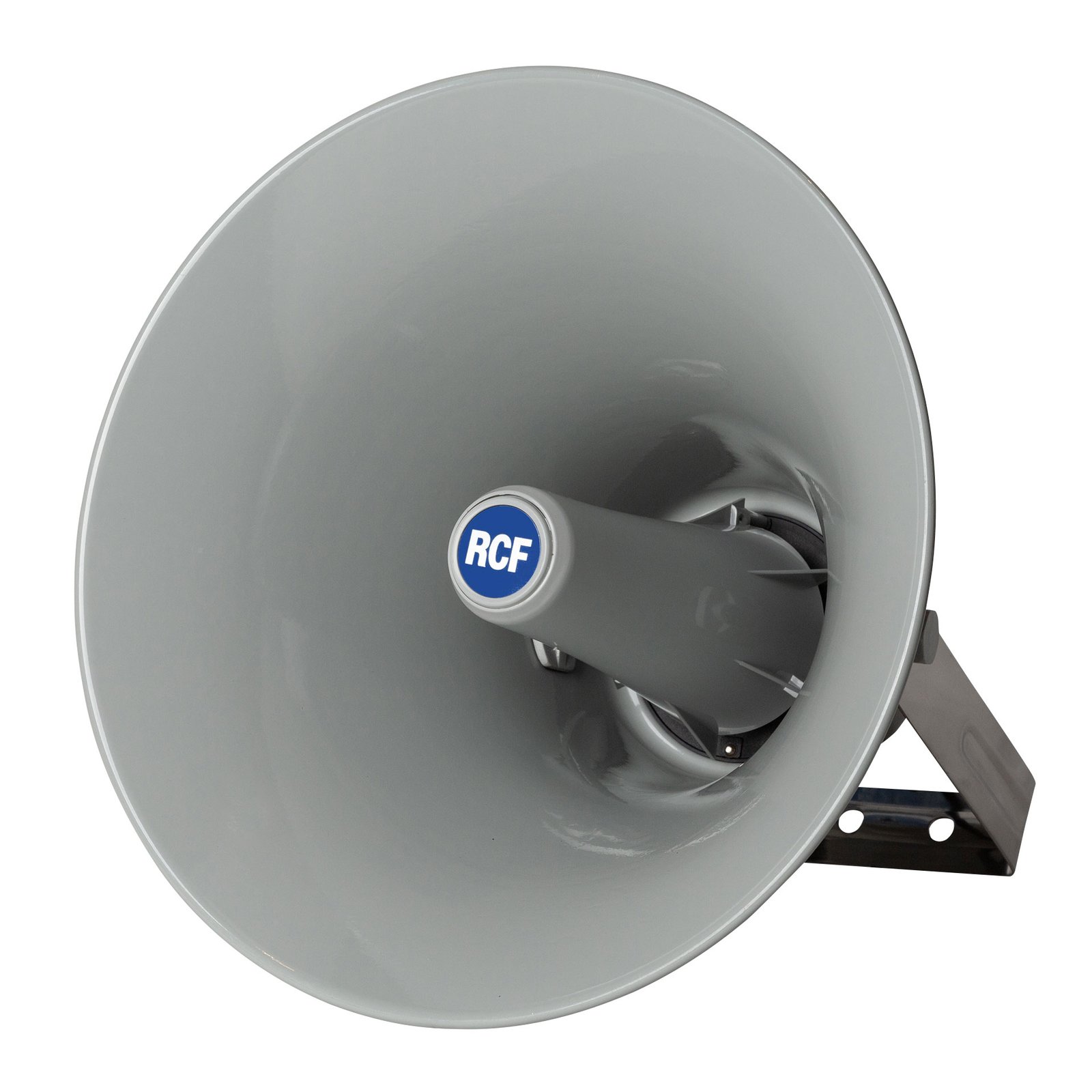

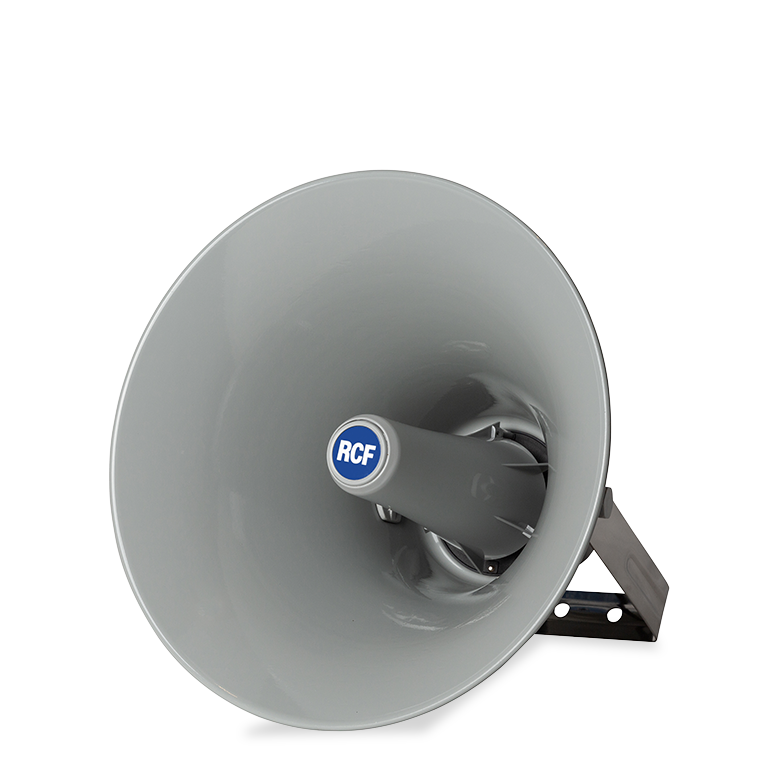

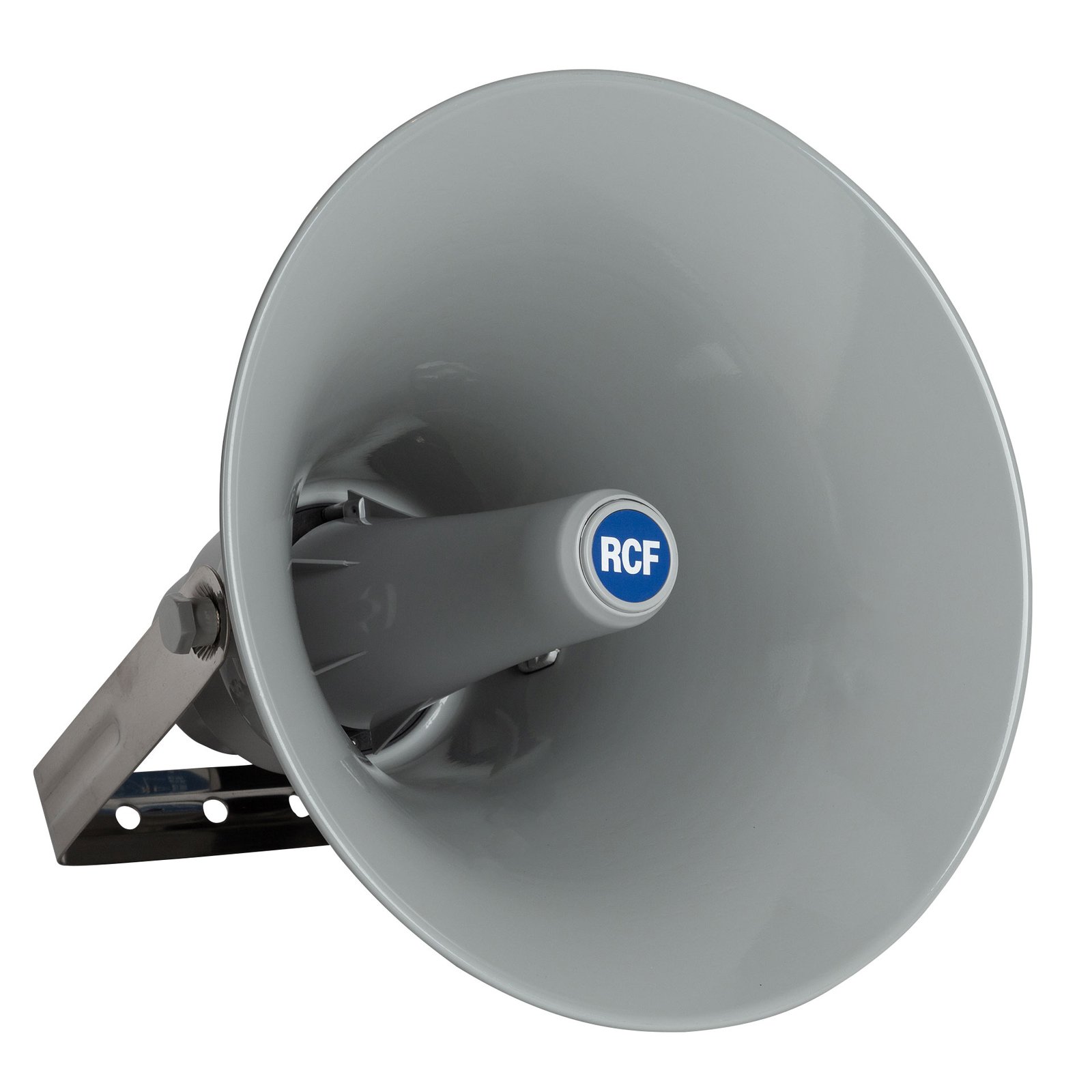

The RCF HD 410T is an aluminium horn loudspeaker with an integrated driver and line transformer. Its protected construction is intended for indoor or outdoor announcement coverage, with rear power selection and a high-pass filter supporting the defined operating arrangement.

The specified frequency response is 180 Hz – 7000 Hz. Rated power handling is 50 W. Maximum sound pressure level at one metre is 130 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists depth 393 mm, diameter 430 mm, weight 3.57 kg. The enclosure material is Aluminum. The specified finish is Grey – RAL 7035. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of HD 410T

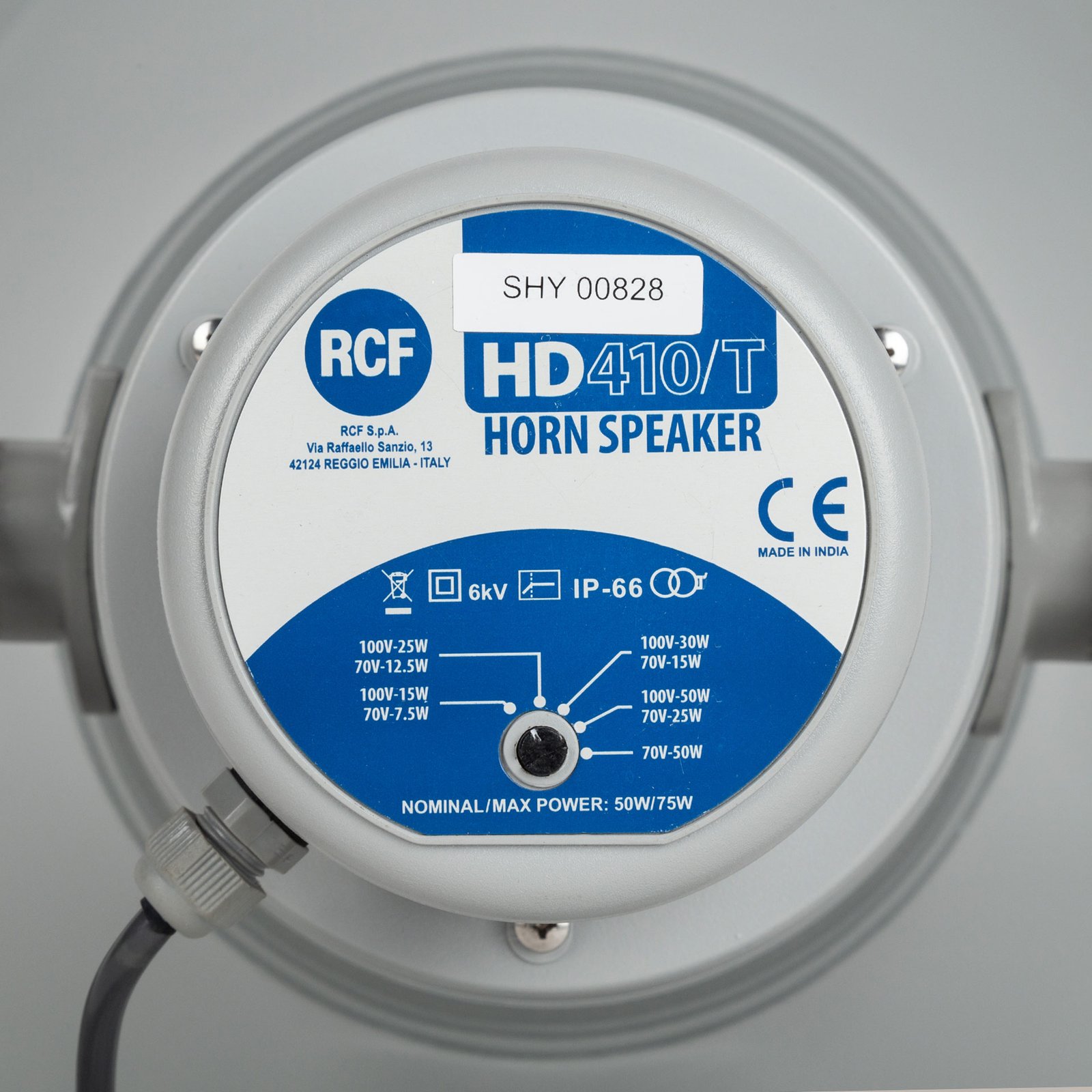

• Built-in line transformer with multitap power selector on rear cover
• Hi-pass filter for protecting driver against out-of-range low-freq
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
• Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
• Colour Grey – RAL 7035

Specifications of HD 410T
