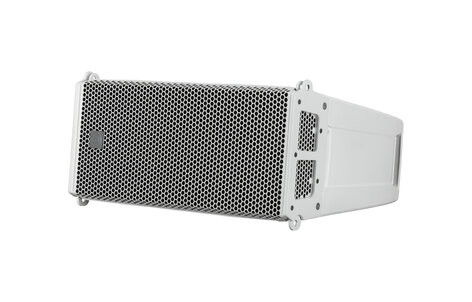

RCF HDL 6-A 1400W Dual 6″ 2-Way Line Array Speaker – White

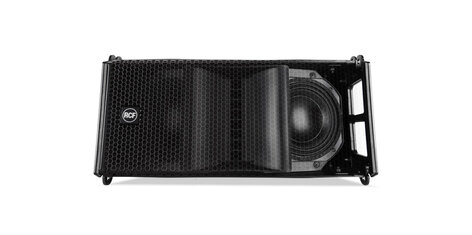

RCF HDL 6-A active two-way line array module

The RCF HDL 6-A active two-way line array module is a lightweight, compact professional sound system designed for touring and installed applications where fast deployment, portability, and high-quality audio output are essential. It is powered by a 1400W peak Class-D dual-channel amplifier paired with advanced high-resolution DSP processing, ensuring accurate sound control, clarity, and optimized system performance.

The configuration includes two 6-inch neodymium woofers engineered for tight and controlled low-frequency reproduction, along with a 1.7-inch voice coil compression driver mounted on a precision-engineered 100° × 10° waveguide. This setup ensures uniform coverage, excellent vocal intelligibility, and detailed high-frequency response even over long throw distances. With a frequency range of 65 Hz to 20 kHz and a maximum output of 131 dB SPL, it provides balanced and consistent audio performance in compact line array systems.

FiRPHASE processing technology ensures phase-coherent output for natural and transparent sound reproduction. The symmetrical cabinet design further enhances consistent coverage without tonal imbalance or breakup. Constructed from lightweight composite polypropylene reinforced with internal structural support, the enclosure offers durability while remaining highly portable. Designed for efficiency, precision, and professional reliability, the HDL 6-A is ideal for small-format line array applications requiring clarity and rapid setup.

Features of HDL 6-A

• 1400W peak Class-D amplifier system
• 131 dB maximum SPL output
• 65 Hz to 20 kHz frequency response
• Dual 6-inch neodymium high-performance woofers
• 1.7-inch compression driver for high-frequency detail
• High-resolution 48 kHz / 32-bit DSP processing
• FiRPHASE phase-coherent audio technology
• Symmetrical acoustic design for even coverage
• 100° × 10° precision waveguide
• High clarity vocal reproduction
• Lightweight composite PP enclosure
• Wood-reinforced structural cabinet
• Integrated limiter and protection system
• Efficient thermal management system

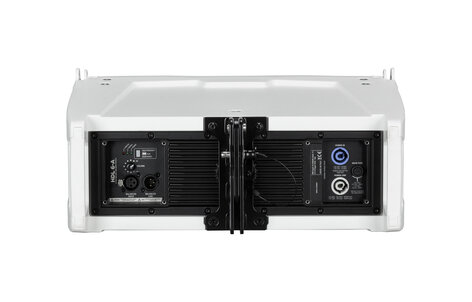

• XLR audio connectivity
• PowerCON power input/output
• Compact tour-grade rigging hardware
• Steel protective grille construction

Specifications of HDL 6-A
