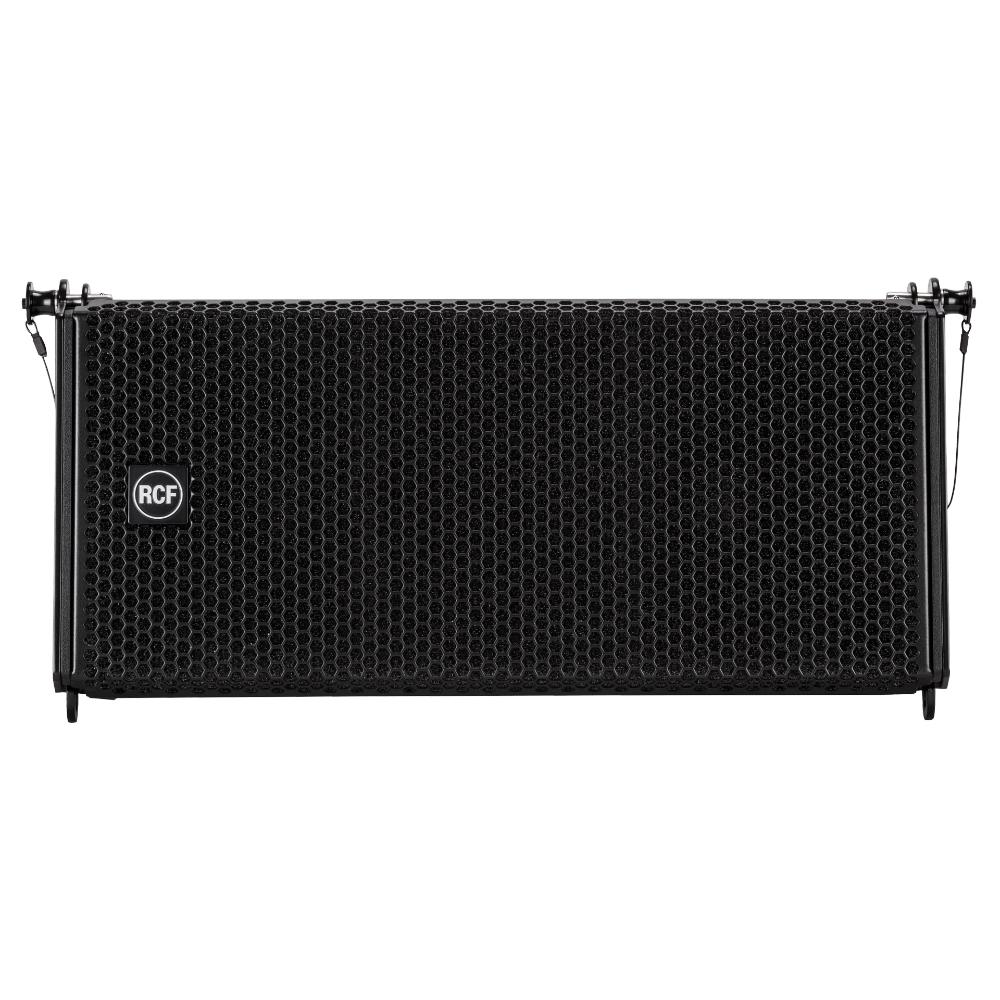

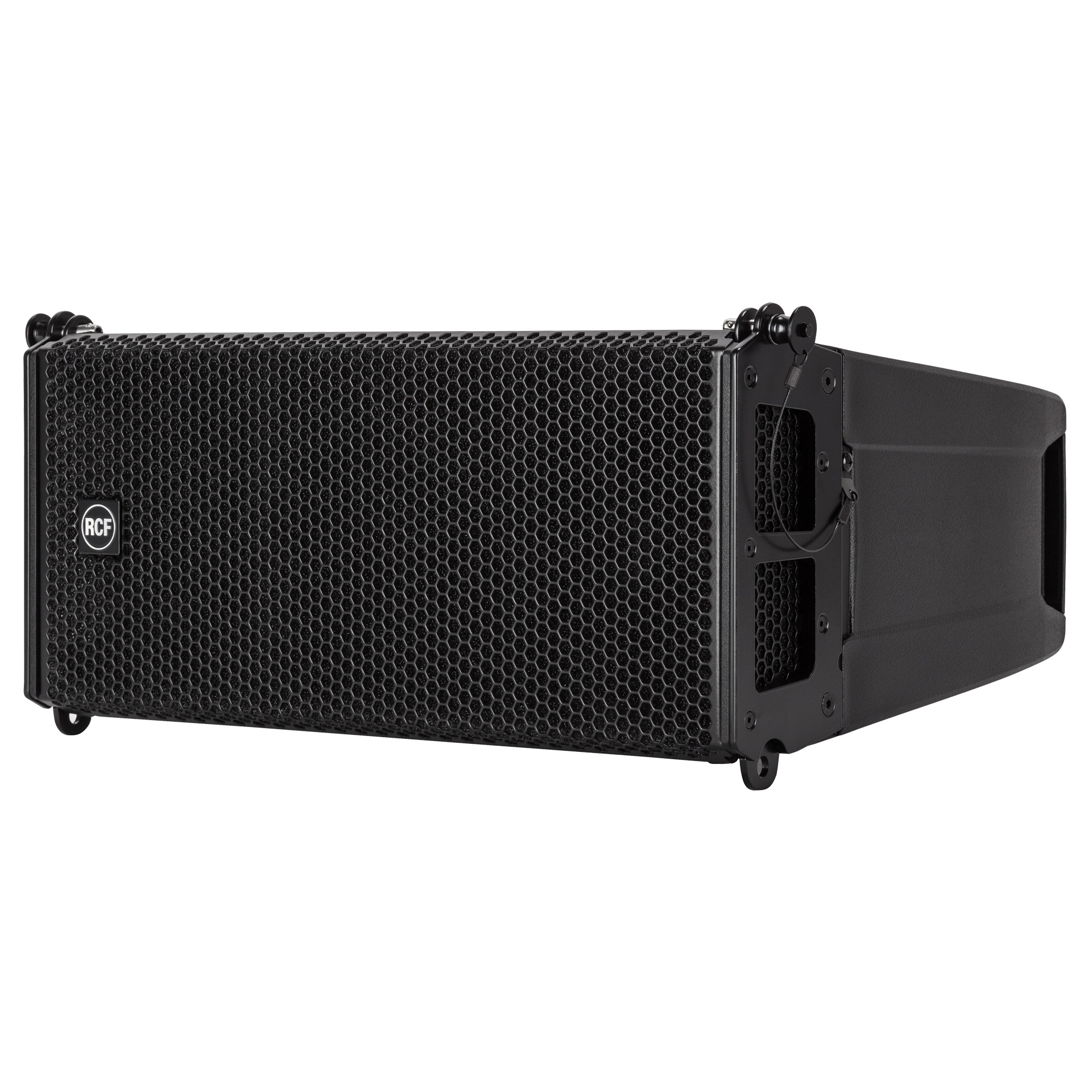

RCF HDL 6-A 1400W Dual 6″ 2-Way Line Array Speaker – Black

RCF HDL 6-A active two-way line array module

The RCF HDL 6-A active two-way line array module is a compact and ultra-lightweight professional sound reinforcement system designed for touring and installation environments where fast setup, portability, and high performance are essential. It is powered by a 1400W peak Class-D dual-channel amplifier combined with advanced 48 kHz, 32-bit DSP processing, ensuring precise control, clarity, and optimized sound reproduction.

The system features two high-power 6-inch neodymium woofers for tight and controlled low-frequency response, paired with a 1.7-inch voice coil compression driver mounted on a precision 100° × 10° waveguide. This design delivers consistent coverage, excellent vocal intelligibility, and detailed high-frequency reproduction even over long distances. With a frequency response of 65 Hz to 20 kHz and a maximum SPL of 131 dB, the system ensures balanced performance in compact line array setups.

FiRPHASE processing ensures phase-aligned output for natural and coherent sound reproduction, while the symmetrical cabinet design guarantees uniform coverage without distortion or breakup. The lightweight composite polypropylene enclosure, reinforced with internal structure, enhances durability while maintaining portability. Designed for efficiency, clarity, and professional-grade performance, the HDL 6-A is ideal for small to medium line array applications requiring precision and speed of deployment.

Features of HDL 6-A

• 1400W peak Class-D amplification system
• 131 dB maximum SPL output
• 65 Hz to 20 kHz frequency response
• Dual 6-inch neodymium high-efficiency woofers
• 1.7-inch compression driver for HF clarity
• 48 kHz, 32-bit DSP processing engine
• FiRPHASE phase-aligned processing
• Symmetrical acoustic design
• 100° × 10° precision waveguide
• High-definition vocal intelligibility
• Lightweight composite enclosure
• Wooden-reinforced cabinet structure
• Integrated protection and limiting system
• Efficient heat-managed amplifier design
• XLR input and output connections
• PowerCON power interface
• Compact tour-grade rigging hardware
• Steel grille protection system

Specifications of HDL 6-A
