RCF MG 3006 Monitored General-Purpose Input Board

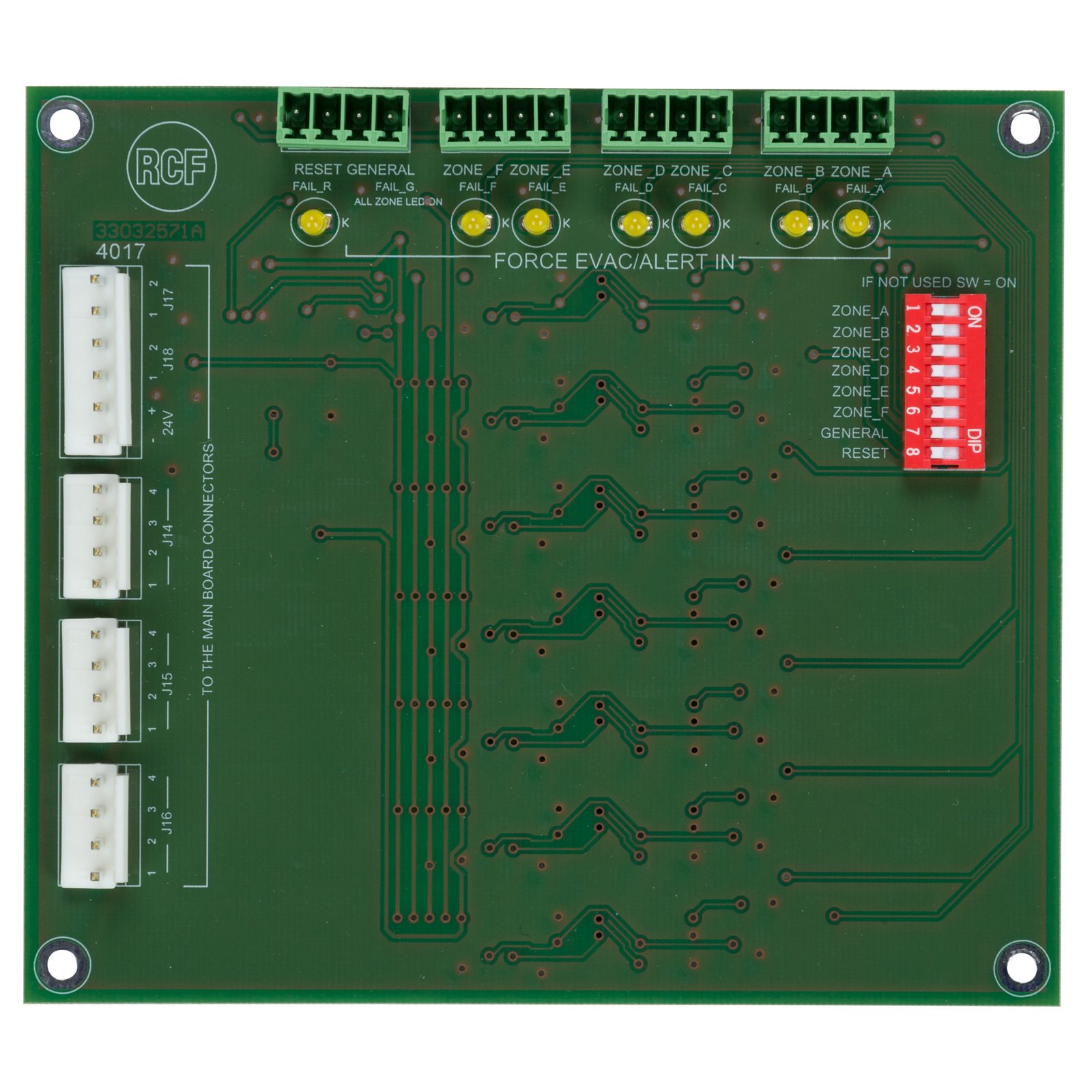

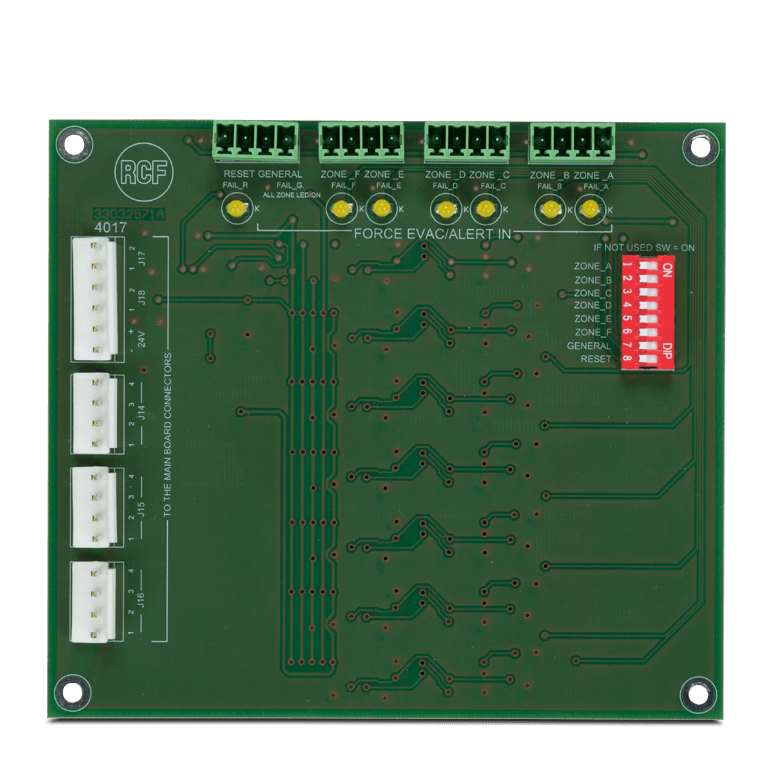

The RCF MG 3006 is a dedicated Monitored GPI board for compatible installed audio equipment. This additional board is designed for DXT 3000 master units and monitors the systemÂ’s general-purpose inputs. It detects and reports open-line faults or short circuits along the path between the master unit and connected emergency devices, such as alarm buttons.
The board installs inside the master unit and is powered by the system at 24 V DC. It supports general and individual-zone alarm activation, with a reset function and included connection cables. This gives the input-monitoring component a defined relationship to the master unit and its external control paths.
The height is 115 mm. The width is 130 mm. The specified weight is 0.15 kg. These physical characteristics establish the componentÂ’s format within the installation and help determine its position relative to the other system equipment and cable paths.
The component has a defined function within the supported audio system, with its operating role determined by the compatible master unit, console or rack arrangement. Planning the connections and physical placement together helps maintain the relationship between the local device and the rest of the installation throughout configuration and operation.
Use the installation instructions for the exact component and the equipment with which it is connected. The available space, connection routes and access to the relevant controls or mounting points should be considered as one arrangement. This keeps the system layout consistent with the specified application and supports a clear, organized installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.
Features of MG 3006
- Faults detection and reporting
- General and zone alarm activation
- Reset function
- Powered by master unit
Specifications of MG 3006
| Product Type | Monitored GPI board |
| Brand | RCF |
| Model | MG 3006 |
| Manufacturer Part Number | 13360344 |
| Operating voltage: | 24V DC |
| Alarm Activation | Single zone / General |
| Reset Function: | Yes |
| Line monitoring: | Yes |
| Connection cables: | Included |
| Height | 115 mm / 4.53 inches |
| Width | 130 mm / 5.12 inches |
| Weight | 0.15 kg / 0.33 lbs |
