RCF NXW 44-A Powered 2-way Column Speaker

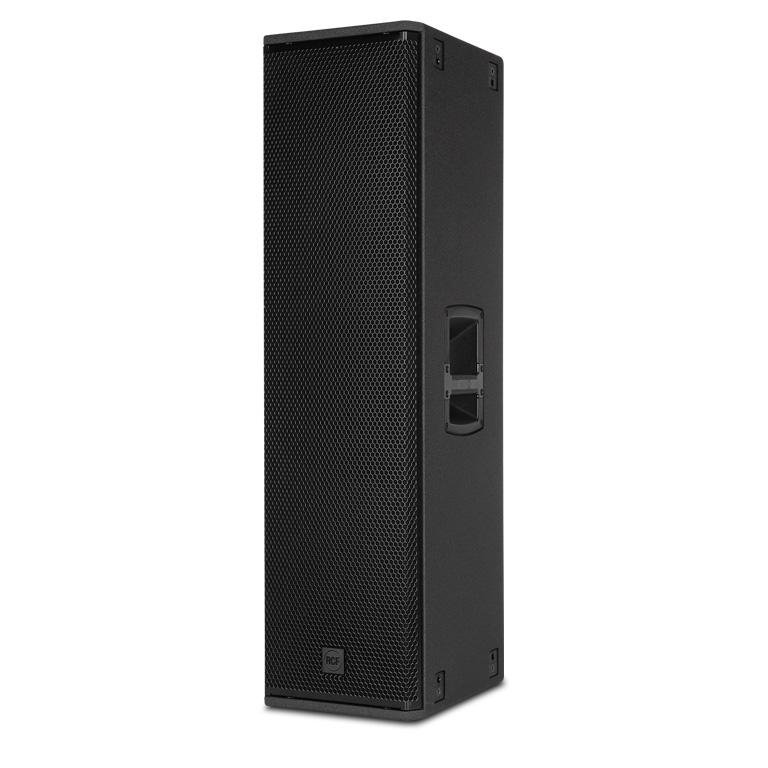

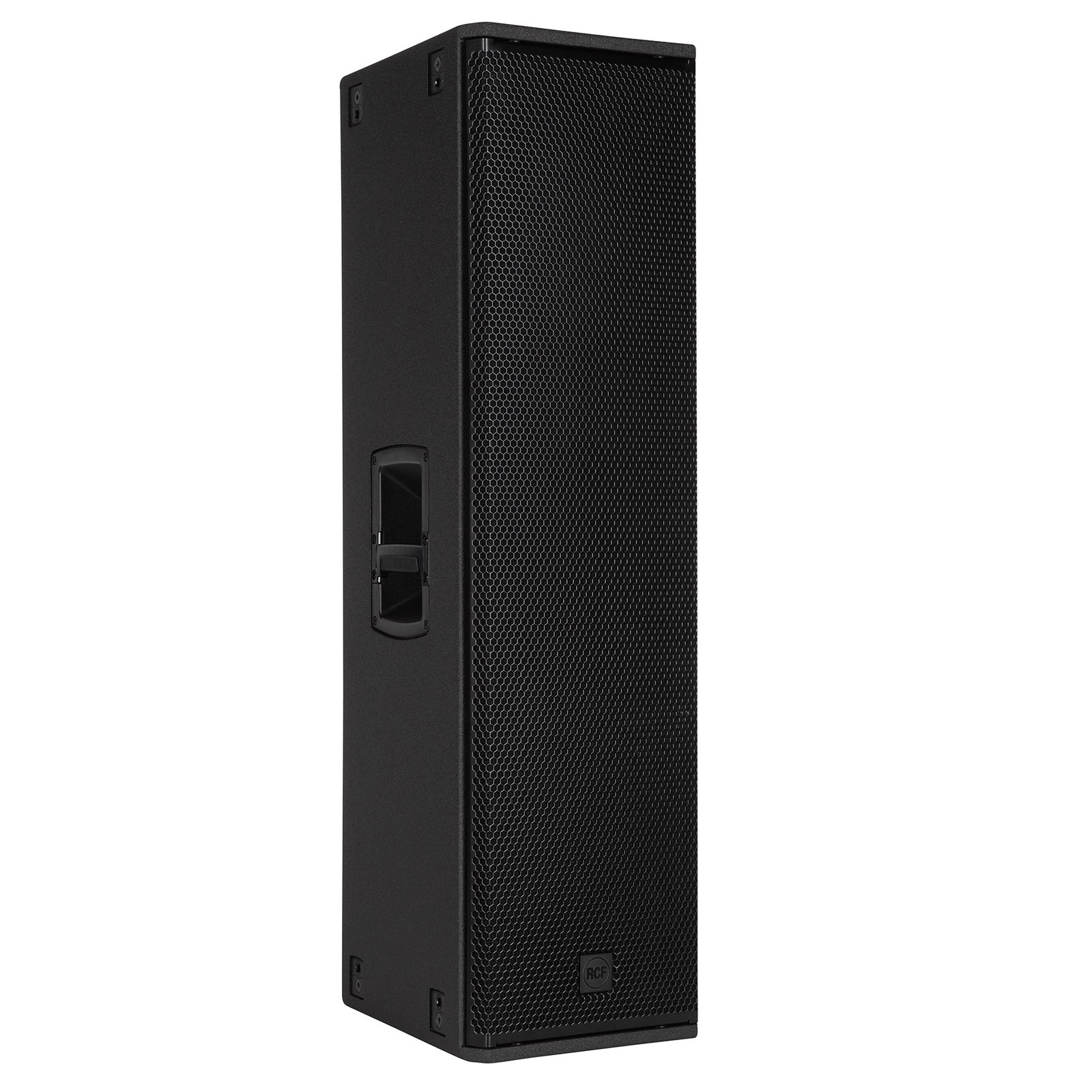

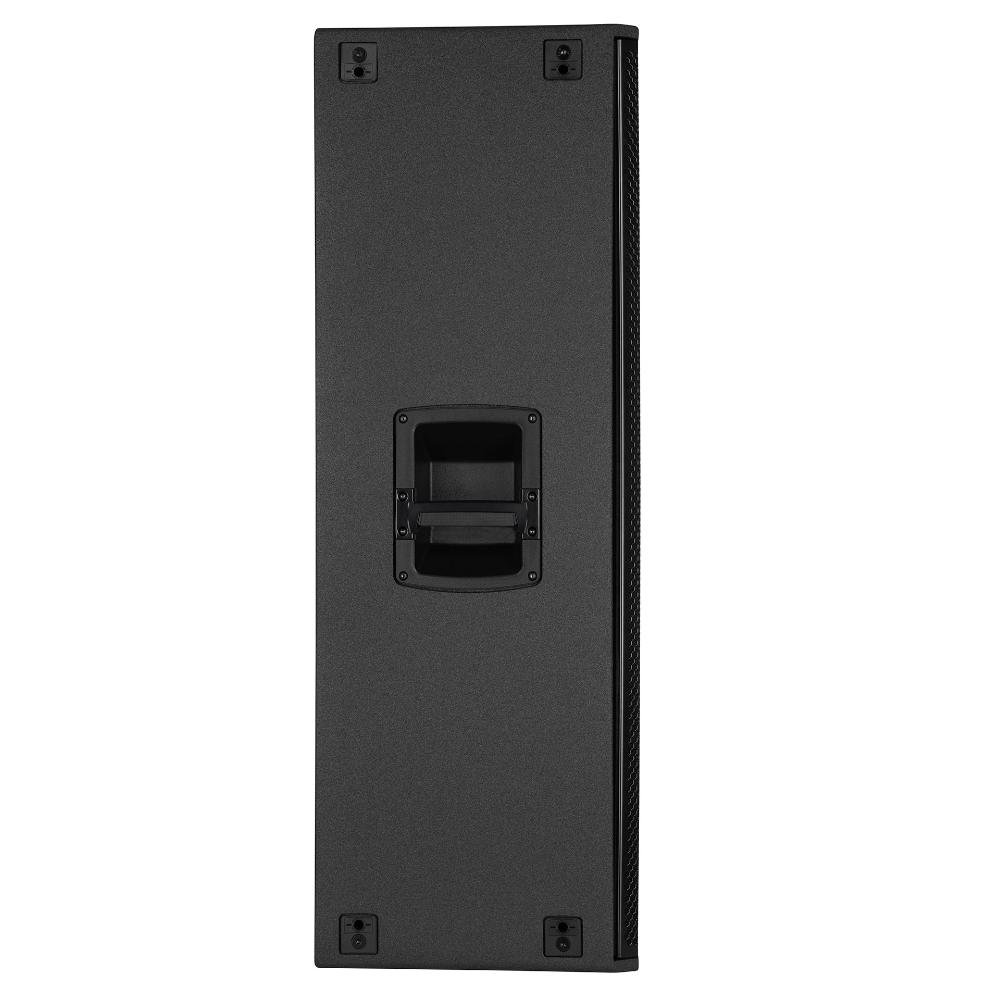

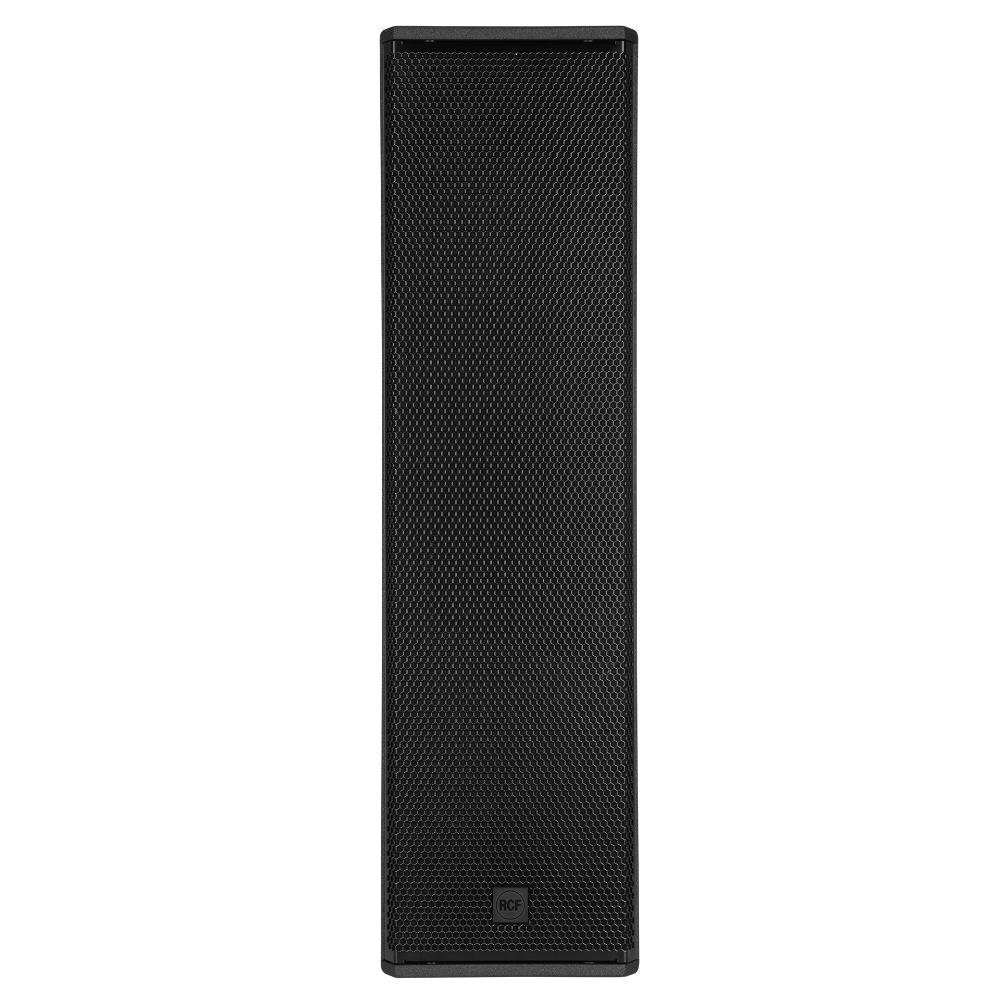

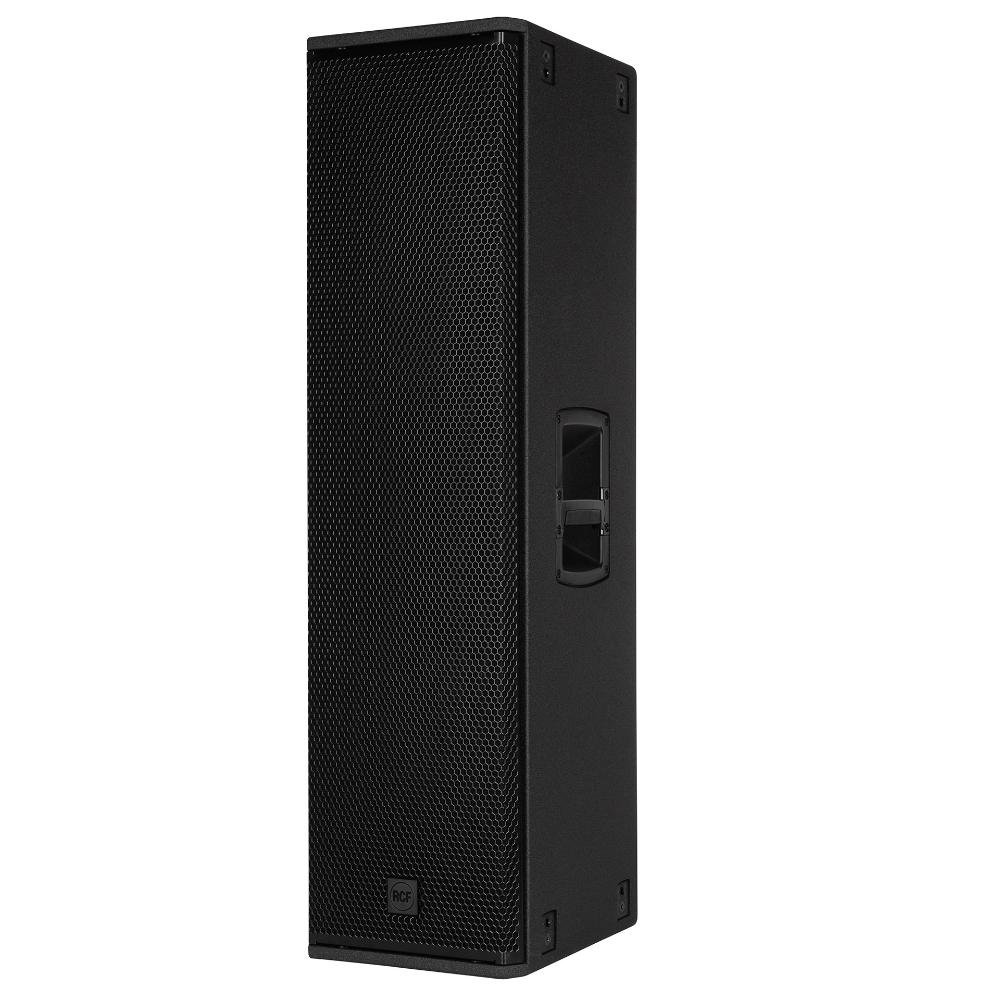

RCF NXW 44-A active column speaker system

The RCF NXW 44-A active column speaker system is engineered for high-performance professional audio applications including live bands, DJs, nightclubs, and rental sound systems. Designed to deliver powerful output in a compact form factor, it combines advanced transducer technology, high-efficiency amplification, and intelligent DSP processing for precise and consistent sound reproduction.

Powered by a 2100W Class-D two-channel amplifier, the system achieves sound pressure levels up to 135 dB while maintaining clarity, speed, and low distortion. The speaker features a two-way configuration consisting of three 10-inch high-power neodymium woofers and a 3-inch titanium compression driver mounted on a Constant Matching Design horn. This horn ensures accurate 100° horizontal and 50° vertical coverage, providing uniform sound distribution without the need for cabinet tilt.

The frequency response extends from 45 Hz to 20,000 Hz, allowing strong low-frequency performance that can be further enhanced when paired with subwoofers for full-range system applications. Integrated RCF proprietary FiRPHASE and Bass Motion Control (BMC) DSP technologies ensure phase coherence, controlled woofer excursion, and deep, natural bass response.

The amplifier design is highly efficient and convection-cooled, eliminating the need for internal fans while maintaining thermal stability. Built using rugged Baltic birch plywood with a steel grille and reinforced rigging hardware, the enclosure is designed for touring durability and installation flexibility. With multiple mounting options including pole, flown, and truss installation, the RCF NXW 44-A active column speaker delivers powerful, accurate, and reliable performance for demanding professional environments.

Features of NXW 44-A

• 2100W high-efficiency Class-D amplifier
• Maximum sound pressure level up to 135 dB
• Wide 100° horizontal and 50° vertical coverage
• Three 10-inch high-power neodymium woofers
• 3-inch titanium neodymium compression driver
• Extended frequency response from 45 Hz to 20 kHz
• Constant Matching Design horn system
• FiRPHASE phase correction processing
• Bass Motion Control woofer excursion management
• Two-way high-output column speaker design
• Convection-cooled fanless amplifier system
• Soft limiter and protection circuitry
• Low distortion high transient response
• Rugged Baltic birch plywood cabinet
• Steel protective grille construction
• 8 x M8 rigging points for installation
• 8 x quick-lock mounting system
• IP-rated Powercon TRUE1 TOP connectors

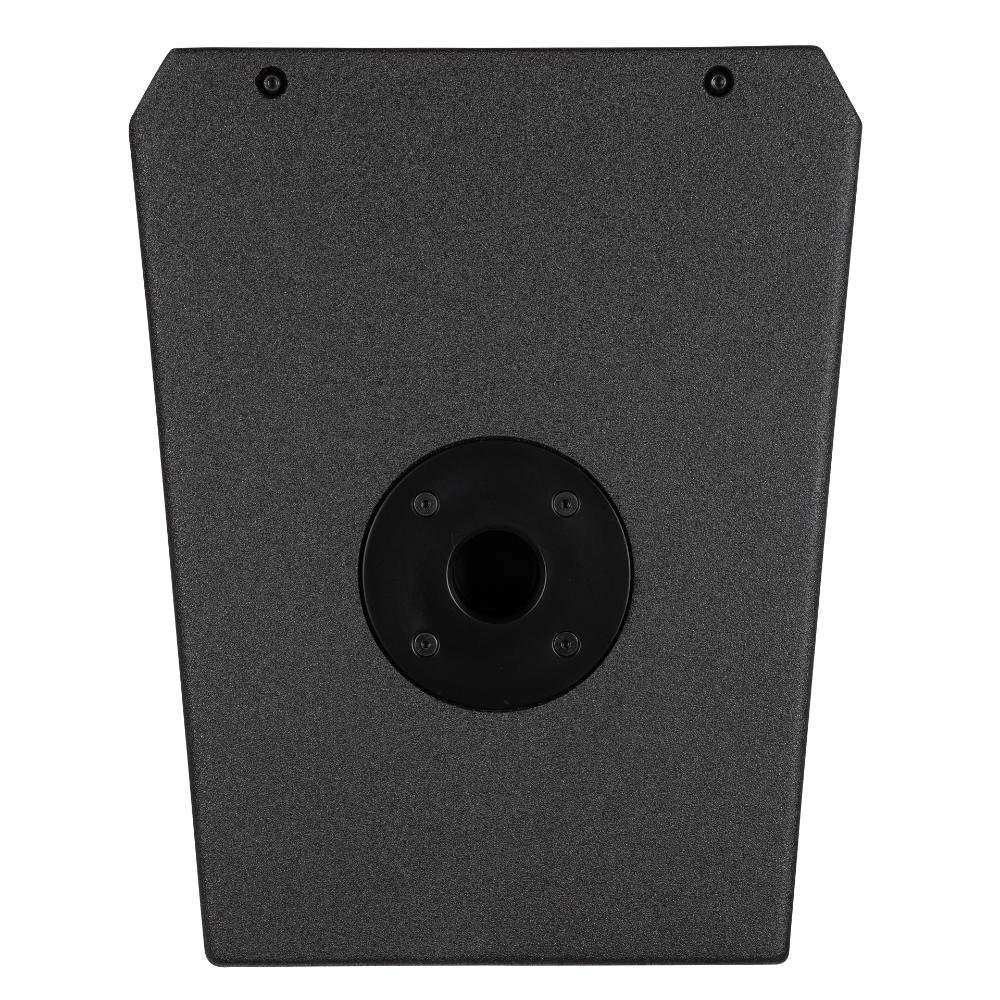

• Flexible pole, flown, and truss mounting options
• Touring-grade durable enclosure design

Specifications of NXW 44-A
