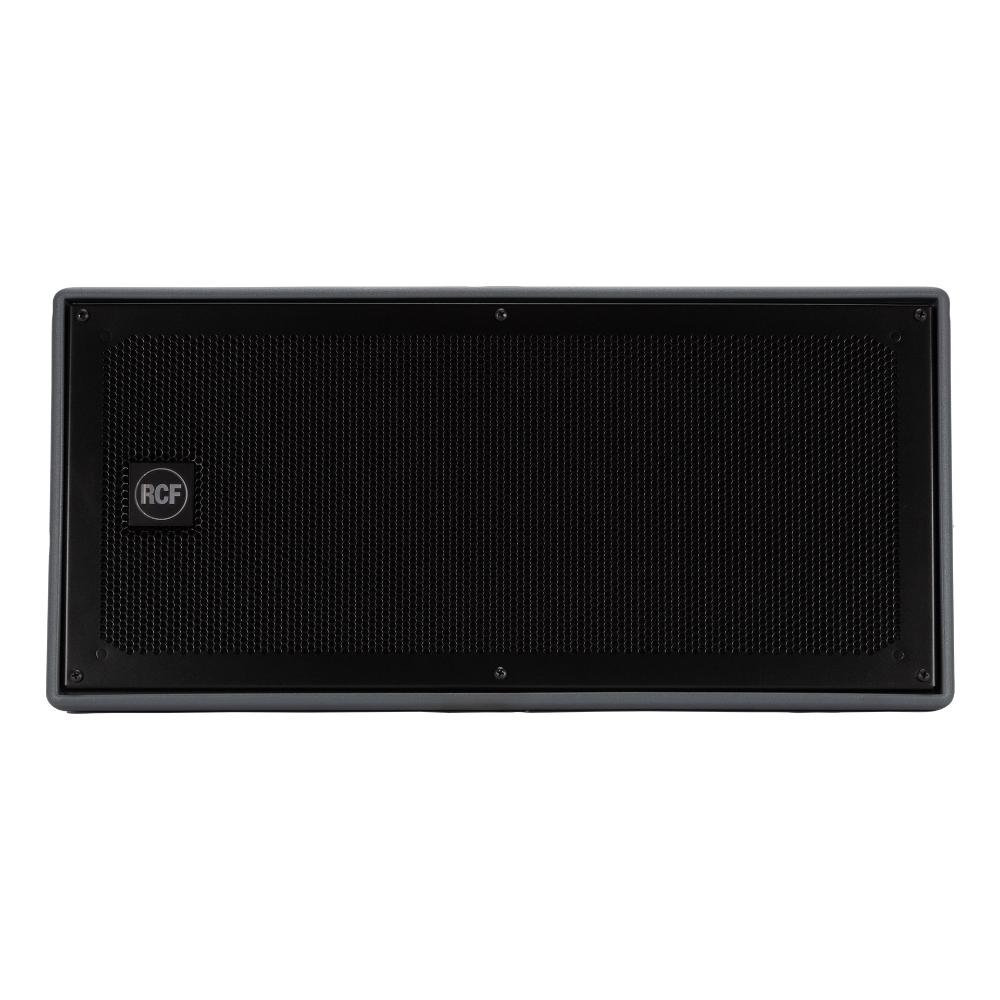

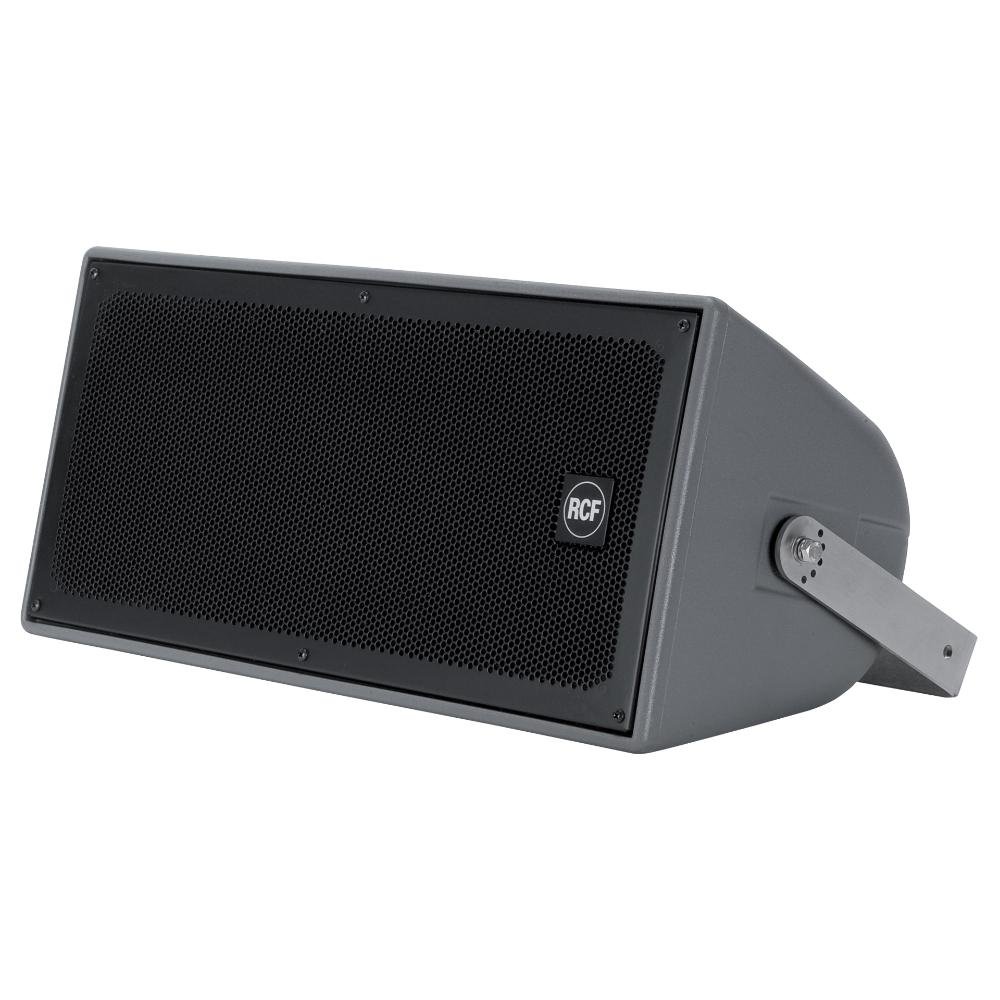

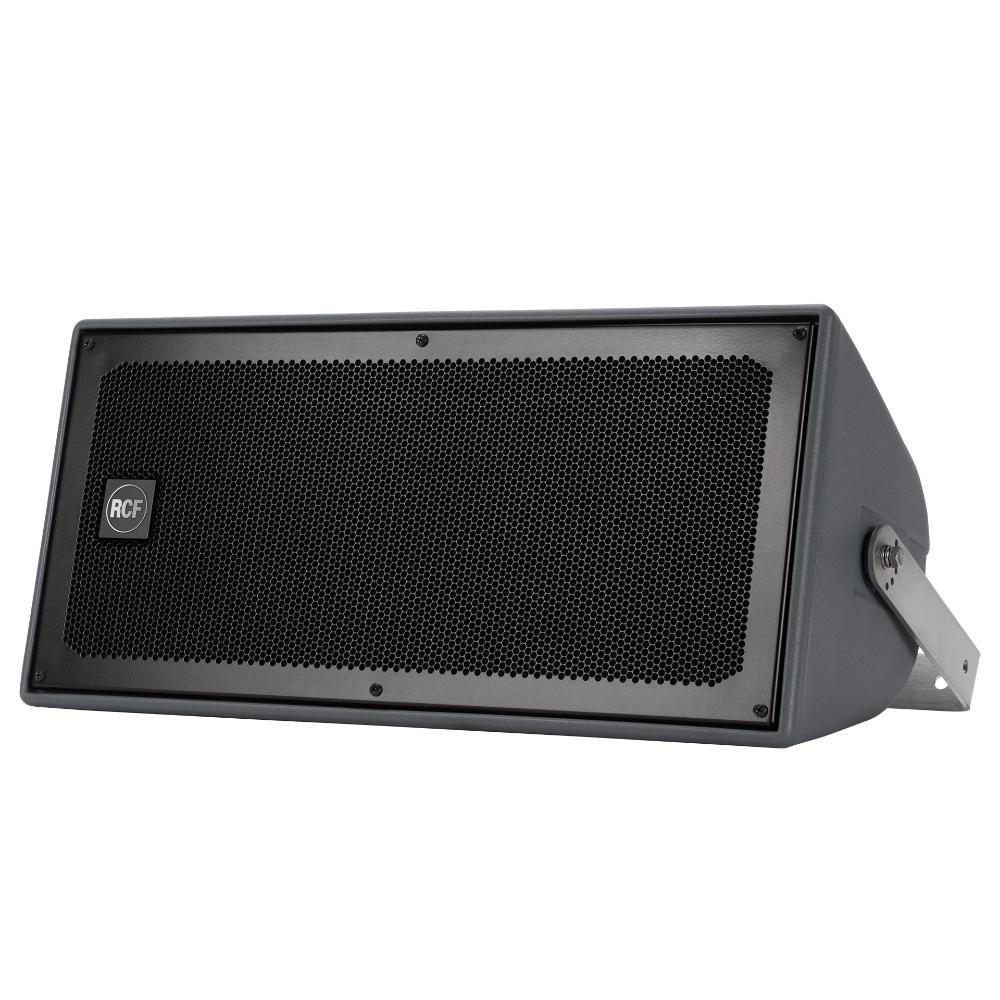

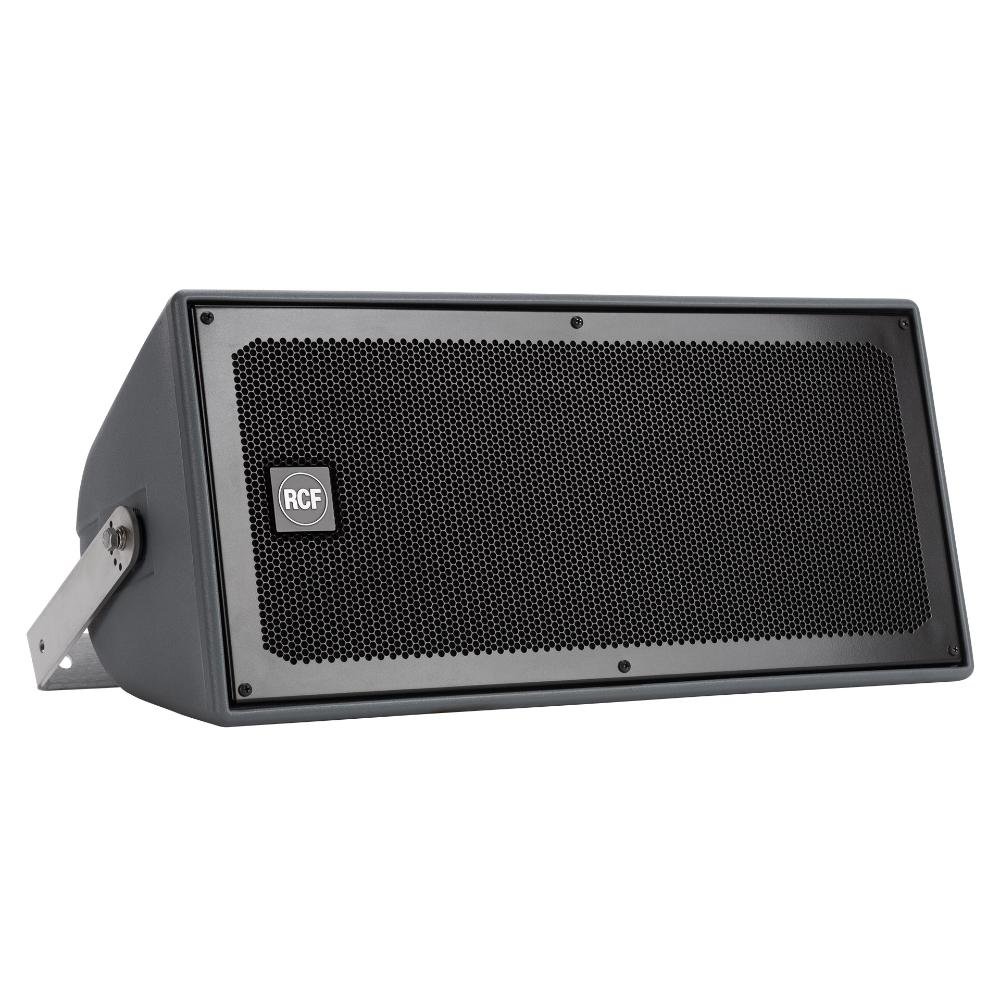

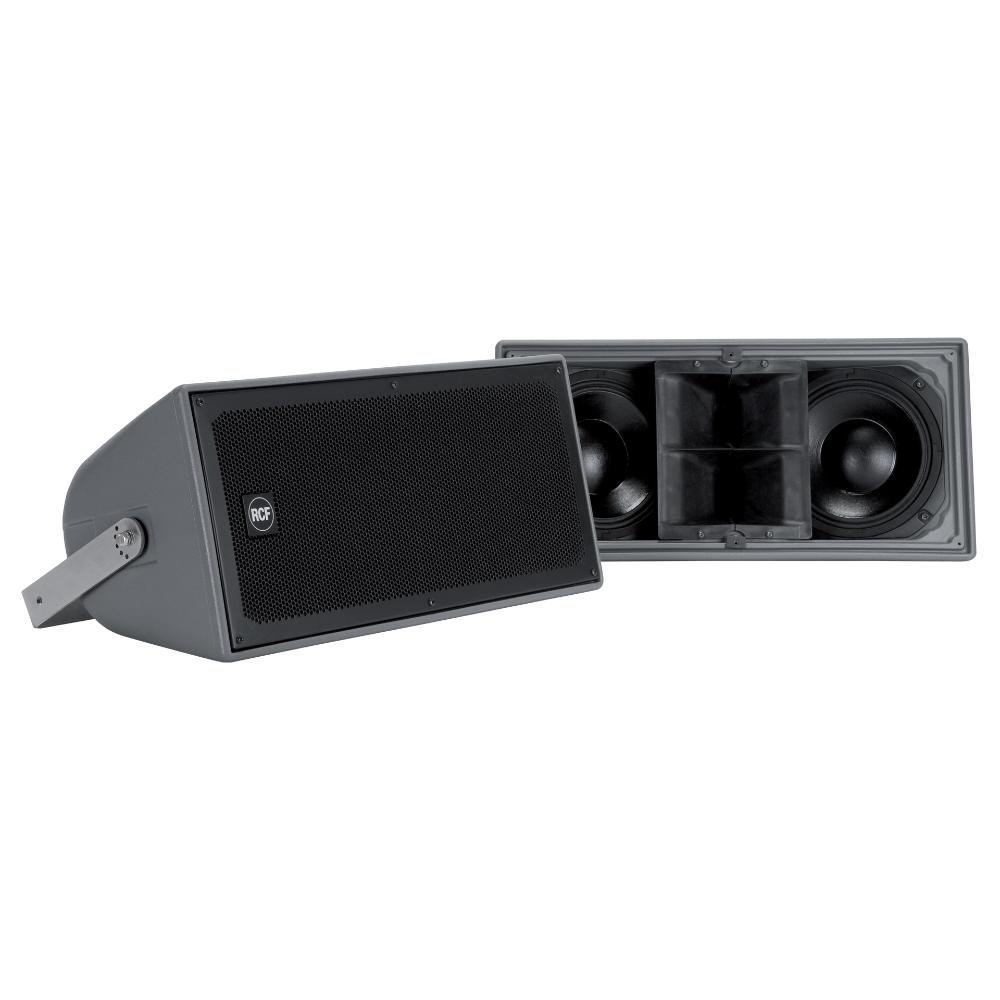

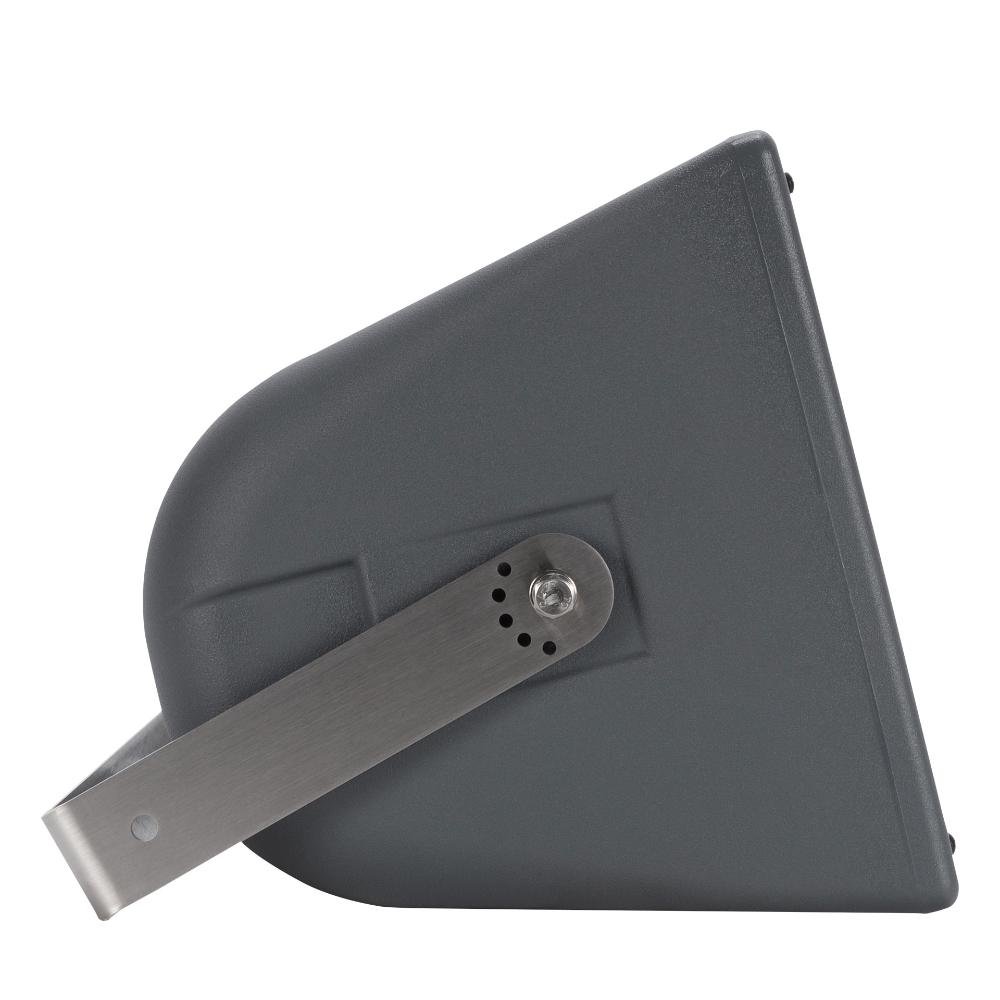

RCF P 5228-L, 2 x 8″ Pro-Sound Loudspeaker – Black

SKU: P 5228-L Category: Brand:

The RCF P 5228-L loudspeaker delivers 500W RMS power, high SPL output, narrow vertical dispersion, and IP55-rated weatherproof design, ensuring precise sound coverage for professional indoor and outdoor installations.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

AED 9,481.50 Inc VAT

16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Delivery Service

Our courier will deliver to the specified address

1-3 Days

Charges as per location

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year/ or per brand policy
  • Free 7 Days returns policy

Payment Methods:

RCF P 5228-L, 2 x 8" Pro-Sound Loudspeaker - Black

Description

RCF P 5228-L weatherproof line array loudspeaker

The RCF P 5228-L weatherproof line array loudspeaker is engineered for applications requiring high output and controlled directivity in both indoor and outdoor environments. This full-range two-way system features dual 8-inch neodymium woofers combined with dual high-frequency compression drivers, delivering balanced audio performance with enhanced clarity and precision. The symmetrical driver configuration ensures consistent horizontal dispersion, while maintaining accurate sound projection across large areas.

With a power handling capacity of 500 W RMS and a peak capability of 2000 W, the system achieves a maximum sound pressure level of 131 dB. Its frequency response from 80 Hz to 20 kHz supports full-range sound reproduction for speech and music applications. The constant directivity design provides a 90° horizontal and narrow 20° vertical coverage, making it ideal for focused sound distribution in venues requiring controlled vertical dispersion. The integrated crossover network improves signal coherence by reducing phase distortion and enhancing transient response.

The enclosure is constructed from a durable rotomolded cabinet with UV protection and complies with IP55 standards for weather resistance. The aluminum grille includes a protective backing layer, while the stainless steel mounting hardware ensures long-term durability in harsh conditions. An IP67-rated connector enables secure and weatherproof signal connections. The RCF P 5228-L is designed for precision coverage, high output, and reliable performance in demanding professional installations.



Features of P 5228-L



  • 500 W RMS continuous power handling
  • 131 dB maximum SPL output
  • 80 Hz to 20000 Hz frequency response

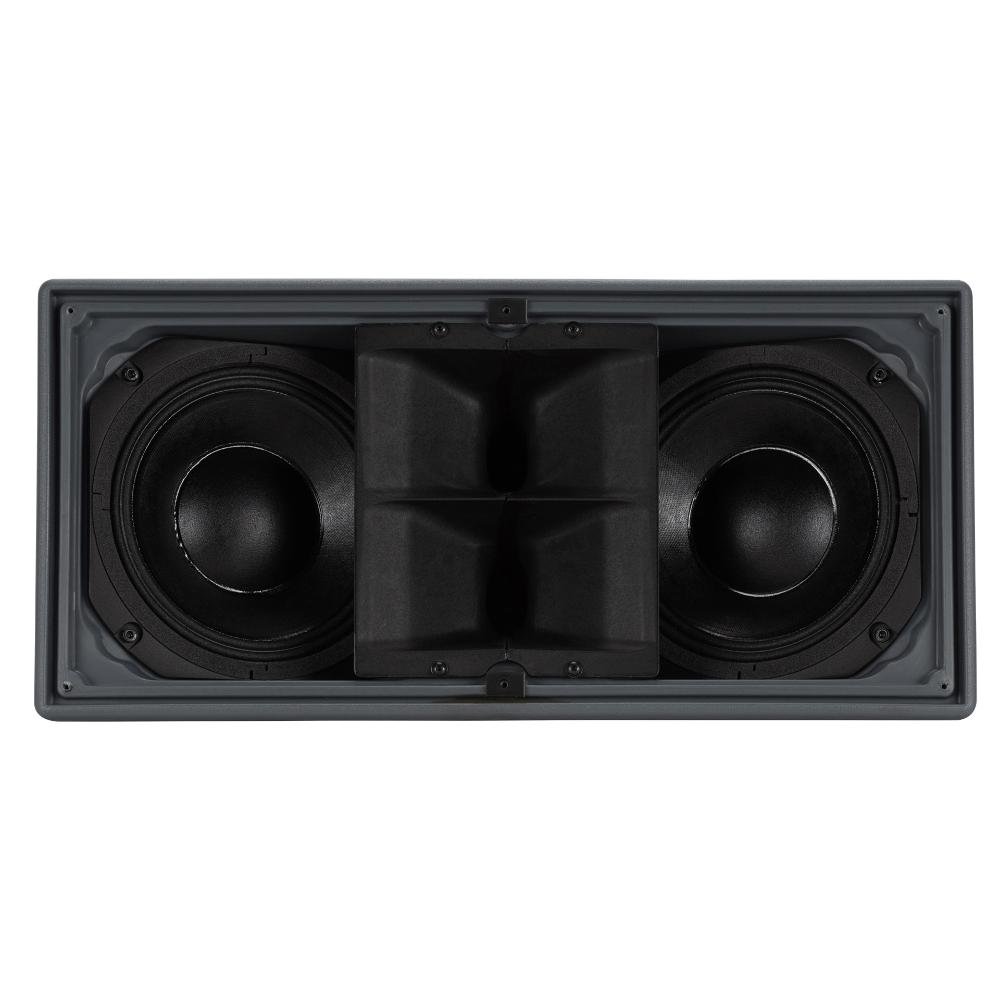

  • Dual 8-inch neodymium woofers
  • Dual high-frequency compression drivers
  • 90° x 20° controlled directivity coverage
  • Narrow vertical dispersion for precision
  • IP55-rated weatherproof enclosure
  • UV-protected rotomolded cabinet
  • Aluminum grille with protective backing

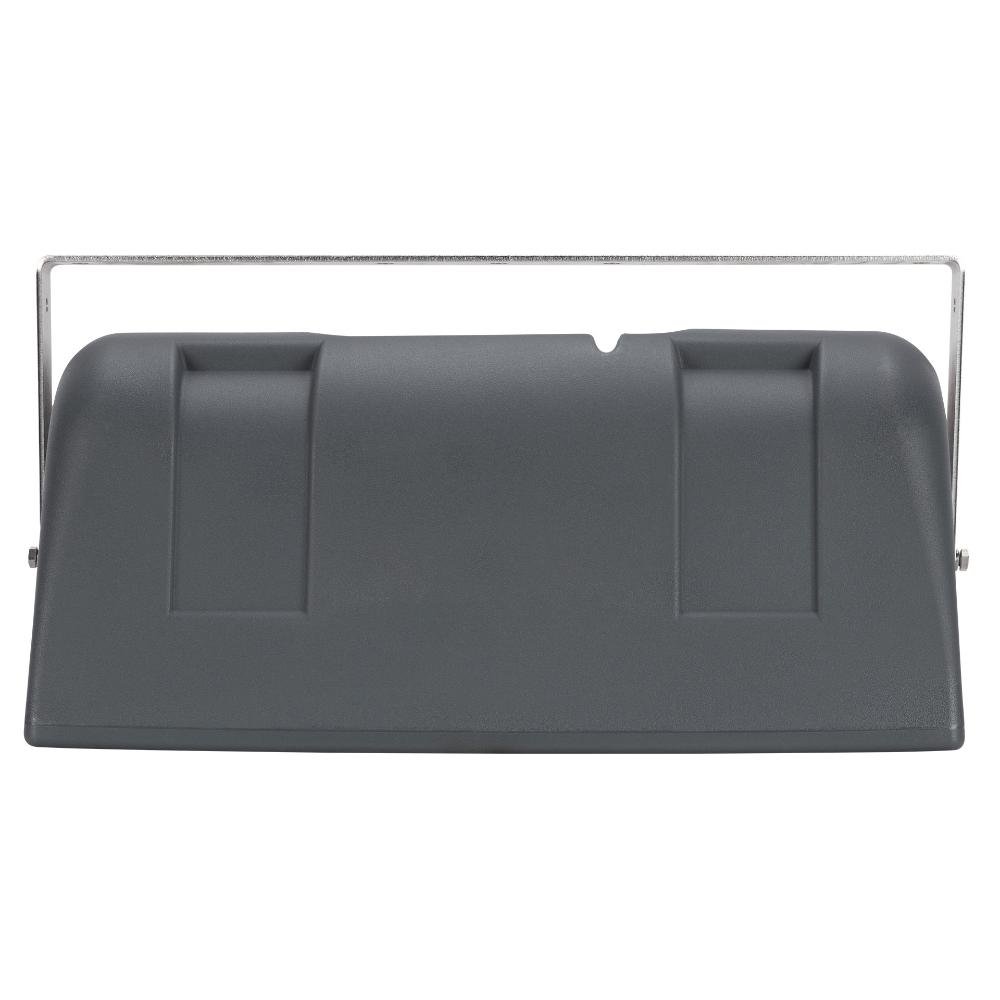

  • Stainless steel mounting hardware

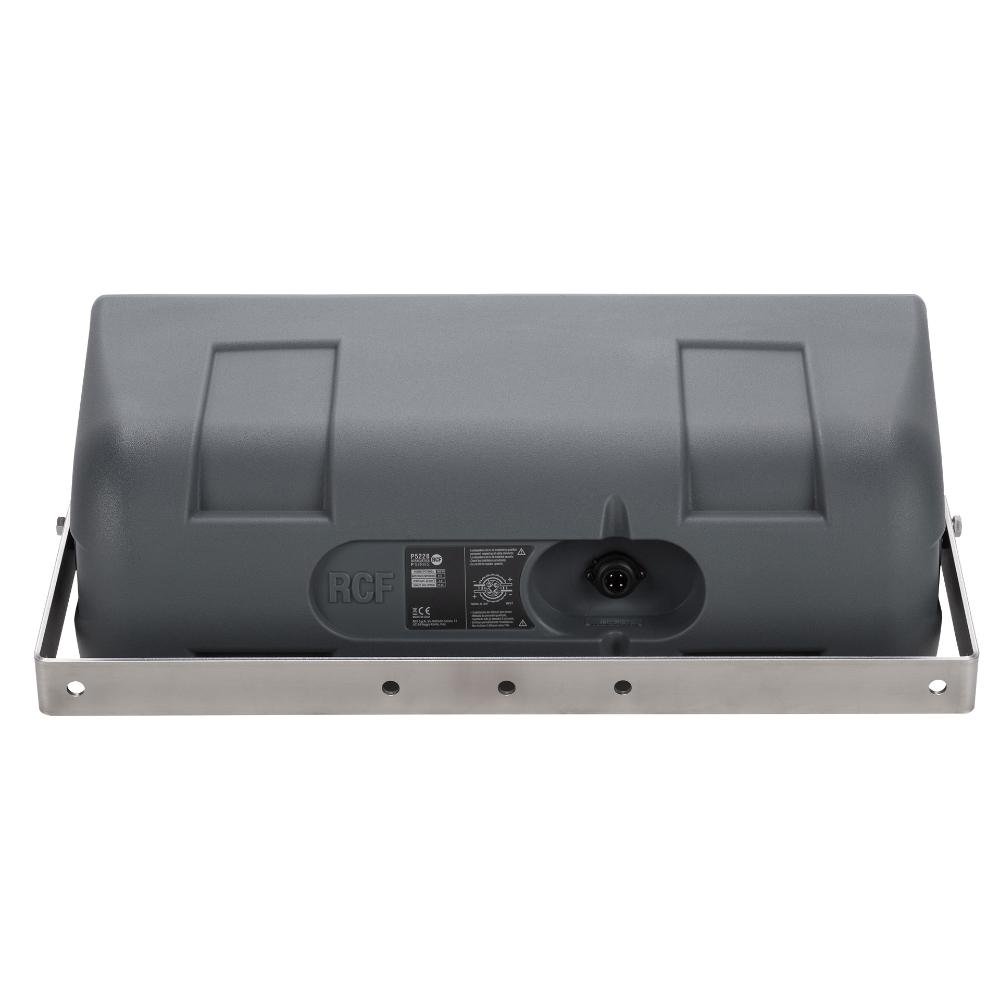

  • IP67-rated input connector
  • Advanced crossover for improved clarity
  • Active MOSFET driver protection
  • Suitable for indoor and outdoor use



Specifications of P 5228-L



Frequency Response (-10dB)80 Hz – 20000 Hz
Maximum SPL131 dB
Coverage Angle (H x V)90° x 20°
Directivity Index (Q)11
System Sensitivity98 dB
Nominal Impedance8 ohm
Power Handling500 W
Peak Power Handling2000 W
Crossover Frequency1300 Hz
Compression Driver2 x 1.0” neodymium, 1.75” v.c
Woofer2 x 8” neodymium, 2.5” v.c
Input ConnectorsAmphenol eco/mat IP67
ProtectionDynamic active MOSFET
IP RatingIP55
Safety ComplianceCE compliant
Cabinet MaterialPE low density
Mounting Hardware4 x M8 inserts
GrilleAluminum with water-repellent coating
Color OptionsGrey (RAL 7011)
Height268 mm
Width566 mm
Depth250 mm
Weight14 kg
Package Height604 mm
Package Width289 mm
Package Depth289 mm
Package Weight17 kg
