RCF WMF 33EN Two-Way Passive Wall-Mount Speaker

RCF WMF 33EN Two-Way Passive Wall-Mount Speaker

The RCF WMF 33EN is a two-way passive wall loudspeaker designed for horizontal or vertical installation. Two three-inch transducers and a dome tweeter provide the driver arrangement, with connections integrated into the wall support for a coordinated mounting interface.

The specified frequency response is 80 Hz – 22000 Hz. Rated power handling is 40 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 105 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 399 mm, width 92 mm, depth 236 mm, weight 5 kg. The enclosure material is ABS. The specified finish is Black – RAL 9005. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement.

Features of WMF 33EN

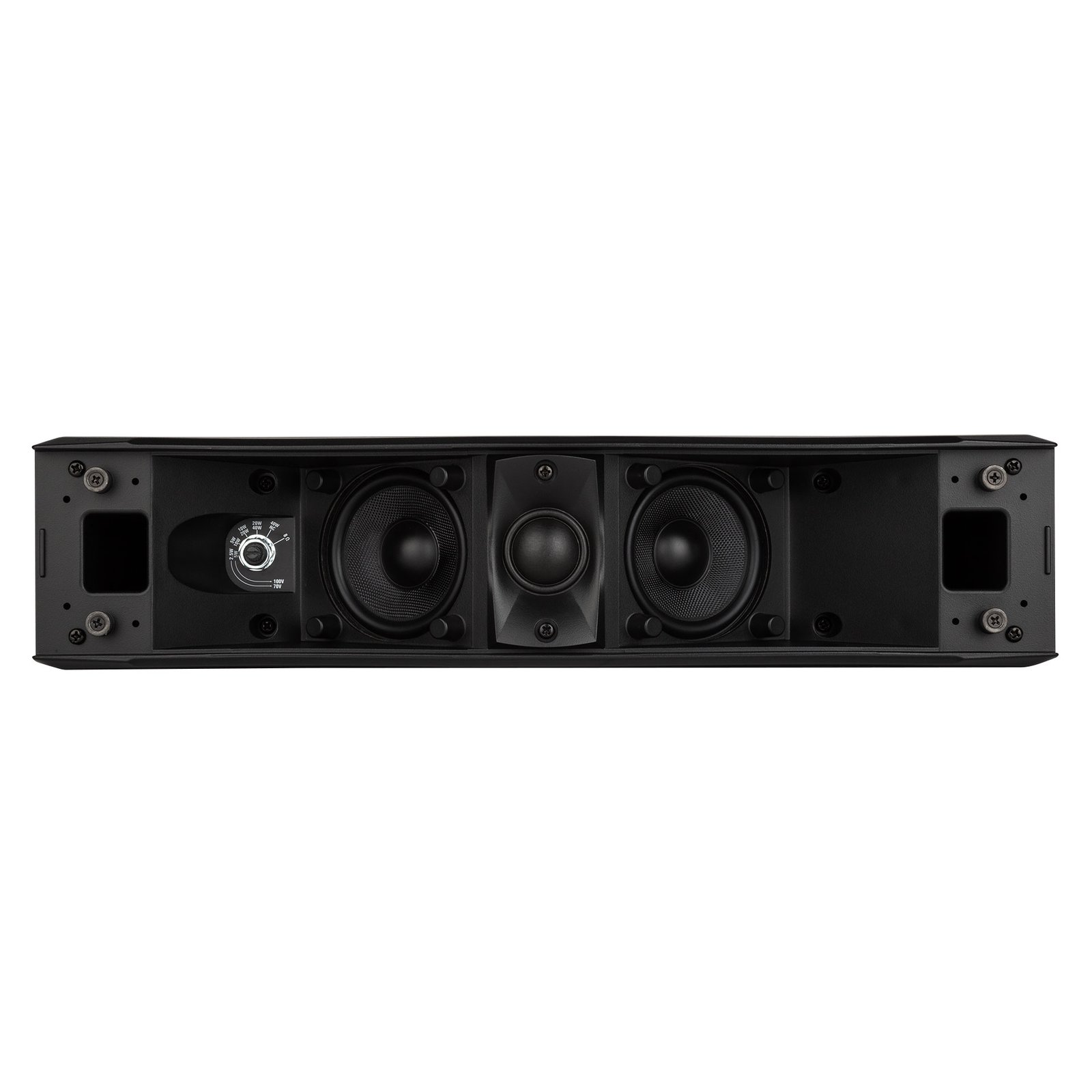

• 2 x 3″ full-range transducers with 1″ dome tweeter

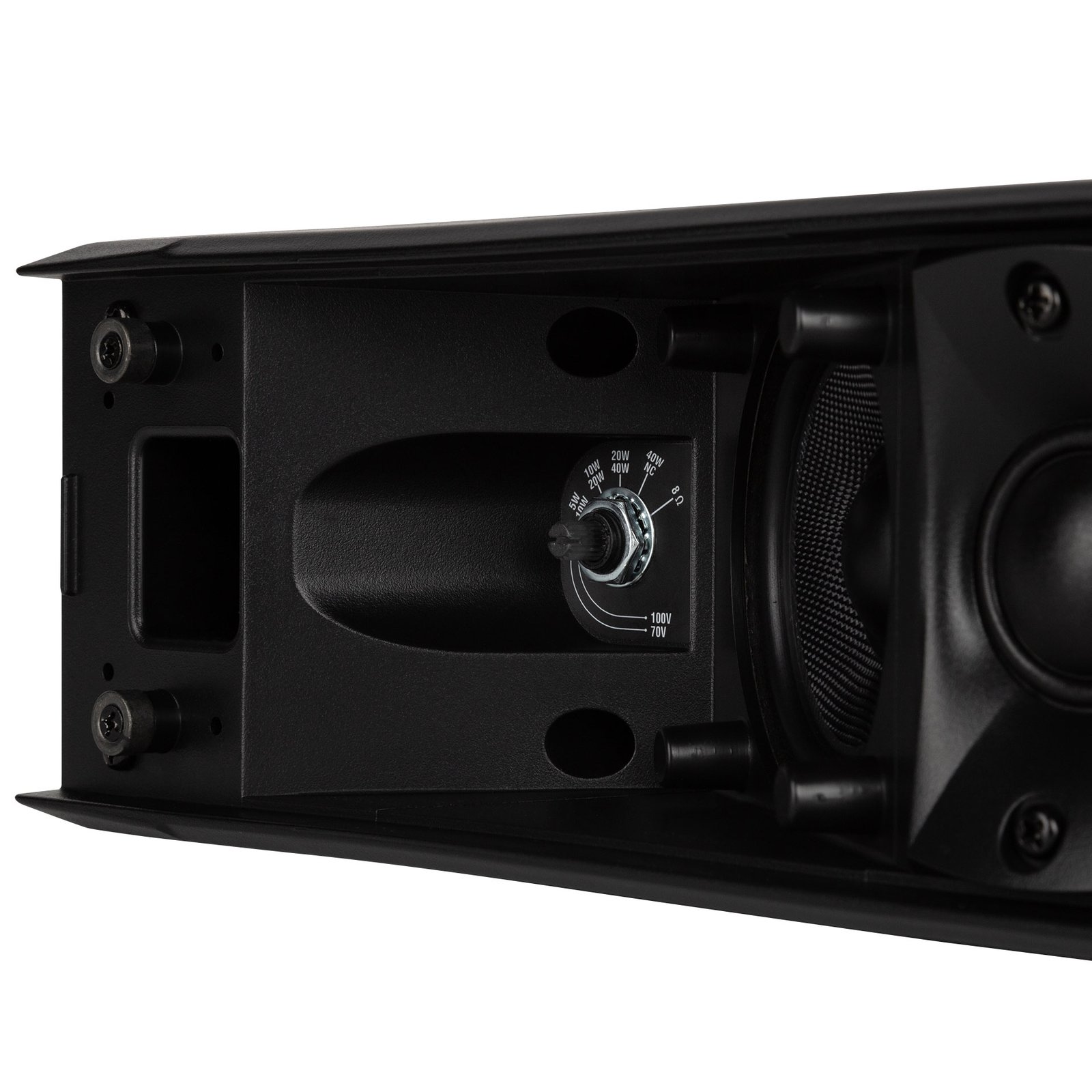

• Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
• 88 dB sensitivity
• Colour Black – RAL 9005
• Voice Alarm EN 54-24 Certified

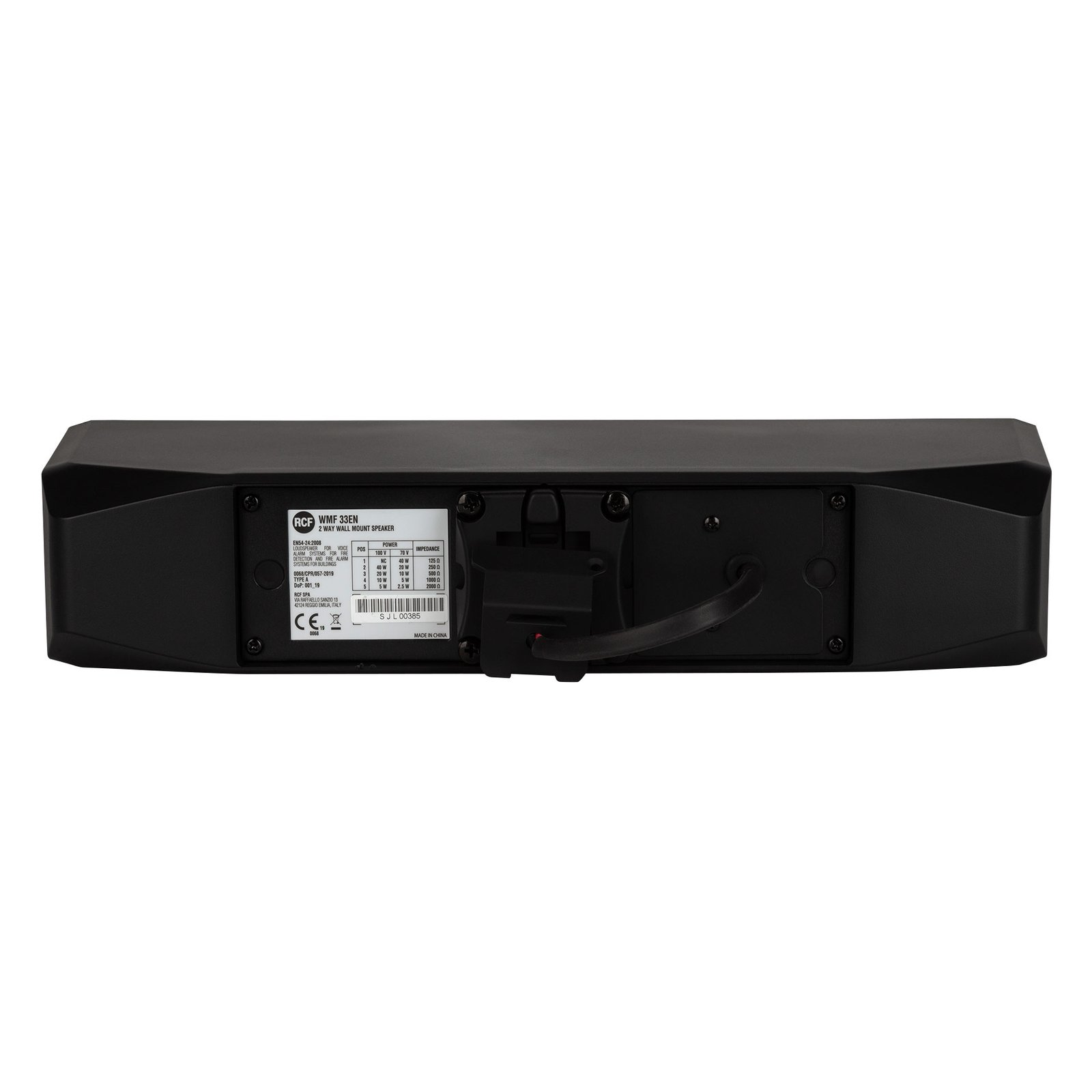

• In/out ceramic terminal block
• Thermal fuse protection

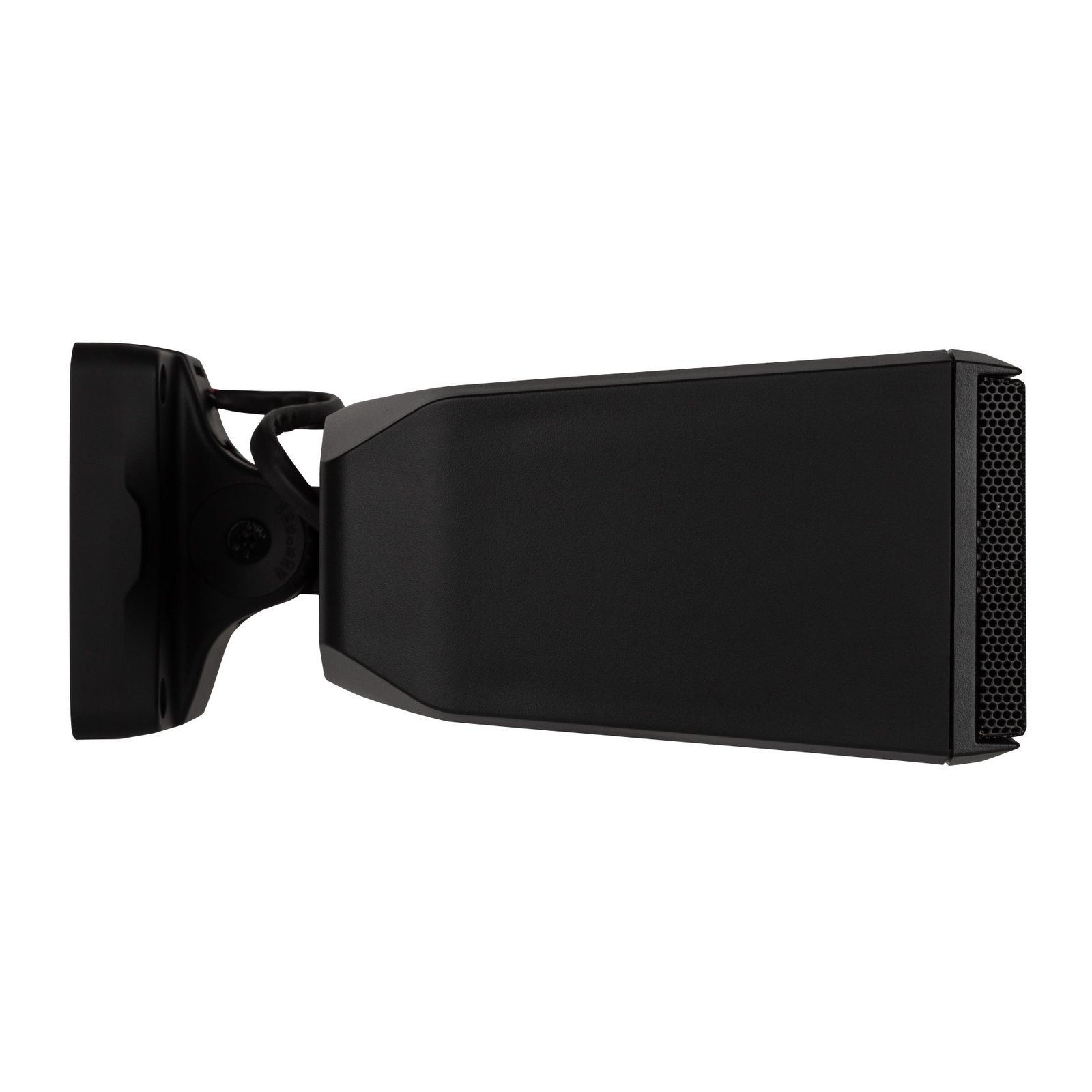

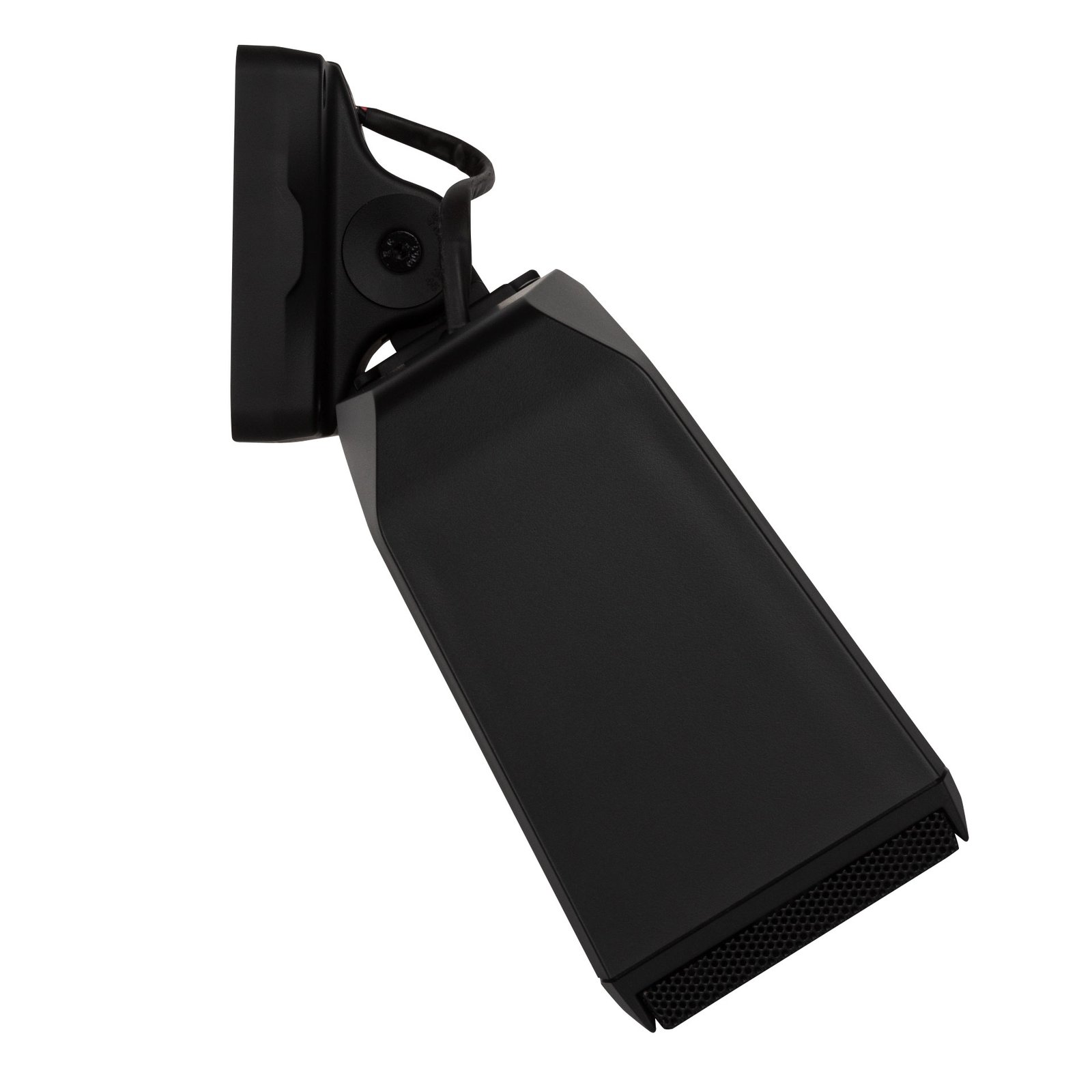

• Connections integrated in the wall support
• UL rated plastic enclosure

Specifications of WMF 33EN
