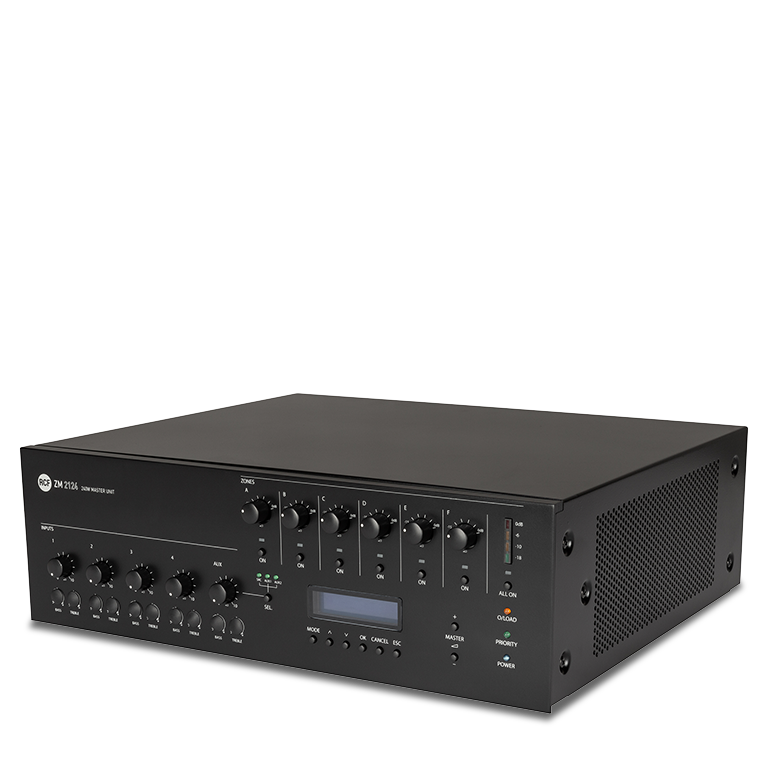

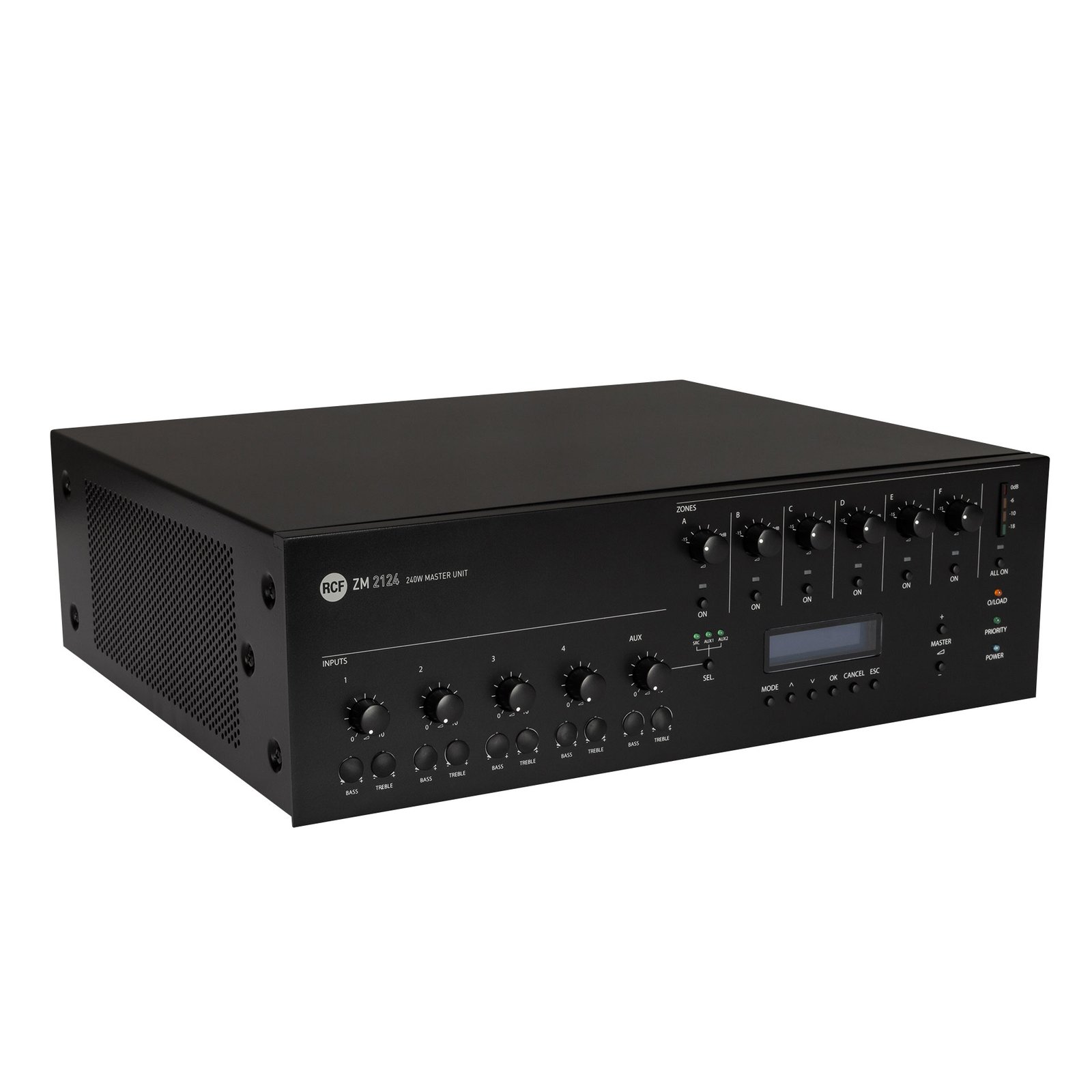

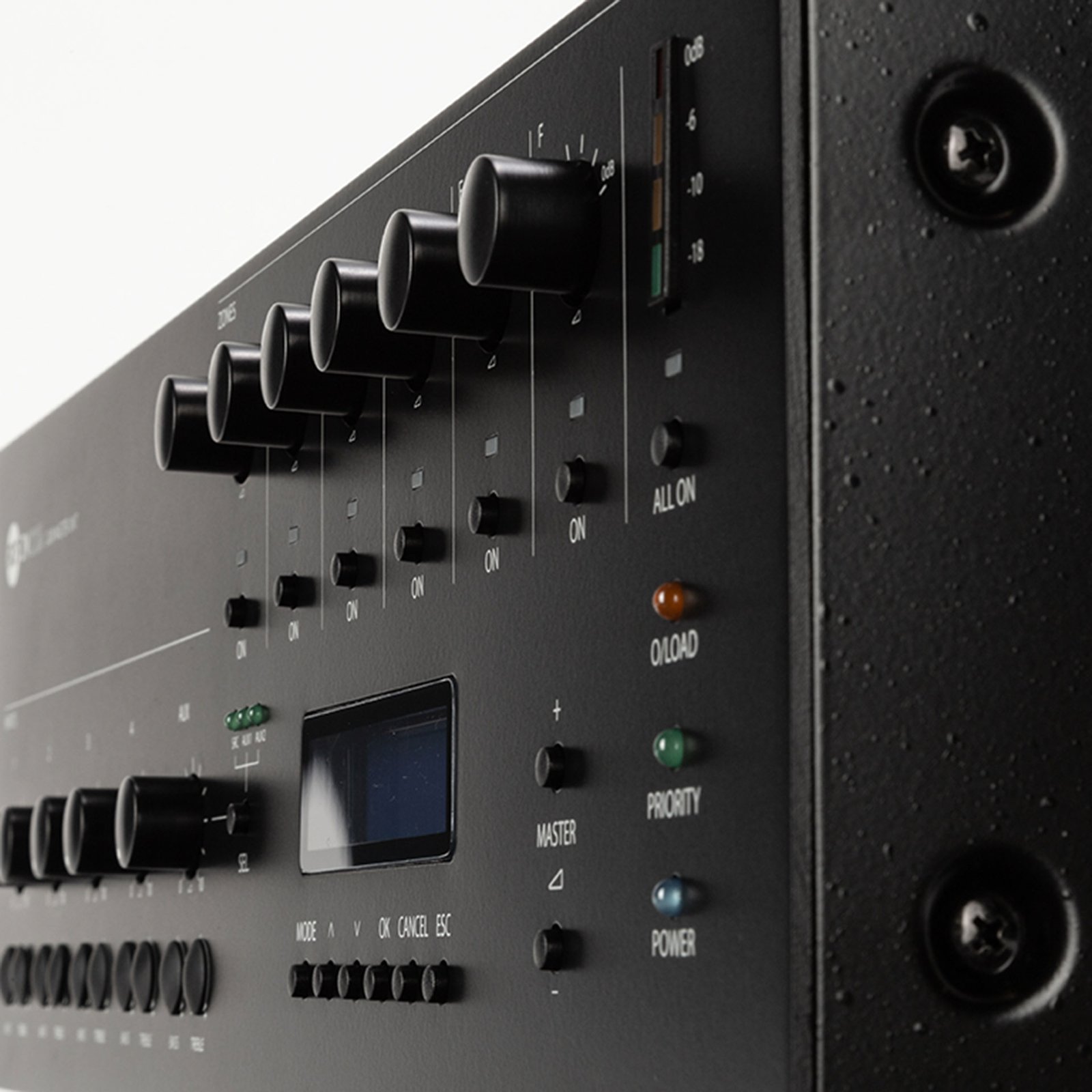

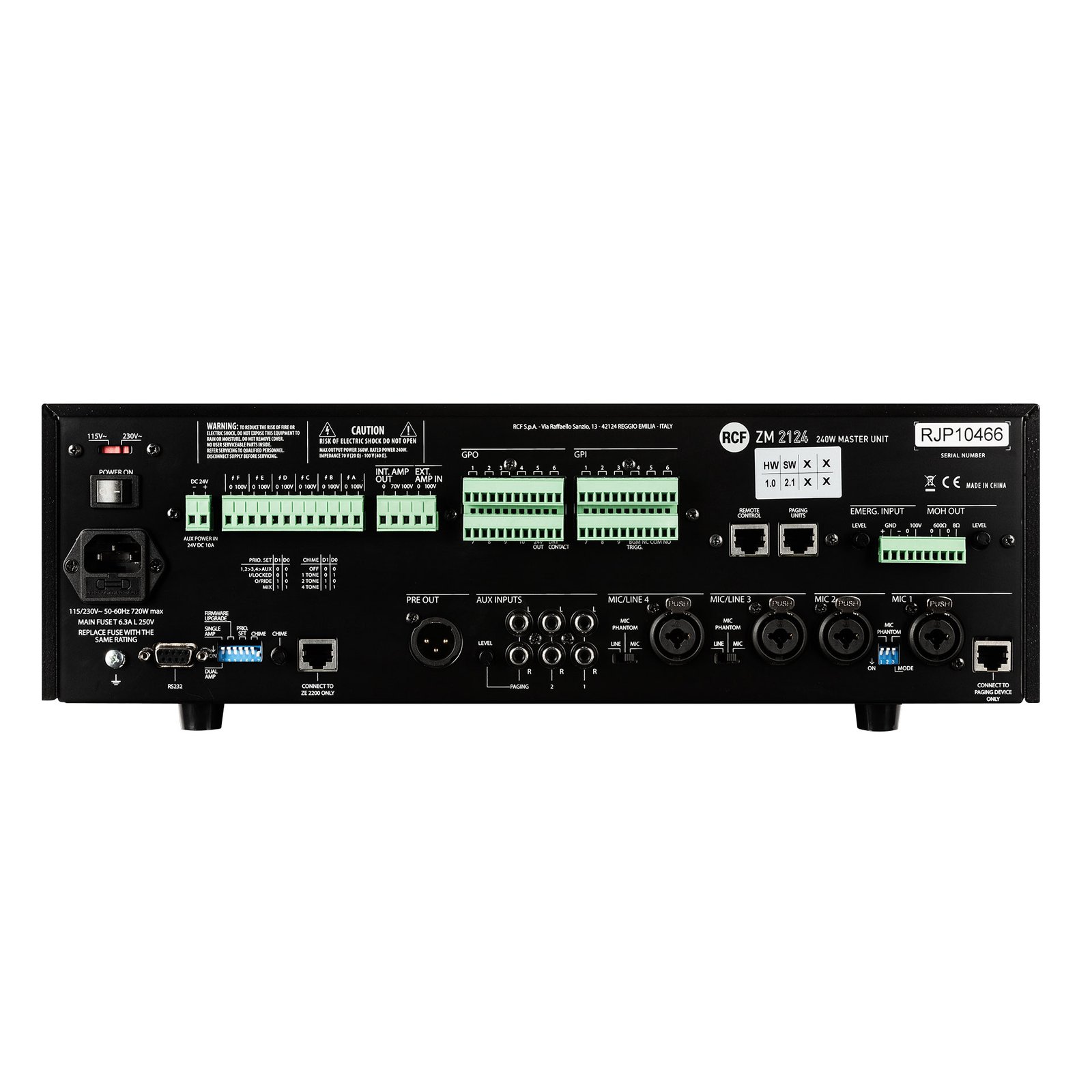

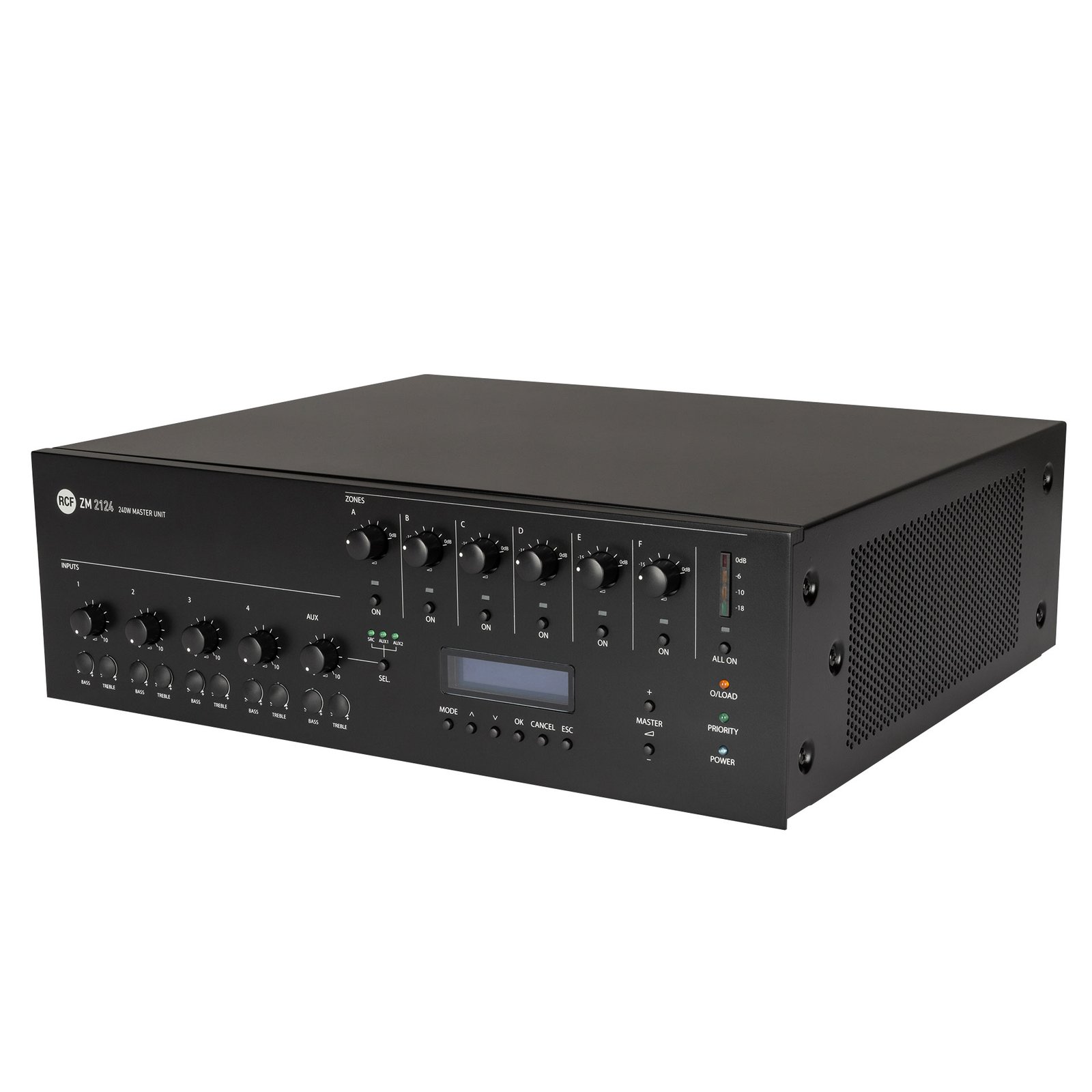

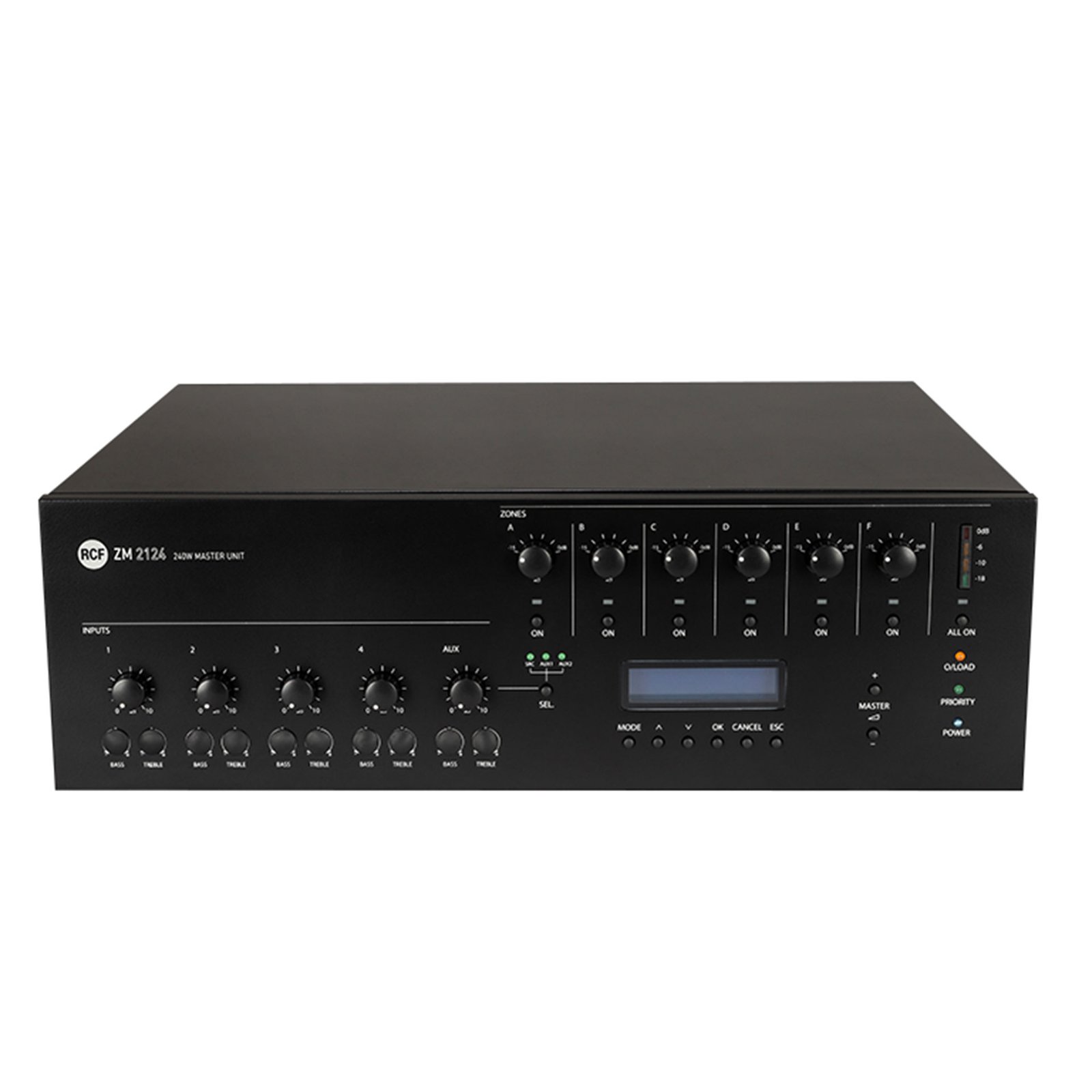

The RCF ZM 2124 is the amplified master unit of the ZM 2000 distribution system, combining a preamplifier, six-zone selection and a 240 W power amplifier. Its dual-bus architecture separates the routing requirements of music and announcements.

The specified frequency response is 50 Hz – 20 kHz. The total number of audio inputs is 9. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 133 mm, width 430 mm, depth 365 mm, weight 16.4 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components. Consider the complete signal path when planning the position and connection of each component within the installation.

Features of ZM 2124

• 240 W total power
• Dual-bus system architecture
• Selectable inputs priority
• Link up to 8 ZE 2200 zone expansions
• 24 V DC secondary power supply
• Dedicated paging input (up to 6 BM 2006)
• Emergency audio input
• Auxiliary external amplifier input
• Selectable chime generator
• Dedicated wall mount remote control

Specifications of ZM 2124
