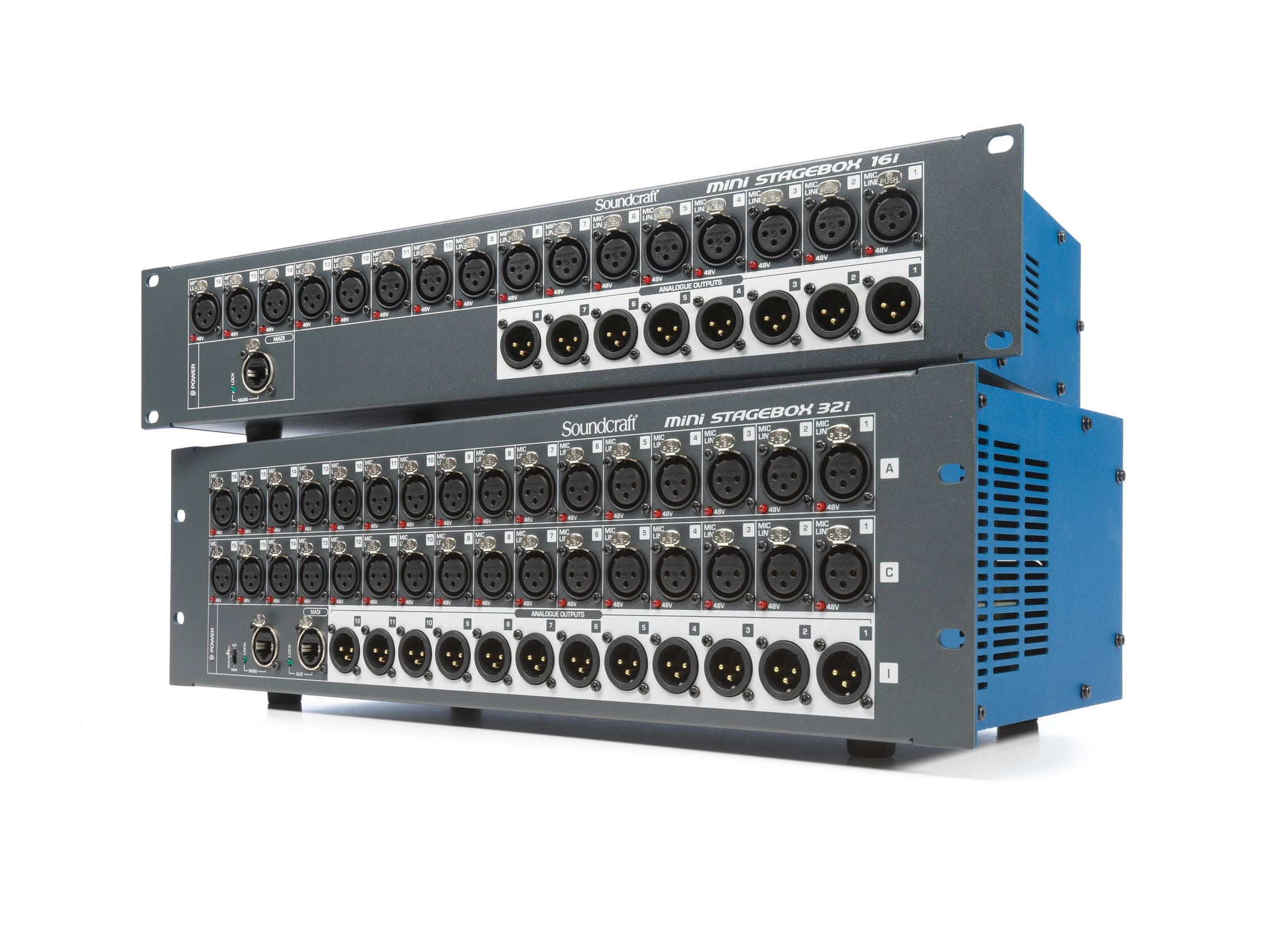

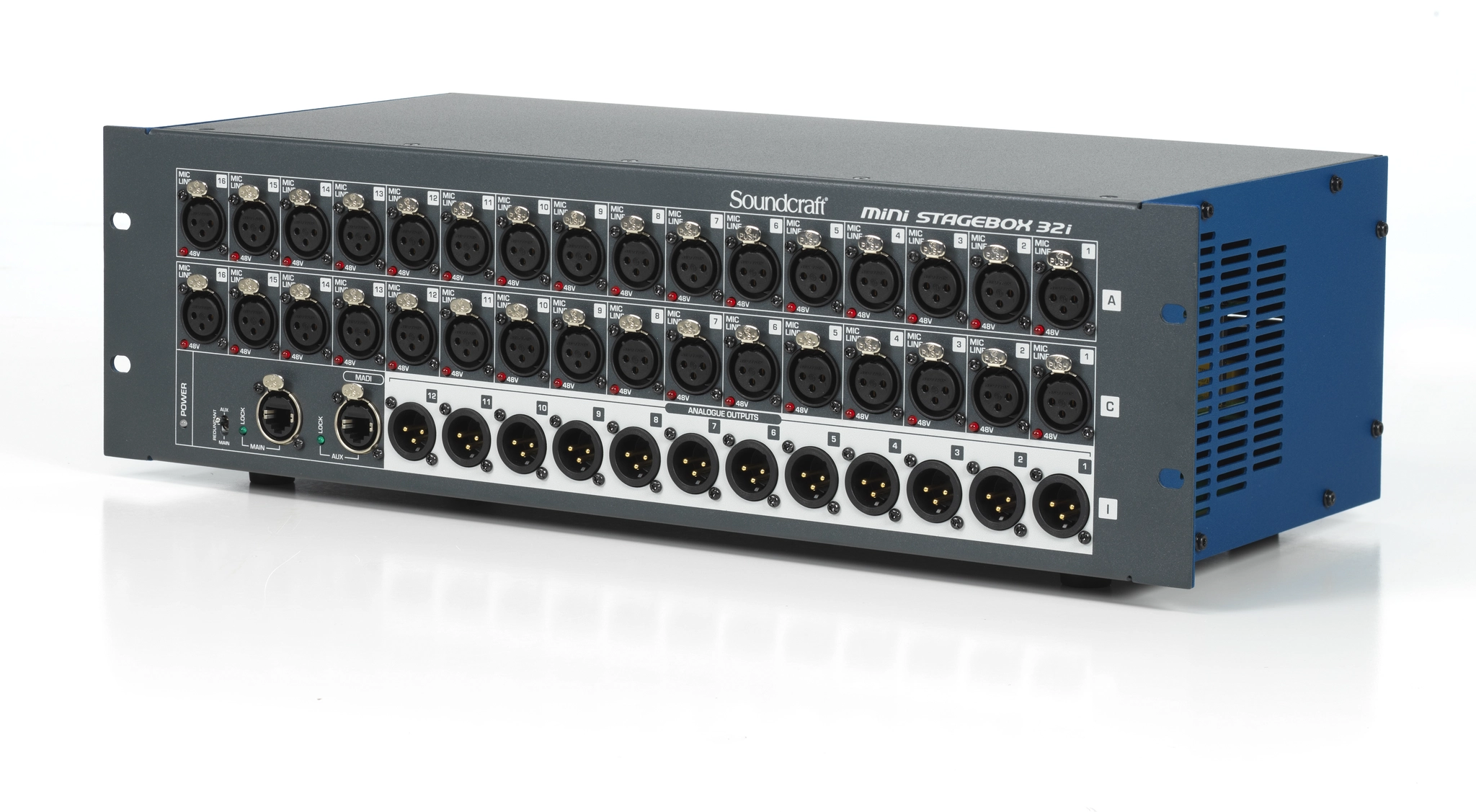

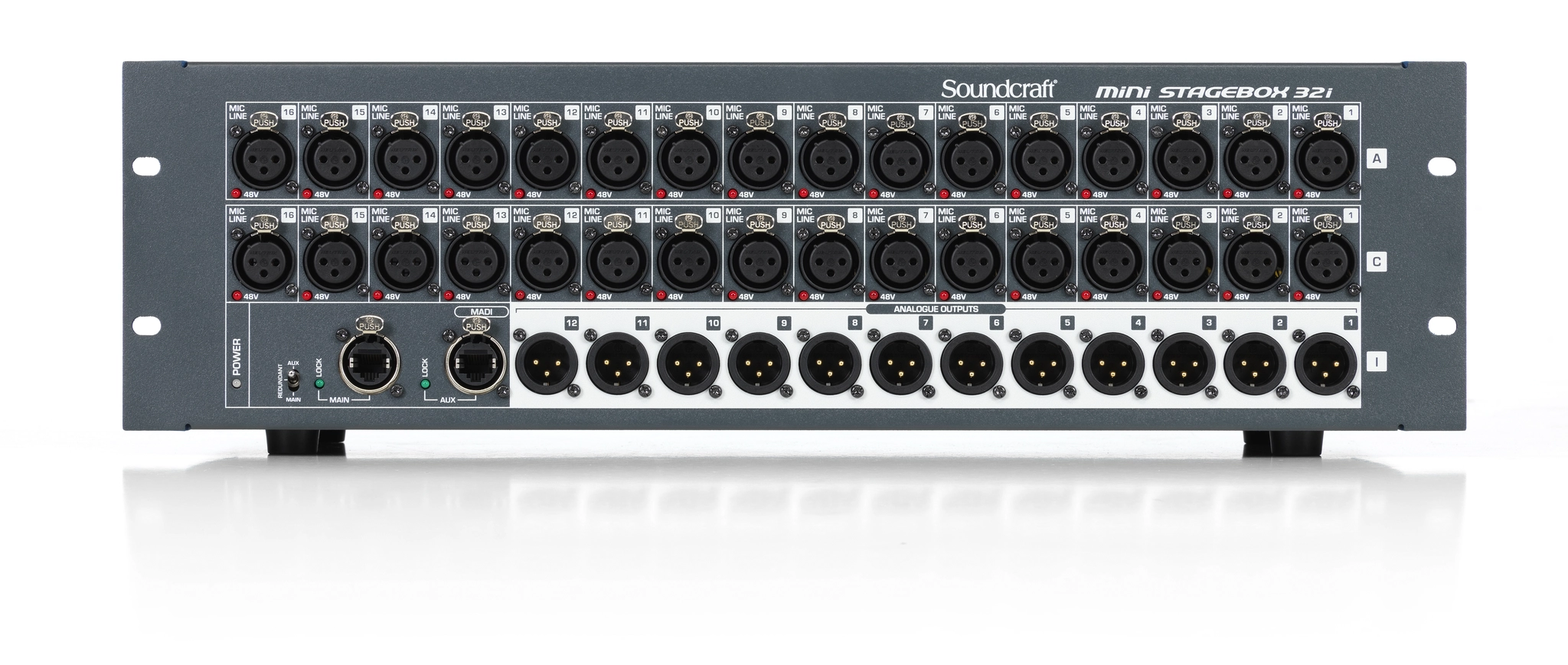

Soundcraft MSB-32i Mini Stage Box

Soundcraft MSB-32i Mini Stage Box

The Soundcraft MSB-32i is a compact digital stagebox in the Mini Stagebox range, built to extend the input capacity of Si series consoles without the need for a traditional analog multicore snake. Positioned on stage, the MSB-32i converts local microphone and line signals into digital audio and transports them to the console over MADI.

With 32 remote-controlled mic/line inputs and switchable phantom power, the MSB-32i is sized for full band and larger production stage plots that require significant local input capacity in a single unit. All gain and routing settings are controlled remotely from the console, keeping the stage-side unit simple to operate once patched in.

The MSB-32i is compatible with the Si Impact, Si Expression, and Si Performer console ranges through a MADI/USB combo option card, and can be paired with a second stagebox and an additional option card to further expand the total channel and microphone preamp count available to mix.

Its compact chassis makes the MSB-32i a practical choice for touring and installed sound applications that need high-channel-count digital stage input in a single, manageable footprint.

Features of MSB-32i

• 32 remote-controlled mic/line inputs
• Switchable phantom power
• Digital MADI connection to Si series consoles
• Compact chassis for high channel-count stage plots
• Remote gain and routing control from the console
• Compatible with Si Impact, Expression, and Performer ranges

Specifications of MSB-32i
