Allen & Heath DLIVE-S3/X S3000 Surface 20 Faders 12? Screen 8×8 I/O

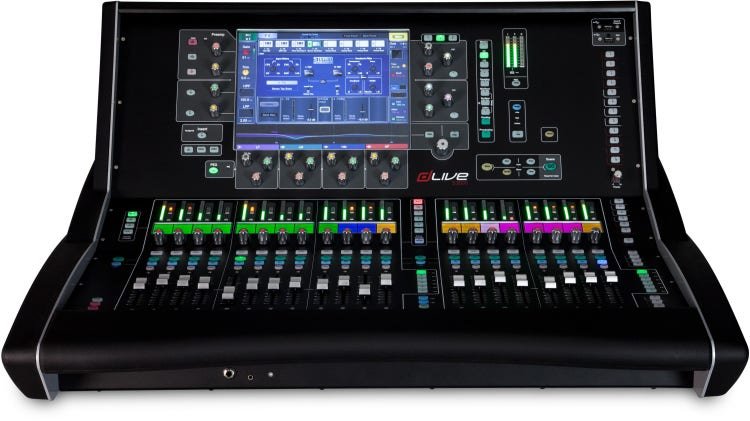

Allen & Heath dLive S3000 Digital Mixing Surface

The Allen & Heath dLive S3000 Digital Mixing Surface is a compact yet powerful member of the dLive S Class series, designed for professional touring, broadcast, theater, and live production environments. Combining advanced digital mixing technology with an intuitive user interface, the S3000 provides engineers with precise control, flexible routing, and reliable operation in demanding applications.

At the heart of the console is a 12-inch capacitive touchscreen powered by Allen & Heath’s Harmony UI. The interface supports intuitive gesture-based operation, including swipe, drag, and touch controls, allowing rapid access to channels, processing, metering, scenes, and routing functions. The streamlined workflow is enhanced by customizable layouts, assignable SoftKeys, and dedicated rotary encoders that provide immediate access to critical mixing parameters.

The S3000 features 20 motorized faders operating across six layers, offering control of up to 120 assignable strips. Local connectivity includes eight XLR microphone/line inputs, eight XLR line outputs, and AES3 digital I/O for versatile integration with professional audio systems. Three pages of assignable rotary encoders further improve operational flexibility, allowing engineers to customize control assignments according to production requirements.

For large-scale applications, the S3000 incorporates dual redundant GigaACE links for secure MixRack connectivity, dual DX expansion links, and two high-capacity 128-channel I/O ports operating at 96kHz. Additional professional features include word clock synchronization, external VGA output support, multi-surface operation capabilities, and optional redundant hot-swappable power supply functionality. Designed to serve as the control center of a dLive system, the Allen & Heath dLive S3000 delivers exceptional performance, expandability, and reliability for modern digital audio production.

Features of S3000

• 20 motorized faders with six layers
• Control of 120 assignable strips
• 12-inch capacitive Harmony UI touchscreen
• Intuitive gesture-based operation
• Eight local mic/line inputs
• Eight local line outputs
• AES3 digital audio connectivity
• Three pages of rotary encoders
• Six assignable rotary controls per page
• 26 customizable SoftKeys
• Dual redundant GigaACE connectivity
• Dual DX expansion links
• Two 128-channel I/O ports
• 96kHz audio networking support
• Word clock synchronization
• External VGA display output
• Customizable user layouts
• Real-time metering interface
• Multi-surface system operation
• Optional redundant power supply support
