Allen & Heath dLive CDM64 RUFX MixRack 64-input Digital Stage Box

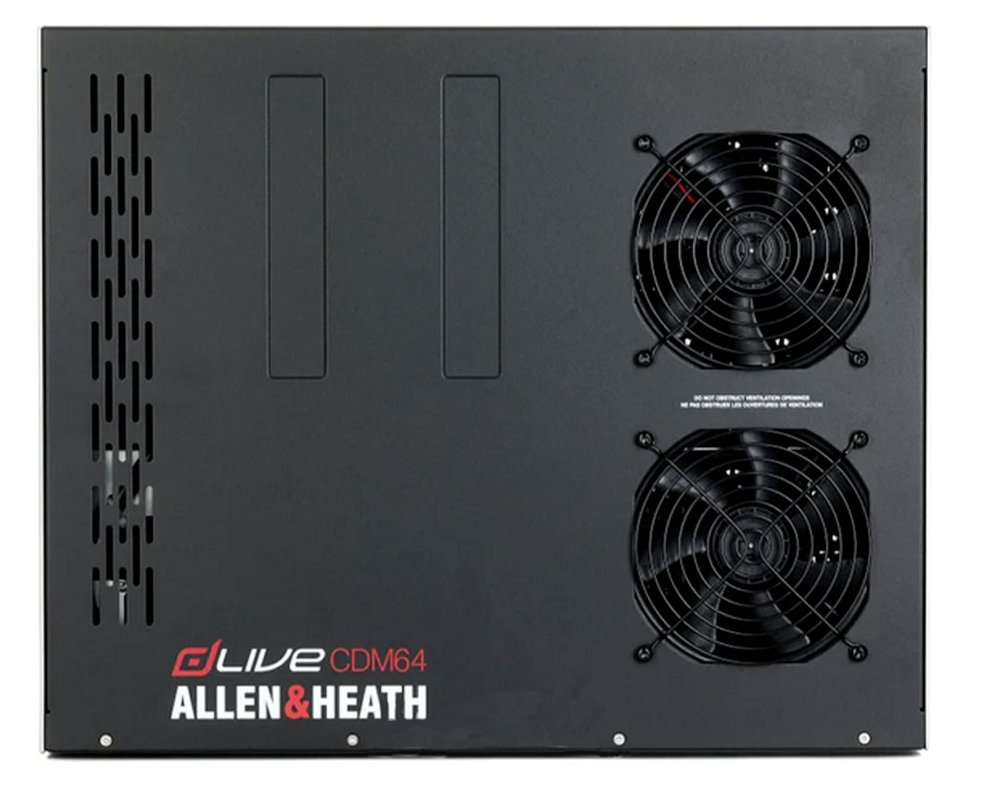

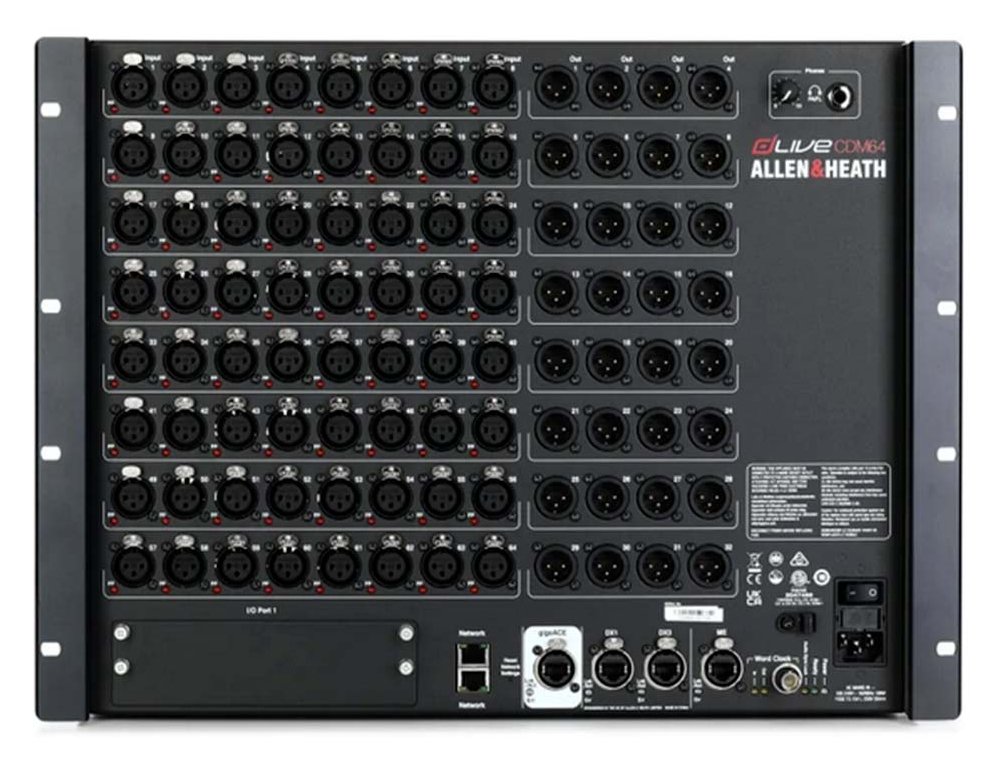

Allen & Heath dLive CDM64 UFX MixRack

The Allen & Heath dLive CDM64 UFX MixRack is a powerful 64-input, 32-output digital stage box designed to serve as the processing core of advanced dLive audio systems. Equipped with Allen & Heath’s XCVI Core technology, the CDM64 UFX provides exceptional processing power, extensive routing flexibility, and advanced effects capabilities for live sound reinforcement, corporate AV, theaters, houses of worship, and touring productions.

The system supports 128 input channels and 64 mix outputs through a configurable 64-bus architecture operating at 96kHz. Powered by six parallel mixing engines and a high-capacity FPGA router, the XCVI Core delivers precise audio performance with variable bit-depth processing, a 96-bit accumulator for increased headroom, and an ultra-low latency of just 0.7ms. The phase-aligned signal path ensures accurate audio reproduction and maximum flexibility across a wide range of applications.

The CDM64 UFX incorporates key dLive V2.0 enhancements, including an upgraded Cue List system for simplified cue management and custom MIDI recall functionality. The integrated Actions feature allows users to automate multiple operations with a single command, improving workflow efficiency during complex productions. An expanded Channel Library also enables the storage of sends, processing settings, names, and color information for rapid system recall.

A preinstalled RackUltra FX card adds eight dedicated effects engines without consuming standard inputs, buses, or FX slots. Users can further enhance mixes with EQs, compressors, reverb, delay, and modulation processing while maintaining complete routing flexibility. The MixRack can operate alongside a dLive Surface or independently through laptop and tablet control, making it an efficient solution for portable productions, fly-in events, and installations requiring advanced processing in a compact format.

Features of CDM64 UFX

• 64-input, 32-output digital MixRack
• XCVI Core processing architecture
• Supports 128 input channels
• 64 configurable mix outputs
• Configurable 64-bus architecture
• 96kHz audio processing
• Ultra-low 0.7ms latency
• Phase-aligned signal path
• Variable bit-depth processing
• 96-bit accumulator headroom
• DEEP processing technology
• RackUltra FX card included
• Eight additional FX engines
• 16 stereo effects returns
• Advanced Cue List management
• Single-command Actions automation
• Expanded Channel Library functionality
• Surface-less laptop operation
• Tablet-based mixing control
• Dante, Waves SG, ACE, and MADI compatibility
