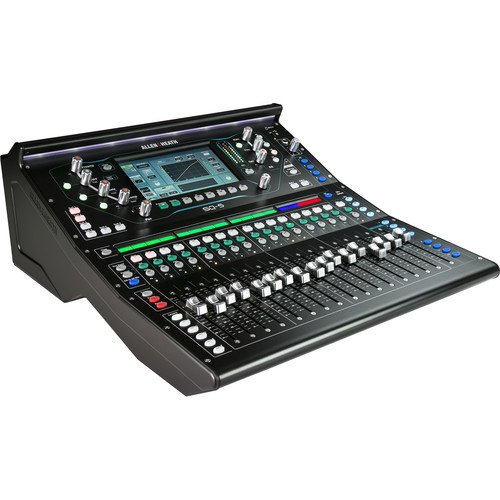

Allen & Heath SQ-5 48-Channel / 36-Bus Digital Mixer
The Allen & Heath SQ-5 digital mixer delivers 48-channel 96kHz processing, advanced effects, flexible networking, multitrack recording, and professional-grade control in a compact rack-mountable format.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 13,952.40 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

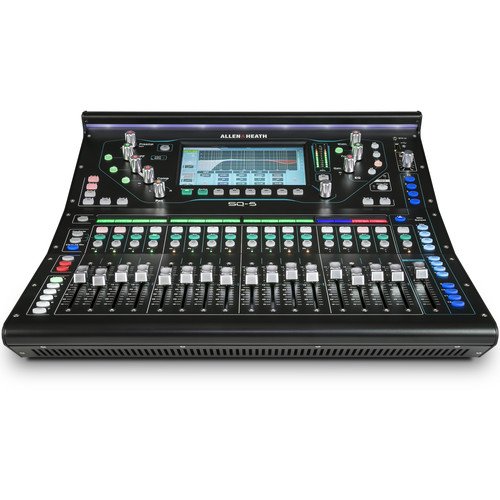

Allen & Heath SQ-5 Digital Mixer
The Allen & Heath SQ-5 is a professional 48-channel digital mixer designed for live sound, AV applications, installations, and monitoring environments where high-performance audio processing and compact portability are essential. Powered by Allen & Heath’s advanced 96kHz XCVI FPGA processing engine, the SQ-5 delivers exceptional audio quality, ultra-low latency operation, and extensive mixing capabilities within a compact rack-mountable design.

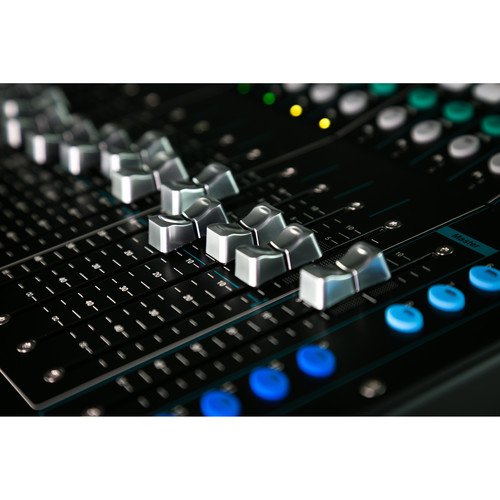

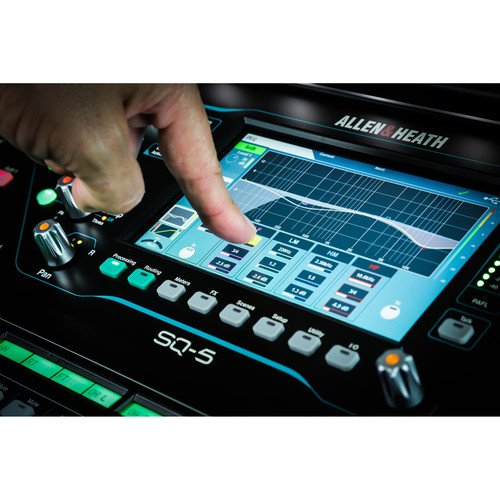

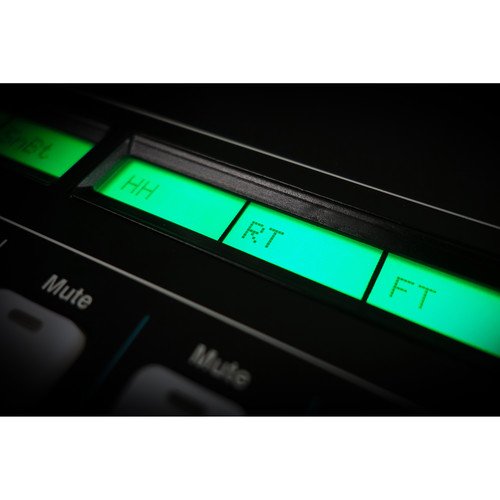

The mixer features 16 motorized faders plus a dedicated master fader, 16 onboard microphone preamps, a high-resolution 7-inch capacitive touchscreen, and eight assignable SoftKeys for customizable workflow control. Its intuitive drag-and-drop channel layout, custom naming options, color coding, and chromatic channel metering system enable efficient operation and rapid access to critical functions during live performances and productions.
Comprehensive onboard processing includes high-pass filters, gates with sidechain functionality, four-band parametric EQ, compressors, graphic EQ, and dynamic processing on every channel and mix bus. The SQ-5 also incorporates eight stereo FX engines with dedicated stereo returns, utilizing the acclaimed RackExtra effects library featuring reverbs, delays, modulation effects, and other professional-grade processing tools.

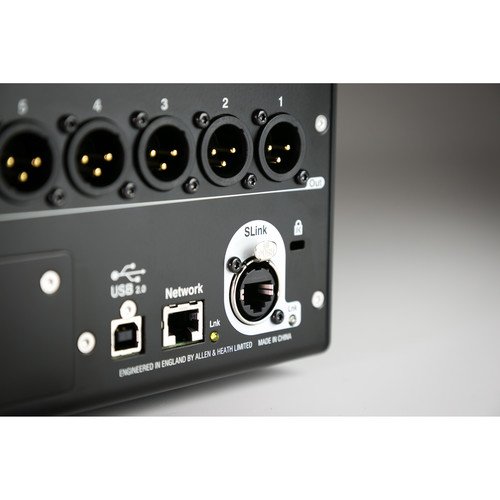

Integrated recording and streaming capabilities are provided through a built-in 32×32 USB audio interface and SQ-Drive USB recording system, supporting multitrack recording, playback, virtual soundcheck, and live streaming applications. The SLink expansion port allows seamless integration with Allen & Heath stage boxes and remote I/O devices, expanding the system to accommodate larger productions.
Built with a rugged all-metal chassis and engineered for demanding professional environments, the Allen & Heath SQ-5 combines powerful processing, flexible networking, advanced monitoring capabilities, and scalable I/O options to meet the requirements of modern audio production workflows.
Features of SQ-5
- 96kHz XCVI FPGA processing engine
- 48 input channel architecture
- 12 stereo mixes plus LR bus
- 3 stereo matrix outputs
- 16 built-in microphone preamps
- 17 motorized faders with 6 layers
- High-resolution 7-inch touchscreen
- Drag-and-drop channel assignment
- Chromatic LED channel metering

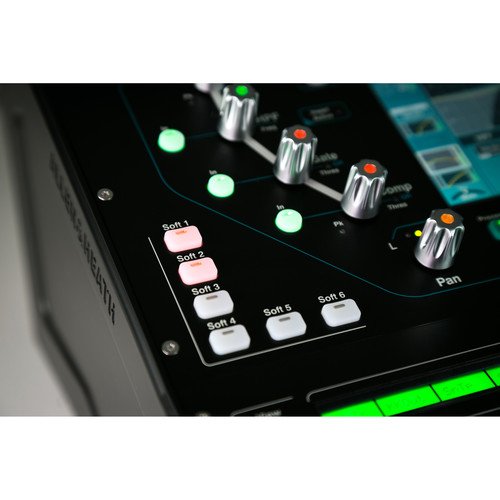

- 8 assignable SoftKeys
- Eight stereo FX engines
- Dedicated stereo FX returns
- RackExtra effects library included
- Four-band parametric EQ per channel
- Integrated gate and compressor processing
- 28-band graphic EQ on mixes
- DEEP Processing ready
- Automatic Mic Mixer support
- 32×32 USB audio interface
- Direct multitrack USB recording

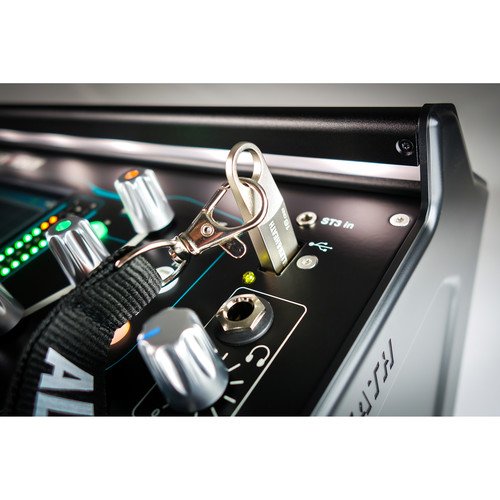

- SQ-Drive USB recording system
- SLink remote audio expansion

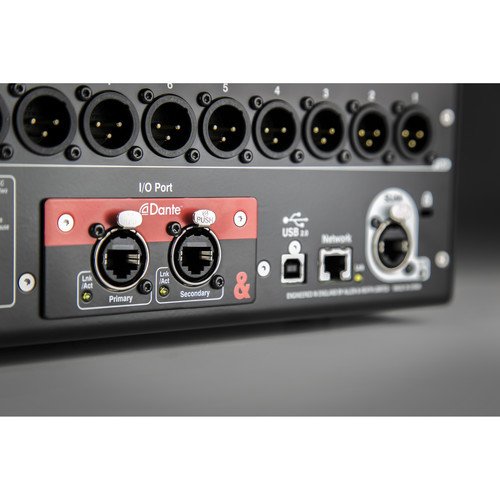

- 64×64 networking card support
- Dante, Waves, MADI compatibility
- ME Personal Mixing System support
- Virtual soundcheck functionality
- DAW MIDI control integration
- Mobile app remote control support

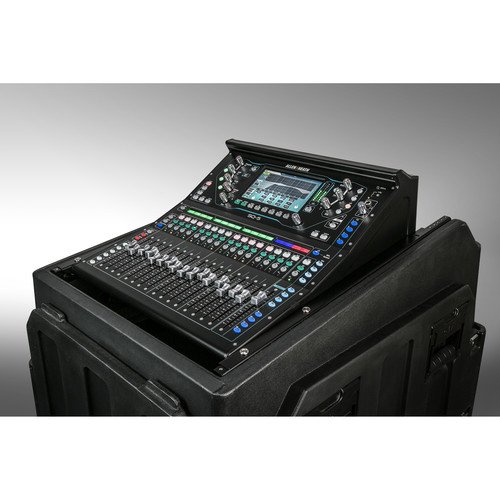

- Rack-mountable compact design
- Durable all-metal chassis construction
Specifications of SQ-5
| Processing Engine | 96kHz XCVI FPGA |
| Maximum I/O Capacity | 48 Inputs / 36 Outputs |
| Input Channels | 48 |
| Stereo Mixes | 12 |
| Main Bus | LR |
| Stereo Matrix | 3 |
| Mic Preamps | 16 |
| Analog Outputs | 14 |
| Faders | 17 × 100 mm Motorized |
| Layers | 6 |
| Touchscreen | 7-inch Capacitive |
| SoftKeys | 8 Assignable |
| FX Engines | 8 Stereo |
| FX Returns | 8 Dedicated Stereo Returns |
| Graphic EQ | 28-Band 1/3 Octave |
| Parametric EQ | 4-Band |
| High-Pass Filter | 20 Hz – 2 kHz, 12 dB/Octave |
| Dynamic Processing | Compressor, Gate, Limiter |
| Automatic Mic Mixing | Yes |
| Audio Delay | Up to 682 ms |
| Sample Rate | 96 kHz |
| Bit Depth | Up to 96-Bit Processing |
| Frequency Response | 20 Hz – 20 kHz (+0/-0.5 dB) |
| Dynamic Range | 112 dB |
| Noise Floor | -90 dBu |
| THD+N | 0.006% at Unity Gain |
| Phantom Power | +48 V |

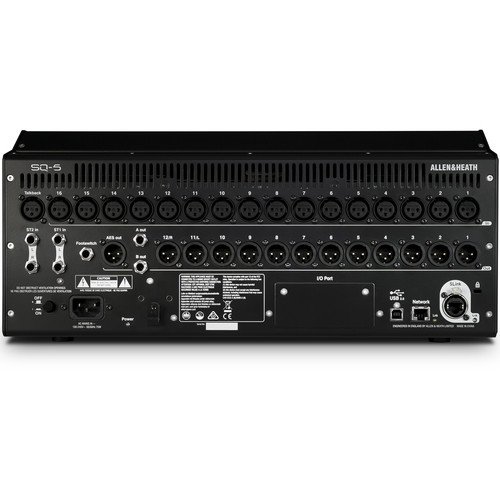

| Analog Inputs | 16 × XLR Mic/Line, 4 × TRS Aux, 1 × 3.5 mm Aux, 1 × XLR Talkback |
| Analog Outputs | 12 × XLR, 2 × TRS |
| Digital Outputs | AES3 XLR |
| Network Port | RJ45 |
| Expansion Port | 1 × I/O Card Slot |
| SLink Port | Yes |
| USB Ports | USB-A, USB-B |
| USB Audio Interface | 32 × 32 |
| Direct USB Recording | SQ-Drive |
| Audio Networking Support | Dante, Waves, MADI, SLink |
| Mobile App Support | Android and iOS |
| Compatible Apps | SQ MixPad, SQ4You, SQ Control |
| Rack Mountable | Yes |
| Chassis Construction | All-Metal |
| Monitoring Support | ME Personal Mixing System |
| DAW Control | MIDI Compatible |
| Signal Generator | Sine, White, Pink, Band-Pass Noise |
