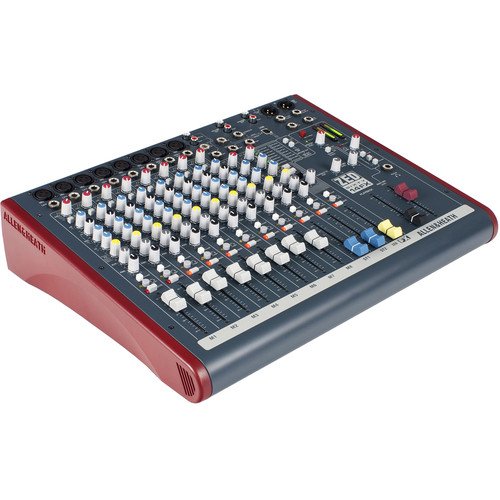

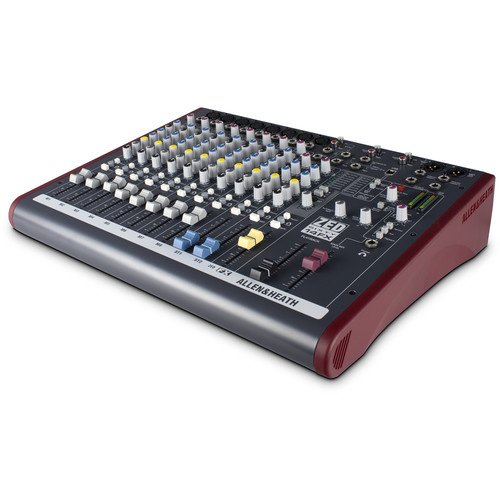

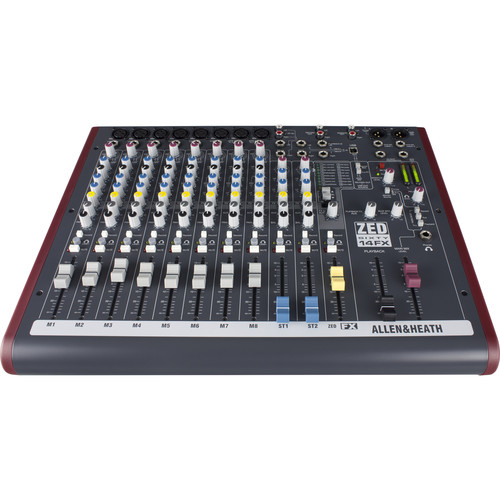

Allen & Heath ZED60-14FX Live and Studio Mixer
The Allen & Heath ZED60-14FX is a professional compact mixer designed for musicians, recording engineers, and live sound applications requiring flexible connectivity and high-quality audio performance. Combining premium analogue circuitry, integrated digital effects, and USB audio interfacing, the mixer provides an ideal solution for live mixing, recording, and project studio environments.
The mixer offers eight mono input channels, including six mic/line inputs and two dedicated Hi-Z instrument channels designed for direct connection of electric guitars and basses. The Class-A FET circuitry on channels 7 and 8 delivers warm, tube-like characteristics and accommodates low-output instruments without requiring external DI boxes. All mono channels feature a responsive 3-band EQ with sweepable mids and a high-pass filter for precise tonal control and removal of unwanted low-frequency content.
Two stereo channels are also provided for keyboards, media players, and additional line-level sources, each equipped with a 2-band EQ section. Every channel can be assigned to a dedicated recording bus, enabling direct recording to a computer through the USB interface or to external recording devices through the stereo record outputs.
The integrated DSP engine includes sixteen professional effects consisting of multiple reverbs, delays, chorus, flanger, and combined delay-reverb algorithms. Derived from Allen & Heath’s flagship digital consoles, these effects provide low-noise and low-distortion processing for both live and studio applications.
With balanced XLR outputs, dedicated auxiliary and effects sends, flexible monitoring options, and robust construction, the Allen & Heath ZED60-14FX delivers extensive functionality and professional audio performance in a compact mixer design.
Features of ZED60-14FX
- Twelve-channel live and studio mixer
- Six mic/line inputs with 3-band EQ
- Two Mic/Hi-Z instrument inputs
- Class-A FET guitar input circuitry
- Two stereo input channels with 2-band EQ
- Sixteen built-in digital effects
- Multiple delay and reverb algorithms
- Chorus and flanger effects processing
- USB audio interface for recording and playback
- Dedicated stereo recording bus
- FX send and Aux send per channel
- Balanced XLR main outputs
- Unbalanced monitor and record outputs
- Per-channel Listen solo switch
- High-pass filters on mono channels
- 48V phantom power for condenser microphones
- Main output insert points
- Switchable headphone monitoring
- Rugged construction for live applications
- Compatible with Windows and macOS systems
Specifications of ZED60-14FX
| Max I/O Capacity | 12 Inputs / 6 Outputs |
| Number of Analog Input Channels | 12 (8 Mono / 2 Stereo) |
| Number of Mic Preamps | 8 |
| Analog Output Channels | 1 × Stereo Master Output, 1 × Stereo Monitor Output, 1 × Mono Aux Send, 1 × Mono FX Send, 1 × Stereo Record Output, 1 × Stereo Headphone Output |
| Mix Routing | Main Mix / Aux Bus / FX Bus |
| Channel Faders | 8 |
| Master Fader | 1 |
| Metering | Dual 12-Segment LED |
| Gain Range | +60 dB (Mic/Line), +26 dB (Hi-Z) |
| EQ (Mono Channels) | 3-Band EQ with Sweepable Mid |
| EQ (Stereo Channels) | 2-Band Shelving EQ |
| EQ Parameters (Mono) | Low: ±15 dB at 80 Hz, Mid: ±15 dB at 120 Hz–4 kHz, High: ±15 dB at 12 kHz |
| EQ Parameters (Stereo) | Low: ±15 dB at 80 Hz, High: ±15 dB at 12 kHz |
| High-Pass Filter | 100 Hz, 6 dB/Octave |
| Built-In Effects | 16 Digital Effects |
| Effects Types | 3 Delay+Reverb, 3 Delay, 7 Reverb, 1 Flanger, 1 Chorus |
| Sample Rates | 32 / 44.1 / 48 kHz |
| Bit Depth | 16-Bit |
| Frequency Response (Mic Input) | 10 Hz to 30 kHz (+0.5/-1 dB) |
| Frequency Response (Line Input) | 10 Hz to 25 kHz (+0.5/-1 dB) |
| Frequency Response (Stereo Input) | 10 Hz to 30 kHz (+0.5/-1 dB) |
| Maximum Mic Input Level | +11 dBu |
| Maximum Line Input Level | +31 dBu |
| Maximum Stereo Input Level | +15 dB |
| Noise Floor | -93 dBu |
| THD+N (Mic Input) | 0.002% at +10 dB Gain, 0.01% at +30 dB Gain |
| THD+N (Line Input) | 0.003% at Unity Gain |
| THD+N (Stereo Input) | 0.002% at Unity Gain |
| THD+N (Hi-Z Input) | 0.015% |
| Mic Inputs | 8 × XLR 3-Pin Mic/Line Inputs |
| Line Inputs | 6 × 1/4″ TRS Line Inputs |
| Hi-Z Inputs | 2 × 1/4″ TRS Unbalanced |
| Stereo Inputs | 4 × 1/4″ TS Inputs (2 Stereo Pairs), 1 × Stereo RCA Input |
| Main Outputs | 2 × XLR 3-Pin Balanced |
| Monitor Output | 1 × Stereo RCA |
| Record Output | 1 × Stereo RCA |
| FX Send | 1 × 1/4″ TRS |
| Aux Output | 1 × 1/4″ TRS |
| Headphone Output | 1 × 1/4″ TRS |
| Phantom Power | +48 V, Selectable On/Off |
| USB Connectivity | 1 × USB-B 1.1 |
| Maximum Multitrack Recording | 12 Tracks |
| Operating System Compatibility | Windows, macOS |
| Dimensions | 440 × 346 × 95 mm |
| Weight | 6.2 kg |
| Package Weight | 14.5 lb |
| Box Dimensions | 20.3 × 15.8 × 7.3 in |
