BSS Soundweb London BLU-BIB Break-In Box Input Expander – UK

BSS Soundweb London BLU-BIB 8-channel analog break-in box (UK)

The Soundweb London BLU-BIB, or break-in box, offers 8 channels of analog audio input expansion onto the Soundweb London high-bandwidth, fault-tolerant digital audio bus. It is designed for installations that need additional analog inputs beyond what a primary Soundweb London chassis provides, without requiring a full additional signal processor.

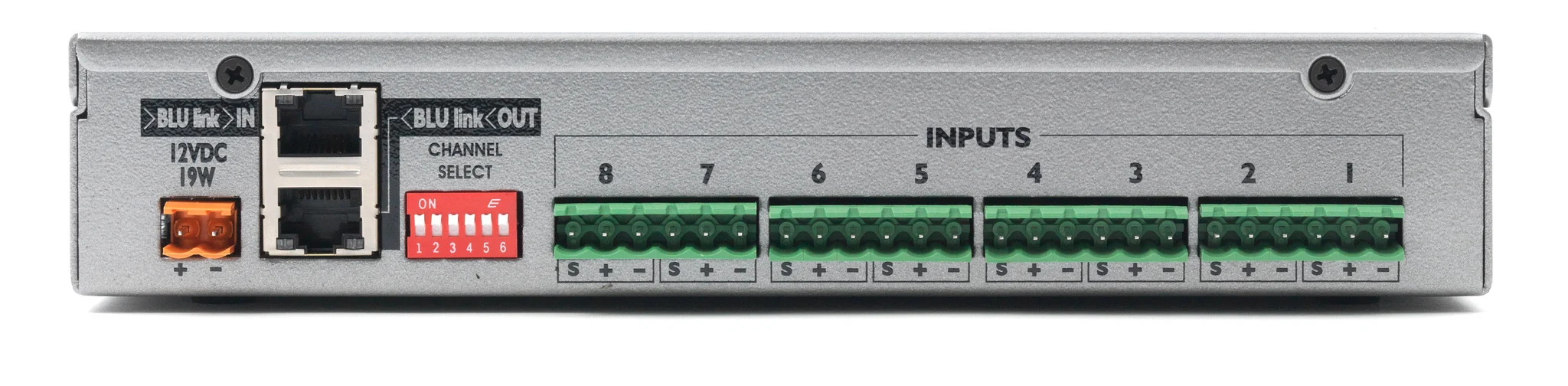

Input channel assignment on the BLU-BIB is configured through six rear-panel DIP switches, which select consecutive channel banks in groups of eight from the 256 channels available on the digital audio bus. This hardware-based configuration approach means the BLU-BIB does not require HiQnet Audio Architect for channel setup, simplifying deployment in the field.

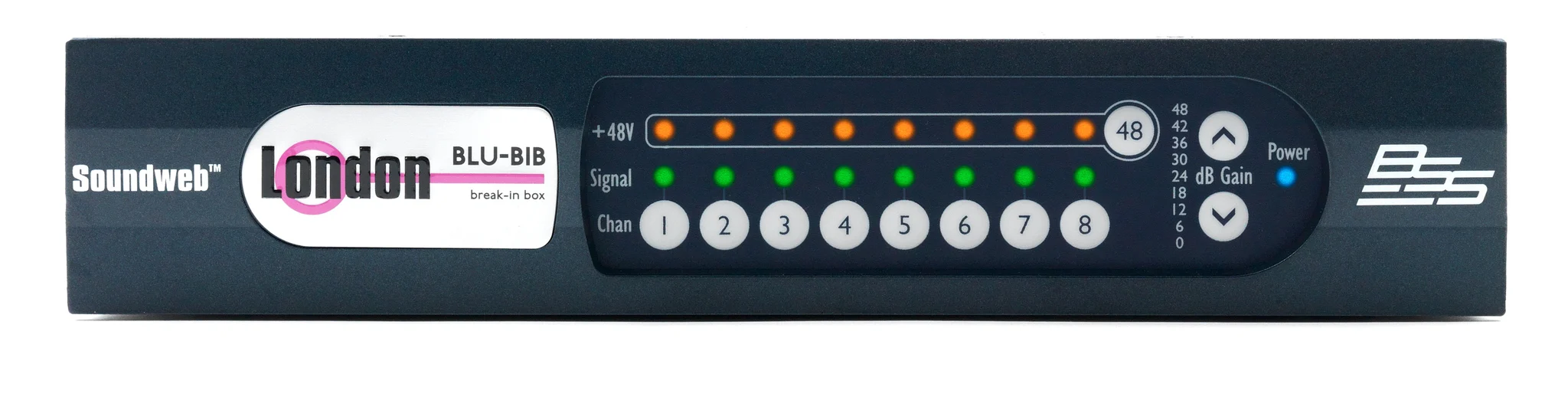

Each of the 8 analog inputs offers switchable phantom power per channel, allowing condenser microphones to be connected directly where needed, while other channels can remain unpowered for line-level sources. Front panel LED indicators display signal present and power status clearly, giving installers immediate confirmation of correct operation without needing a connected PC.

The BLU-BIB features a low-latency, fault-tolerant 256-channel digital audio bus over standard Category 5e cabling, extendable beyond 10 kilometers using the BSS Audio MC-1 fiber optic media converter with single mode fiber. It is available in a half-rack, desk or wall mounted chassis, powered by an included 12VDC adapter, and integrates seamlessly with the wider Soundweb London product family.

Features of BLU-BIB

• 8-channel analog audio input expansion
• Break-in box for BLU link digital audio bus
• Switchable phantom power per channel
• Six rear-panel DIP switches for channel bank selection
• Selects 8-channel banks from the 256-channel bus
• No HiQnet Audio Architect configuration required
• Front panel LED signal present indication
• Front panel LED power status indication
• 256-channel low-latency fault-tolerant digital audio bus
• Category 5e cabling up to 100m between devices
• Extendable beyond 10km with MC-1 fiber media converter
• Half-rack, desk or wall mount chassis
• Included 12VDC power adapter
• Compatible with the full Soundweb London family

Specifications of BLU-BIB
