BSS Soundweb London BLU-BOB1 Output Expander (EU)

BSS Soundweb London BLU-BOB1 8-channel analog break-out box (EU)

The Soundweb London BLU-BOB1, or break-out box, offers 8 channels of analog audio output expansion via the Soundweb London high-bandwidth, fault-tolerant digital audio bus. It gives system integrators a straightforward way to add analog outputs at a remote point in an installation without requiring a full additional signal processor chassis.

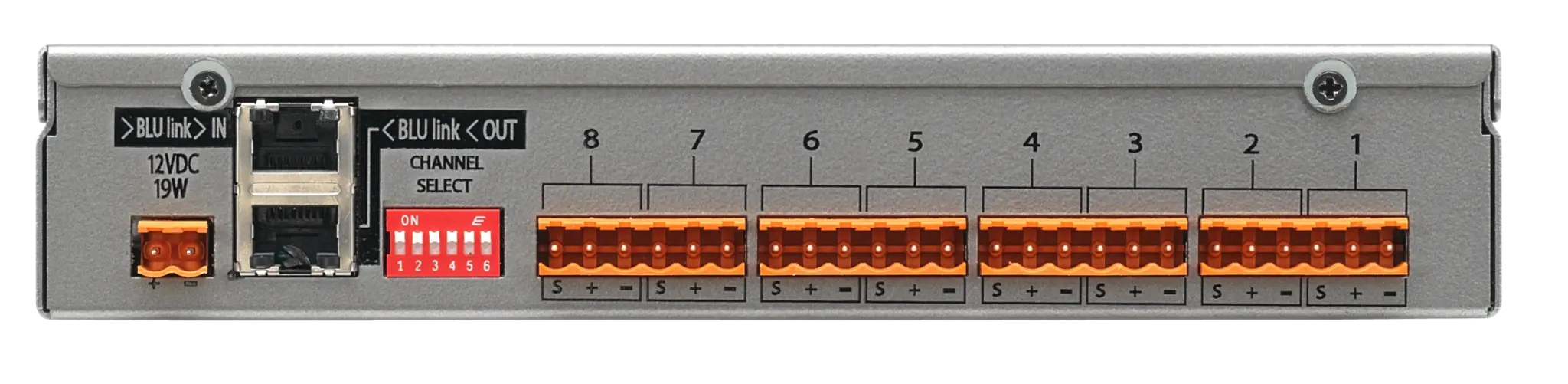

Output channel assignment on the BLU-BOB1 is configured through six rear-panel DIP switches, which select consecutive channel banks in groups of eight from the 256 channels available on the digital audio bus. The BLU-BOB1 is not configured through HiQnet Audio Architect, which keeps commissioning simple for installations where a dedicated output expansion point is all that is required.

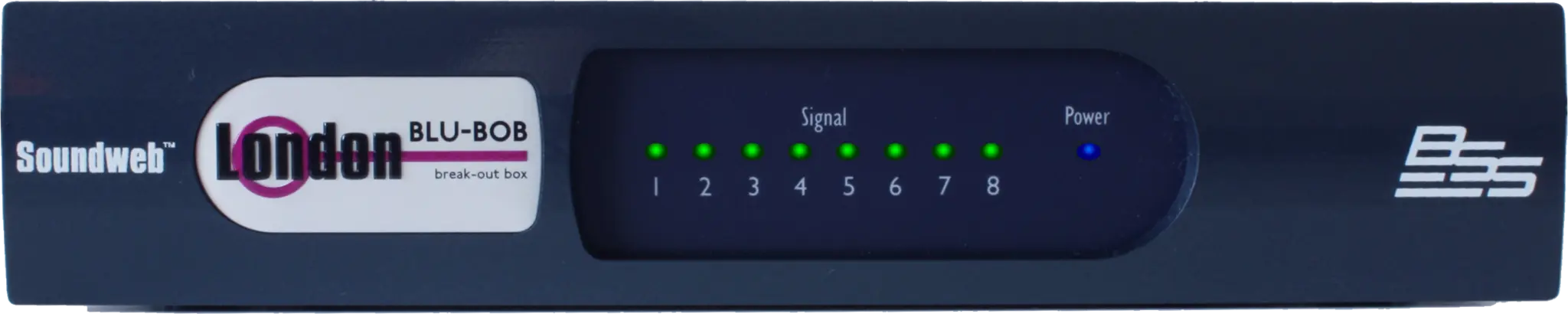

The 8 analog line-level outputs use the same terminal block connectors found across the rest of the Soundweb London family, ensuring consistent wiring practices on site. Front panel LED indicators clearly display signal present and power status, giving installers immediate confirmation of correct operation without needing a connected PC.

The BLU-BOB1 is housed in a half rack width, desk or wall mounted chassis and is powered by an included 12VDC adapter. It features a low-latency, fault-tolerant 256-channel digital audio bus over standard Category 5e cabling, extendable beyond 10 kilometers using the BSS Audio MC-1 fiber optic media converter with single mode fiber, and integrates seamlessly with the wider Soundweb London product family.

Features of BLU-BOB1

• 8-channel analog audio output expansion
• Break-out box for BLU link digital audio bus
• Six rear-panel DIP switches for channel bank selection
• Selects 8-channel banks from the 256-channel bus
• No HiQnet Audio Architect configuration required
• Terminal block analog output connectors
• Front panel LED signal present indication
• Front panel LED power status indication
• 256-channel low-latency fault-tolerant digital audio bus
• Category 5e cabling up to 100m between devices
• Extendable beyond 10km with MC-1 fiber media converter
• Half rack width, desk or wall mounted chassis
• Included 12VDC power adapter
• Compatible with the full Soundweb London family
