Ecler VEO-MXH88D HDMI 8×8 Matrix

Ecler VEO-MXH88D HDMI 8×8 matrix

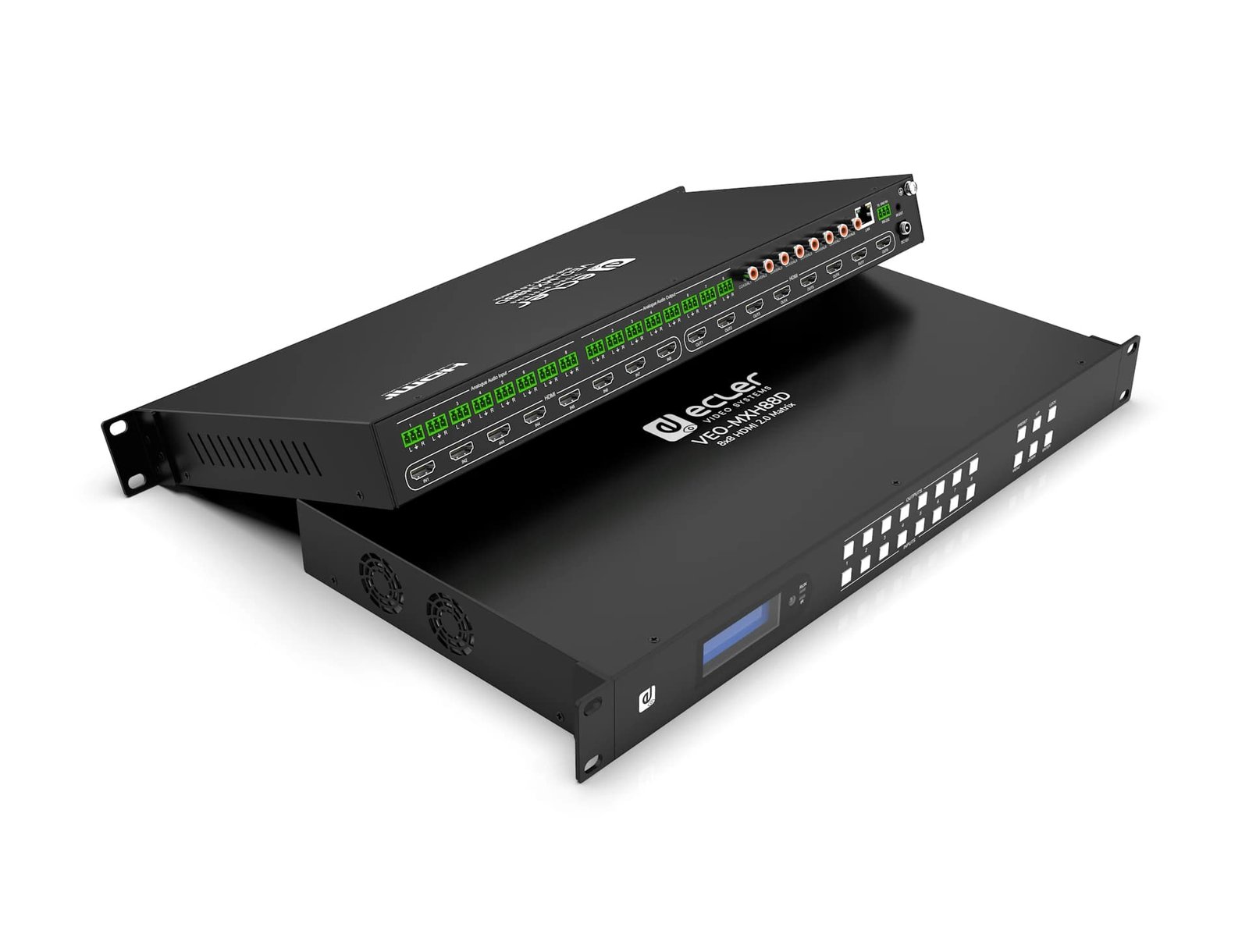

The Ecler VEO-MXH88D is an 8×8 HDMI matrix built to handle high-quality video and audio signal routing across larger installations, supporting up to eight HDMI sources routed independently to up to eight displays at resolutions up to 4K/UHD at 60Hz with 4:4:4 chroma sampling. This scale makes it suitable for larger conference centres, retail environments and multi-room venues where a single 4×4 matrix would not offer enough capacity.

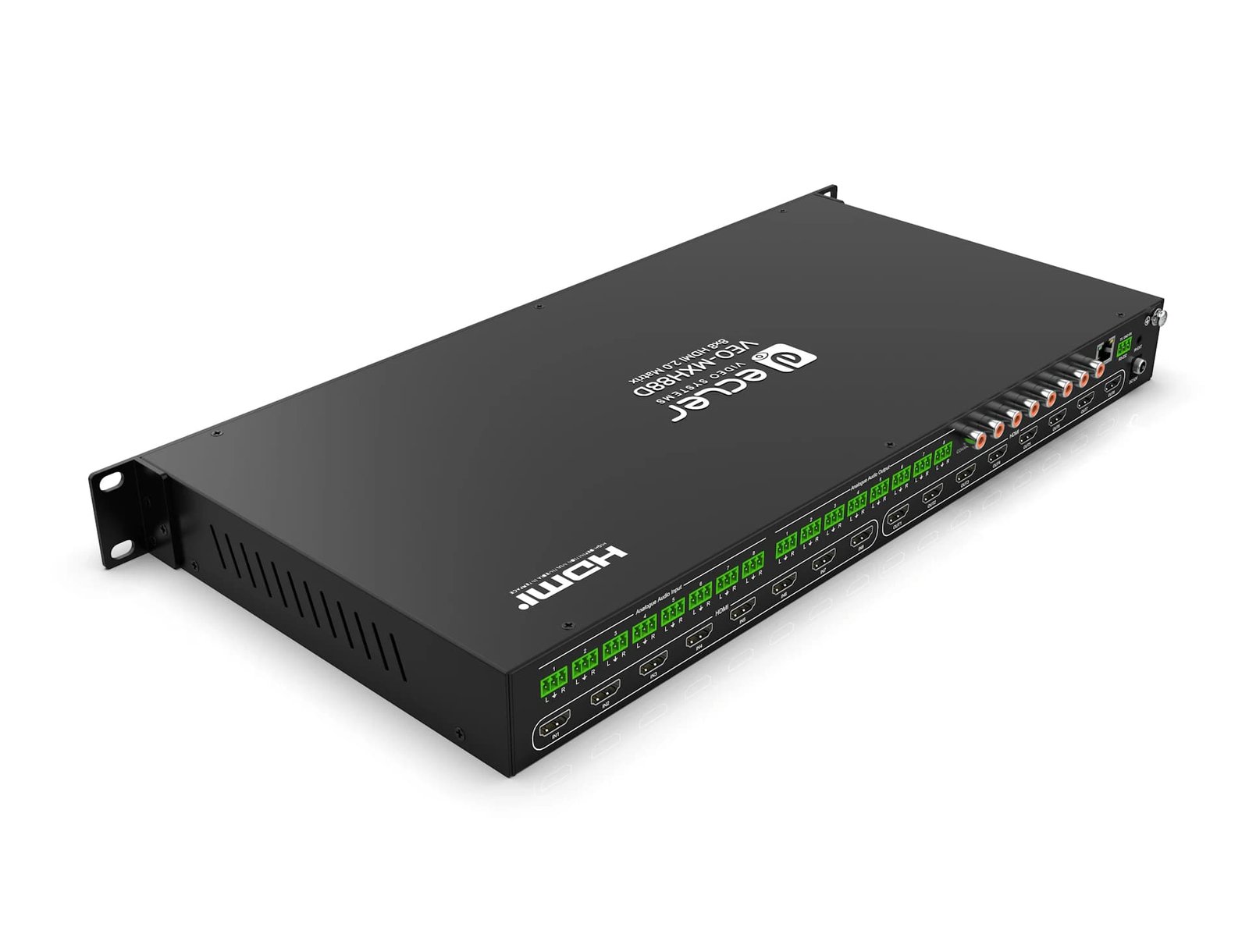

The matrix offers eight analogue audio inputs alongside sixteen analogue and digital audio de-embedding outputs, giving installers considerable flexibility to manage sound separately from video across a large distributed system. EDID management ensures optimal compatibility between connected sources and displays, a critical feature when the number of devices in the signal chain grows.

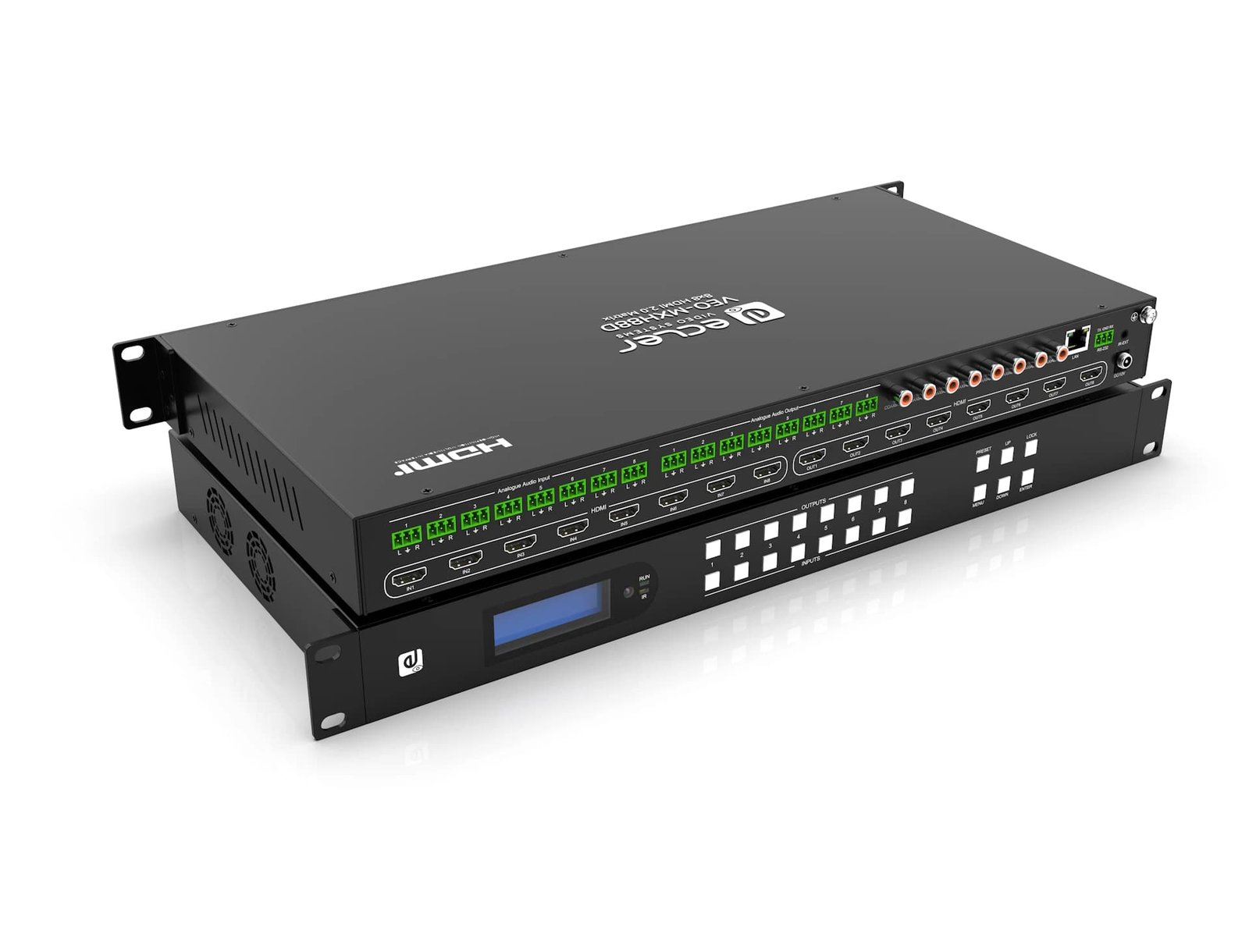

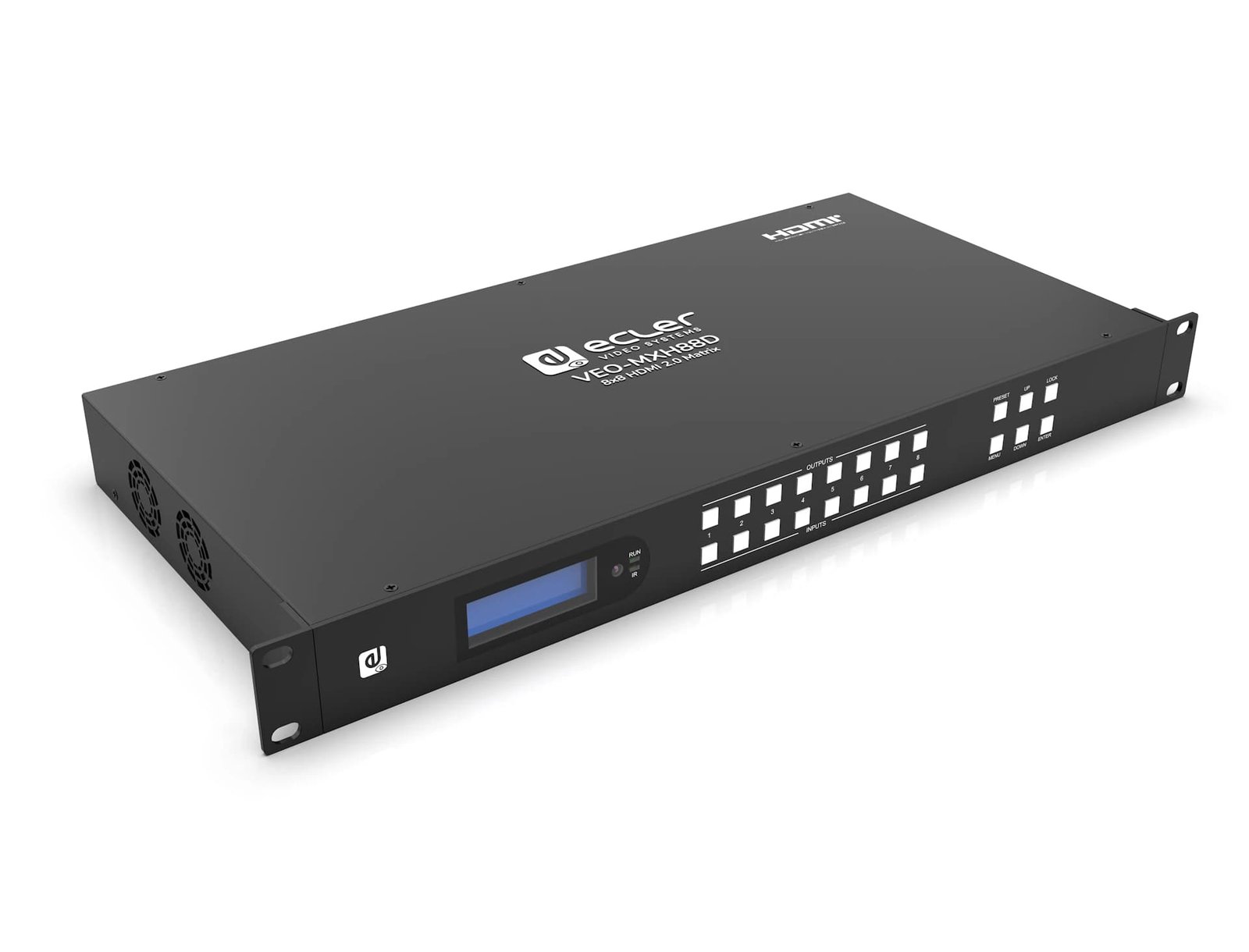

Configuration and control are handled through an LCD display and an integrated Web GUI for a user-friendly interface, backed by front panel selection buttons, serial commands, TCP/IP and IR control for integration with third-party control systems. This range of options lets the VEO-MXH88D fit into both simple standalone installations and larger centrally managed AV systems.

Compliant with HDCP 2.2 and 1.4, and supporting up to eight storable presets for quick recall of common routing configurations, the VEO-MXH88D is a professional-grade solution for retail, education, corporate, sports and wellness, and hospitality applications that require secure, reliable handling of video and audio signals at scale.

Features

• 8×8 HDMI 2.0 matrix
• Supports 4K/UHD @60Hz, 4:4:4 chroma sampling
• 8 analogue audio inputs
• 16 analogue and digital audio de-embedding outputs
• EDID management for source/display compatibility
• LCD display and integrated Web GUI

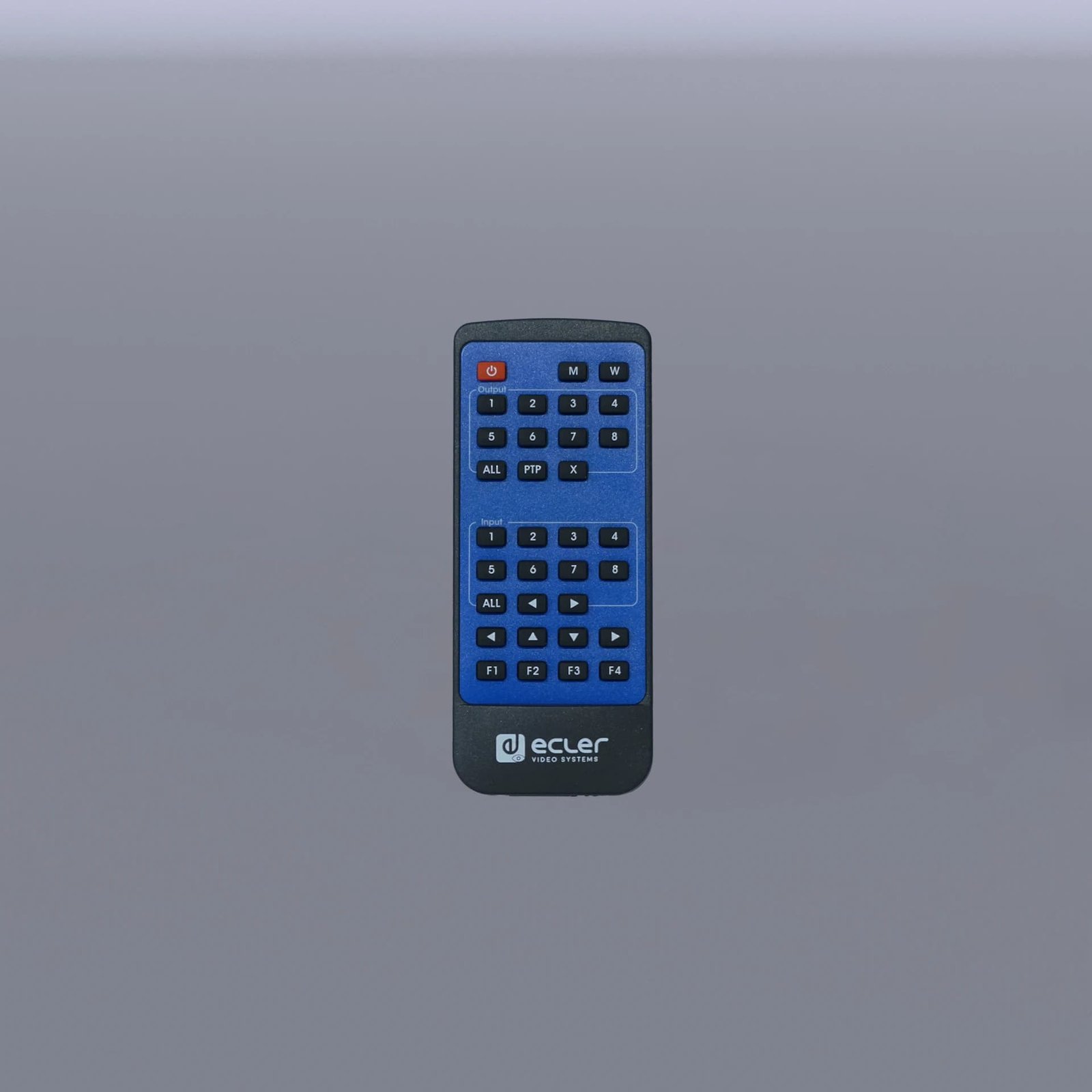

• Control via front panel, RS-232, TCP/IP, IR
• HDCP 2.2 and 1.4 compliant
• Up to 8 storable and recallable presets
