Ecler VEO-MXH44D HDMI 4×4 Matrix

Ecler VEO-MXH44D HDMI 4×4 matrix

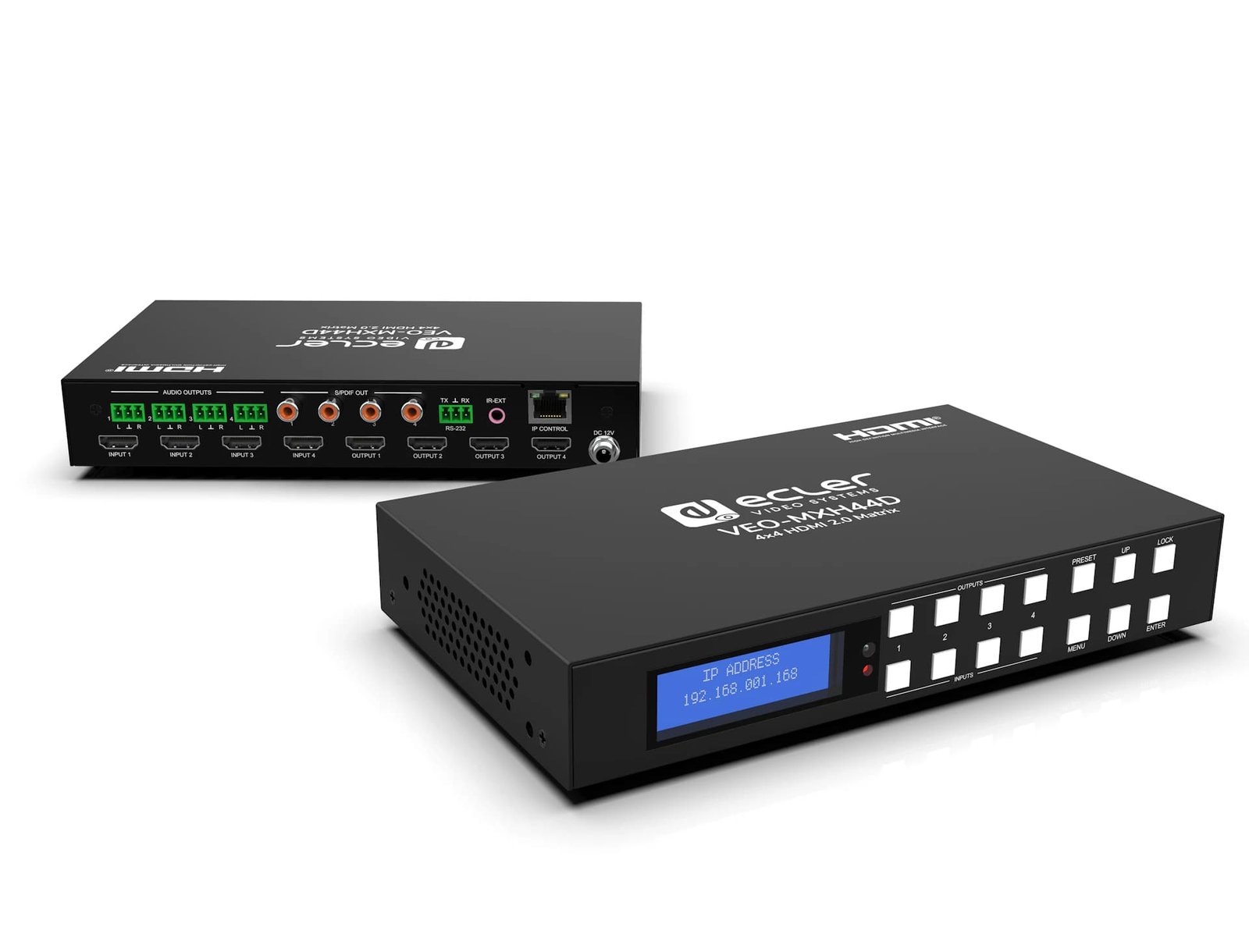

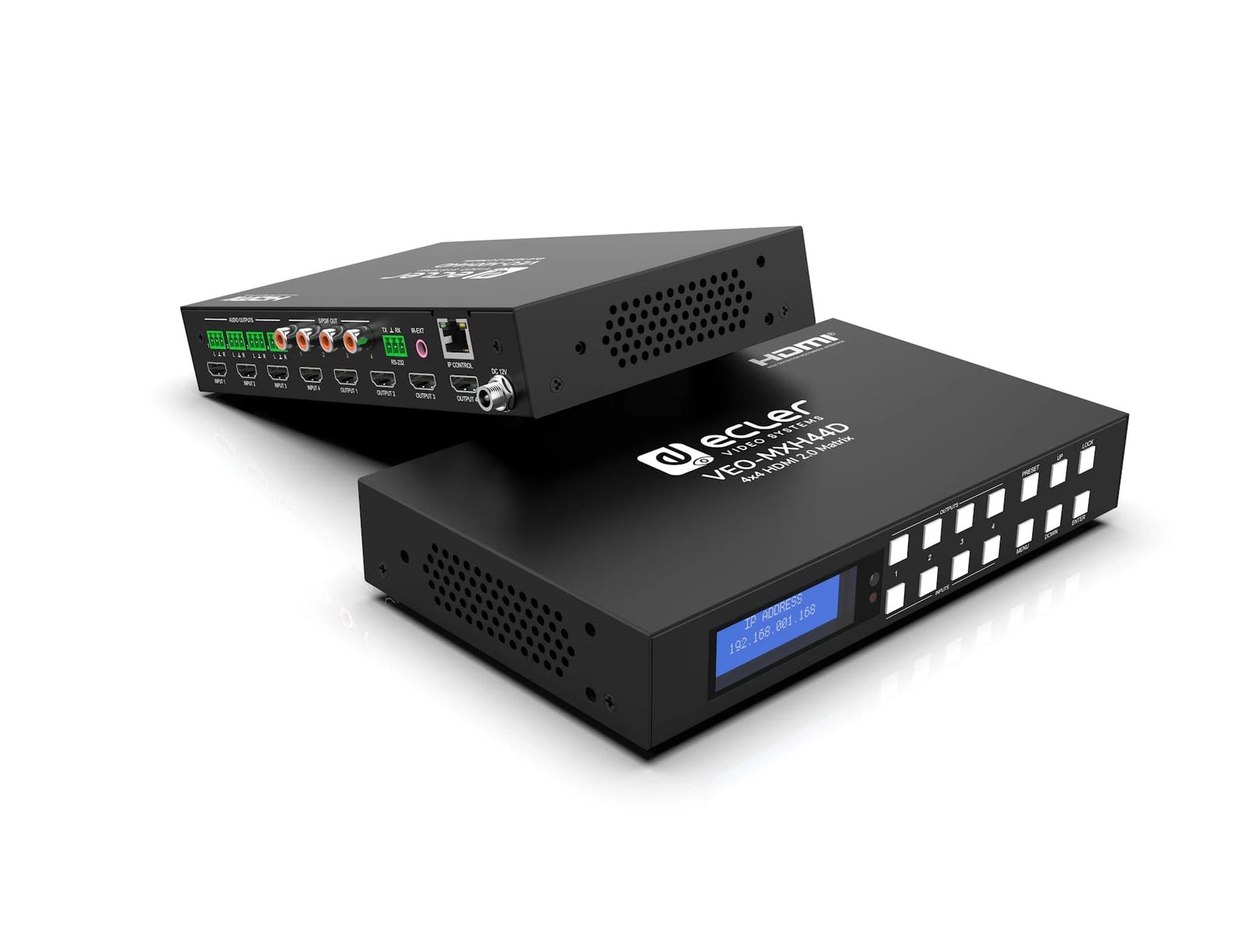

The Ecler VEO-MXH44D is a 4×4 HDMI matrix designed to route video and audio signals from up to four HDMI sources to up to four independent displays, supporting resolutions up to 4K/UHD at 60Hz with 4:4:4 chroma sampling. This makes it a capable core for meeting rooms, classrooms and multi-display installations that need flexible, high-resolution routing between multiple inputs and outputs.

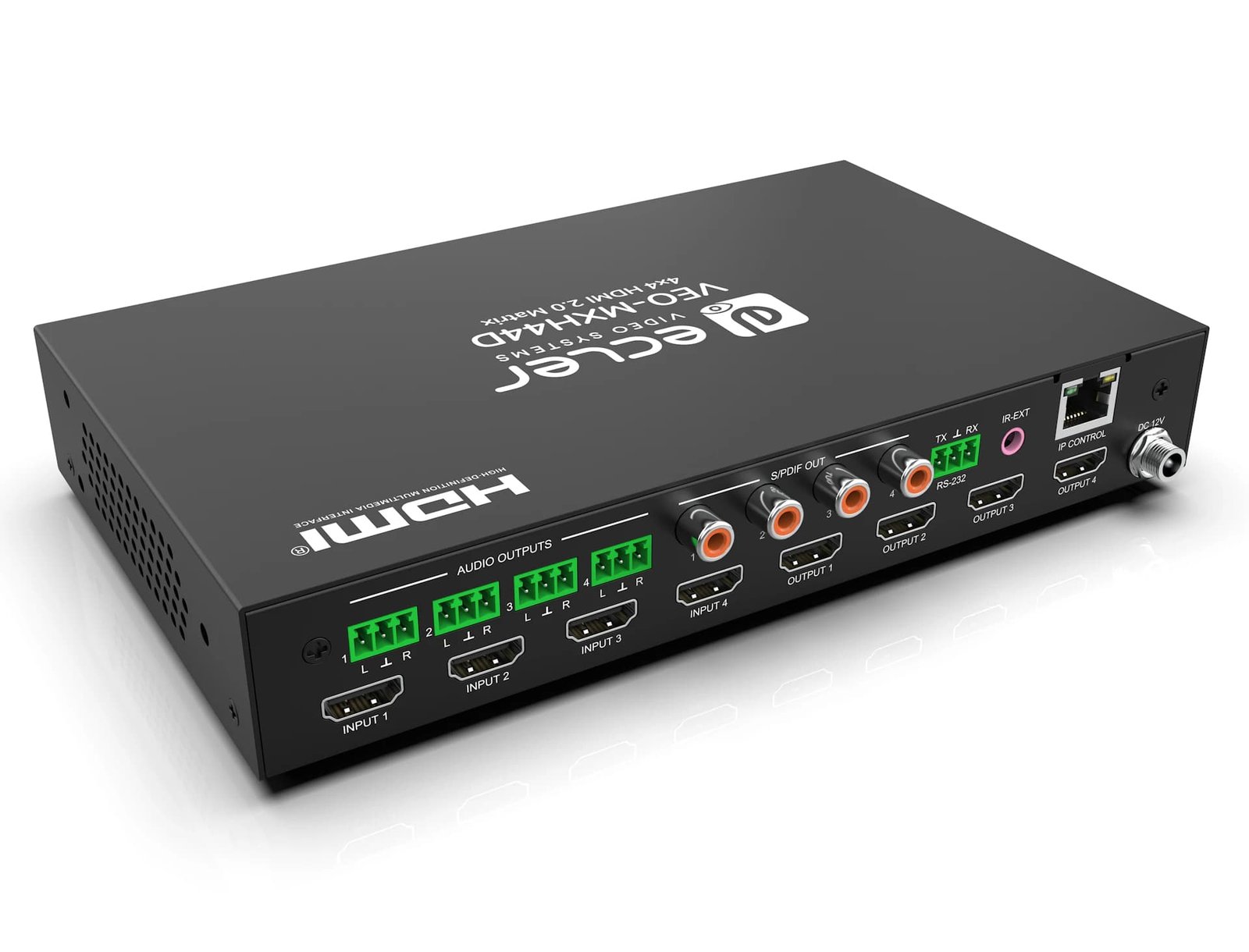

Eight analogue and digital audio de-embedding outputs let sound from any selected HDMI source be extracted and fed to separate amplifiers or sound systems, independent of the video signal routing. EDID management ensures each source correctly negotiates its output format with the connected displays, reducing common handshake and compatibility issues in multi-device HDMI setups.

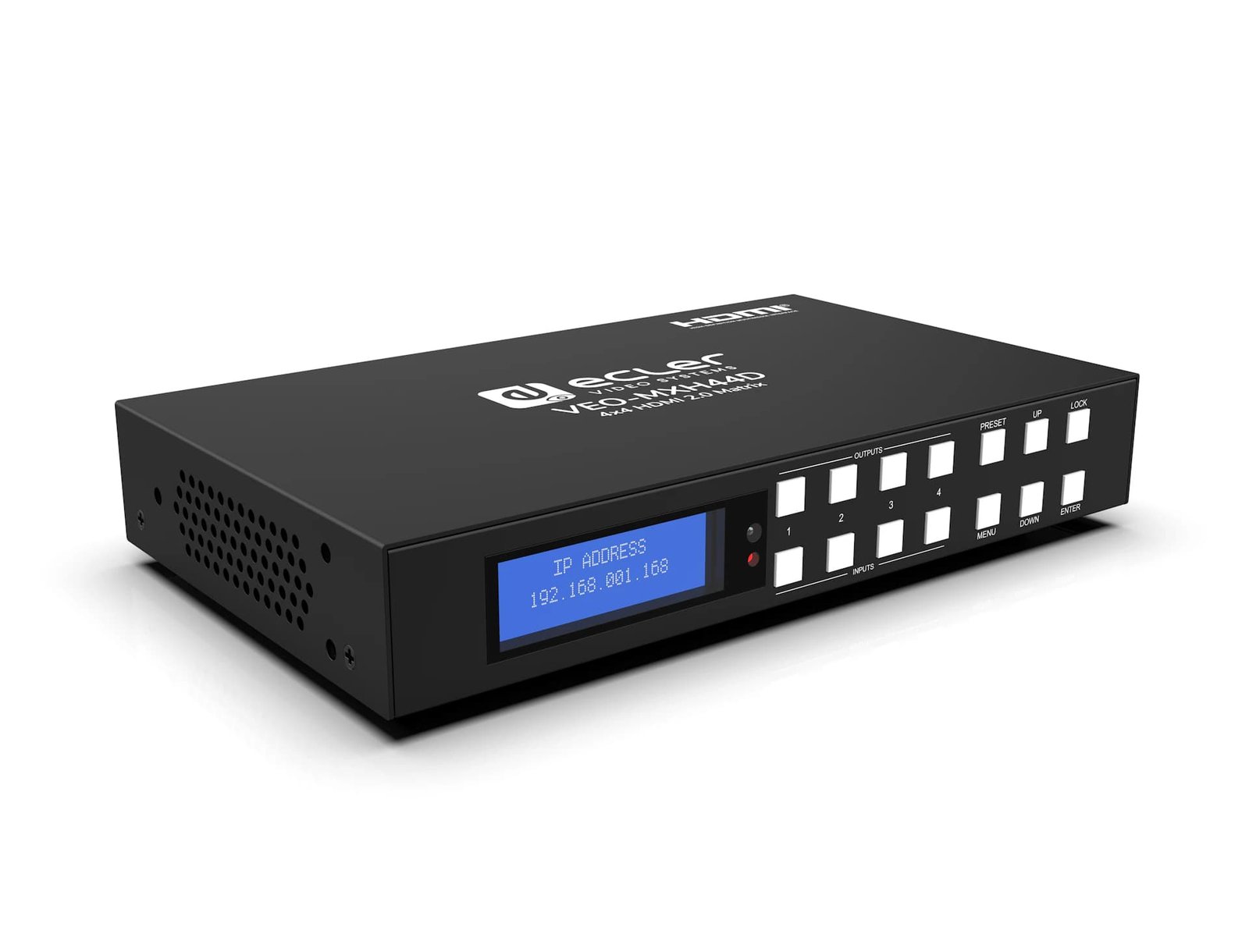

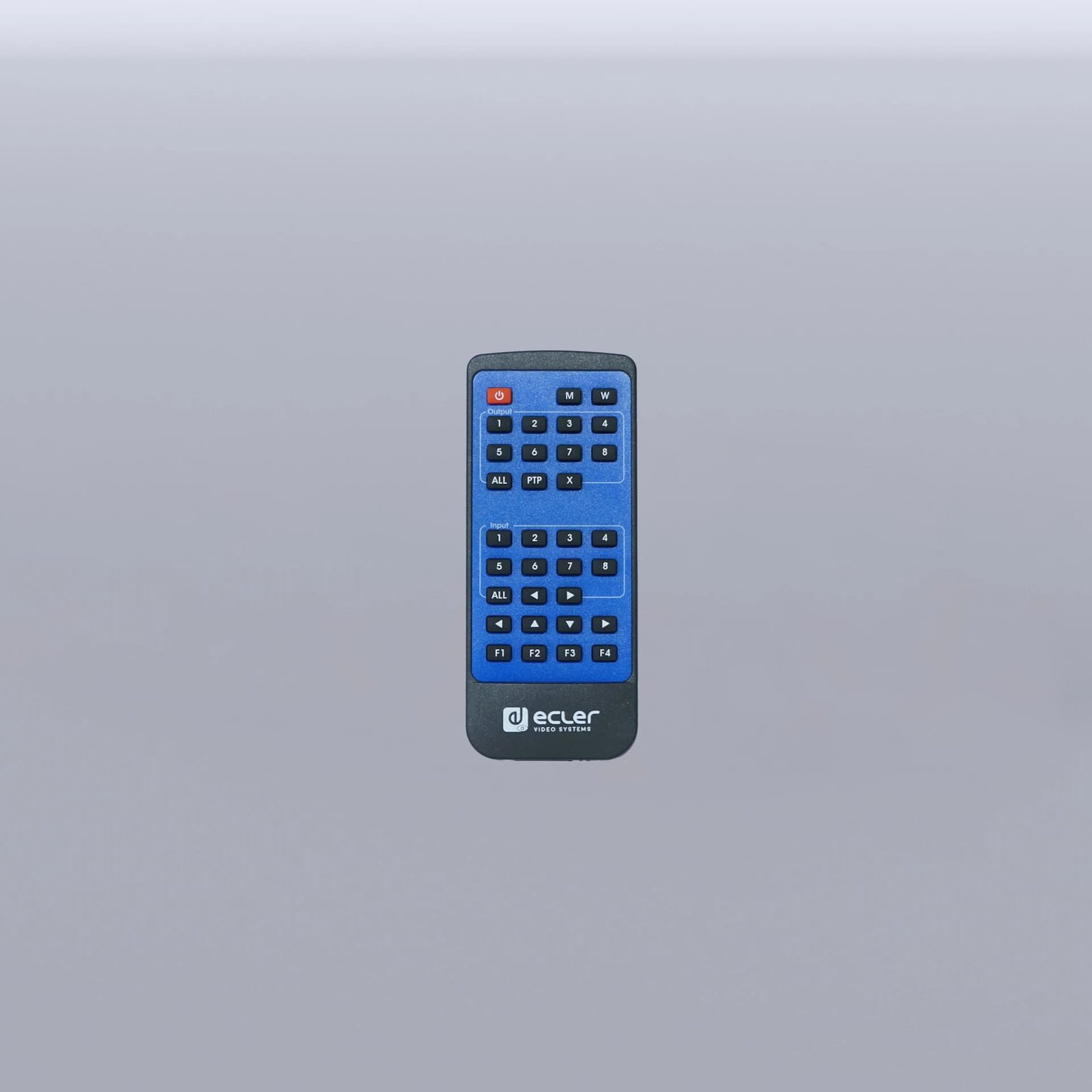

Control is available through several methods: physical selection buttons on the front panel, an integrated Web GUI, serial RS-232 commands, TCP/IP, or infrared, giving installers flexibility to integrate the matrix into whatever control system the venue already uses. An onboard LCD display shows current routing status directly on the unit for quick reference without needing a connected control device.

The VEO-MXH44D is compliant with HDCP 2.2 and 1.4 content protection standards, and can store and recall up to eight presets, letting frequently used routing configurations be triggered instantly. This combination of routing flexibility, audio handling and preset recall makes it a professional solution for retail, education, corporate, sports and wellness, and hospitality environments requiring reliable HDMI signal distribution.

Features

• 4×4 HDMI 2.0 matrix
• Supports 4K/UHD @60Hz, 4:4:4 chroma sampling
• 8 analogue and digital audio de-embedding outputs
• EDID management for source/display compatibility
• LCD display and integrated Web GUI
• Control via front panel, RS-232, TCP/IP, IR
• HDCP 2.2 and 1.4 compliant
• Up to 8 storable and recallable presets
