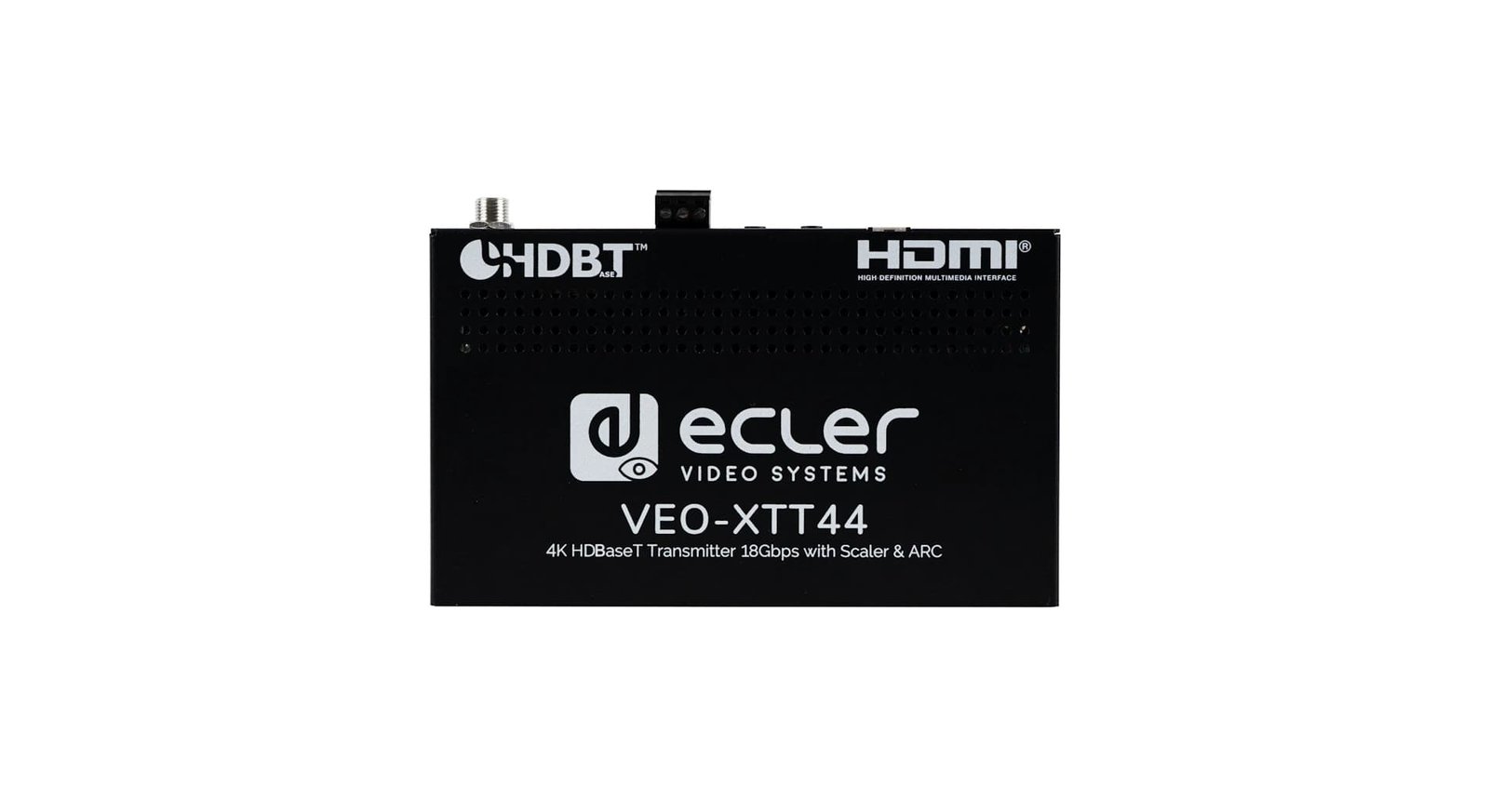

Ecler VEO-XTT44 4K HDBaseT Extender Transmitter
The Ecler VEO-XTT44 is a professional HDBaseT transmitter for 4K/60Hz 4:4:4 HDR extension up to 40m over CATx cable, with HDMI upscaling, bidirectional PoH, ARC audio de-embedding and a built-in test pattern generator.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,698.48 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Ecler VEO-XTT44 4K HDBaseT extender/scaler transmitter
The Ecler VEO-XTT44 is a professional HDBaseT transmitter built for HDMI extension of High Dynamic Range (HDR) formats, supporting HDMI video resolution up to 4K@60Hz with 4:4:4 chroma sampling and HDCP 2.2 and 1.4 content protection. Used together with the matching VEO-XRT44 receiver, it extends 4K signals to distances up to 40 metres and 1080p signals up to 70 metres over a single CATx cable.
A built-in scaling function allows a 1080p input to be automatically upgraded to 4K output, useful when the display expects a native 4K signal even though the connected source is only Full HD. Advanced EDID management gives installers a choice between multiple built-in settings or fully customised EDID, ensuring reliable handshakes between varied source and display combinations.
Bidirectional PoH (Power over HDBaseT) lets only one power supply be used across the whole extension link, connected to either the transmitter or the receiver as installation conditions require. Audio de-embedding and ARC (Audio Return Channel) support are built in, alongside bidirectional IR and RS-232 pass-through for extending control signals along with the video.
A video pattern generator is included in the transmitter for testing purposes during installation, letting technicians verify the video path is working correctly before connecting a live source. This combination of features makes the VEO-XTT44 an ideal solution for residential and commercial applications using the latest 4K/UHD and HDR sources and displays.
Features
- Professional HDBaseT transmitter for HDR extension
- 4K@60Hz 4:4:4, HDCP 2.2 and 1.4 support
- 4K extension up to 40m, 1080p up to 70m over CATx cable
- Automatic 1080p to 4K upscaling
- Advanced EDID management, built-in and custom settings
- Bidirectional PoH, single power supply
- Audio de-embedding and ARC support
- Bidirectional IR and RS-232 pass-through
- Built-in video pattern generator for testing
Specifications
| Type | HDBaseT extender/scaler transmitter |
| Compatible Receiver | VEO-XRT44 |
| 4K Extension Distance | Up to 40 m |
| 1080p Extension Distance | Up to 70 m |
| Video Support | 4K@60Hz 4:4:4 HDR |
| Content Protection | HDCP 2.2, 1.4 |
| Upscaling | 1080p to 4K automatic |
| Power | Bidirectional PoH |
| Audio | De-embedding, ARC support |
| Control | Bidirectional IR, RS-232 pass-through |
| Testing | Built-in video pattern generator |
| Dimensions (WxHxD) | 140 x 84 x 20 mm |
| Weight | 275 g |
