JBL AM5215/26 15-inch 2-Way Loudspeaker with 120° x 60° Rotatable Horn – Black

JBL AM5215/26 15-inch 2-Way Loudspeaker

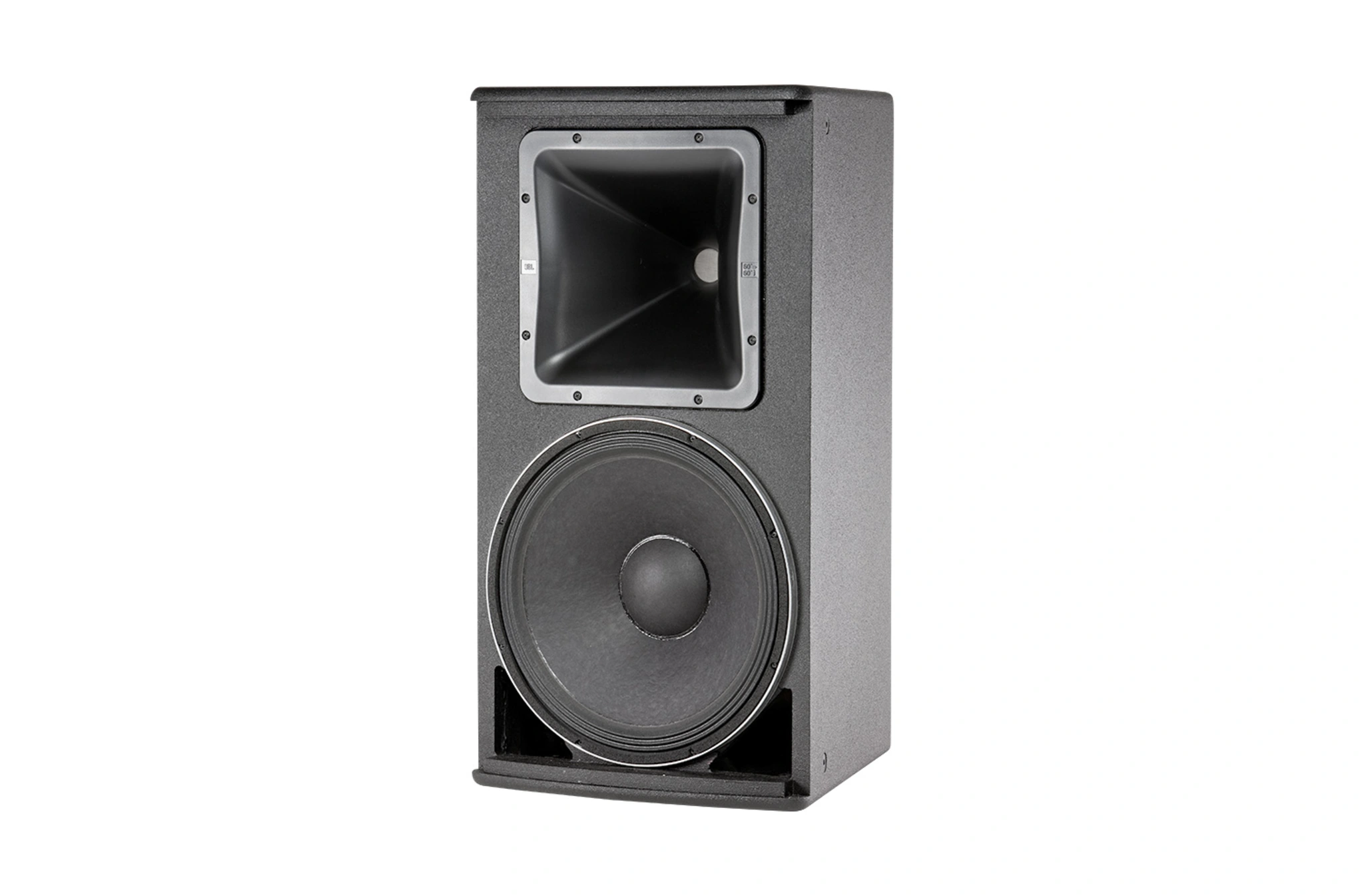

JBL AM5215/26 15-inch 2-Way Loudspeaker with 120° x 60° Horn black is a medium-power, full-range loudspeaker system designed for professional audio use. It combines a 265H-1 380 mm (15 in) low-frequency driver with dual voice coil and dual magnetic gap and a 2408H-1 high-frequency 38 mm (1.5 in) exit compression driver. The large PT™ Progressive Transition waveguide ensures consistent sound coverage across wide areas and low distortion.

The waveguide is rotatable, allowing flexible use in vertical or horizontal orientation, making it suitable for auditoriums, performing arts facilities, worship centers, live clubs, sports arenas, and themed entertainment venues. High-slope passive networks reduce band overlap, while off-axis response remains well-controlled, improving arrayability in complex setups. The system supports both Bi-Amp and passive modes, with FIR tuning for optimized frequency response, phase alignment, coverage consistency, and sound quality.

The trapezoidal enclosure is constructed from 16 mm exterior-grade birch plywood with 15-degree side angles, equipped with multiple suspension points for flexible rigging. The powder-coated perforated steel grille with black acoustically transparent foam provides protection without compromising sound clarity. Available in black or white, the JBL AM5215/26 delivers reliable, professional-grade performance in medium-power applications.

Features of AM5215/26

• 120° x 60° rotatable coverage pattern

• 265H-1 Differential Drive® low-frequency driver

• 2408H-1 high-frequency compression driver

• Large PT™ Progressive Transition waveguide for precise pattern control

• Rotatable waveguide for vertical or horizontal orientation

• Bi-Amp/Passive switchable operation

• FIR tuning for optimized frequency, phase response, and coverage consistency

• Available in Black, White, and WRC/WRX weather-resistant finishes

Specifications of AM5215/26
