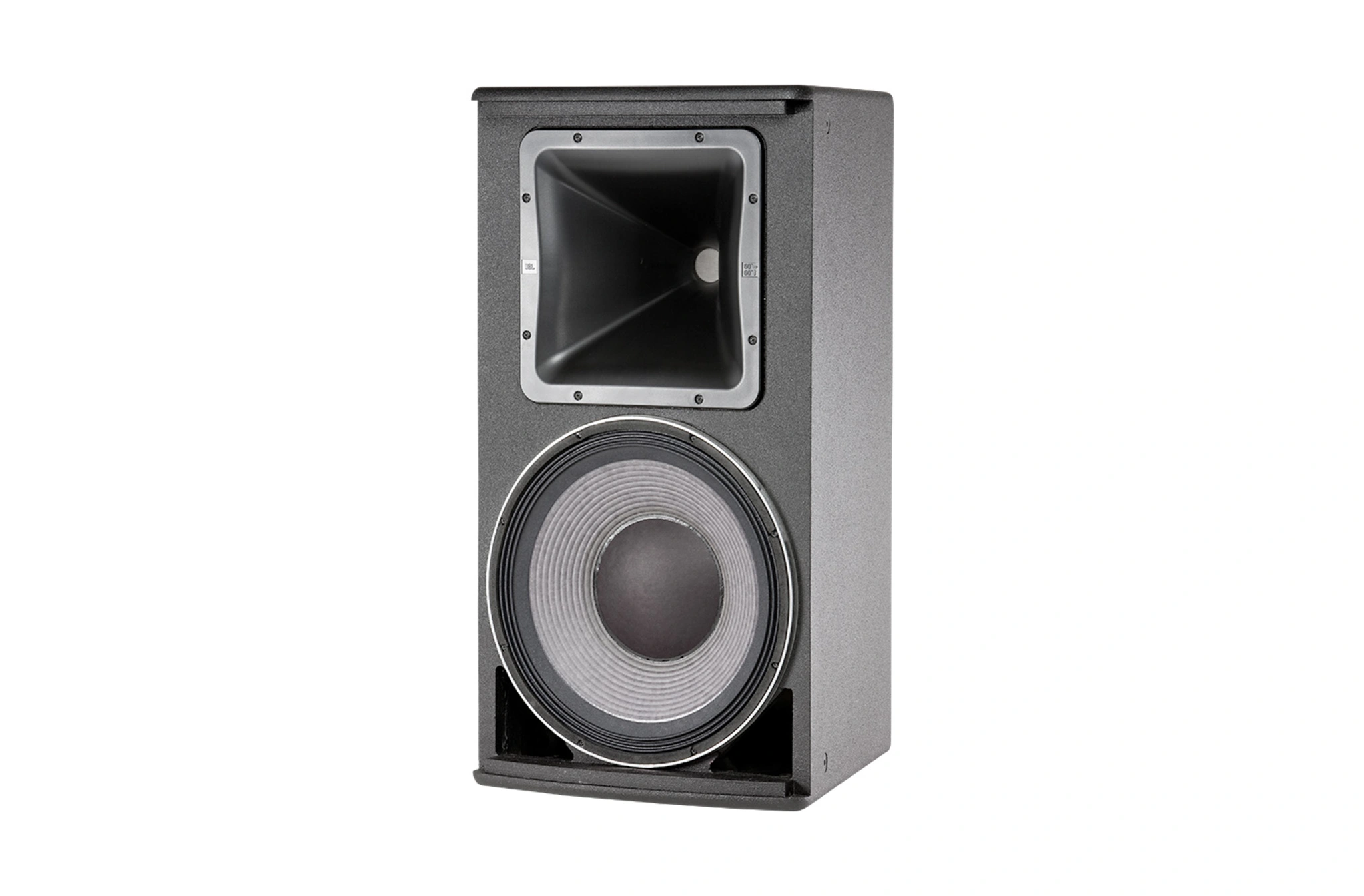

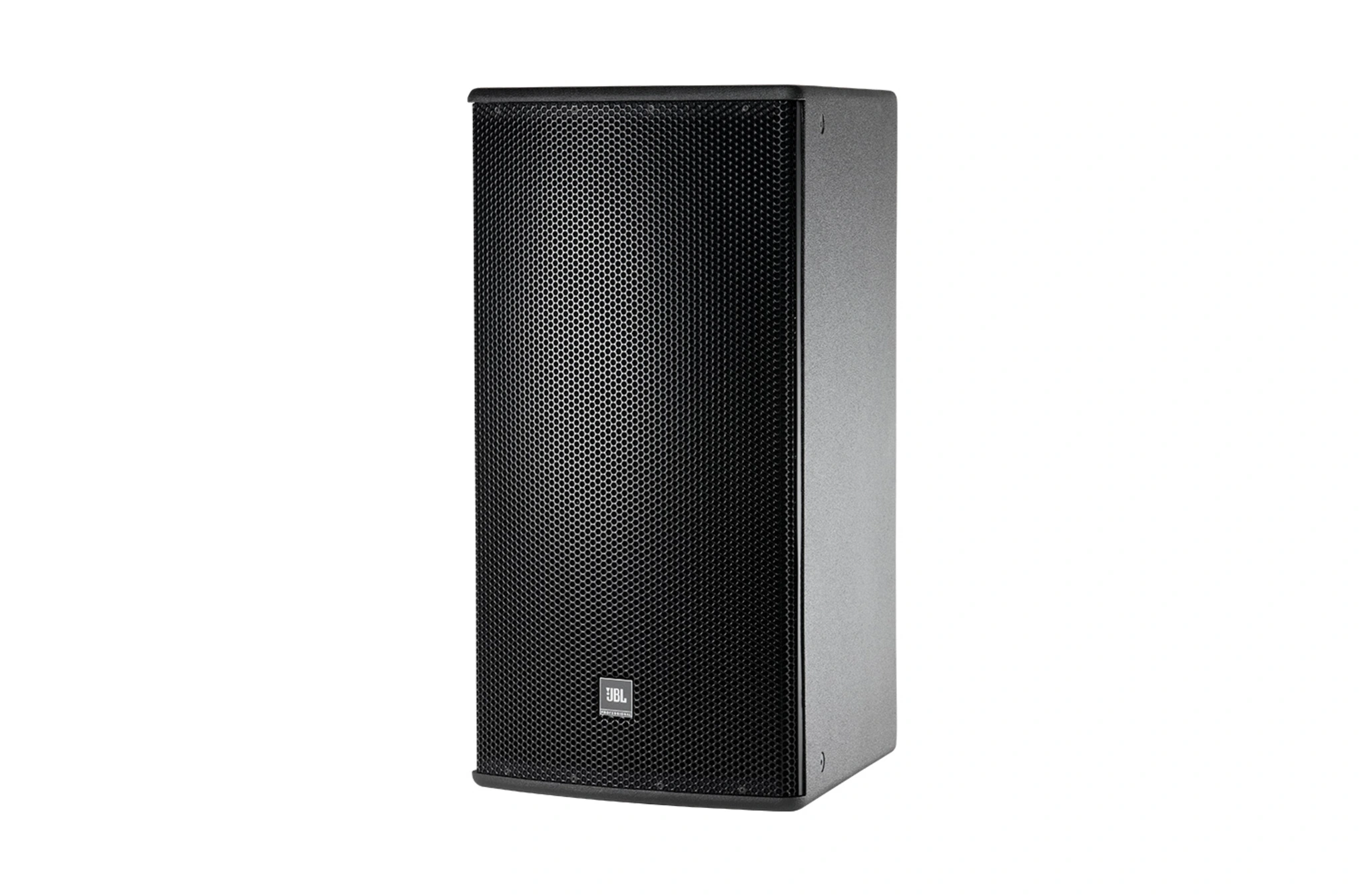

JBL AM7215/66 15-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn – Black

JBL AM7215/60 15-inch 2-Way Loudspeaker

JBL AM7215/60 15-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn in black finish is a high-power, lightweight, full-range loudspeaker system designed for professional sound reinforcement. It features the JBL Differential Drive® 2265H low-frequency driver, 380 mm (15 in) with 75 mm (3 in) dual voice coil and dual magnetic gap, ensuring powerful and accurate bass reproduction.

The high-frequency section includes the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil, providing clear and detailed treble. The large-format Progressive Transition™ waveguide ensures consistent 60° x 60° coverage, precise pattern control, and minimal distortion.

The rotatable waveguide allows the loudspeaker to be installed vertically or horizontally. High-slope passive networks reduce band overlap for smooth frequency response and improved arrayability. The AM7215/60 is suitable for performing arts facilities, auditoriums, worship venues, live and dance clubs, sports arenas, and themed entertainment venues.

The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood with 15° side angles, and includes multiple M10 suspension points for secure mounting. The professional black finish provides durability and aesthetic integration into any environment. Origin of country mexico.

Features of AM7215/60

• 60° x 60° coverage

• 2265H Differential Drive® low-frequency driver

• 2432H high-frequency compression driver

• Large Progressive Transition™ waveguide for precise pattern control and low distortion

• Rotatable waveguide for vertical or horizontal orientation

• Bi-Amp/Passive switchable operation

• FIR-tuned for optimized frequency and phase response, consistent coverage, and sound quality

• Black finish suitable for professional installations

Specifications of AM7215/60
