JBL AM7215/95 15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn – Black

JBL AM7215/90 15-inch 2-Way Loudspeaker

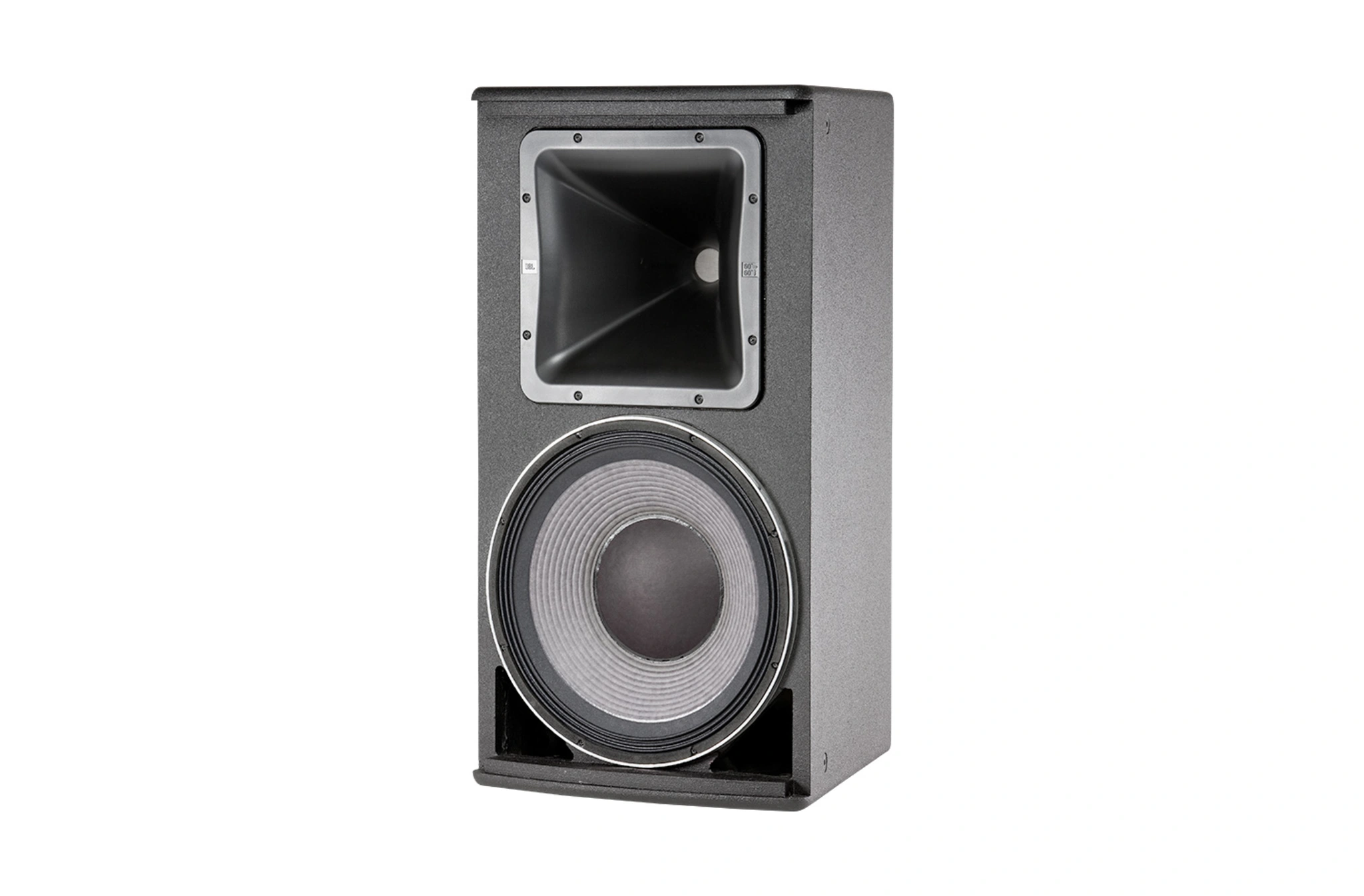

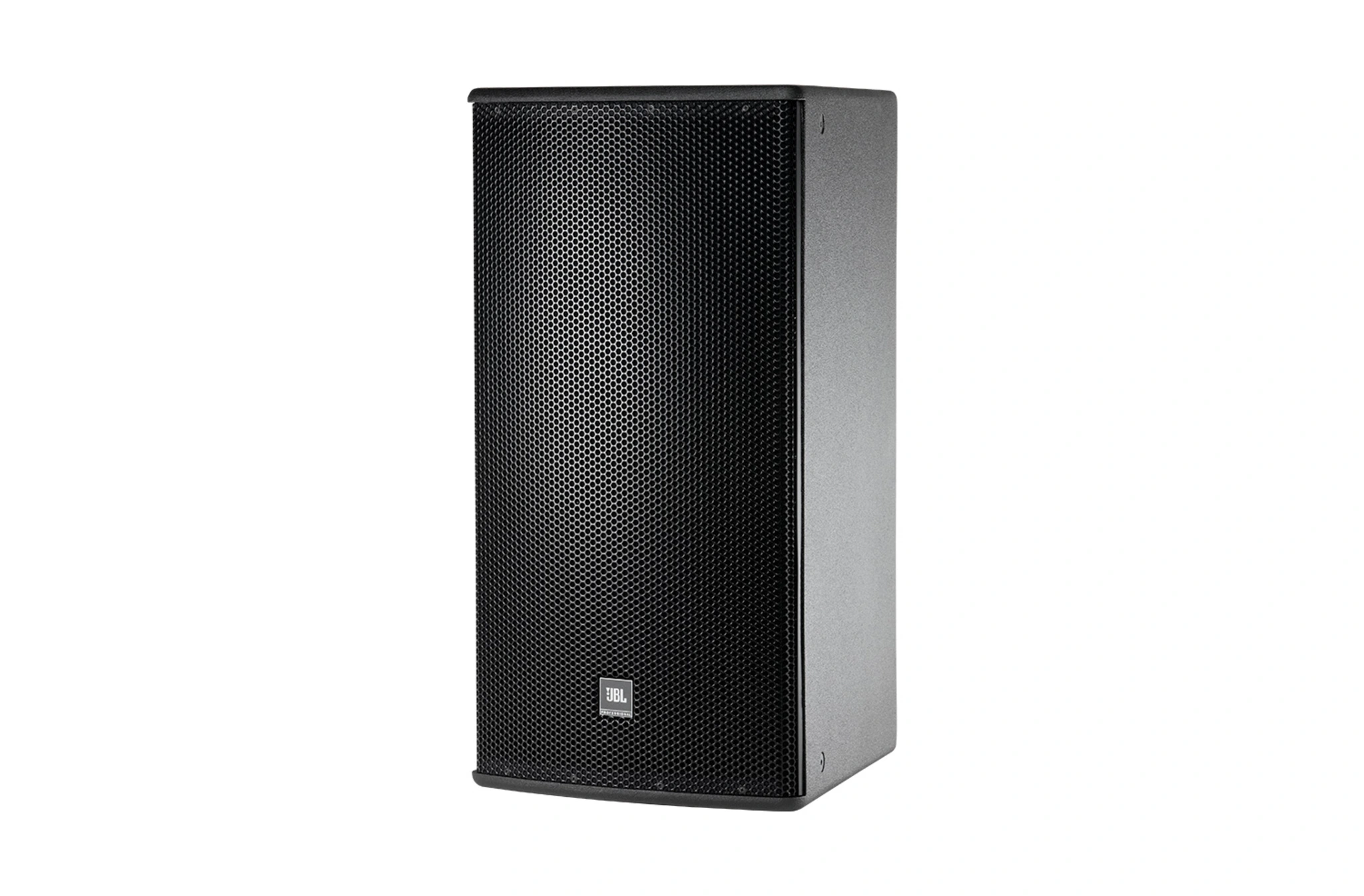

JBL AM7215/90 15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn in black finish is a high-power, lightweight, full-range loudspeaker system engineered for professional audio use. It incorporates the JBL Differential Drive® 2265H low-frequency driver, 380 mm (15 in) with 75 mm (3 in) dual voice coil and dual magnetic gap, providing accurate and powerful bass performance.

The high-frequency section is equipped with the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil for crisp and clear treble. The large-format Progressive Transition™ waveguide ensures consistent 90° x 50° coverage with low distortion and precise pattern control.

The rotatable waveguide allows flexible deployment in either vertical or horizontal orientation. High-slope passive networks reduce band overlap, and off-axis response is carefully controlled for optimal arrayability. The AM7215/90 is ideal for performing arts centers, theaters, auditoriums, worship spaces, live and dance clubs, sports facilities, and themed entertainment venues.

The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood with 15° side angles, and it includes multiple M10 suspension points for secure mounting. The durable black finish ensures professional appearance and longevity. Origin of country mexico.

Features of AM7215/90

• 90° x 50° coverage

• 2265H Differential Drive® low-frequency driver

• 2432H high-frequency compression driver

• Large Progressive Transition™ waveguide for precise pattern control and low distortion

• Rotatable waveguide for vertical or horizontal orientation

• Bi-Amp/Passive switchable operation

• Black finish for professional integration

Specifications of AM7215/90
