JBL AM7315/64-WH 15-inch 3-Way Loudspeaker with 60° x 40° Rotatable Horn – White
The JBL AM7315 15-inch 3-Way Loudspeaker in white delivers high-power, full-range performance with 60° x 40° coverage, JBL Differential Drive low-frequency driver, CMCD midrange, and 2432H high-frequency driver, ideal for professional installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 29,134.88 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AM7315 15-inch 3-Way Loudspeaker
JBL AM7315 15-inch 3-Way Loudspeaker with 60° x 40° coverage in white finish is a high-power, full-range loudspeaker system engineered for professional audio environments. It features the JBL 2265H Differential Drive® low-frequency driver, 380 mm (15 in) with 75 mm (3 in) dual voice coil and dual magnetic gap, delivering deep, precise bass.
The midrange section incorporates the JBL CMCD-82H Cone Midrange Compression Driver with a 200 mm (8 in) diameter Differential Drive® dual voice coil, ensuring minimal distortion, enhanced sensitivity, and extended bandwidth. High-frequency output is produced by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil, providing clear and detailed treble.
A multi-band Progressive Transition™ waveguide ensures consistent 60° x 40° coverage and low distortion. The rotatable waveguide allows flexible installation in either vertical or horizontal orientation. High-slope crossovers minimize band overlap, and controlled off-axis response improves arrayability.

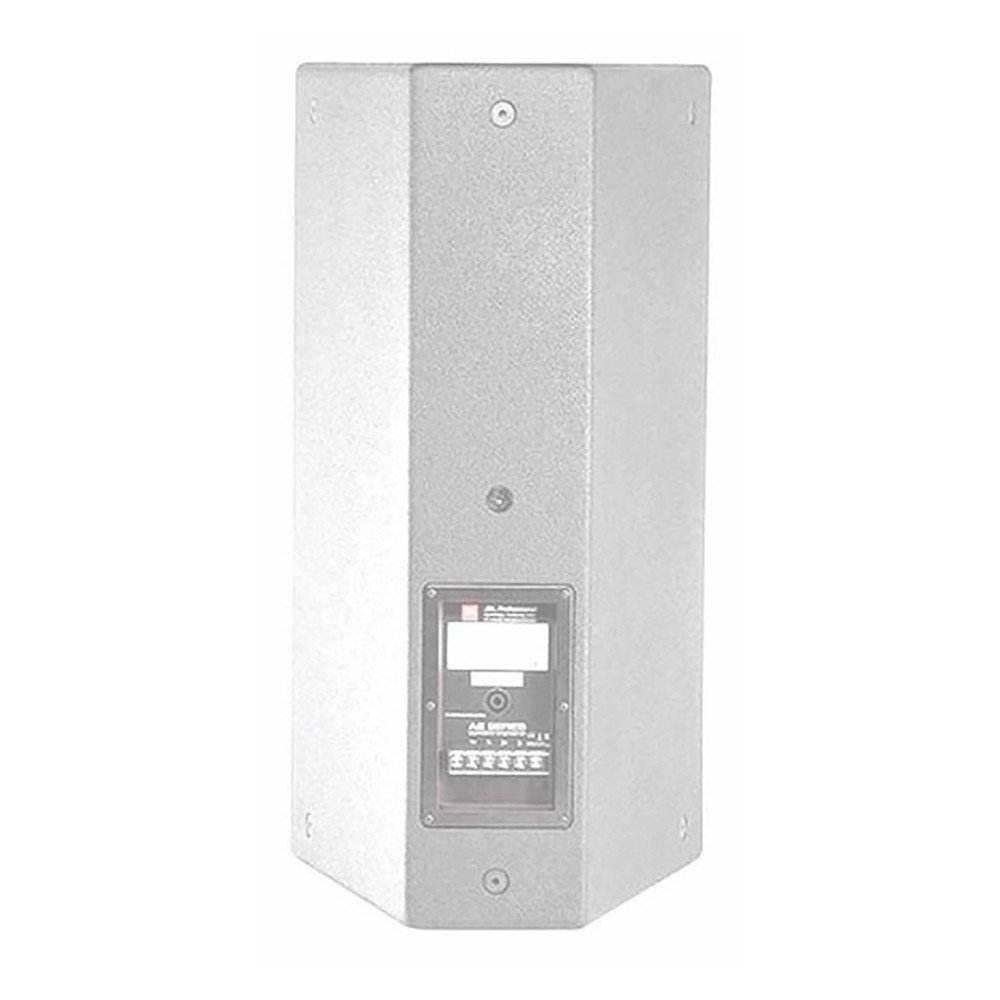

The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood and features 13 M10 threaded suspension points. Optional planar array frame kits (PAF-2K and PAF-3K) allow advanced installation setups. JBL AM7315 is part of the AE Application Engineered Series, suitable for performing arts centers, theaters, auditoriums, houses of worship, live clubs, sports venues, dance clubs, and themed entertainment facilities. Origin of country mexico.
Features of AM7315
2265H Differential Drive® low-frequency driver
CMCD™ Cone Midrange Compression Driver for extended bandwidth and low distortion
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for precise pattern control with low distortion
Rotatable waveguide for vertical or horizontal placement
Bi-Amp/Tri-Amp switchable operation
White finish for professional installations
Compatible with optional planar array frame kits PAF-2K and PAF-3K
Specifications of AM7315
| Frequency Range (-10 dB) | 38 Hz – 20 kHz |
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 60° x 40°, rotatable waveguide |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Bi-Amp/Tri-Amp switchable |
| Crossover Frequencies | 300 Hz, 2.3 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), MF: 350 W (1400 W peak), HF: 100 W (400 W peak) |
| System Power Rating | LF: 600 W (2400 W peak), MF/HF: 200 W (800 W peak) |
| Maximum SPL (1 m) | LF: 127 dB cont avg (133 dB peak), MF: 133 dB cont avg (139 dB peak), HF: 135 dB cont avg (141 dB peak) |
| System Sensitivity (1W @ 1m) | MF/HF Section: 108 dB SPL; LF Section: 97 dB SPL; HF Section: 115 dB SPL |
| LF Driver | JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| MF Driver | JBL CMCD-82H 200 mm (8 in) Cone Midrange Compression Driver with dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | LF: 8 ohms, MF: 8 ohms, HF: 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | White DuraFlex™ finish (Black available on request) |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent white foam backing |
| Input Connector | NL8 Neutrik Speakon® and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 967 x 561 x 657 mm |
| Net Weight | 45.8 kg (101 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts, planar array frame kits |
| Origin of Country | Mexico |
